Blue SMA905 POF Pigtail, 1mm Core, 2.2mm OD
SMA905 POF pigtail with 1mm PMMA core, 2.2mm black PE jacket, 650nm, 0.3dB/m, 1m standard (0.1-40m), -55 to +85C, for industrial and sensing links.

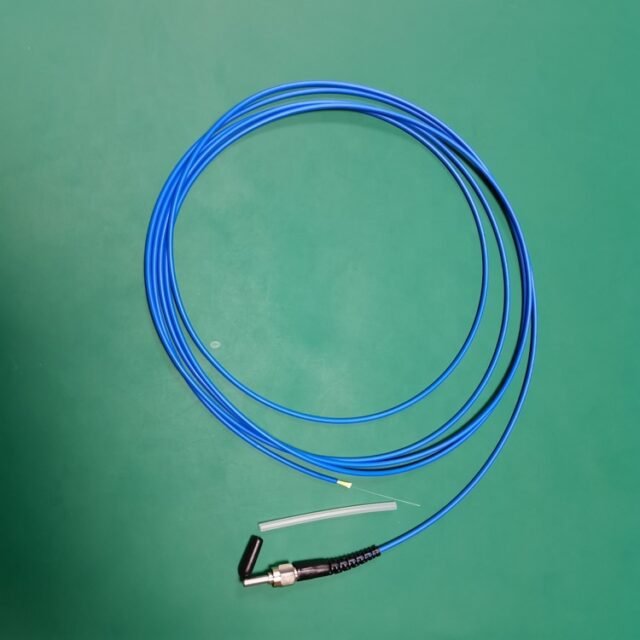

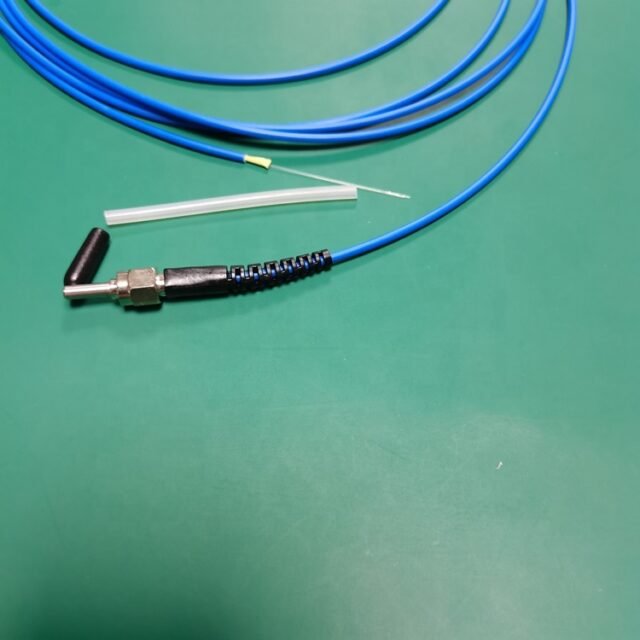

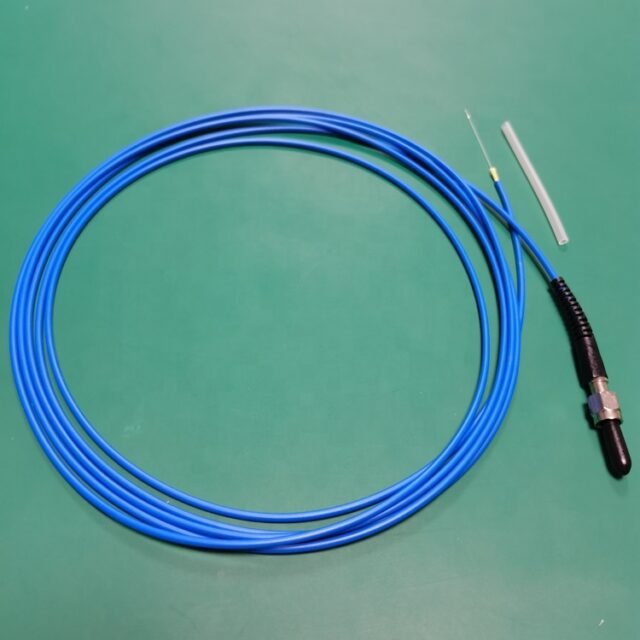

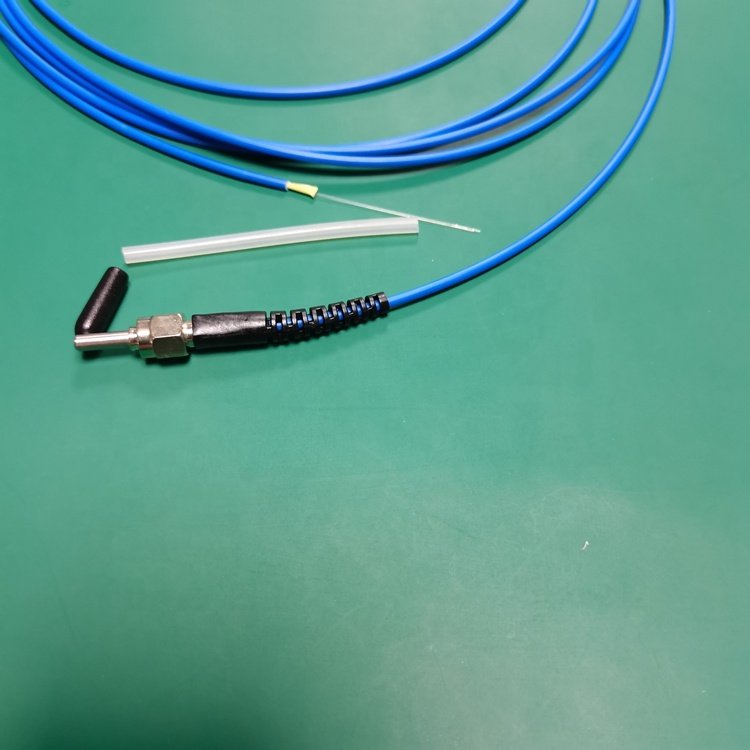

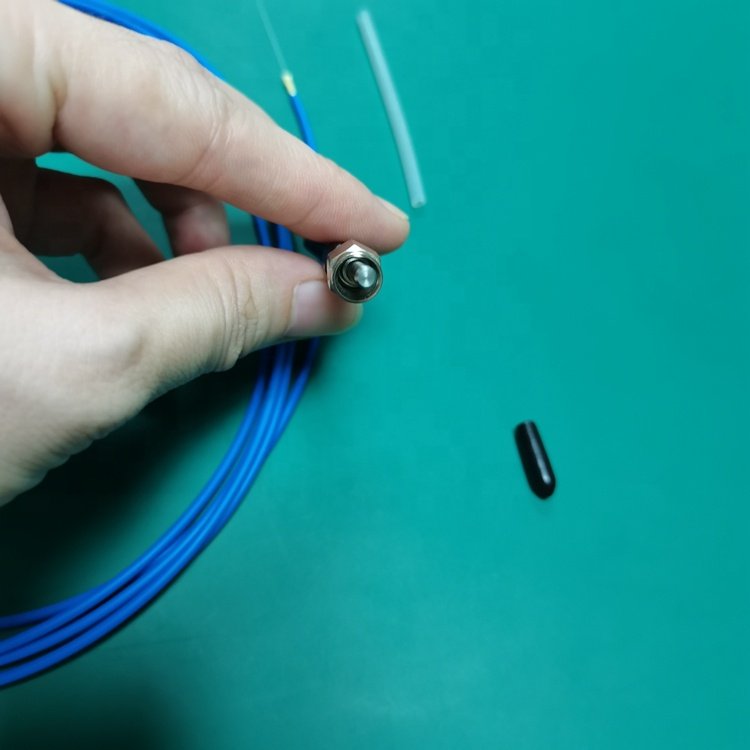

This SMA905 plastic optical fiber pigtail carries a 1 mm POF core inside a 2.2 mm PE jacket, terminated with a metal SMA905 connector on one end and a bare fiber tail on the other, for industrial sensing and short-link data use.
Product Overview
The pigtail uses a 1 mm POF transmission medium inside a 2.2 mm outer PE jacket, optimized for 650 ±15 nm wavelength with about 0.3 dB/m attenuation. The standard length is 1 m, and lengths from 0.1 to 40 m can be customized (common options 1, 2, 3, 5, 10, 20, 40 m). See the full range on our POF fiber optical cable category page.
Key Features
- 1 mm POF core, 2.2 mm outer PE jacket; SMA905 metal connector.
- 650 ±15 nm wavelength; attenuation about 0.3 dB/m.
- Standard 1 m; customizable 0.1-40 m in 1/2/3/5/10/20/40 m steps.
- Operating temperature -55 to +85 °C; single-conductor pigtail.
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supplier SKU | KINZ-SMA04 | – | supplier docx |
| Connector type | SMA905 | – | metal ferrule |
| Transmission medium | POF 1.0 | mm | PMMA |
| Outer diameter | 2.2 | mm | black PE jacket |
| Wavelength | 650 ±15 | nm | supplier docx |
| Attenuation | 0.3 | dB/m | supplier docx |
| Standard length | 1 (customizable 0.1-40) | m | common 1/2/3/5/10/20/40 m |
| Operating temperature | -55 to +85 | °C | supplier docx |
| Number of conductors | 1 | – | single-core pigtail |
Applications
- Industrial automation, electrical automation and sensing links using SMA905 ports.
- Wind power, photovoltaic, medical, rail transit and smart-home short-range optical links.
- Equipment with HCS/H-PCF 200/230 µm or POF interfaces that accept SMA905.
Browse the rest of the POF cable range for other SMA, ST, FC, SC-RJ, F05 and F07 patch cords.
Ordering & Customization
Please confirm the required length (standard 1 m or 0.1-40 m custom) and whether you need SMA905 on one end (pigtail) or both ends (jumper). We do not list fixed pricing online; contact our sales team for a quote. More answers are on our FAQ for H-PCF and POF fiber assemblies, and you can return to the home page any time.
FAQ
What is the difference between a pigtail and a patch cord?
A pigtail has a connector on one end and a bare fiber tail on the other, usually for splicing or terminating inside a device; a patch cord has connectors on both ends. This product is a pigtail (SMA905 on one end).
Is the cable blue or black?
The listing title calls it blue, and the product photos show a blue jacket; the quick-details box says black. We follow the visible blue jacket; confirm jacket color at order time.
What fiber core does it use?
The supplier states a 1.0 mm POF core inside a 2.2 mm PE outer jacket, optimized for 650 nm; it is PMMA-based POF, not glass or H-PCF.
