Kato Crane Red POF Fiber Optic Cable, SMA, 32m
Red POF crane fiber optic cable for Kato cranes, 1.0mm Toray core, 3.65mm OD, SMA metal connector, <180 dB/km, -55 to +85C, 32m standard, customizable.

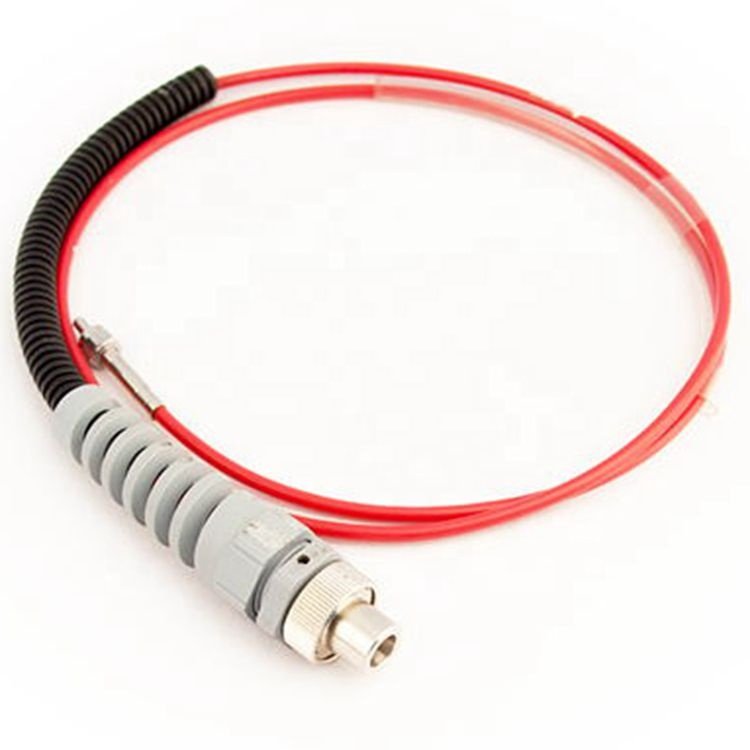

This red POF fiber optic cable for Kato cranes is a ruggedized plastic optical fiber patch cord with a metal SMA connector, built for signal transmission on cranes, excavators and other heavy equipment.
Product Overview

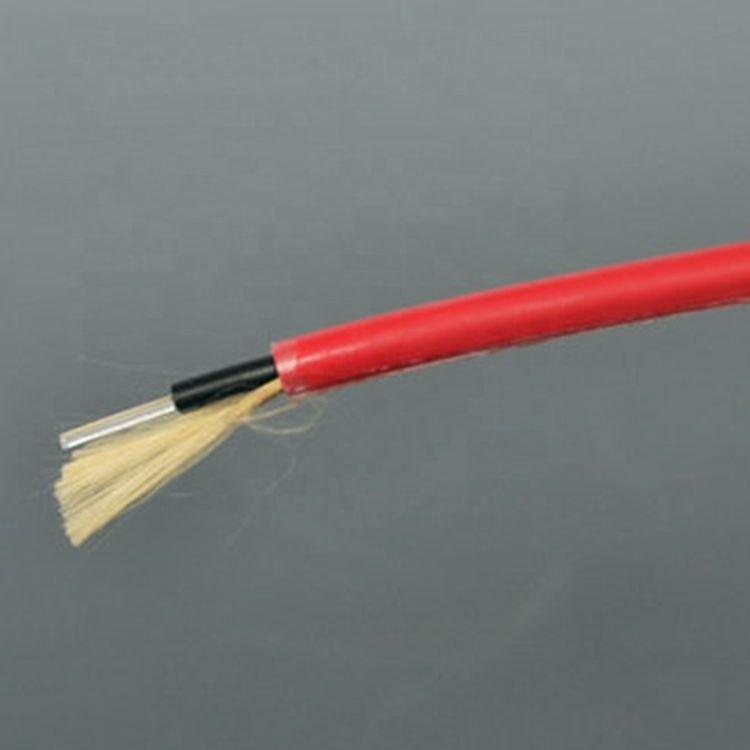

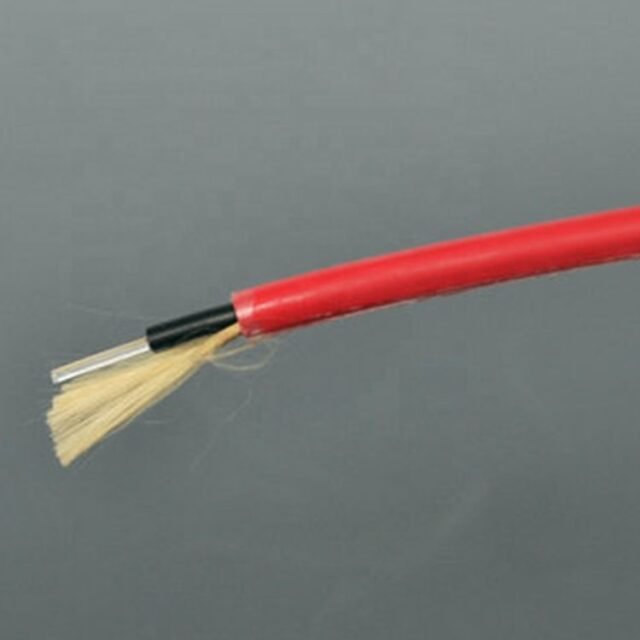

The cable uses a 1.0 mm Toray-imported PMMA core inside a 3.65 mm finished red jacket (PE/PVC), with an SMA metal-ferrule connector on the end. It is designed for anti-pull, waterproof and pressure-proof use on crane swing and sensor signal paths. Standard length is 32 m per the listing, and any length from 0 to 100 m can be customized. See the full range on our POF fiber optical cable category page.
Key Features
- 1.0 mm Toray-imported PMMA core; finished diameter 3.65 mm, red PE/PVC jacket.

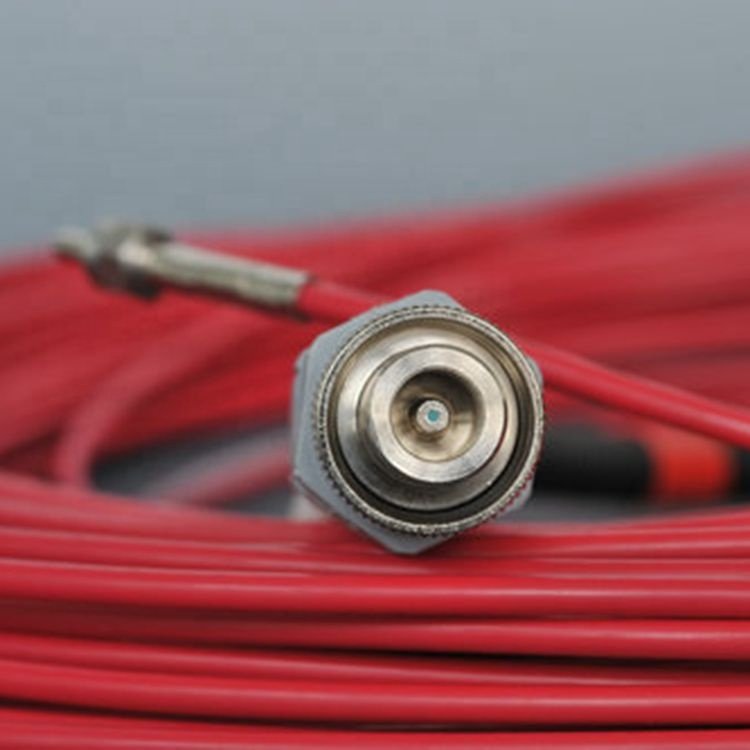

- SMA metal-ferrule connector; low insertion loss and high-precision coupling.
- Attenuation <180 dB/km; operating temperature -55 to +85 °C.
- Anti-pull, waterproof, pressure-proof, anti-abrasion and non-conductive; immune to EMI.
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supplier SKU | KINZ-J05 | – | supplier docx |
| Interface type | SMA connector | – | metal ferrule |
| Core material | Toray imported PMMA | – | supplier docx |
| Core diameter | 1.0 | mm | supplier docx |
| Finished outer diameter | 3.65 | mm | supplier docx |
| Outer jacket material / color | PE/PVC, red | – | supplier docx |
| Attenuation | <180 | dB/km | supplier docx |
| Operating temperature | -55 to +85 | °C | supplier docx |
| Standard length | 32 (customizable 0-100) | m | supplier docx |
| Weight | 1 | kg | supplier docx |
Applications
- Kato crane swing and sensor signal links; compatible with KATO crane control systems.
- Excavators, cranes and other heavy equipment where copper wiring suffers from EMI and wear.
- Data centers, industrial control, power systems and home networks where a rugged POF link is needed.
Browse the rest of the POF cable range for other patch cords and sensor jumpers.
Ordering & Customization
Please confirm the required length (standard 32 m or custom 0-100 m) and connector type at each end. We do not list fixed pricing online; contact our sales team for a quote. More answers are on our FAQ for H-PCF and POF fiber assemblies, and you can return to the home page any time.
FAQ
Is this cable a direct replacement for a Kato crane OEM cable?
It is a POF crane-grade cable built for Kato crane signal paths, but please confirm the exact length, connector interface and pinout against your machine model before ordering. We do not claim OEM authorization.
What does SMA connector mean here?
SMA (Sub-Miniature Version A) uses a metal threaded ferrule; in this product it is a metal-ferrule POF connector rather than the RF SMA variant. Confirm the exact SMA variant against the mating port on your crane controller.
How long can the cable be made?
The supplier lists 32 m as standard and says any length from 0 to 100 m can be customized; final length and loss depend on the link budget, so confirm at order time.
Why Choose Us
We supply this red Kato crane POF cable by its real core (1.0 mm Toray), finished diameter (3.65 mm) and SMA connector, and keep the supplier SKU traceable rather than guessing. Start from the home page or the POF category to explore related products.
