Toshiba JIS F07 F05 POF Connector (TOCP172)
Original Toshiba JIS F07/F05 duplex POF connector for 2.2 mm figure-8 PMMA fiber. TOCP172-grade industrial optical connector for industrial control.
The TOCP172 is a Toshiba JIS F07/F05 duplex plastic optical fiber (POF) connector intended for 2.2 mm figure-8 PMMA fiber, commonly used in industrial control, measurement equipment and automotive optical links. It mates to the JIS F07 receptacle and is the duplex counterpart of the single-fiber TOCP connector family.
Product Overview

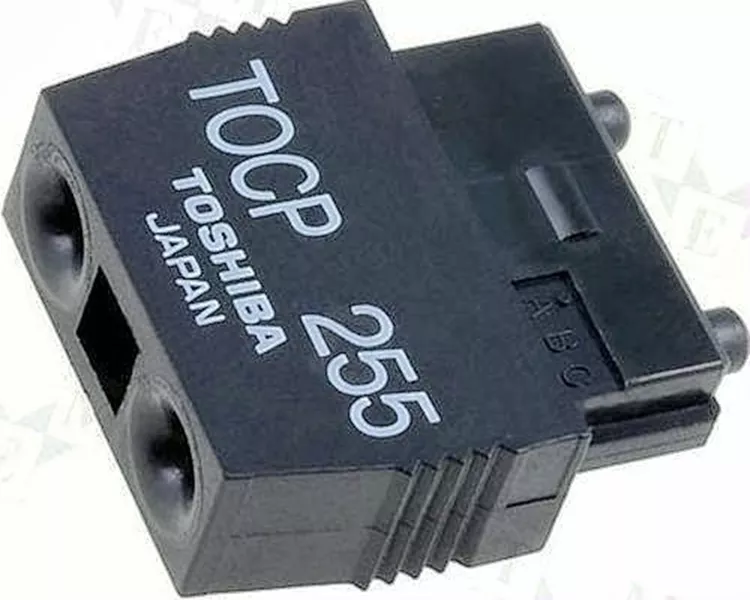

The folder is cataloged as a TOCP172 connector kit. The supplied product photographs show Toshiba TOCP duplex connectors marked TOCP 255 / TOCP 200 grade, so the listing covers the Toshiba JIS F07/F05 duplex POF connector family rather than a single ferrule style.
The connector terminates 1.0 mm core / 2.2 mm sheath figure-8 PMMA fiber (0.98 mm core, 1.0 mm cladding, 2.2 mm sheath, 4.3 mm sheathing width) and is assembled with a crimp/sleeve ferrule and a strain-relief boot.
Key Features
- JIS F07/F05 duplex interface for figure-8 POF
- Terminates 0.98/1.0 mm core-cladding, 2.2 mm sheath PMMA fiber
- Toshiba original ferrule and housing
- Yellow strain-relief boot for flexible strain relief
- Plastic connector body for low-cost industrial links
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Connector type | Duplex POF connector | – | JIS F07 / F05 interface |
| Ferrule / brand | Toshiba TOCP | – | TOCP172 family; photos show TOCP255/200 grades |
| Fiber core diameter | 0.98 | mm | PMMA |
| Fiber cladding diameter | 1.0 | mm | Fluoric resin |
| Fiber sheath diameter | 2.2 | mm | Polyethylene resin |
| Sheathing width | 4.3 | mm | Figure-8 duplex cross-section |
| Connector height | 7 | mm | TOCP255 grade, per drawing |
| Operating temperature | -40 ~ +75 | C | Generic POF connector range |
Applications
- Industrial control and PLC optical backplanes
- Measurement and test equipment
- Automotive MOST-style optical links
- Short-range point-to-point POF data links
See our full fiber optic connector range for other connector styles and fiber sizes. Visit the home page or read the FAQ for fiber selection help.
Ordering & Customization
We supply assembled TOCP duplex patch cords and bulk connector kits. Custom lengths, boot colors and duplex/single configurations are available. Send the equipment model and required length for a quotation.
FAQ
Is this connector compatible with my existing TOCP port? It is a JIS F07/F05 duplex connector designed for 2.2 mm figure-8 POF. Confirm your equipment receptacle is the JIS F07 duplex type and the fiber is 0.98/1.0/2.2 mm PMMA before ordering; send us a photo of the port and we will verify.
Why Choose Us
JS TECH (JINSHANG TECH) supplies industrial POF and H-PCF connector assemblies with verified Toshiba/Mitsubishi/Sumitomo compatible termination. We do not invent datasheet values; dimensions here are taken from the manufacturer drawing and are cross-checked per order.
For pricing, lead time or custom lengths, contact our sales team.
