Toshiba TOCP155/TOCP200 JIS F05 POF Patch Cord
Genuine Toshiba TOCP155 (simplex) and TOCP200 (duplex) JIS F05 POF patch cords, 1.0mm core, 2.2mm OD, 160 dB/km, 1-10m standard, customizable to 100m, for.
This Toshiba TOCP155 / TOCP200 plastic optical fiber patch cord is a JIS F05 simplex or duplex POF jumper with genuine Toshiba connectors, used in industrial control and short-range optical data links.
Product Overview

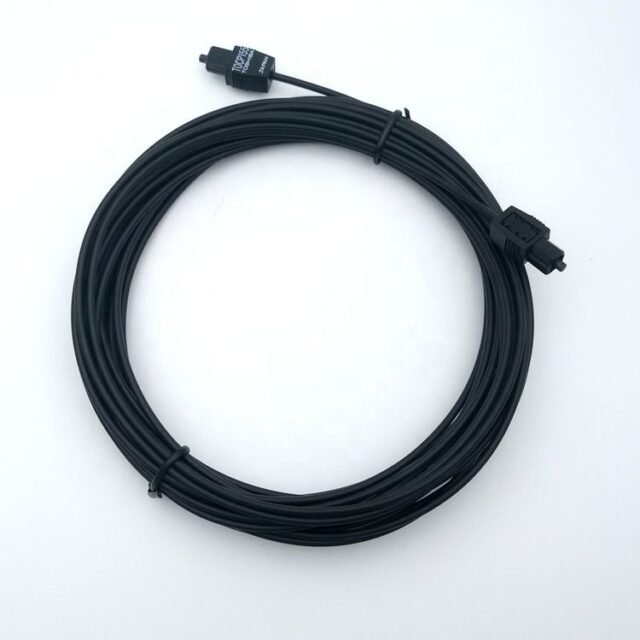

The TOCP series uses a 1.0 mm POF core inside a 2.2 mm finished cable (optionally 2.2-10.0 mm), with a plastic sheath and metal ferrule. TOCP155 is simplex (one-direction communication); TOCP200 is duplex (send and receive at the same time). Standard lengths are 1, 5 and 10 m, with any length from 0 to 100 m customizable. See the full range on our POF fiber optical cable category page.
Key Features
- Genuine Toshiba TOCP connectors (JIS F05/F07 interface family).
- 1.0 mm POF core; 2.2 mm finished diameter (optional 2.2-10.0 mm).
- Attenuation about 160 dB/km (quick details); performance section lists <180 dB/km.
- Operating temperature -55 to +85 °C; 1/5/10 m standard, 0-100 m customizable.
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Connector / model | Toshiba TOCP155 (simplex) / TOCP200 (duplex) | – | JIS F05 family |
| Supplier SKU | KINZ-T01 | – | supplier docx |
| Core diameter | 1.0 | mm | POF (domestic or imported Japanese) |
| Finished cable diameter | 2.2 (optional 2.2-10.0) | mm | docx quick details lists 2.2*4.4 mm |
| Numerical aperture / AFR | 980/1000 | µm | per quick details |
| Attenuation | 160 (<180 in performance section) | dB/km | conflict in docx |
| Jacket material / color | CPE/PE/PVC, fog black | – | other colors customizable |
| Standard length | 1, 5, 10 (customizable 0-100) | m | supplier docx |
| Working temperature | -55 to +85 | °C | supplier docx |
Applications
- Industrial control networks using Toshiba TOCP transceivers and PLCs.
- Simplex (TOCP155) and duplex (TOCP200) POF links in factory automation.
- Short-range EMI-immune data links where copper cabling is unsuitable.
Browse the rest of the POF cable range for other JIS F05/F07 and H-PCF patch cords.
Ordering & Customization
Please confirm TOCP155 (simplex) or TOCP200 (duplex), required length (1/5/10 m standard or 0-100 m custom) and jacket color. We do not list fixed pricing online; contact our sales team for a quote. More answers are on our FAQ for H-PCF and POF fiber assemblies, and you can return to the home page any time.
FAQ
What is the difference between TOCP155 and TOCP200?
TOCP155 is simplex and transmits in one direction; TOCP200 is duplex and can send and receive at both ends of the link. They are not interchangeable without the matching transceiver.
Are these genuine Toshiba connectors?

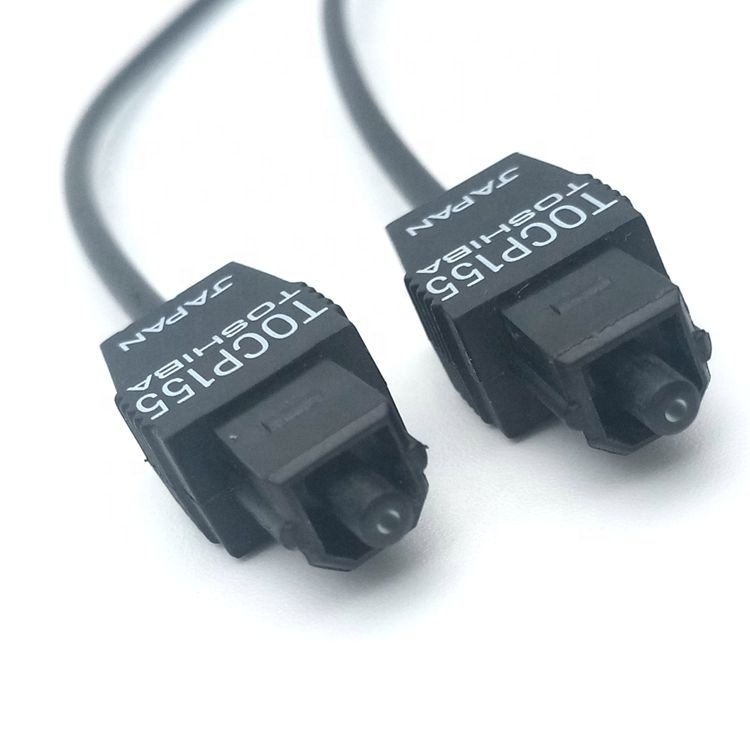

The product photos show connectors marked TOSHIBA JAPAN and TOCP155; the supplier lists Toshiba as the brand. We do not claim OEM authorization beyond what the supplier states.
What lengths are stocked?
Standard lengths are 1, 5 and 10 m; the supplier says any length from 0 to 100 m can be customized. Confirm lead time at order time.
Why Choose Us
We supply this Toshiba TOCP patch cord by its recognized TOCP155/TOCP200 part numbers, keep the simplex/duplex distinction clear, and flag the 160 vs 180 dB/km attenuation conflict rather than guessing. Start from the home page or the POF category to explore related products.
