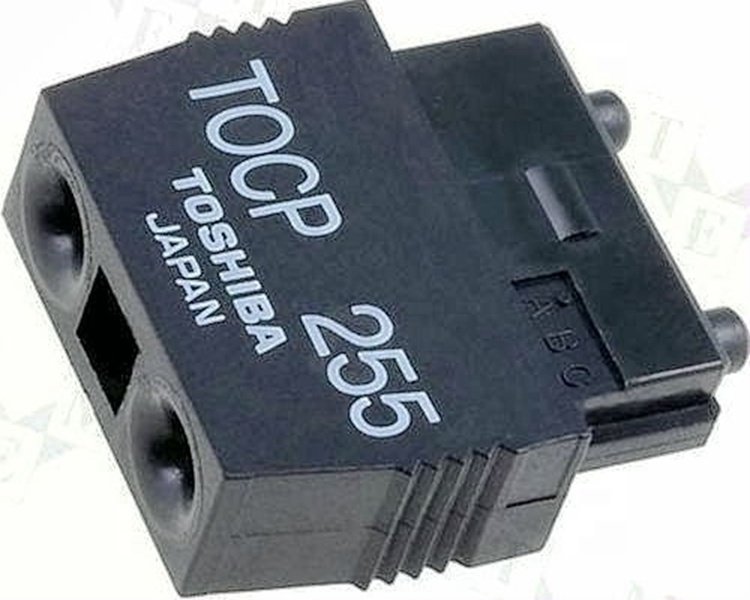

Toshiba TOCP255 JIS F07 Duplex POF Connector
Original Toshiba TOCP255 duplex JIS F07 POF connector. Height 7 mm, terminates 0.98/1.0/2.2 mm figure-8 PMMA fiber with drawing dimensions.
The Toshiba TOCP255 is a JIS F07 duplex plastic optical fiber connector. Per the manufacturer drawing the connector height is 7 +/-0.3 mm, the body sections are 6.7 and 13.5+/-0.3 mm, and it terminates a figure-8 PMMA fiber of 0.98 mm core, 1.0 mm cladding and 2.2 mm sheath (4.3 mm width).
Product Overview
TOCP255 is the Toshiba duplex POF connector used where two 1.0 mm POF fibers must be terminated in a single plug. It mates to the JIS F07 duplex receptacle found on many industrial and measurement devices.
The drawing on this page gives the mechanical envelope and the fiber cross-section, so you can verify fit against your equipment before ordering.
Key Features
- JIS F07 duplex interface
- Connector height 7 +/-0.3 mm per Toshiba drawing
- Terminates 0.98/1.0/2.2 mm figure-8 PMMA fiber
- Fluoric resin cladding, polyethylene sheath
- Toshiba original ferrule and housing
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Connector type | Duplex POF connector | – | JIS F07 |
| Connector height | 7 | mm | +/-0.3, per drawing |
| Body length section 1 | 6.7 | mm | Per drawing |
| Body length section 2 | 13.5 | mm | +/-0.3 |
| Overall connector height | 20 | mm | Per drawing |
| Fiber core diameter d1 | 0.98 | mm | PMMA |
| Fiber cladding diameter d2 | 1.0 | mm | Fluoric resin |
| Fiber sheath diameter D1 | 2.2 | mm | Polyethylene resin |
| Sheathing width W1 | 4.3 | mm | Figure-8 |
Applications
- Industrial control optical links
- Test and measurement equipment
- Toshiba JIS F07 device ports
- Short POF duplex patch cords
See our full fiber optic connector range for other connector styles and fiber sizes. Visit the home page or read the FAQ for fiber selection help.
Ordering & Customization
We supply TOCP255 duplex connector kits and pre-assembled patch cords. Send the device model and required length for a quotation; custom boot colors are available.
FAQ
What fiber does the TOCP255 accept? It accepts the standard JIS F07 figure-8 duplex POF: 0.98 mm PMMA core, 1.0 mm fluoric cladding, 2.2 mm polyethylene sheath and 4.3 mm total width. If your fiber differs, contact us before ordering.
Why Choose Us
Dimensions on this page are transcribed directly from the Toshiba TOCP255 drawing and not guessed. We verify each order against the actual fiber size and equipment port.
For pricing, lead time or custom lengths, contact our sales team.
