LC/SC/FC/ST Fast (Quick) Connector for FTTH
Field-installable LC/SC/FC/ST fast (quick) connector for FTTH and indoor fiber termination. No epoxy, quick-cure mechanical splice connector.

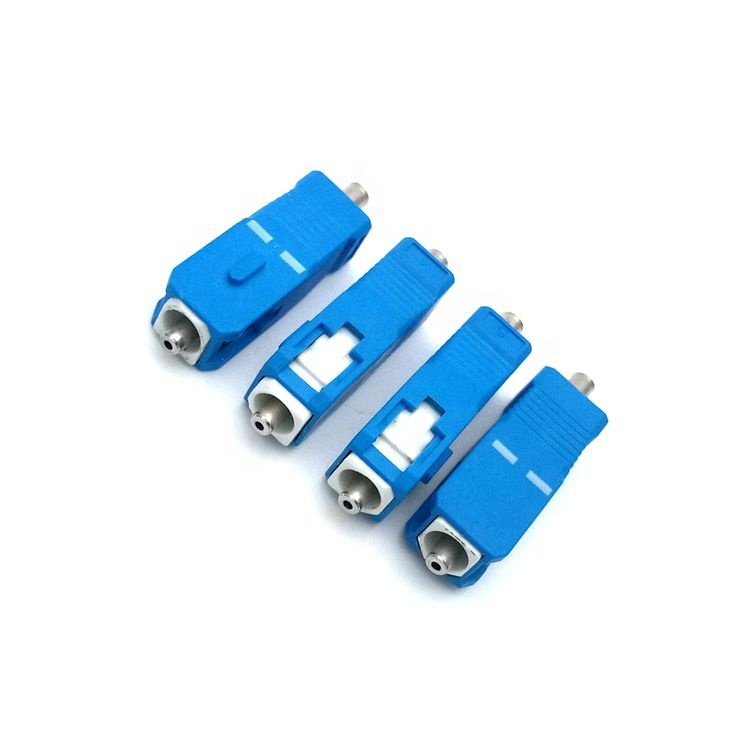

This is a field-installable fast (quick) fiber connector available in LC, SC, FC and ST styles for FTTH and indoor drop-cable termination. It uses a mechanical splice and no epoxy/curing oven, so a technician can terminate a fiber in minutes at the wall or terminal.
Product Overview
Fast connectors are pre-polished mechanical-splice connectors. They are widely used in FTTH drop cables, indoor wiring and repair where a fast, low-equipment termination is required.
They are intended for single-mode and multimode glass drop fiber (not for large-core POF); confirm fiber type and outer diameter before ordering.
Key Features
- Field-installable, no epoxy or oven
- LC / SC / FC / ST styles
- Pre-polished mechanical splice
- Fast termination in minutes
- For FTTH and indoor drop cable
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Connector styles | LC / SC / FC / ST | – | Field-installable |
| Termination type | Mechanical splice | – | Pre-polished, no epoxy |
| Typical use | FTTH / indoor drop | – | Glass fiber |
| Insertion loss (typical) | <=0.2 | dB | Per supplier generic table |
| Operating temperature | -40 ~ +75 | C | Per generic table |
| Cable diameter | 0.9 / 2.0 / 3.0 | mm | Per generic table |
Applications
- FTTH drop cable termination
- Indoor fiber wiring and repair
- MDU / home terminal installation
- Fast field fiber restoration
See our full fiber optic connector range for other connector styles and fiber sizes. Visit the home page or read the FAQ for fiber selection help.
Ordering & Customization
We supply fast connectors in LC/SC/FC/ST for glass drop fiber, plus POF-specific connectors for plastic fiber. Tell us your fiber type and we will send the right connector.
FAQ
Can I use these fast connectors on POF? These fast connectors are designed for glass single-mode/multimode drop fiber. They are not suitable for 1.0 mm POF. For POF use the ST/SMA905/TOCP POF connectors on this page.
Why Choose Us
We separate glass fast connectors from POF connectors so you do not terminate 1.0 mm plastic fiber with a glass mechanical splice.
For pricing, lead time or custom lengths, contact our sales team.
