Kato Crane SMA Panel-Mount Fiber Optic Terminal
Metal SMA panel-mount bulkhead fiber optic terminal/receptacle for Kato crane signal links, 4-hole flange, mates with red POF SMA patch cords.
This SMA panel-mount fiber optic terminal for Kato cranes is a metal bulkhead receptacle that mates with the red POF SMA patch cord used on Kato crane swing and sensor signal paths.
Product Overview

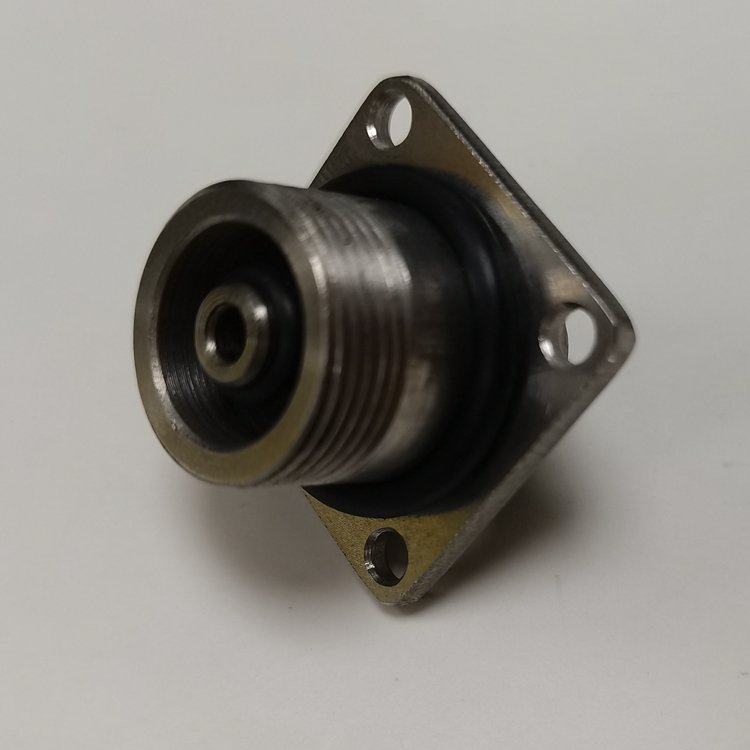

The terminal is a 4-hole flange SMA receptacle with a metal ferrule and rubber seal, designed to be panel-mounted on the crane body or rotating joint. It pairs with the 1.0 mm Toray-core red POF cable (3.65 mm finished diameter, SMA connector, <180 dB/km, -55 to +85 °C) sold separately. See the full range on our POF fiber optical cable category page.
Key Features

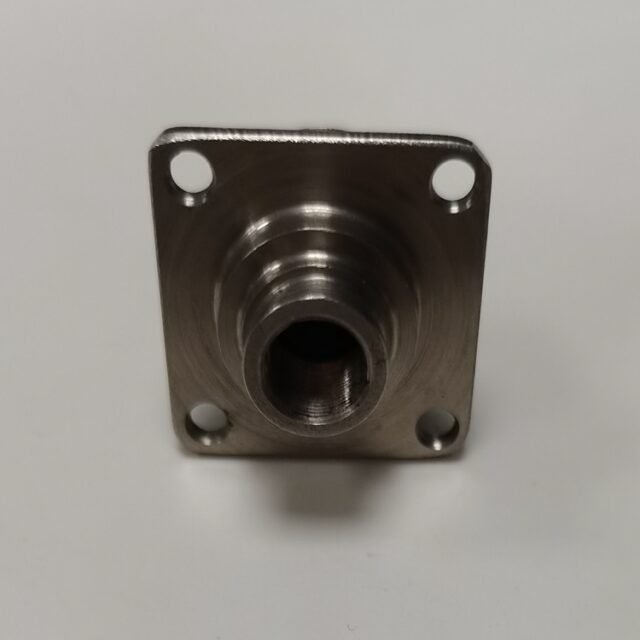

- 4-hole square flange panel-mount SMA receptacle in metal.
- Rubber seal for anti-pull and waterproof mounting.
- Mates with the red Kato crane POF SMA patch cord (1.0 mm core, 3.65 mm OD).
- Used on Kato crane signal links where a bulkhead pass-through is needed.
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supplier SKU | KINZ-J06 | – | supplier docx |
| Type | SMA panel-mount bulkhead receptacle | – | 4-hole flange |
| Material | metal ferrule with rubber seal | – | visible in photos |
| Mating cable core | 1.0 | mm | Toray imported PMMA |
| Mating cable OD | 3.65 | mm | red PE/PVC jacket |
| Mating cable attenuation | <180 | dB/km | supplier docx |
| Operating temperature | -55 to +85 | °C | supplier docx |
Applications
- Kato crane panel and rotating-joint fiber optic pass-through.
- Other heavy-equipment bulkhead POF links where a sealed SMA receptacle is required.
Browse the rest of the POF cable range for the matching red Kato crane SMA patch cord.
Ordering & Customization
Please confirm the flange hole pattern, mating cable length (standard 32 m, customizable 0-100 m) and whether you need the terminal alone or pre-assembled with cable. We do not list fixed pricing online; contact our sales team for a quote. More answers are on our FAQ for H-PCF and POF fiber assemblies, and you can return to the home page any time.
FAQ
Is this the terminal or the cable?
This listing is the SMA panel-mount terminal/receptacle itself. The red POF patch cord that plugs into it is sold separately.
What flange pattern does it use?

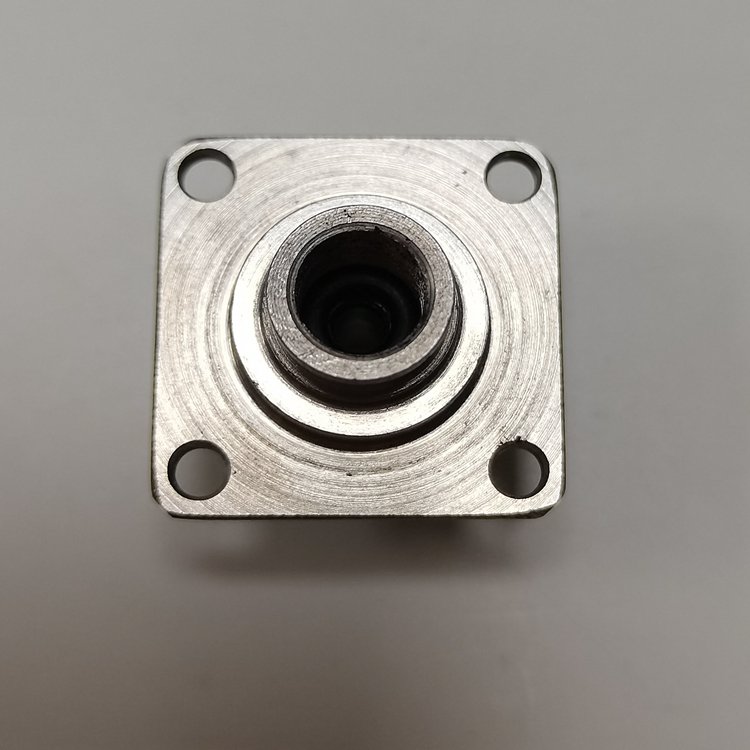

The photos show a 4-hole square metal flange; confirm the exact hole spacing against your crane panel before ordering.
Why Choose Us
We supply this Kato crane SMA terminal as a distinct bulkhead part, keep the mating cable specs traceable, and flag that the flange hole pattern needs confirmation rather than guessing. Start from the home page or the POF category to explore related products.
