Toshiba TOCP200 Duplex PMMA POF Patch Cord, JIS F07
Toshiba TOCP200 duplex plastic optical fiber patch cord, 1.0 mm PMMA core, black PE, <180 dB/km, -55 to +85 C, 1 m, for bidirectional industrial links.

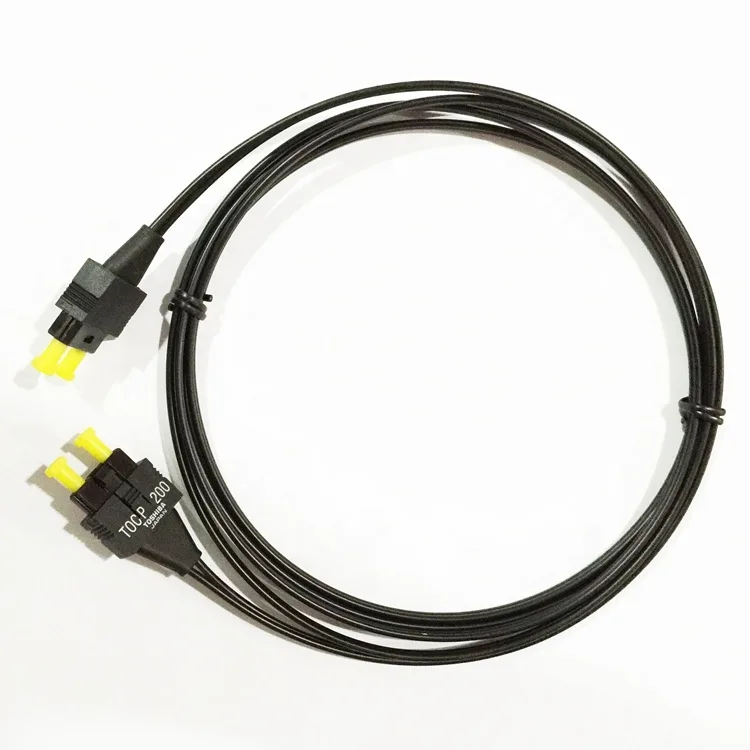

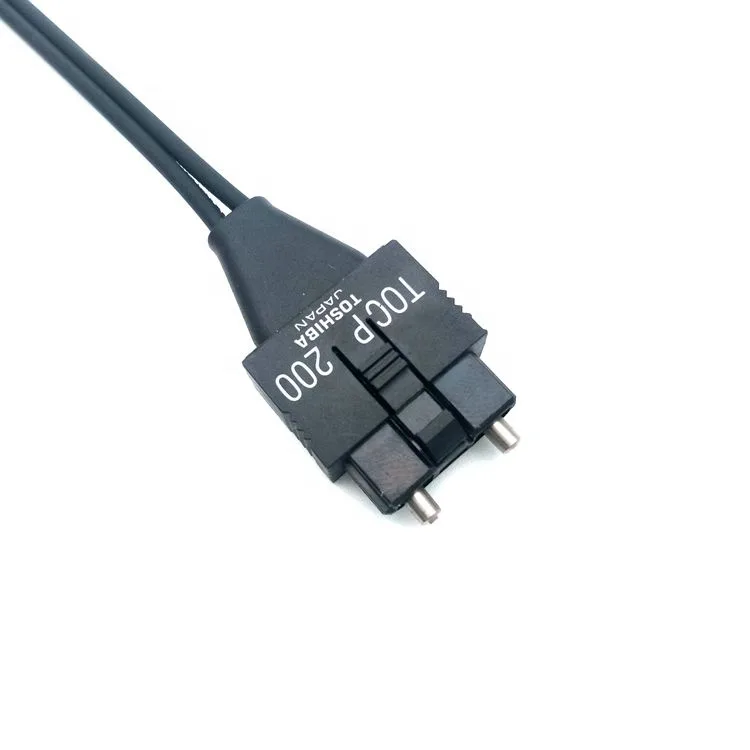

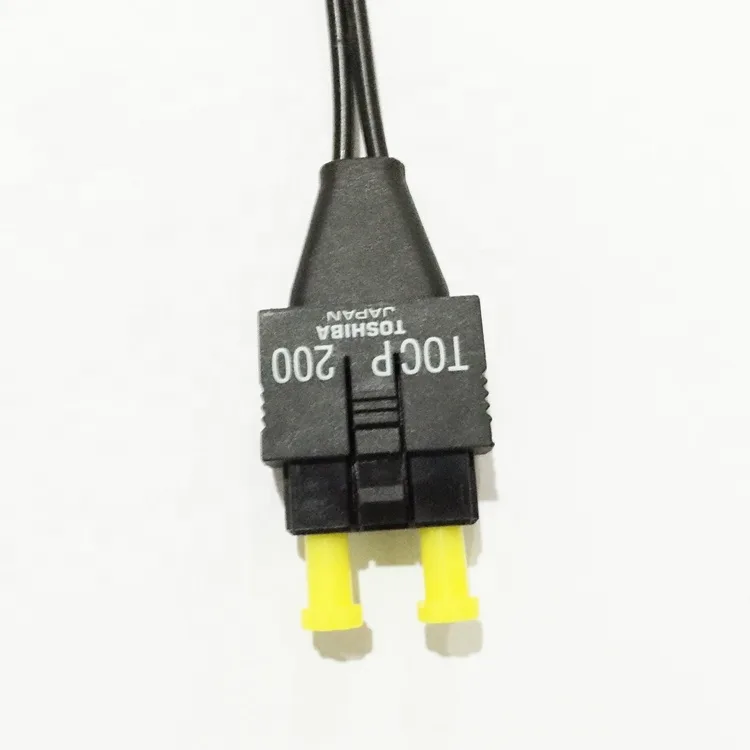

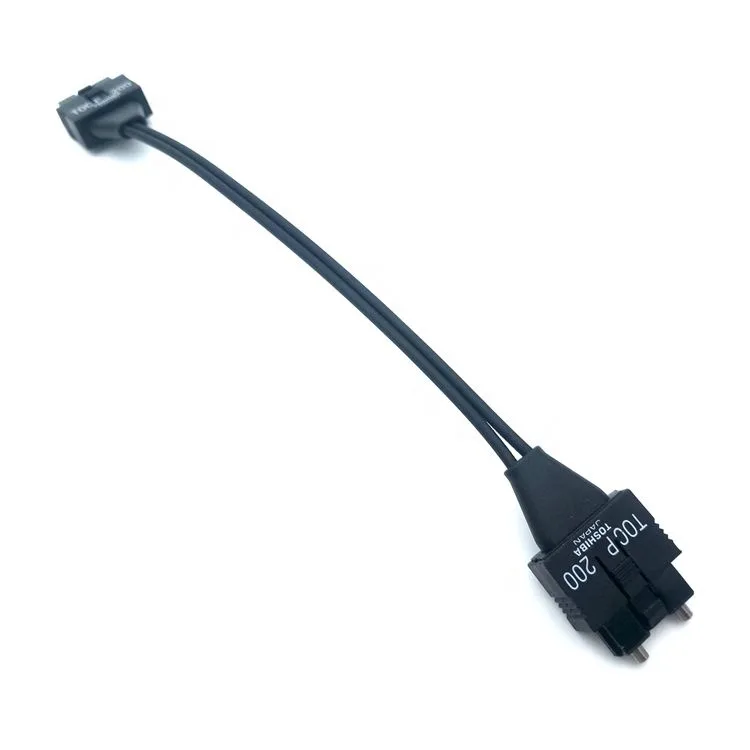

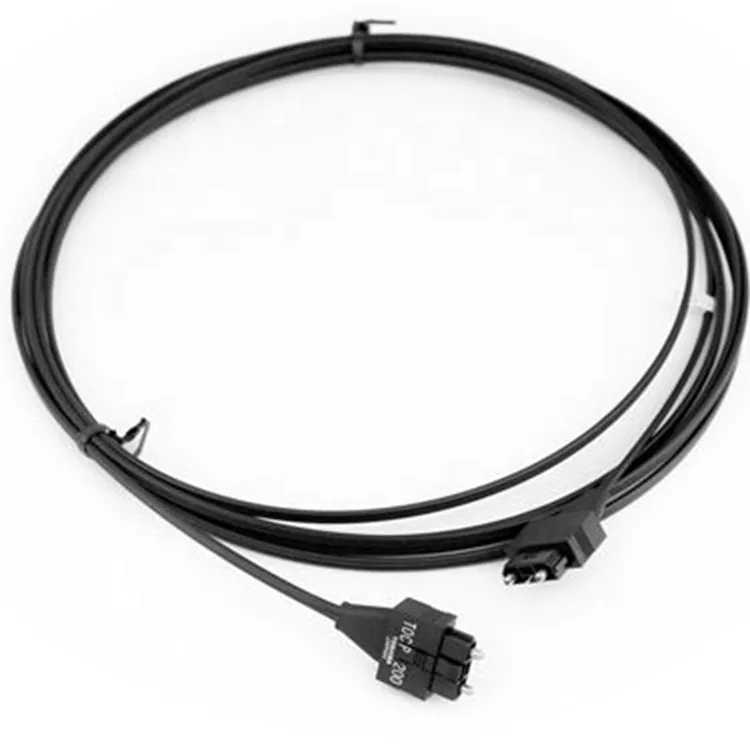

The Toshiba TOCP200 duplex POF patch cord carries two PMMA plastic optical fibers in a black PE jacket with TOCP200 (JIS F07) connectors at each end. Unlike the simplex TOCP155, the duplex TOCP200 sends and receives at the same time, making it the bidirectional jumper for Toshiba industrial-control ports.
Product Overview
This product is part of our POF fiber optical cable range. Values below are taken from the supplier datasheet and listing; where only supplier quick-details are available, they are flagged as supplier-stated and not independently measured.
Key Features
- Duplex TOCP200 (JIS F07) ends, black PE jacket.
- 1.0 mm PMMA core, two conductors.
- Attenuation <180 dB/km, −55° to +85°C.
- Standard 1000 mm, custom 0-100 m.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Interface | TOCP200 / 255 (JIS F07 duplex) | – | Also compatible family F07/155/100 per listing. |
| Fiber | PMMA, 1.0 mm core | – | Two conductors, duplex. |
| Jacket | PE, black | – | Fog/Matte black; CPE/PE/PVC options. |
| Attenuation | < 180 | dB/km | Supplier listing. |
| Operating temperature | -55 to +85 | C | Supplier listing. |
| Standard length | 1000 (custom 0-100) | mm | Supplier listing. |
Applications
Industrial automation and servo buses, robot and switching optical links, bidirectional point-to-point control networks. Browse the full POF fiber optical cable range.
Ordering & Customization
Specify length and confirm TOCP200 vs TOCP255 mating. Request a quote. More answers are on the FAQ page, and you can return to the home page.
FAQ
TOCP155 or TOCP200?
TOCP155 is simplex (one direction only); TOCP200 is duplex and carries send and receive at once. Choose to match your device port.
Why Choose Us
We supply Toshiba TOCP200 duplex jumpers by length, with simplex/duplex clearly distinguished. See the POF range, FAQ or home page.
