HPCS-ST High-Performance H-PCF Connector, 200/230 um, Metal
HPCS-ST high-performance metal connector for 200/230um H-PCF fiber, ST bayonet, ceramic ferrule, low insertion loss, for industrial servo and FA links.

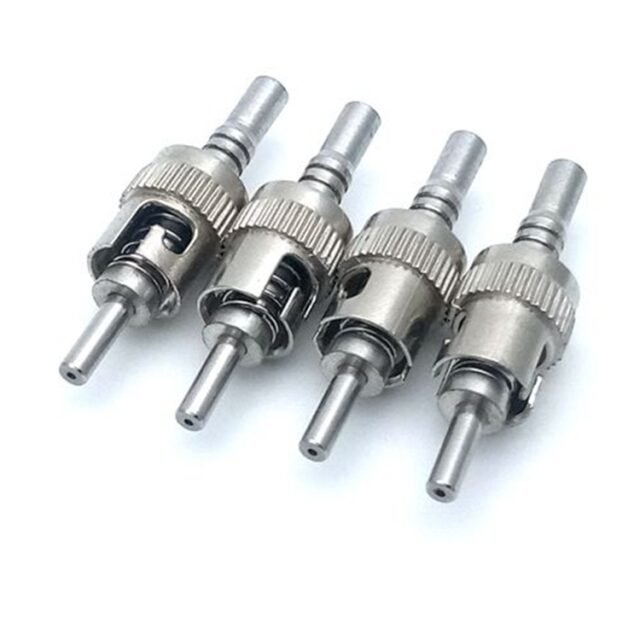

The HPCS-ST high-performance connector is a metal ST-bayonet connector built for 200/230 um hard polymer-clad fiber (H-PCF) used in industrial servo and factory-automation links.
Product Overview

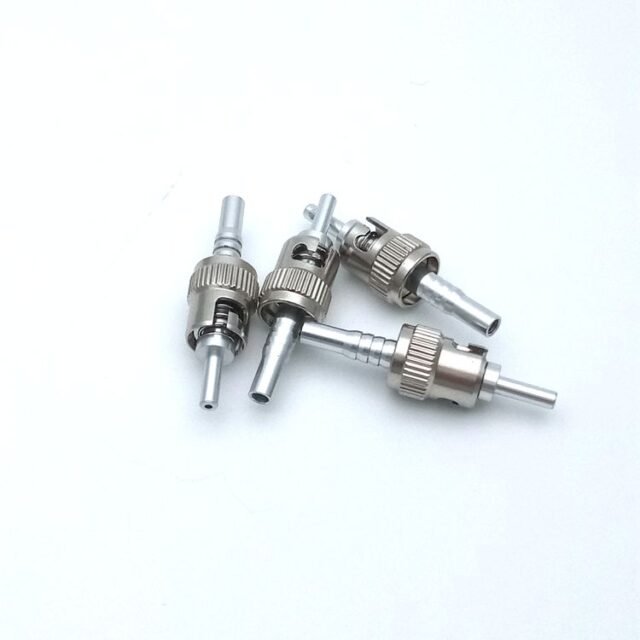

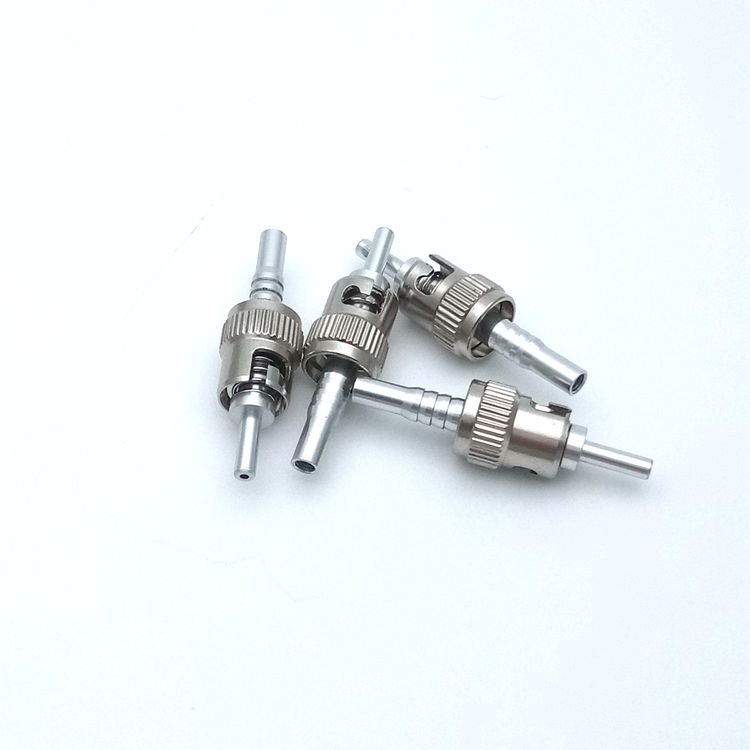

The small metal ferrule matches the 200/230 um H-PCF cladding diameter, and the ST bayonet interface mates reliably on machine ports. It belongs to our connector module category.
Key Features
- HPCS-ST for 200/230 um H-PCF.

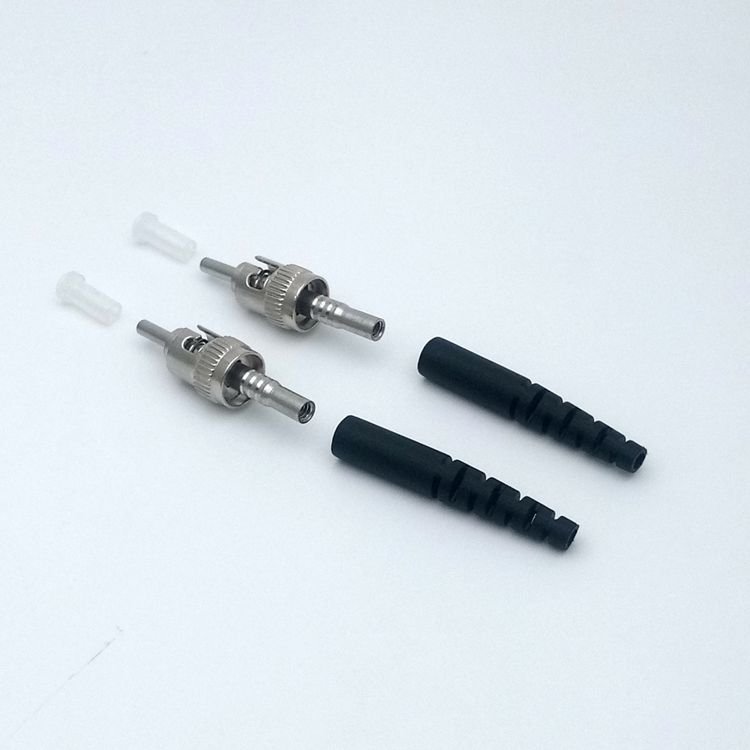

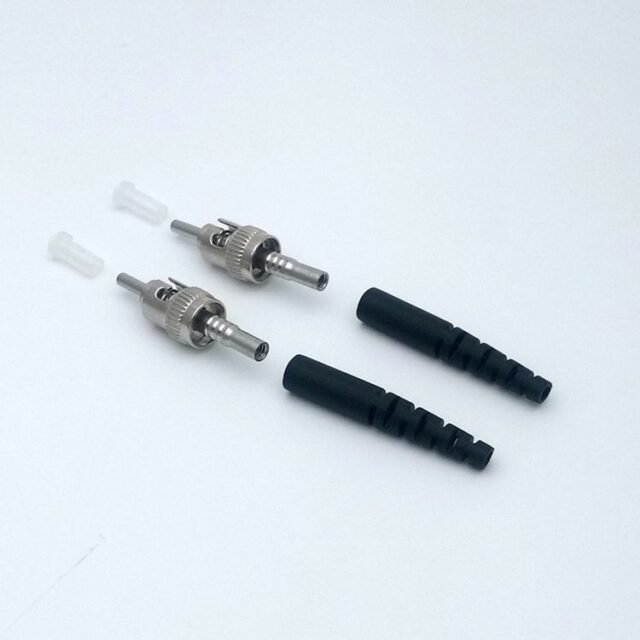

- Metal ST bayonet body with black boot and dust cap.
- Low insertion loss; 1000 mating cycles.
- Suited to servo / FA optical links.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Connector type | ST-style HPCS (high performance) | – | Folder name |
| Fiber | H-PCF 200 / 230 | um | Folder name / docx context |
| Ferrule | Metal, small bore | – | Per photos |
| Insertion loss typical | <=0.20 | dB | docx ST template |
| Return loss | >=50.0 | dB | docx |
| Durability | 1000 | insertions | docx |
| Operating temperature | -20 to +70 | deg C | docx |
Applications
- Industrial automation and control-bus optical links.
- Sensing and short-range data links where copper picks up noise.
- Equipment-to-device optical interconnections in cabinets and on machines.
Browse our full fiber optic connector module category for related parts.
Ordering and Customization
Tell us the fiber core/cladding, required length or quantity, and whether you need the part loose, as a kit, or pre-assembled. Request a quote at sales@fevelectronics.com. More background is in the FAQ for H-PCF and POF assemblies; return to the home page.
FAQ
Can you supply this pre-assembled to my fiber length? Yes – we can supply the part loose, as a kit, or pre-assembled to your specified fiber and length. Contact us with the fiber and length.
Do you certify these connectors? Supplier listings state ISO9001/RoHS manufacturing certifications, but we do not claim system-level or compatibility certification; confirm the interface against your equipment.
Why Choose Us
We supply industrial POF and H-PCF connectors, adapters and assemblies with supplier parameters checked before quoting, and we flag the bore, fiber and interface values that need confirmation rather than overstating compatibility. Start from the fiber optic connector module category or the home page.
