HPCS-SMA905 H-PCF Connector, 200/230 um, Ceramic Ferrule
HPCS-SMA905 metal connector bored for 200/230um H-PCF, ceramic ferrule, threaded coupling, for industrial and sensing optical links.
The HPCS-SMA905 high-performance connector is a threaded metal SMA905 connector bored for 200/230 um H-PCF (HCS) fiber, with a ceramic ferrule.
Product Overview
The knurled SMA905 coupling gives a repeatable threaded connection for 200/230 um hard-clad silica links in industrial and sensing systems. It is part of our connector module range.
Key Features
- SMA905 threaded body for 200/230 um H-PCF.
- Ceramic ferrule, metal knurled coupling nut.

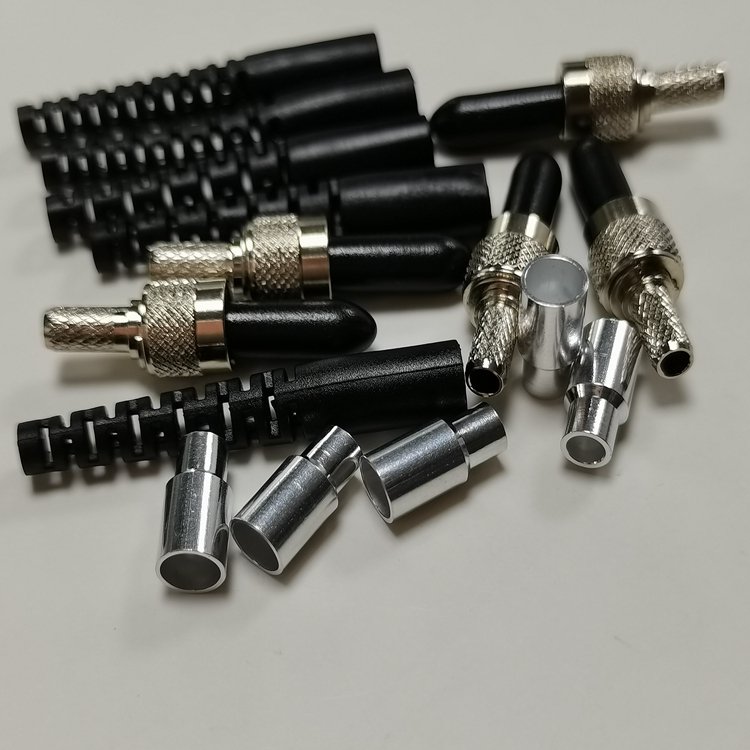

- Supplied assembled or as a kit with boots and sleeves.
- Suited to industrial servo and sensing light delivery.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Connector type | SMA905 (HPCS high performance) | – | Folder name / docx |
| Fiber | HCS / H-PCF 200 / 230 | um | docx |
| Ferrule material | Ceramic | – | docx |
| Body | Metal, knurled threaded | – | Per photos |
| Insertion loss typical (SMA905 SM) | <=0.3 | dB | Reference sheet |
| Operating temperature | -40 to +75 | deg C | Reference sheet |
| Cable diameter range | Phi3.0 / Phi2.0 / Phi0.9 | mm | Reference sheet |
Applications
- Industrial automation and control-bus optical links.
- Sensing and short-range data links where copper picks up noise.
- Equipment-to-device optical interconnections in cabinets and on machines.
Browse our full fiber optic connector module category for related parts.
Ordering and Customization
Tell us the fiber core/cladding, required length or quantity, and whether you need the part loose, as a kit, or pre-assembled. Request a quote at sales@fevelectronics.com. More background is in the FAQ for H-PCF and POF assemblies; return to the home page.
FAQ
Can you supply this pre-assembled to my fiber length? Yes – we can supply the part loose, as a kit, or pre-assembled to your specified fiber and length. Contact us with the fiber and length.
Do you certify these connectors? Supplier listings state ISO9001/RoHS manufacturing certifications, but we do not claim system-level or compatibility certification; confirm the interface against your equipment.
Why Choose Us
We supply industrial POF and H-PCF connectors, adapters and assemblies with supplier parameters checked before quoting, and we flag the bore, fiber and interface values that need confirmation rather than overstating compatibility. Start from the fiber optic connector module category or the home page.
