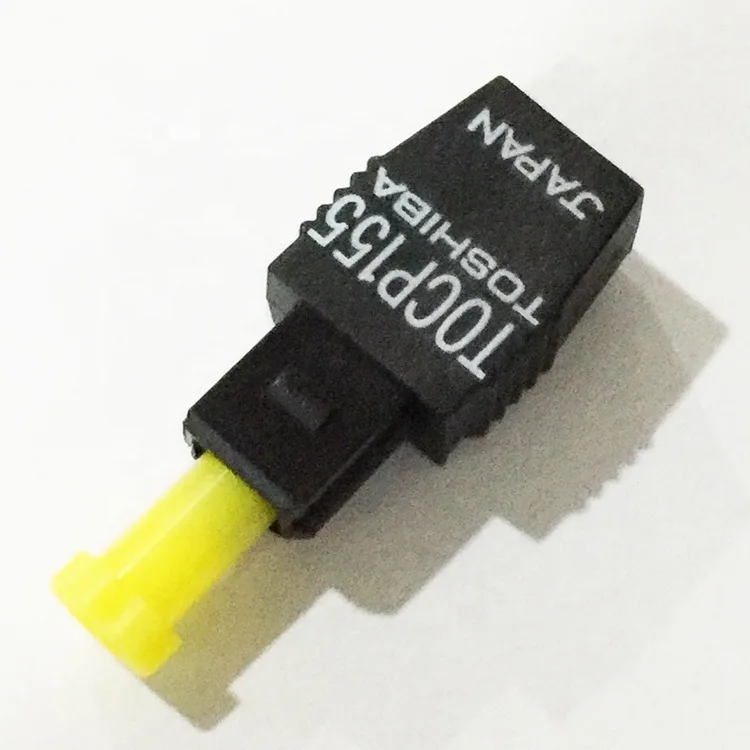

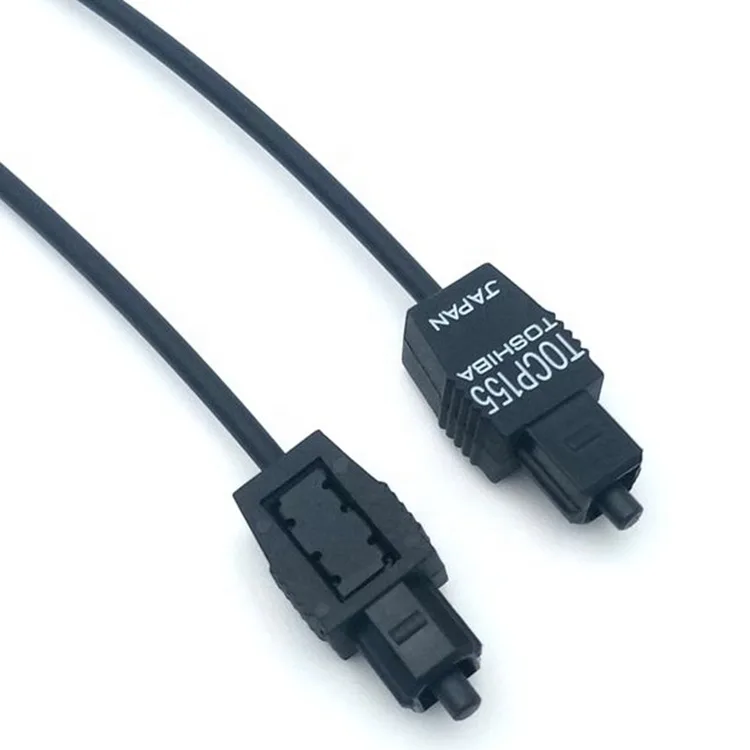

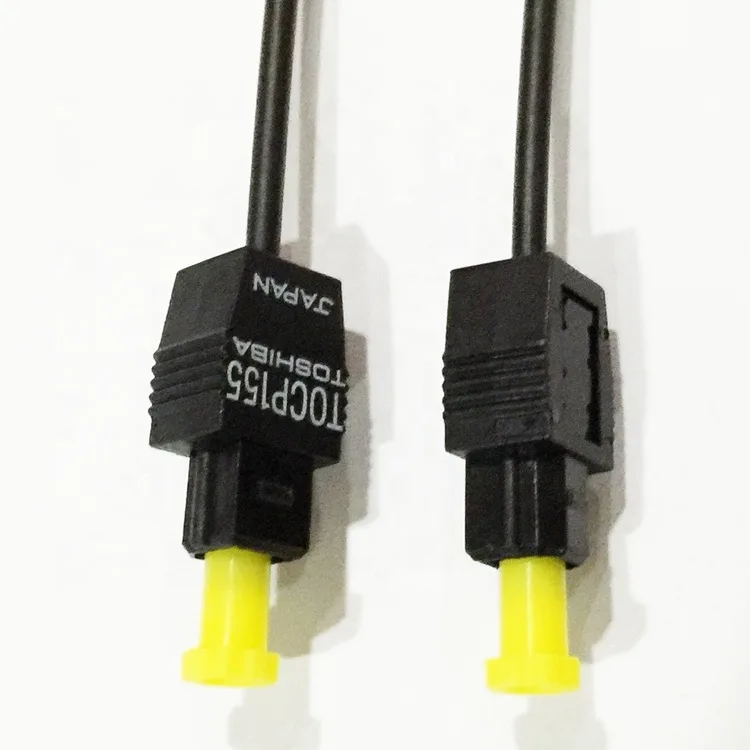

Toshiba TOCP155 JIS F05 Simplex POF Cable, 980/1000 um
Original Toshiba TOCP155 simplex POF cable, JIS F05, 0.98 mm PMMA core / 1.0 clad / 2.2 PE sheath, -20 to +70 C, min bend 25 mm.
The Toshiba TOCP155 is an all-plastic-fiber cable with a JIS F05 simplex connector, built on APF 980/1000 µm PMMA fiber. Per the official Toshiba datasheet, the core is 0.98 mm, cladding 1.0 mm and the polyethylene sheath 2.2 mm, rated for −20° to +70°C operation.
Product Overview
This product is part of our fiber optic connector range. Values below are taken from the supplier datasheet and listing; where only supplier quick-details are available, they are flagged as supplier-stated and not independently measured.
Key Features

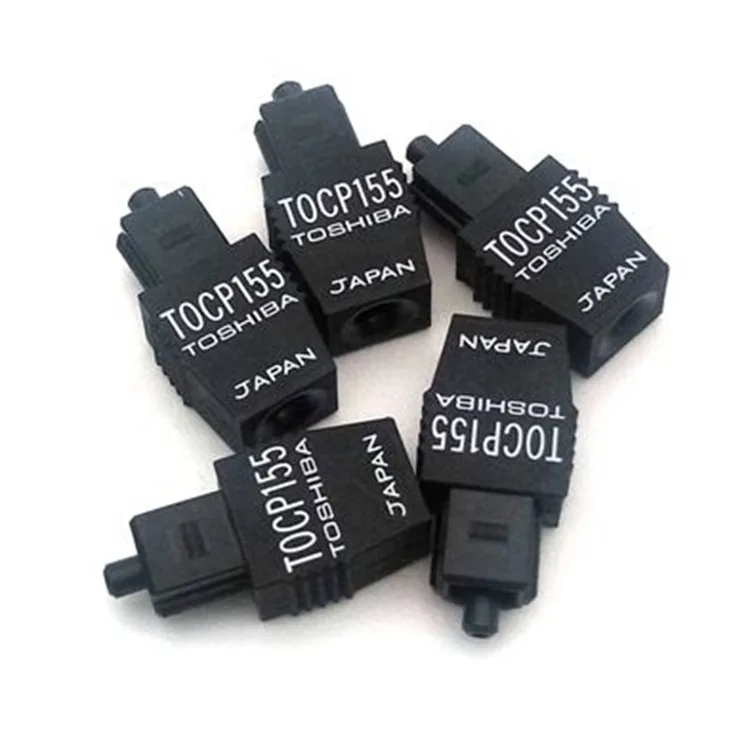

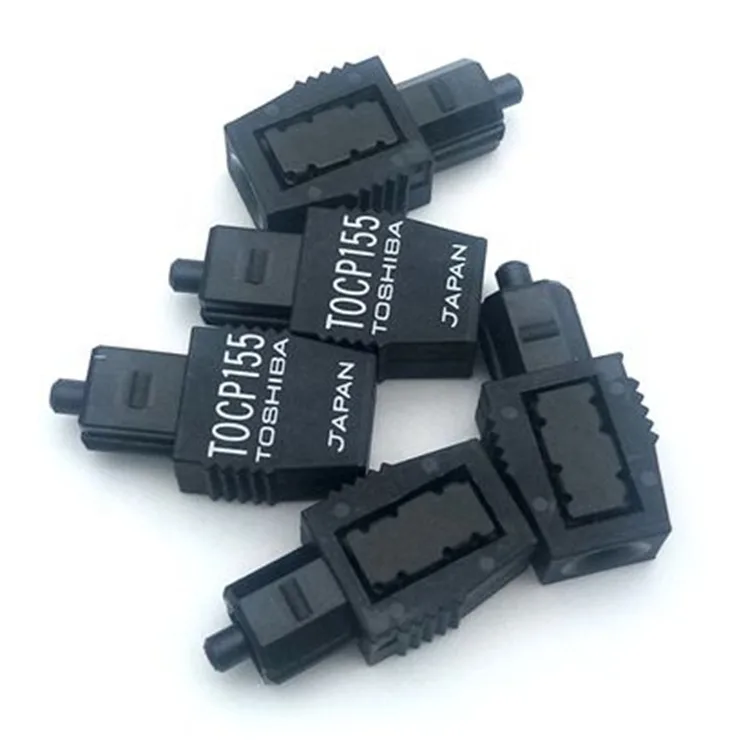

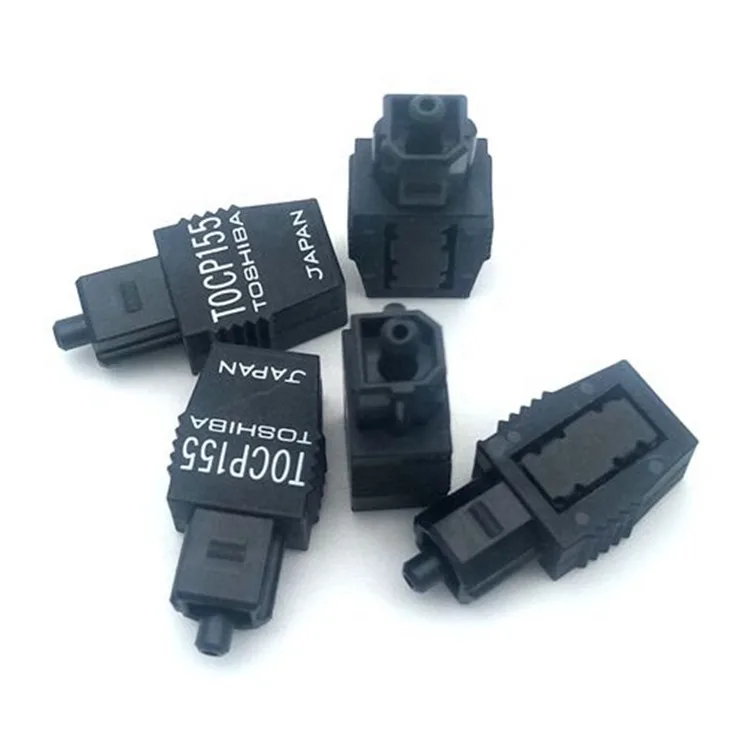

- Genuine Toshiba TOCP155 simplex connector conforming to JIS F05.
- APF 980/1000 µm: PMMA core, fluoride cladding, PE sheath.

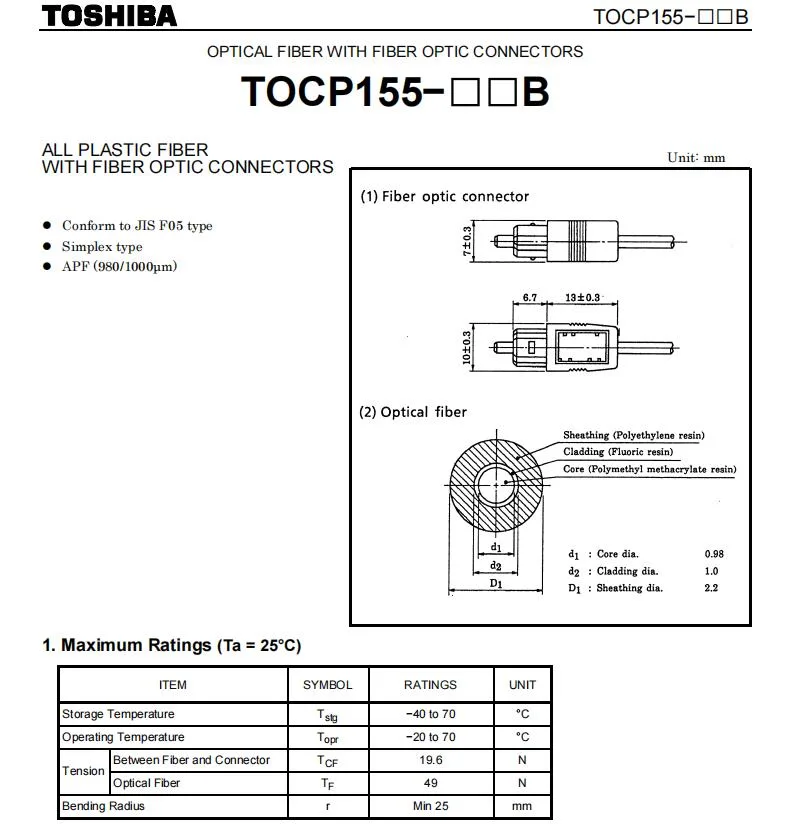

- Core 0.98 / cladding 1.0 / sheath 2.2 mm per official drawing.
- Mechanical ratings: 49 N fiber tension, 19.6 N fiber-to-connector, min bend 25 mm.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Model | TOCP155-[ ] [ ]B | – | Toshiba all-plastic-fiber cable with connector. |
| Standard | JIS F05 type, simplex | – | Official datasheet. |
| Fiber | APF 980/1000 um | – | PMMA core / fluoride cladding. |
| Core diameter d1 | 0.98 | mm | Datasheet drawing. |
| Cladding diameter d2 | 1.0 | mm | Datasheet drawing. |
| Sheath diameter D1 | 2.2 | mm | Polyethylene resin. |
| Storage temperature | -40 to +70 | C | Ta=25 C ratings. |
| Operating temperature | -20 to +70 | C | Datasheet. |
| Tension, fiber-to-connector Tcf | 19.6 | N | Datasheet maximum rating. |
| Tension, optical fiber TF | 49 | N | Datasheet maximum rating. |
| Minimum bending radius r | 25 | mm | Datasheet. |
Applications
Industrial control bus and servo optical links, robot I/O, switching and digital multimedia, medical sensing. Browse the full fiber optic connector range.
Ordering & Customization
Specify the required cable length (standard 1000 mm, custom 0-100 m). Request a quote. More answers are on the FAQ page, and you can return to the home page.
FAQ
Is TOCP155 simplex or duplex?
Simplex. It carries one optical path in one direction; for bidirectional use pair two TOCP155 links or use the duplex TOCP200/255 series.
