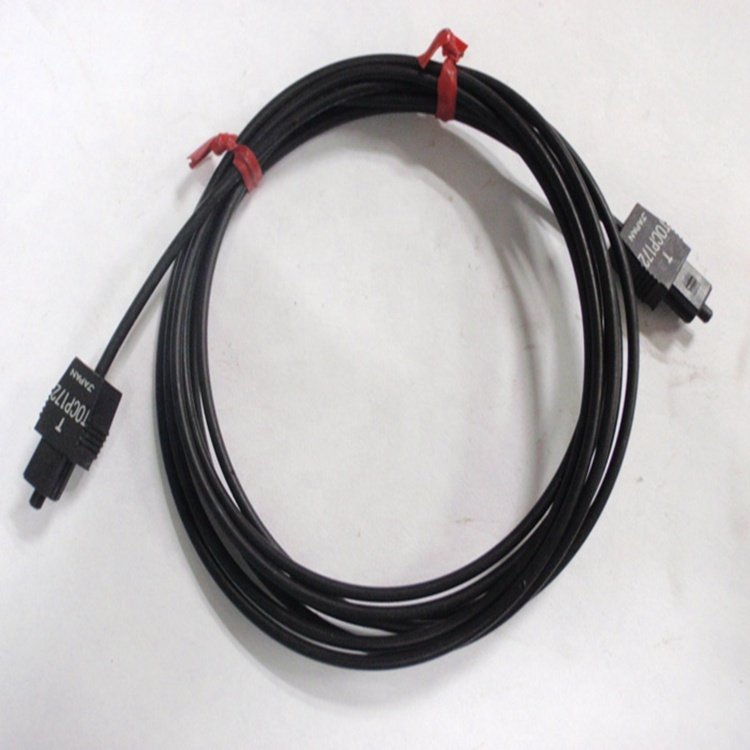

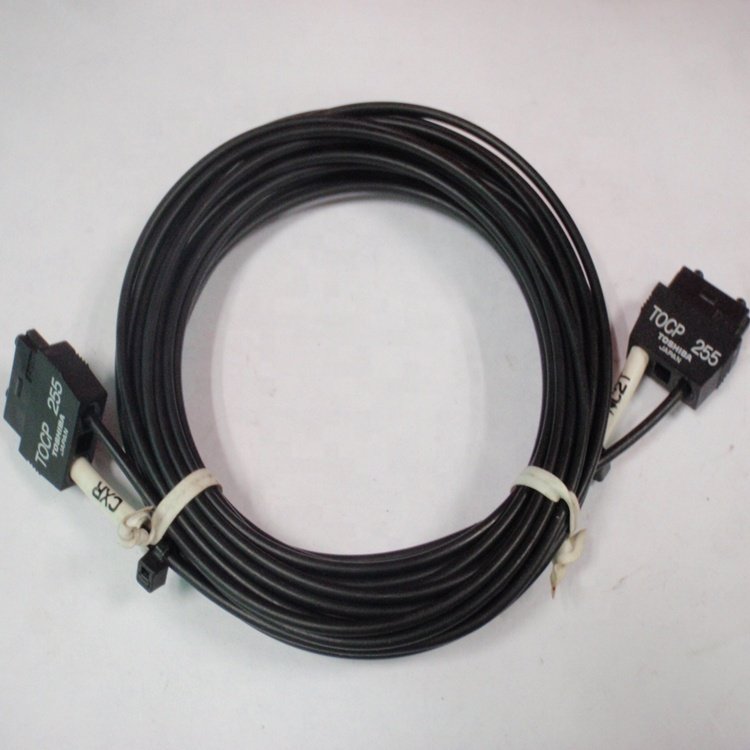

TOCP172 / TOCP255 Toshiba Industrial POF Cable
Toshiba TOCP172 simplex / TOCP255 duplex industrial POF cable, 1.0mm core, PE jacket, -55 to +85C, <180 dB/km, 1000mm standard.
This is a Toshiba TOCP-series industrial POF cable assembled with a 1.0 mm core and PE outer jacket. It covers the simplex TOCP172 and duplex-style TOCP200/255 interfaces, operates from -55 to +85 C and attenuates below 180 dB/km.
Overview
This is a Toshiba TOCP-series industrial POF cable assembled with a 1.0 mm core and PE outer jacket. It covers the simplex TOCP172 and duplex-style TOCP200/255 interfaces, operates from -55 to +85 C and attenuates below 180 dB/km.
Features
- Toshiba TOCP172 simplex / TOCP255 duplex-style termination
- 1.0 mm POF core, PE outer jacket
- -55 to +85 C, <180 dB/km attenuation
- Φ2.2 mm finished OD (optional Φ2.2-10.0 mm)
- 1000 mm standard length, 0-100 m custom
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Connector family | Toshiba TOCP | – | Industrial POF connector |
| Configuration | 2-conductor | – | Simplex TOCP172 / duplex TOCP200 style |
| Core diameter | 1.0 | mm | POF |
| Outer jacket material | PE | – | Polyethylene |
| Operating temperature | -55 to +85 | °C | Supplier specification |
| Attenuation | <180 | dB/km | Supplier specification |
| Jacket color | Black | – | Visible |
| Finished OD | Φ2.2 | mm | Optional Φ2.2-10.0 mm |
| Standard length | 1000 | mm | 0-100 m custom |
Applications
The TOCP172/255 industrial POF cable is used in Toshiba-compatible industrial control, drive and sensing links that require a rugged PE-jacketed POF assembly over an extended temperature range.
How to Order
Confirm simplex (TOCP172) or duplex (TOCP255/200) termination, length (1000 mm standard; 0-100 m custom) and finished OD. We assemble to the Toshiba TOCP interface.
FAQ
TOCP172 and TOCP255 – are they the same connector?
TOCP172 is the simplex Toshiba POF connector while TOCP255 / TOCP200 style refers to the duplex arrangement. Both use the same 1.0 mm PMMA POF core; confirm whether your port needs simplex or duplex before ordering.
