Toshiba TOCP100/155/200/255 JIS F05/F07 POF Connector
Original Toshiba TOCP100/155/151/200/255 plastic optical fiber connectors, JIS F05/F07, 980/1000 um PMMA core, black, -55 to +85 C, custom 0-100 m.

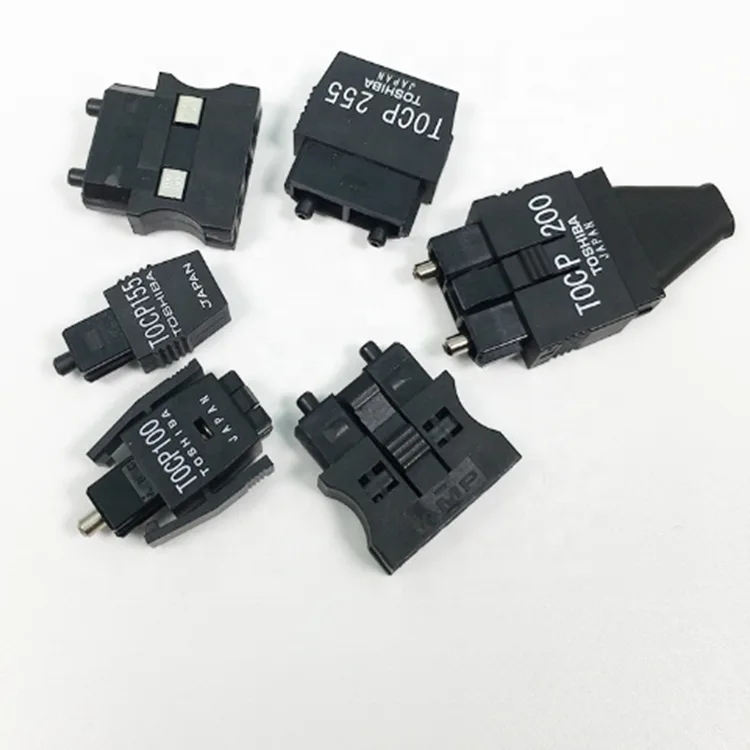

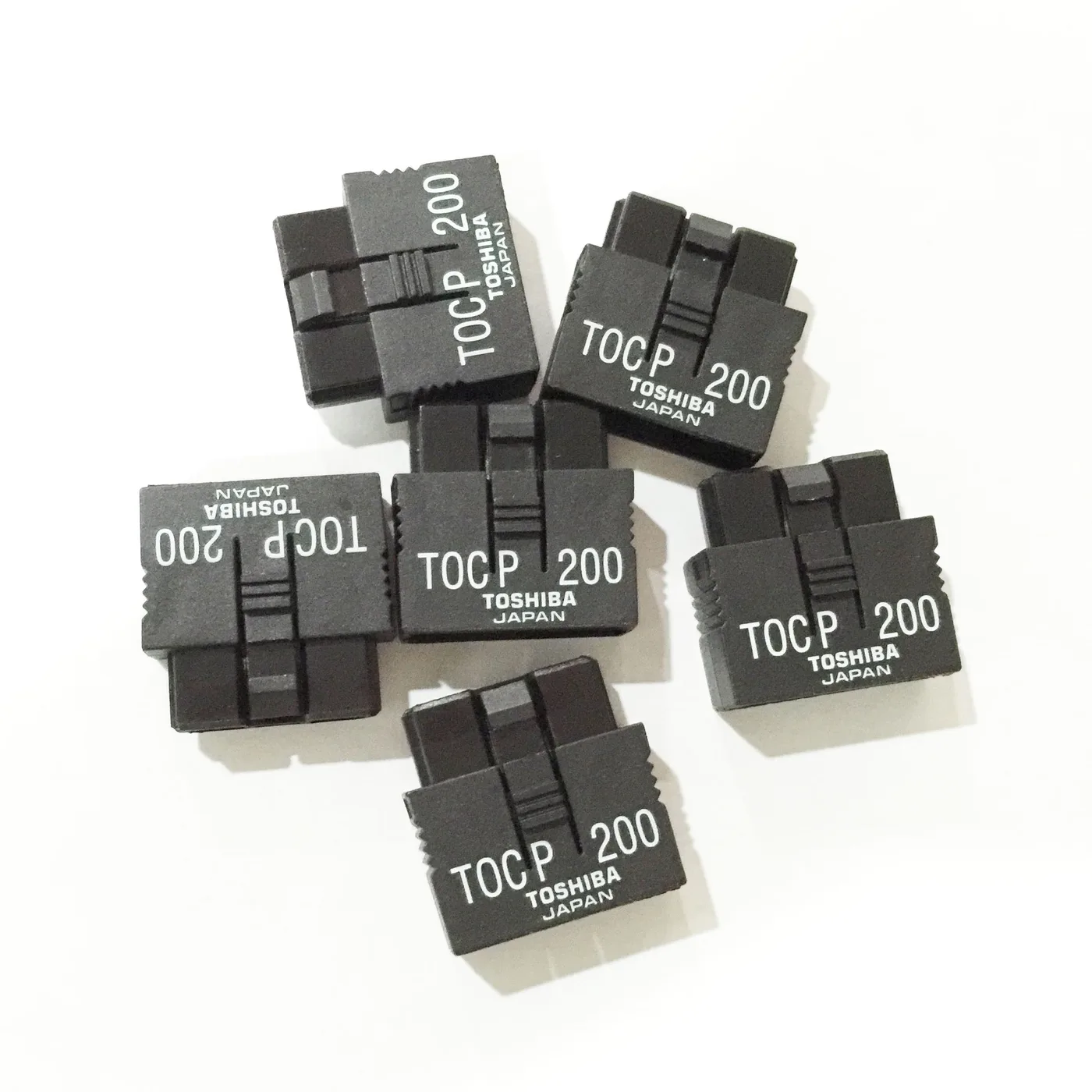

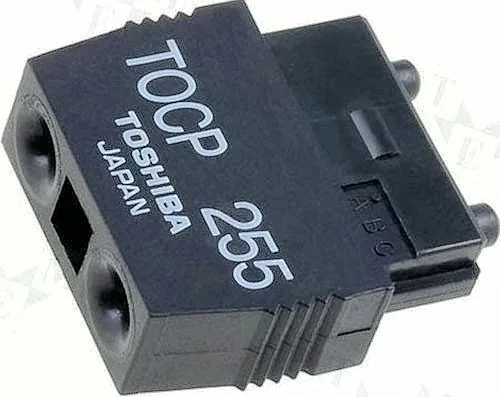

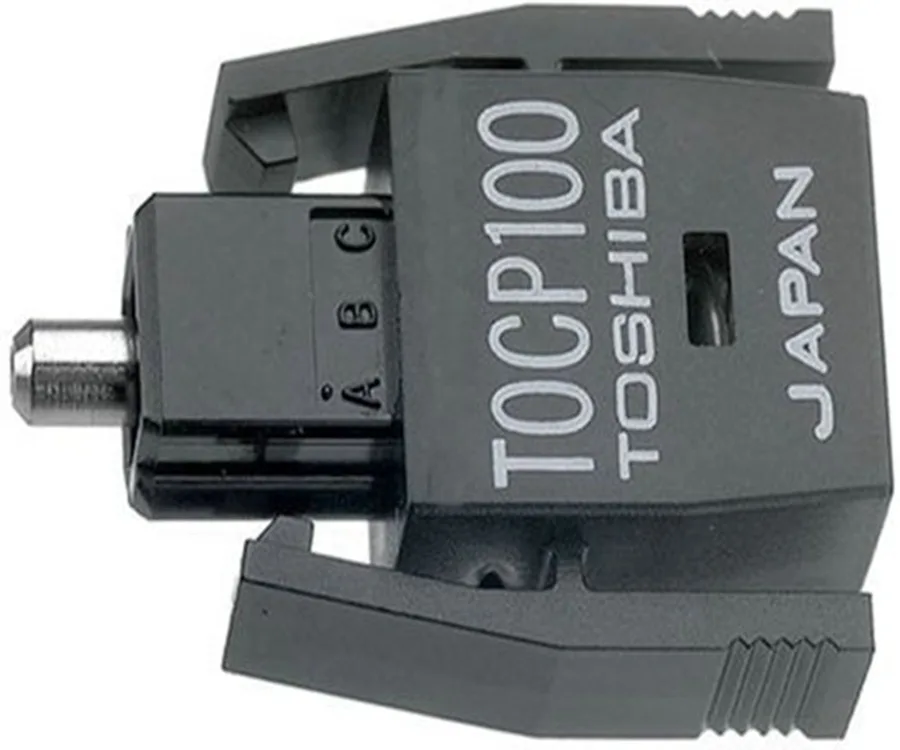

The Toshiba TOCP POF connector family covers TOCP100, TOCP155, TOCP151, TOCP200 and TOCP255 interfaces to JIS F05/F07, terminated on 980/1000 µm PMMA step-index plastic optical fiber. Black plastic sheath with metal ferrule, matte-black CPE/PE/PVC jacket, used on industrial control buses and servo links.
Product Overview
This product is part of our fiber optic connector range. Values below are taken from the supplier datasheet and listing; where only supplier quick-details are available, they are flagged as supplier-stated and not independently measured.
Key Features
- Original Toshiba TOCP interfaces: TOCP100, TOCP155, TOCP200, TOCP255.
- PMMA core Φ1.0 mm (optional 0.25/0.50/0.75 mm), APF 980/1000 µm.
- Finished cable Φ2.2 mm, optional up to 10.0 mm; matte black jacket.
- Rated -55° to +85°C; standard 1000 mm length, custom 0-100 m.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Interface | TOCP100 / 155 / 151 / 200 / 255 (JIS F05/F07) | – | Toshiba; simplex/duplex per type. |
| Fiber | APF 980/1000 um PMMA step-index | – | Core dia Phi1.0; optional 0.25/0.50/0.75 mm. |
| Finished cable OD | 2.2 (optional 2.2-10.0) | mm | Jacket CPE / PE / PVC, matte black. |
| Attenuation | < 180 (quick-detail 160) | dB/km | Supplier listing; depends on fiber and wavelength. |
| Operating temperature | -55 to +85 | C | Supplier listing. |
| Standard length | 1000 (custom 0-100) | mm | Supplier listing. |
Applications
Industrial automation control bus, robot and servo systems, switching networks, digital multimedia, medical sensing and power-system optical links. Browse the full fiber optic connector range.
Ordering & Customization
Tell us the exact TOCP type (TOCP100/155/200/255), length and whether simplex or duplex. Ask for availability. More answers are on the FAQ page, and you can return to the home page.
FAQ
Which TOCP type do I need?
Match the connector on your Toshiba transceiver/device: TOCP155/100 are simplex (JIS F05), TOCP200/255 are duplex (JIS F07). Confirm the mating port before ordering.
Why Choose Us
We supply Toshiba TOCP connectors and assembled POF jumpers by the exact interface, with the family listing values kept traceable. See the connector range, FAQ or home page.
