ST-1 1×2 Fiber Optic Splitter
ST-1 1x2 fiber optic splitter, 1 conductor, IP68 sealed, 0.2 dB insertion and return loss, -55 to +80C, 10000 plug-in life.

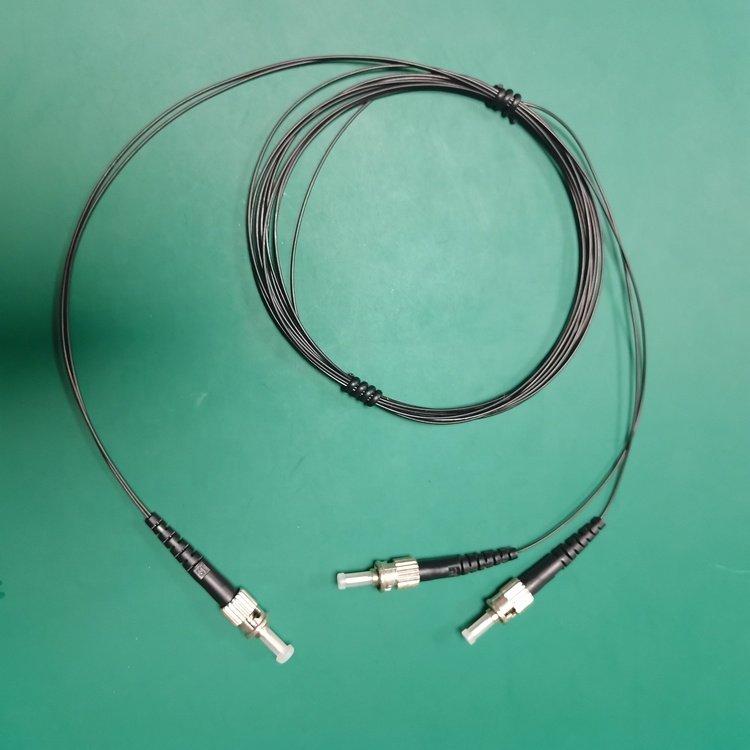

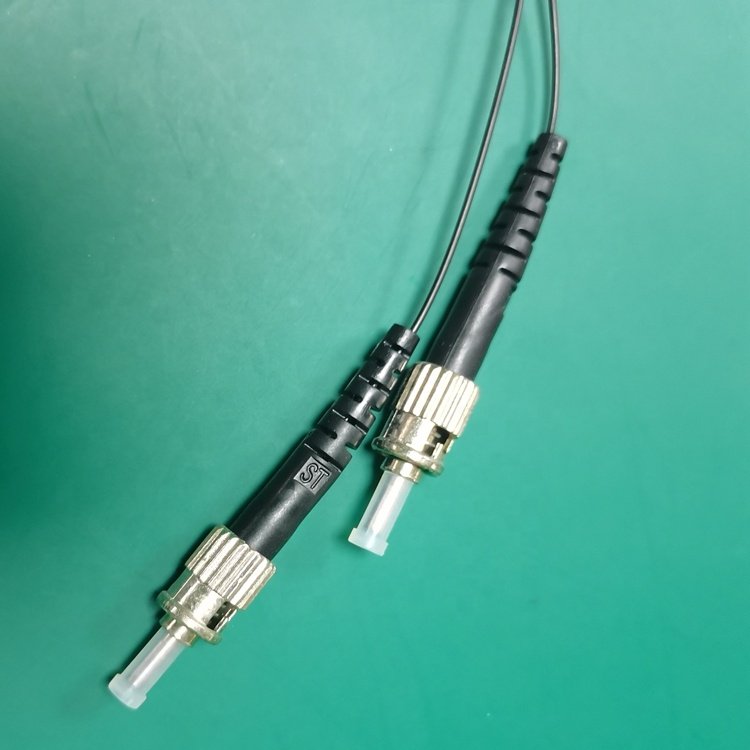

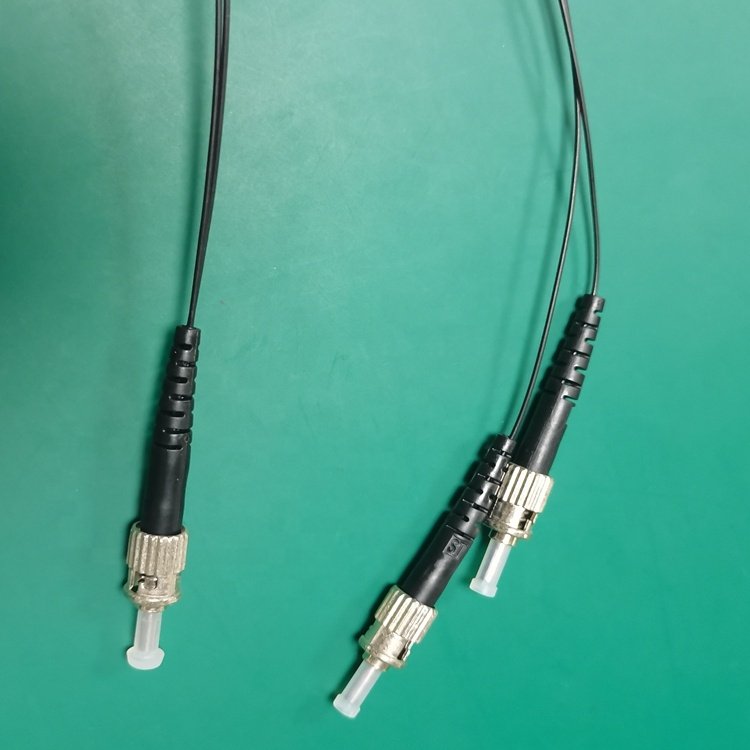

The ST-1 is a 1×2 fiber optic splitter with one input conductor fanned out to two outputs. It is supplied in a black sealed housing rated IP68, with 0.2 dB insertion and return loss and a -55 to +80 C operating range.
Overview
The ST-1 is a 1×2 fiber optic splitter with one input conductor fanned out to two outputs. It is supplied in a black sealed housing rated IP68, with 0.2 dB insertion and return loss and a -55 to +80 C operating range.
Features
- 1×2 fiber optic splitter, one input to two outputs
- IP68 sealed housing
- Insertion and return loss about 0.2 dB
- -55 to +80 C industrial temperature range
- Rated for 10000 plug-in cycles
- Black housing
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Configuration | 1 x 2 (1 input to 2 output) | – | Fiber optic splitter |
| Conductors | 1 | conductor | Per supplier |
| Ingress protection | IP68 | – | Sealed splice |
| Insertion loss | 0.2 | dB | Supplier value |
| Return loss | 0.2 | dB | Supplier value |
| Operating temperature | -55 to +80 | °C | Supplier specification |
| Mechanical life | 10000 | plug-ins | Supplier value |
| Housing color | Black | – | Visible |
Applications
The ST-1 1×2 splitter is used to divide a single polymer optical fiber feed into two branches in industrial sensing, control and lighting distribution where a sealed, low-loss split point is required.
How to Order
Confirm the number of outputs (1×2 shown), fiber type and jacket color. Custom split ratios and lengths are available on request.
FAQ
What does 1×2 mean on this splitter?
It means one input fiber is split into two output fibers. The ST-1 provides two independent branches from a single feed while keeping insertion and return loss low.
