Sumitomo CF-1001/1501/1701/2001 JIS F05 H-PCF Connector
Sumitomo JIS F05 H-PCF simplex connector family CF-1001, CF-1501, CF-1701, CF-2001 for 200/230 um PCF industrial fiber terminations.
The Sumitomo CF-1001 / CF-1501 / CF-1701 / CF-2001 JIS F05 H-PCF simplex connector family for terminating 200/230 um PCF industrial fiber.
Overview

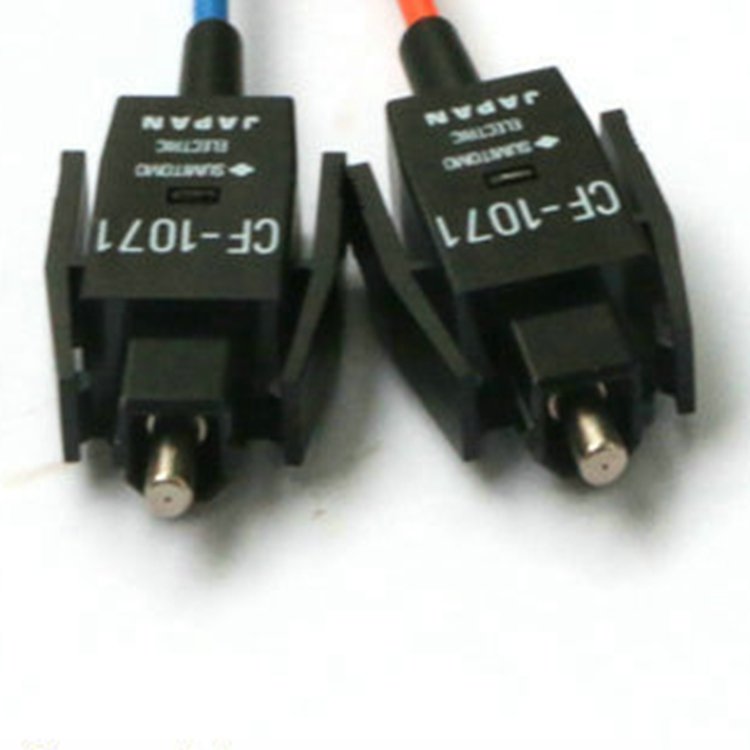

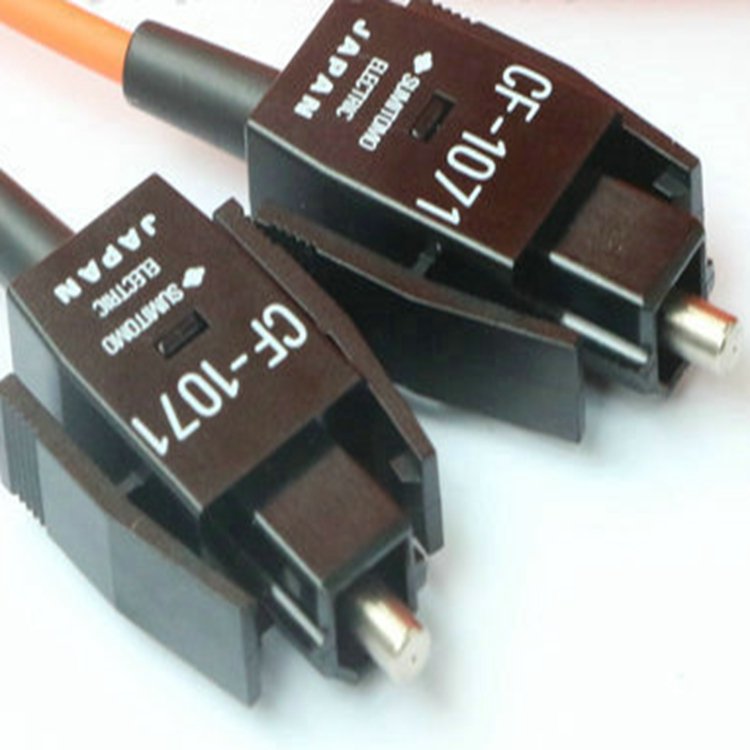

This folder covers the Sumitomo CF-series JIS F05 simplex H-PCF connector range. The sample photos show a SUMITOMO ELECTRIC JAPAN CF-series connector on orange fiber; confirm the exact CF sub-model against your equipment before ordering.
Features
- Sumitomo CF-series JIS F05 simplex connector
- Family: CF-1001 / CF-1501 / CF-1701 / CF-2001
- For 200/230 um H-PCF / PCF fiber
- SUMITOMO ELECTRIC JAPAN body
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Connector family | Sumitomo CF-1001 / CF-1501 / CF-1701 / CF-2001 | – | Per folder identity |
| Standard | JIS F05 | – | H-PCF simplex connector |
| Fiber | 200/230 um H-PCF | – | Per connector family |
| Brand | SUMITOMO ELECTRIC JAPAN | – | Per connector marking |
Applications
Field termination of Sumitomo H-PCF simplex jumpers in Mitsubishi, Hitachi and Omron industrial optical networks.
How to Order
Tell us the exact CF sub-model printed on your existing connector and the fiber to terminate. We confirm the matching CF-series JIS F05 connector.
FAQ
How do I choose the right H-PCF / POF industrial jumper?
Match the connector family on your equipment (JIS F05/F07, Avago Versatile Link, F07-AMP or Toshiba TOCP), the fiber core (200/230 um H-PCF or 1.0 mm PMMA POF) and the required length. Send us the OEM cable part number and we will confirm compatibility.
Are these original OEM or replacement assemblies?
These are replacement industrial fiber assemblies built to match the OEM connector and fiber type shown. Original OEM markings visible on sample connectors are retained for identification; we do not claim OEM manufacturing or authorization.
