Metal SMA905 Fiber Optic Connector, 0.75 mm Bore
High-quality metal SMA905 fiber optic connector with 0.75mm bore and ceramic ferrule, threaded coupling, for POF and large-core sensing light delivery.
The metal SMA905 fiber optic connector with a 0.75 mm bore is a threaded, ceramic-ferrule connector for 0.75 mm core POF and large-core sensing light delivery.
Product Overview
The nickel-plated metal body uses the standard SMA905 threaded coupling and is bored for 0.75 mm fiber with a ceramic ferrule, supplied as a kit with boot and dust cap. See the connector module category for other SMA905 bore sizes.
Key Features
- SMA905 threaded metal connector, 0.75 mm bore.
- Ceramic ferrule.

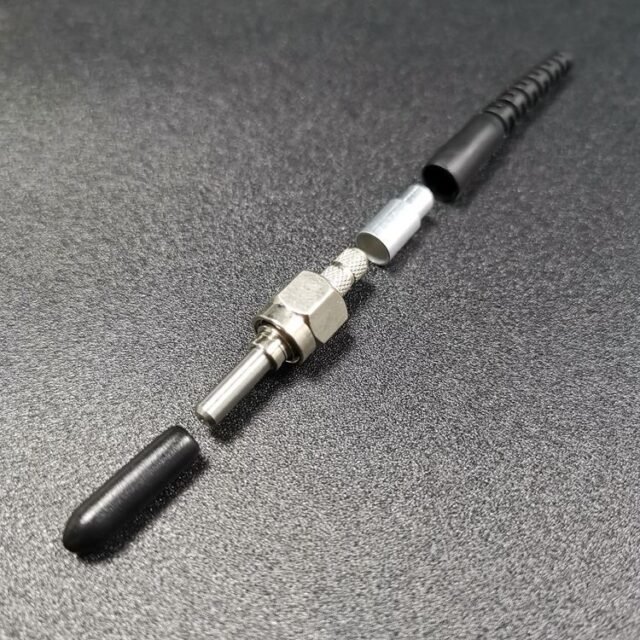

- Supplied as exploded kit with boot, sleeve and cap.
- For POF / large-core sensing light delivery.

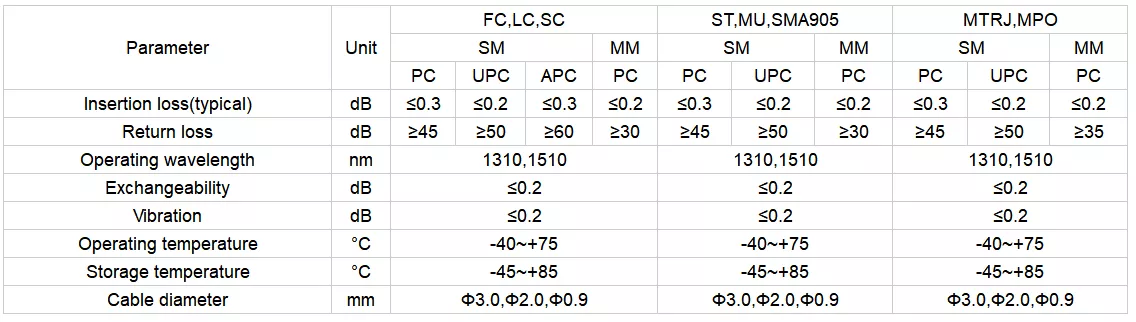

Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Connector type | SMA905, threaded | – | docx / photos |
| Fiber bore | 0.75 | mm | docx quick details |
| Ferrule material | Ceramic | – | docx |
| Body | Metal, knurled | – | docx / photos |
| Fiber type | SM / MM | – | docx |
| Insertion loss typical (SMA905 SM) | <=0.3 | dB | Reference sheet |
| Operating temperature | -40 to +75 | deg C | Reference sheet |
Applications
- Industrial automation and control-bus optical links.
- Sensing and short-range data links where copper picks up noise.
- Equipment-to-device optical interconnections in cabinets and on machines.
Browse our full fiber optic connector module category for related parts.
Ordering and Customization
Tell us the fiber core/cladding, required length or quantity, and whether you need the part loose, as a kit, or pre-assembled. Request a quote at sales@fevelectronics.com. More background is in the FAQ for H-PCF and POF assemblies; return to the home page.
FAQ
Can you supply this pre-assembled to my fiber length? Yes – we can supply the part loose, as a kit, or pre-assembled to your specified fiber and length. Contact us with the fiber and length.
Do you certify these connectors? Supplier listings state ISO9001/RoHS manufacturing certifications, but we do not claim system-level or compatibility certification; confirm the interface against your equipment.
Why Choose Us
We supply industrial POF and H-PCF connectors, adapters and assemblies with supplier parameters checked before quoting, and we flag the bore, fiber and interface values that need confirmation rather than overstating compatibility. Start from the fiber optic connector module category or the home page.
