SMA905 PMMA POF Fiber Jumper for Arc Detection, 1.0 mm / 2.2 mm
SMA905 plastic optical fiber jumper for arc detection, 1.0mm PMMA core, 2.2mm black PE jacket, 650nm, customizable length.

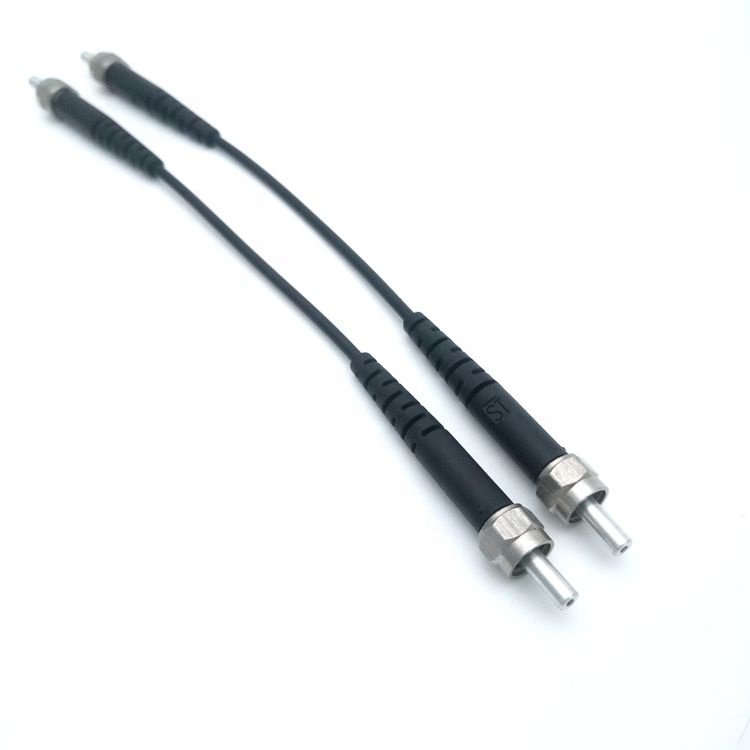

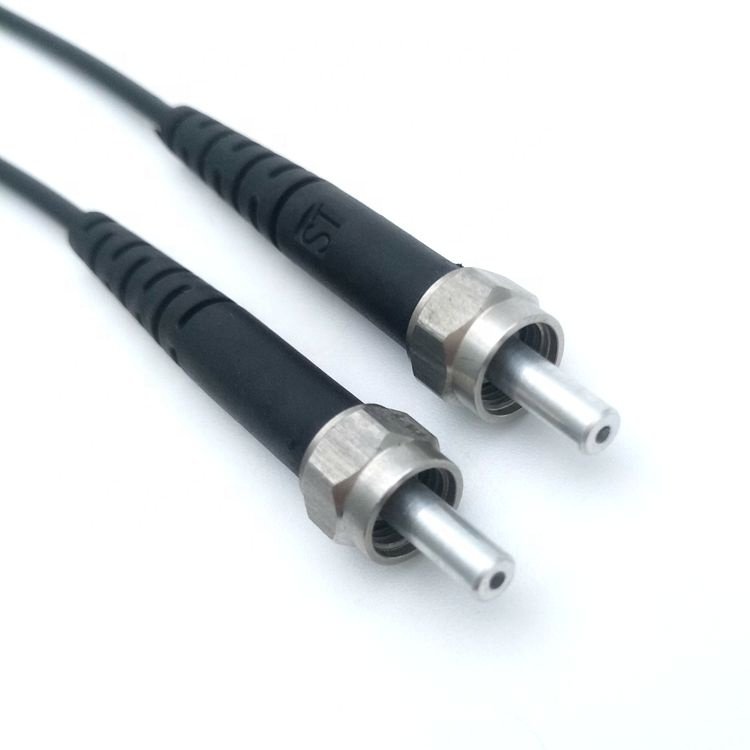

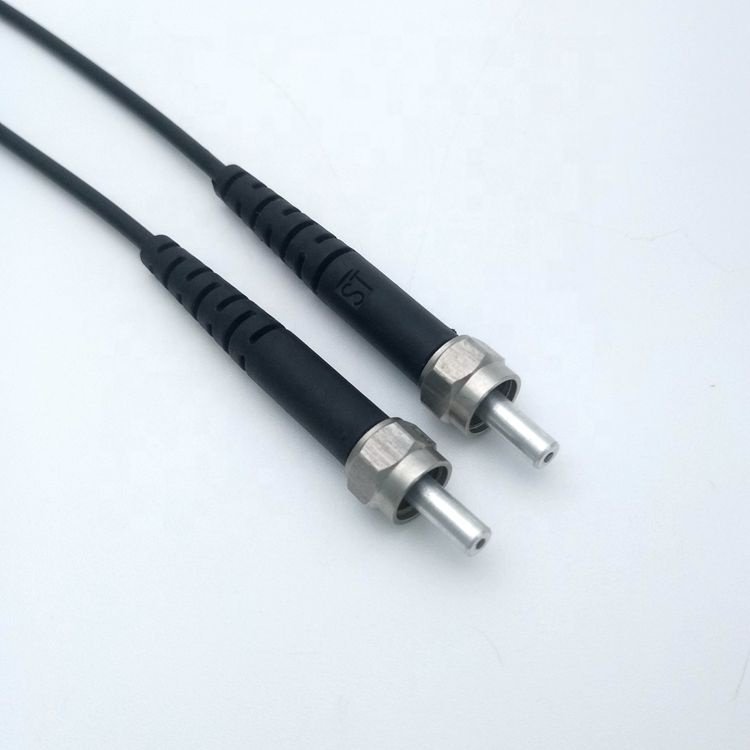

SMA905 plastic optical fiber jumper used in arc detection, a 1.0 mm PMMA POF cord in a 2.2 mm black jacket with SMA905 ends for arc-flash sensing.
Product Overview
This SMA905 POF jumper routes the 650 nm visible signal used in arc-detection systems away from high-voltage switchgear. The black PE jacket provides a durable outdoor/industrial lead. It is part of our patch cord range.
Key Features
- 1.0 mm PMMA POF, 2.2 mm black PE.
- SMA905 connectors.
- 650 nm visible for arc sensing alignment.
- 0.1-40 m length.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Connector type | SMA905 | – | Metal ferrule |
| Application | Arc detection | – | Visible red |
| Transmission medium | PMMA POF 1.0 mm | – | 2.2 mm black PE |
| Wavelength | 650 | nm | 650 +/- 15 nm |
| Attenuation | 0.3 | dB/m | At 650 nm |
| Length | 0.1-40 | m | Common 1,2,3,5,10,20,40 m |
| Operating temperature | -55 to +85 | deg C | Source |
Applications
Arc-flash detection in switchgear, electrical protection systems, and industrial light sensing where an SMA905 POF lead is required.
Ordering and Customization
Tell us the length. Request a quote at sales@fevelectronics.com. More in the FAQ; return to the home page.
FAQ
Why SMA905 for arc detection?
SMA905 gives a stable, reusable metal coupling to the arc sensor while the POF carries the optical signal electrically isolated.
Why Choose Us
We supply SMA905 PMMA POF jumpers for arc detection to the 1.0 mm / 2.2 mm construction. Start from the patch cord category or the home page.
