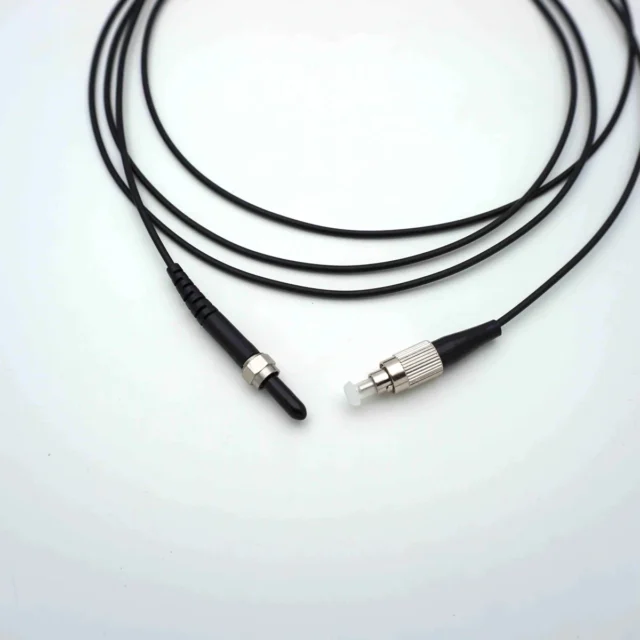

SMA905 to FC PMMA POF Fiber Optic Jumper, 1.0 mm / 2.2 mm, Black
SMA905-to-FC PMMA POF jumper, 1.0mm core, 2.2mm matte black jacket, <180dB/km, for industrial control, customizable.
SMA905-to-FC plastic optical fiber jumper, 1.0 mm PMMA core in a 2.2 mm matte-black jacket for industrial control and automation links.
Product Overview
This hybrid POF jumper runs SMA905 on one end and FC on the other, using a 1.0 mm PMMA fiber inside a 2.2 mm CPE/PE/PVC jacket. The all-dielectric link is immune to electromagnetic noise, which is why POF is used in industrial control buses. It is part of our patch cord range.
Key Features
- SMA905 to FC hybrid POF jumper.
- 1.0 mm PMMA, 2.2 mm matte-black jacket.
- <180 dB/km attenuation.
- EMI-immune for industrial buses.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Connector types | SMA905 to FC | – | POF hybrid jumper |
| Core material diameter | 1.0 | mm | PMMA |
| Finished cable diameter | 2.2 | mm | Jacket |
| Jacket material | CPE / PE / PVC | – | Matte black |
| Attenuation | <180 | dB/km | Per source |
| Wavelength | 650 | nm | POF |
| Operating temperature | -55 to +85 | deg C | Source |
| Standard length | 1000 | mm | 0-100 m customizable |
| Material composition | PMMA / PE / ABS | – | Source |
Applications
Industrial control and automation bus systems, industrial robot and servo systems, data communications, multimedia, medical sensors and power systems.
Ordering and Customization
Tell us the length and connector requirement. Request a quote at sales@fevelectronics.com. More in the FAQ; return to the home page.
FAQ
Why use POF in industrial control?
POF is all-dielectric and electrically noise-immune, so it links controllers, drives and sensors reliably in harsh, high-EMI factory floors.
Why Choose Us
We supply SMA905-to-FC PMMA POF jumpers to the 1.0 mm / 2.2 mm construction. Start from the patch cord category or the home page.
