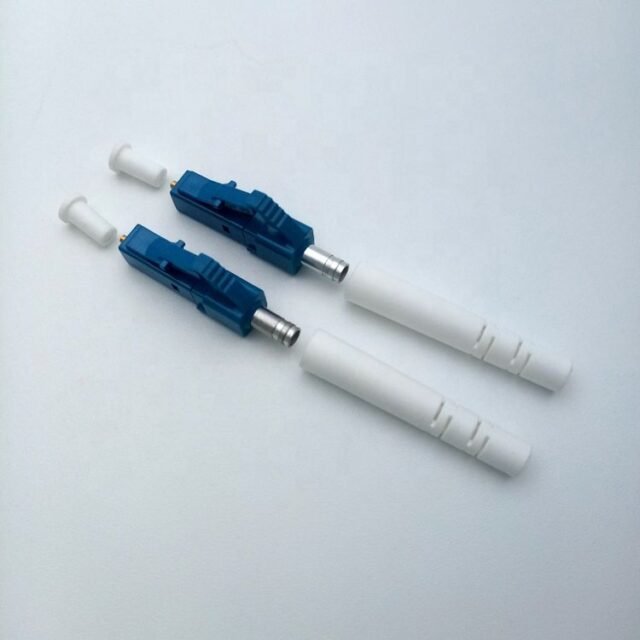

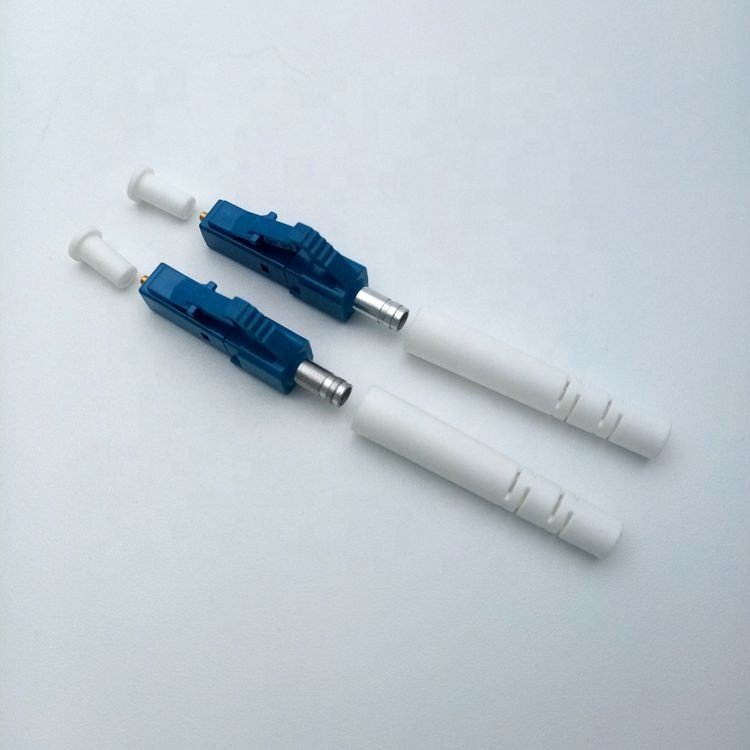

SC/FC/LC/ST Fiber Connector, LC 500 um Version
Fiber optic connector family in SC/FC/LC/ST, with LC 500 um version for 0.5 mm plastic optical fiber. Compact LC connector for 500 um POF links.
This is a fiber optic connector family available in SC, FC, LC and ST styles, with the LC version sized for 500 um (0.5 mm) plastic optical fiber. The small LC form-factor connector is used for compact device ports and 0.5 mm POF links.
Product Overview
The LC interface is a small-form-factor connector. In this POF version the LC ferrule bore is sized to 500 um (0.5 mm) plastic fiber rather than 125 um glass.
The same listing covers SC, FC and ST styles so you can match whatever port your equipment uses.
Key Features
- SC / FC / LC / ST connector styles
- LC version sized for 500 um (0.5 mm) POF
- Small-form-factor LC body
- For compact device ports
- POF-specific ferrule bore
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Connector styles | SC / FC / LC / ST | – | POF version |
| LC fiber size | 500 | um | 0.5 mm POF |
| Insertion loss (typical) | <=0.2 | dB | Per supplier generic table |
| Operating temperature | -40 ~ +75 | C | Per generic table |
| Storage temperature | -45 ~ +85 | C | Per generic table |
| Cable diameter | 0.9 / 2.0 / 3.0 | mm | Per generic table |
Applications
- Compact device POF ports
- 0.5 mm POF links
- Instrumentation optical connections
- Mixed-style industrial patch cords
See our full fiber optic connector range for other connector styles and fiber sizes. Visit the home page or read the FAQ for fiber selection help.
Ordering & Customization
We supply SC/FC/LC/ST POF connectors in 500 um and other sizes, pre-assembled to length. Tell us the port style and fiber size for a quote.
FAQ
Is the LC 500 um connector the same size as a glass LC? The outer LC body looks like a standard LC, but the ferrule bore is sized to 500 um POF rather than 125 um glass. It will not terminate glass fiber; use it for 0.5 mm plastic fiber only.
Why Choose Us
We ship the POF-bore LC/ST/SC/FC, not generic glass connectors, so 0.5 mm plastic fiber terminates correctly.
For pricing, lead time or custom lengths, contact our sales team.
