SC Fiber Optic Connector, Blue, Custom Ferrule
Blue SC fiber optic connector, push-pull latch, customizable ferrule for SM/MM and POF boots 0.9/2.0/3.0mm, low insertion loss for industrial links.
The blue SC fiber optic connector is a push-pull latch connector customizable for SM, MM or POF fiber, with selectable boot sizes for 0.9, 2.0 and 3.0 mm cable.
Product Overview

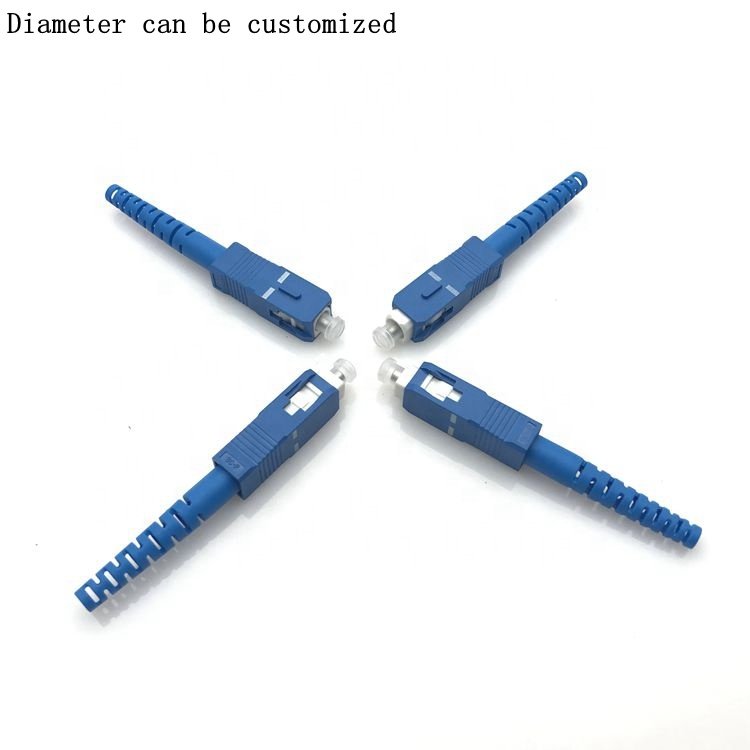

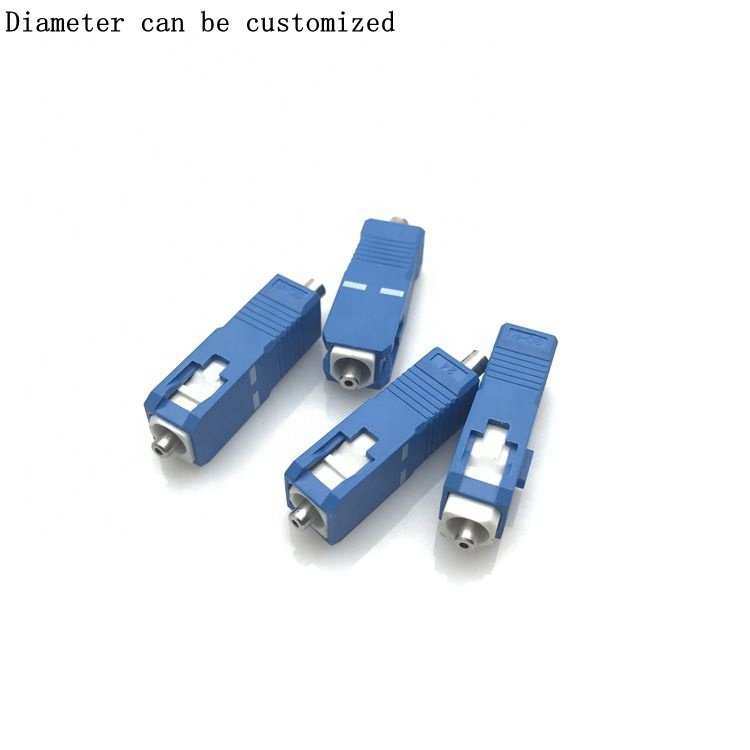

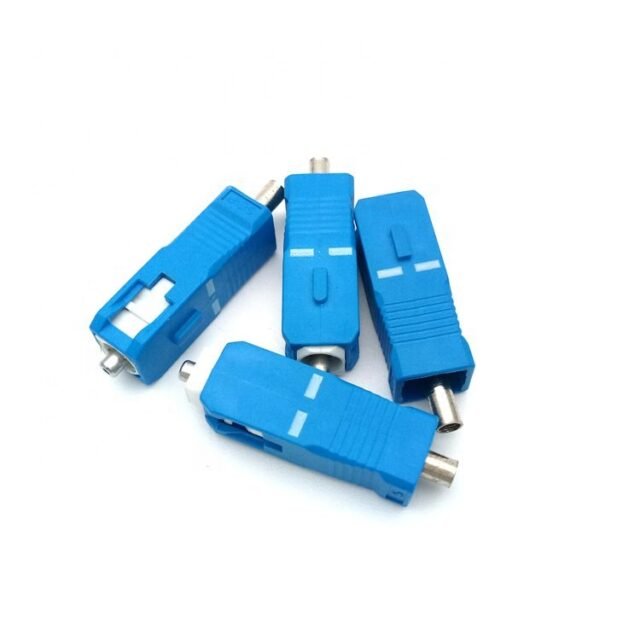

The SC body is molded in blue with a white alignment key and a metal crimp end. Ferrule diameter can be customized to match your fiber. It sits in our fiber optic connector module category.
Key Features
- SC push-pull latch, blue housing.
- SM/MM/POF ferrule customizable.
- 0.9/2.0/3.0 mm boot options.
- Supplied assembled or as a kit.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Connector type | SC, push-pull latch | – | docx |
| Fiber type | SM / MM / POF customizable | – | docx quick details |
| Color | Blue | – | docx / photos |
| Boot options | 0.9 / 2.0 / 3.0 mm | – | docx |
| Insertion loss (typical) | <=0.2 | dB | Reference sheet SC column (MM PC) |
| Return loss (SM PC) | >=45 | dB | Reference sheet |
| Operating temperature | -40 to +75 | deg C | Reference sheet |
| Cable diameter range | Phi3.0 / Phi2.0 / Phi0.9 | mm | Reference sheet |
Applications
- Industrial automation and control-bus optical links.
- Sensing and short-range data links where copper picks up noise.
- Equipment-to-device optical interconnections in cabinets and on machines.
Browse our full fiber optic connector module category for related parts.
Ordering and Customization
Tell us the fiber core/cladding, required length or quantity, and whether you need the part loose, as a kit, or pre-assembled. Request a quote at sales@fevelectronics.com. More background is in the FAQ for H-PCF and POF assemblies; return to the home page.
FAQ
Can you supply this pre-assembled to my fiber length? Yes – we can supply the part loose, as a kit, or pre-assembled to your specified fiber and length. Contact us with the fiber and length.
Do you certify these connectors? Supplier listings state ISO9001/RoHS manufacturing certifications, but we do not claim system-level or compatibility certification; confirm the interface against your equipment.
Why Choose Us
We supply industrial POF and H-PCF connectors, adapters and assemblies with supplier parameters checked before quoting, and we flag the bore, fiber and interface values that need confirmation rather than overstating compatibility. Start from the fiber optic connector module category or the home page.
