Toshiba TOCP200 Industrial Control POF Patch Cord, 1.0 mm / 2.2 mm, DAS7-74
Toshiba TOCP200 plastic optical fiber patch cord for industrial control, 1.0mm PMMA core, 2.2mm black jacket, EMI-immune, customizable length.

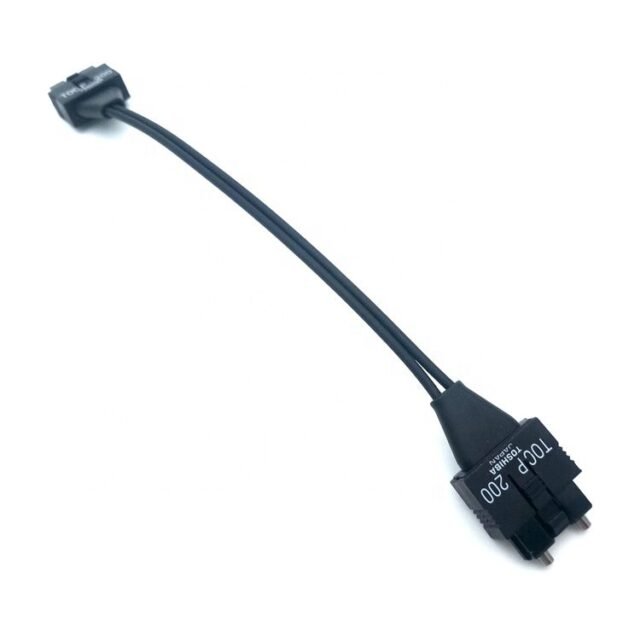

Original Toshiba TOCP200 plastic optical fiber patch cord for industrial control, using Toshiba TOCP200 connectors on a 1.0 mm PMMA POF in a 2.2 mm black jacket, rated for DAS7-74 / industry-control links.
Product Overview

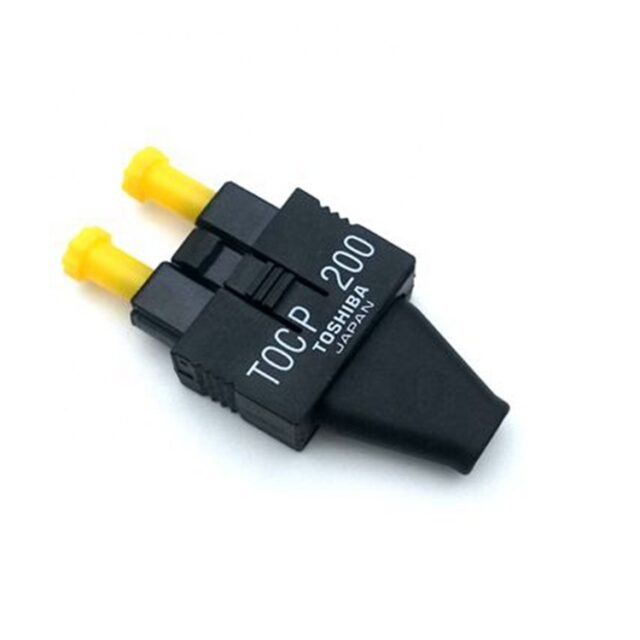

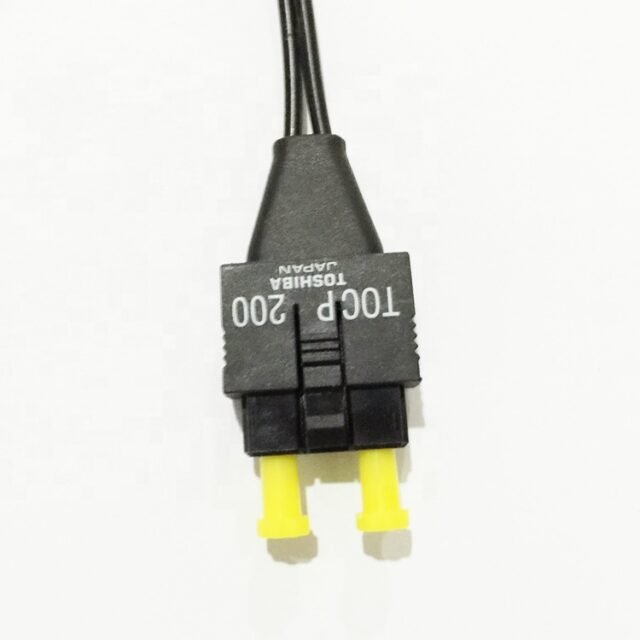

The TOCP200 is a Toshiba plastic optical fiber connector system widely used in industrial control and drive bus networks. This patch cord terminates a 1.0 mm PMMA POF with Toshiba TOCP200 connectors (yellow dust caps shown), giving duplex optical communication that is immune to electromagnetic interference. It belongs to our patch cord line.
Key Features
- Toshiba TOCP200 connectors (JIS F07 family) for industrial drives.
- 1.0 mm PMMA POF, 2.2 mm black jacket.
- EMI / RFI immune and zero-bit-error at short range.
- Length customizable from 0 to 100 m.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Connector standard | Toshiba TOCP200 | – | JIS F07 compatible plastic optical connector |
| Fiber material | PMMA POF | – | 1.0 mm core |
| Core diameter | 1.0 | mm | Per source |
| Finished cable diameter | 2.2 | mm | Optional 2.2-10.0 mm |
| Jacket material | CPE / PE / PVC | – | Fog black |
| Attenuation | <180 | dB/km | Per source |
| Wavelength | 650 | nm | POF window |
| Operating temperature | -55 to +85 | deg C | Source |
| Length | 1000 | mm | 0-100 m customizable |
| Coupling | Duplex (send+receive) | – | TOCP200 duplex |
| Certification | RoHS / CE / Toshiba standard | – | Supplier-listed |
Applications
Industrial control buses, drive and DAS systems, CNC lifts, factory internal networks, and any short-range data link where electrical noise immunity is required.
Ordering and Customization
Tell us the required length and any connector variant (TOCP100/155/200/255). Request a quote at sales@fevelectronics.com. More in the FAQ; return to the home page.
FAQ
Is this a genuine Toshiba connector?
The connector carries the Toshiba / Japan marking; we supply assembled TOCP200 patch cords. Confirm exact source requirement at order.
Is TOCP200 simplex or duplex?
TOCP200 is duplex, sending and receiving at both ends of the link.
Why Choose Us
We supply TOCP200 industrial POF patch cords to the Toshiba interface with PMMA 1.0 mm fiber. Start from the patch cord category or the home page.
