Toshiba TOCP 200 JIS F07 Duplex POF Connector, 0.98/1.0 mm
Toshiba TOCP 200 JIS F07 duplex POF connector: 0.98mm PMMA core, 1.0mm cladding, 2.2mm PE sheathing, 4.3mm figure-8, for industrial control links.

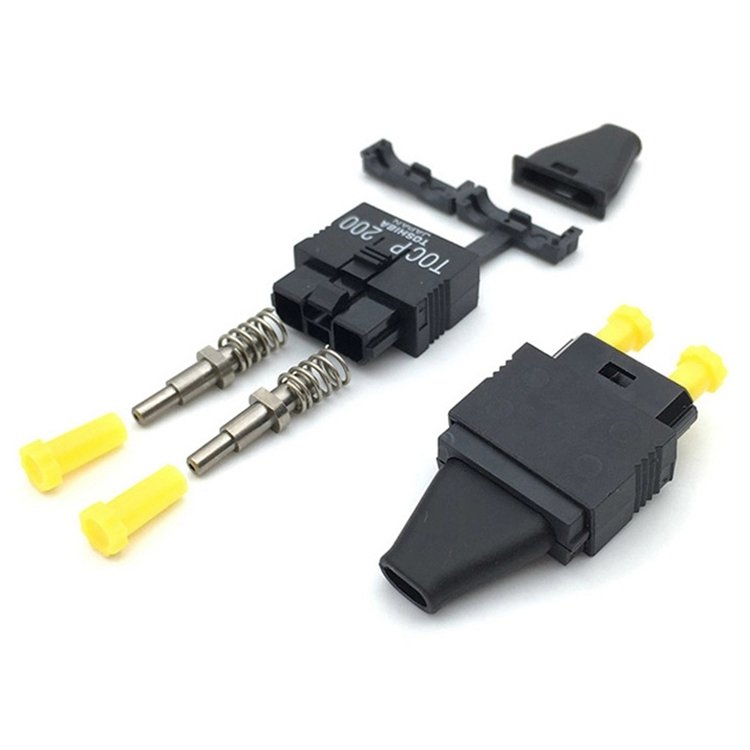

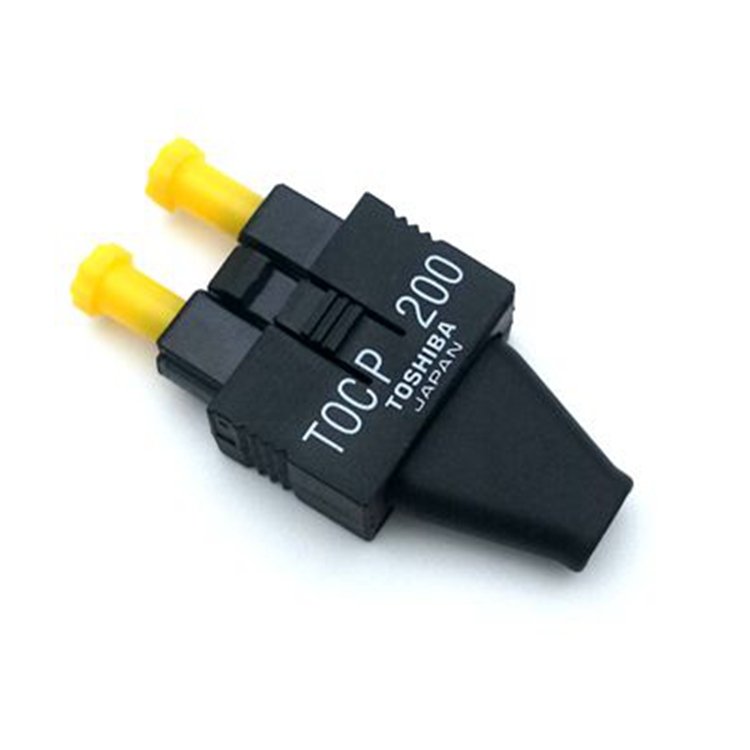

The Toshiba TOCP 200 is a JIS F07-style duplex plastic optical fiber connector used with 980/1000 um PMMA POF. The black molded housing is marked “TOCP 200 / TOSHIBA / JAPAN” and accepts a figure-8 duplex lead. It is used for short-range industrial control and data links where galvanic isolation and noise immunity matter. This product belongs to our Sumitomo / H-PCF fiber optic cable category.
Key Features
- JIS F07 duplex TOCP 200 interface with Toshiba-style diamond marking.
- PMMA core 0.98 mm / fluoric-resin cladding 1.0 mm per the dimension drawing.
- PE (polyethylene) sheathing, 2.2 mm per fiber, 4.3 mm figure-8 width.

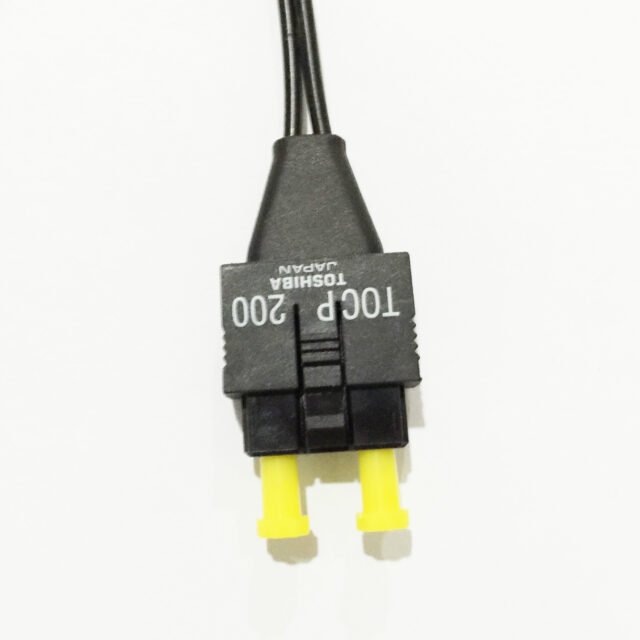

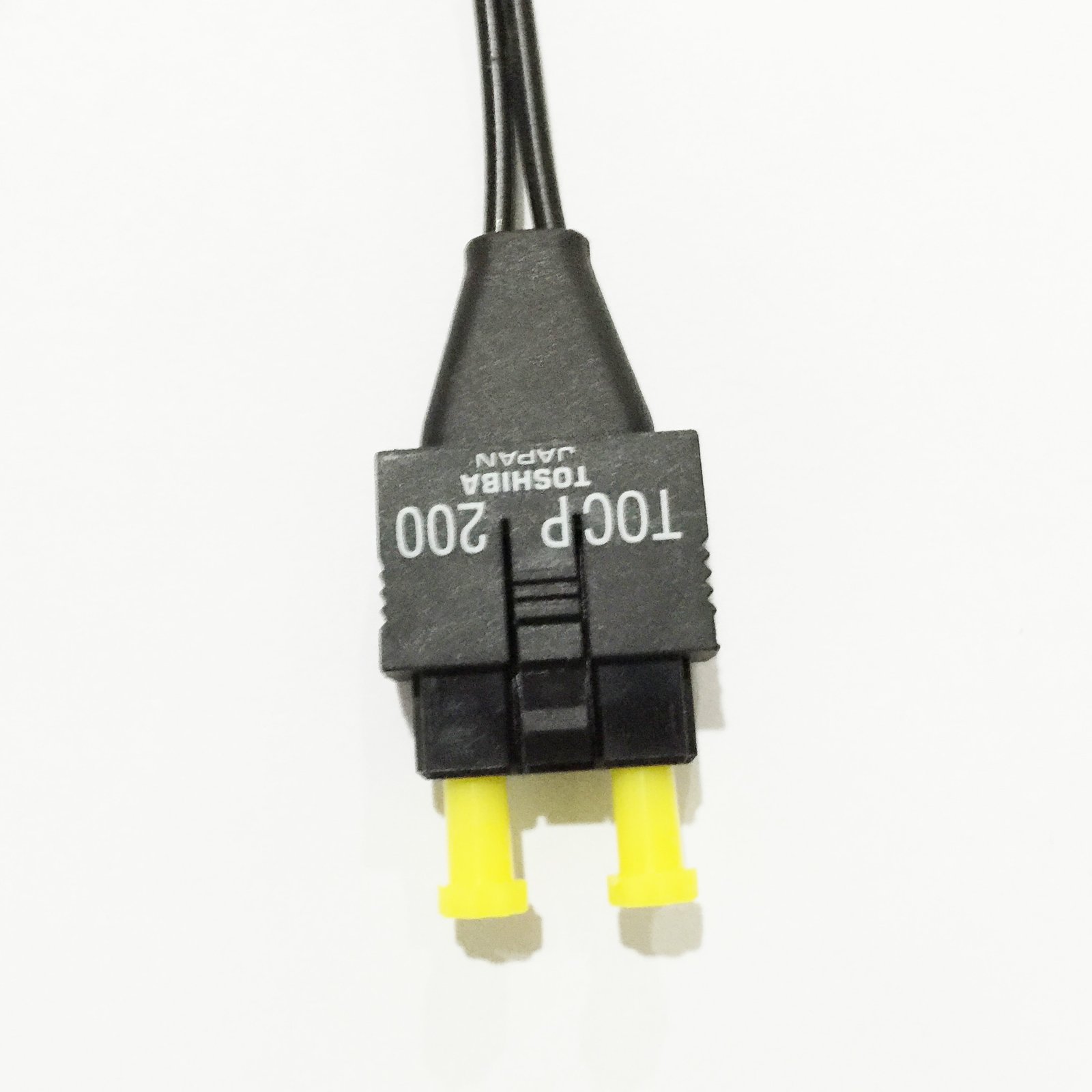

- Black molded housing, yellow ferrule protective caps as photographed.
- Cut-to-length duplex jumpers built to order.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|

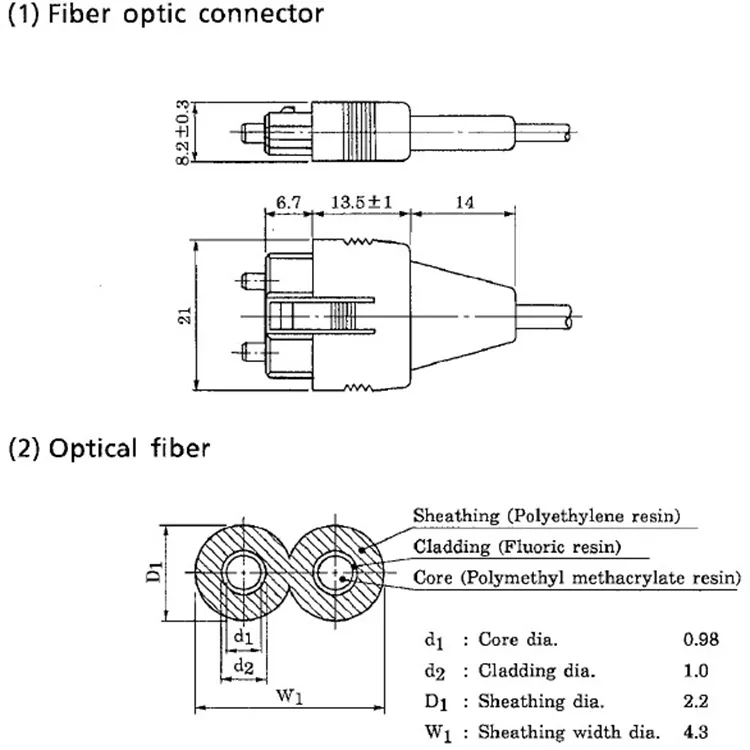

| Connector / Interface | TOCP 200 (JIS F07 duplex) | – | Molded ‘TOCP 200 / TOSHIBA / JAPAN’ on housing; per dimension drawing webp. |
| Connector type | Duplex, plug | – | Two ferrules with yellow protective caps. |
| Core material | PMMA (polymethyl methacrylate) resin | – | Per drawing: Core (Polymethyl methacrylate resin). |
| Cladding material | Fluoric (fluorinated) resin | – | Per drawing: Cladding (Fluoric resin). |
| Sheathing material | Polyethylene (PE) resin | – | Per drawing: Sheathing (Polyethylene resin). |
| Core diameter (d1) | 0.98 | mm | Dimension drawing. |
| Cladding diameter (d2) | 1.0 | mm | Dimension drawing. |
| Sheathing diameter (D1) | 2.2 | mm | Per single fiber. |
| Sheathing width (W1) | 4.3 | mm | Figure-8 duplex overall width. |
| Connector body length | 13.5 (tolerance +/-1), 6.7, 14 | mm | Per drawing dimension rows. |
| Connector overall height | 21 / 8.2+/-0.3 | mm | Per drawing. |
| Attenuation | < 180 (supplier listing); 160 | dB/km | Supplier quick-details; not measured per this SKU. |
| Operating temperature | -55 to +85 | deg C | Supplier listing. |
Applications
- Industrial control and automation bus systems.
- Servo and robot intelligent systems.
- Data center / industrial short-range POF links.
- Power system and sensing signal links.
See our full industrial fiber optic cable and connector category for other connector types and lengths. Visit the home page for the complete product range.
Ordering and Customization
We supply this assembly built to your required length and termination. To prepare a quote, please confirm: the exact model / order code, required length, connector side on both ends, quantity, and the device port you are connecting. Contact our sales team with your drawing or layout.
FAQ
What fiber does the TOCP 200 use? Per the structure drawing, a PMMA (polymethyl methacrylate) core of 0.98 mm inside a 1.0 mm fluoric-resin cladding, PE-sheathed at 2.2 mm per fiber (4.3 mm figure-8).
Is this an original Toshiba connector? The housing is marked Toshiba / JAPAN and matches the TOCP 200 JIS F07 form. We supply compatible built-up jumpers to this form; confirm mating against your device port before ordering.
What attenuation can I expect? Supplier listings quote about 160 dB/km (typical <180 dB/km) for 1 mm POF; design to your transceiver optical budget rather than to this figure alone.
Why Choose Us
TOCP Fibercable supplies H-PCF and PMMA POF industrial fiber jumpers with supplier parameters checked before quoting, and flags designations that need confirmation rather than overstating compatibility. Read our FAQ for H-PCF and POF fiber assemblies, or return to the home page.
Related products: You may also need Avago Versatile Link V-Pin HPCS-1 POF Connector, 980/1000 um, Toshiba TOCP201QK POF Connector, Orange TOCP200 Jumper and Toshiba TOCP200 JIS F07 Duplex POF Connector.
