Avago Versatile Link V-Pin HPCS-1 POF Connector, 980/1000 um
V-pin HPCS-1 duplex POF connector compatible with Avago Versatile Link, for 980/1000um step-index POF, UL94 V-0 housing, industrial gate-driver links.

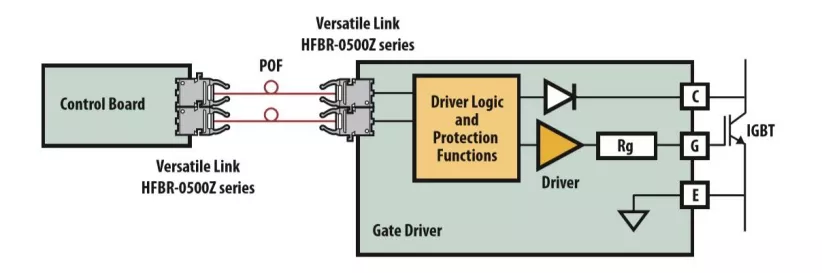

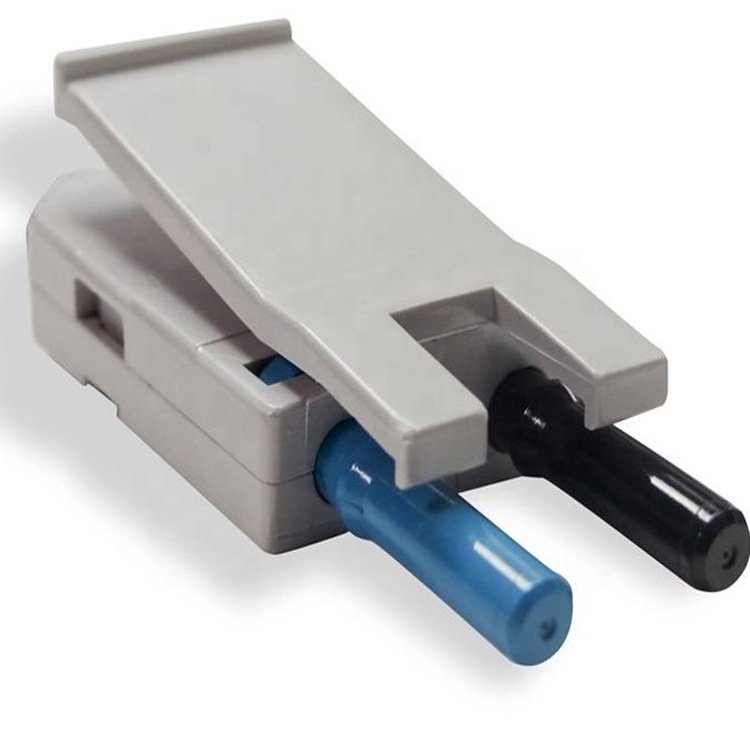

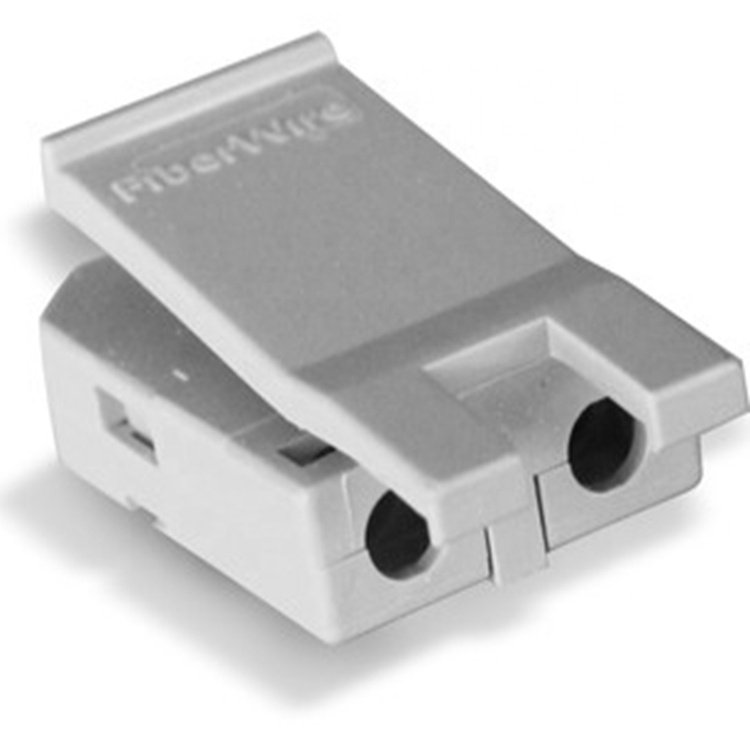

The V-pin HPCS-1 is a duplex plug for Avago/Broadcom Versatile Link-style 980/1000 um plastic optical fiber links. The gray V-pin plug snaps onto POF in control and gate-driver circuits such as the IGBT gate-drive interface shown in the application schematic. It is part of our industrial fiber optic cable and connector range.
Key Features
- V-pin HPCS duplex plug for 980/1000 um step-index POF.
- Versatile Link ecosystem (HFBR-0500Z / HFBR-45xx transceivers).
- Flame-retardant VALOX housing, UL94 V-0 per supplier listing.
- Suited to gate-drive and industrial control isolation links.
- Supplied as connector or built-up cable assembly on request.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Connector type | V-pin HPCS (Avago Versatile Link compatible) | – | Gray V-pin plug as photographed; Avago connector series lineup webp. |
| Fiber type | Step-index POF, 980 / 1000 um core | um | Versatile Link standard for 980/1000 um POF. |
| Housing material | Flame-retardant VALOX, UL94 V-0 | – | Supplier listing; UL file E121562 referenced. |
| Cable jacket | PE, UL VW-1 | – | Supplier listing; UL file E89328 referenced. |
| Reference transceiver family | HFBR-0500Z series (Versatile Link) | – | Application schematic webp. |
| Operating temperature | -55 to +70 | deg C | Supplier listing. |
| Link reach reference | up to 120 m at 40 kBd | m | Versatile Link family reference, not guaranteed per this connector. |
Applications
- IGBT / IPM gate-drive optical isolation links.
- Industrial automation control bus POF links.
- Servo and robot control signal transmission.
- Power switching and converter control boards.
See our full industrial fiber optic cable and connector category for other connector types and lengths. Visit the home page for the complete product range.
Ordering and Customization
We supply this assembly built to your required length and termination. To prepare a quote, please confirm: the exact model / order code, required length, connector side on both ends, quantity, and the device port you are connecting. Contact our sales team with your drawing or layout.
FAQ
What is a V-pin HPCS connector? It is the Versatile Link V-pin duplex plug used with 980/1000 um POF, common on Avago/Broadcom HFBR transceivers for low-rate industrial and gate-drive links.
Which transceivers does it mate with? The supplied schematic shows the HFBR-0500Z Versatile Link series. Confirm the exact HFBR receiver/transmitter part number on your board before ordering.
Can it use non-Avago POF? Supplier listings state compatible with Mitsubishi Eska and Toray POF in addition to Avago fiber; specify the fiber on enquiry.
