Toshiba TOCP200 JIS F07 Duplex POF Connector
Original Toshiba TOCP200 JIS F07 duplex POF connector. Height 8.2 mm, total 21 mm, terminates 0.98/1.0/2.2 mm figure-8 PMMA fiber.

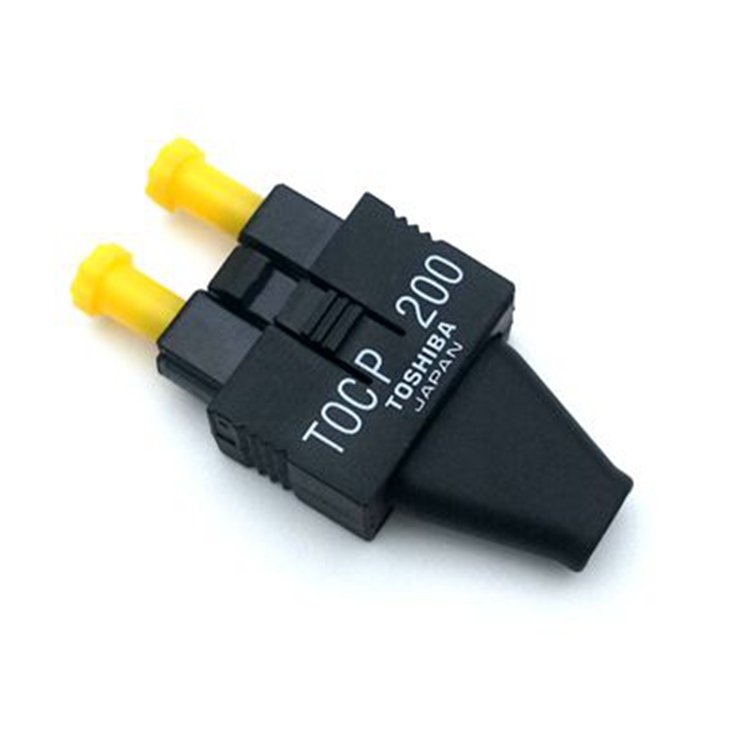

The Toshiba TOCP200 is a JIS F07 duplex plastic optical fiber connector. Per the manufacturer drawing its connector height is 8.2 +/-0.3 mm, the body sections are 6.7, 13.5+/-1 and 14 mm, and the total height is 21 mm. It terminates 0.98 mm core / 1.0 mm cladding / 2.2 mm sheath figure-8 PMMA fiber.
Product Overview
TOCP200 is the duplex Toshiba POF connector used on JIS F07 ports. Compared with TOCP255 it has a longer body section (an added 14 mm boot taper) and a slightly larger connector height.
The drawing on this page gives the mechanical envelope so you can verify fit against your equipment.
Key Features
- JIS F07 duplex interface
- Connector height 8.2 +/-0.3 mm per drawing
- Body 6.7 + 13.5+/-1 + 14 mm, total 21 mm
- Terminates 0.98/1.0/2.2 mm figure-8 PMMA fiber
- Toshiba original ferrule and housing
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Connector type | Duplex POF connector | – | JIS F07 |
| Connector height | 8.2 | mm | +/-0.3, per drawing |
| Body length section 1 | 6.7 | mm | Per drawing |
| Body length section 2 | 13.5 | mm | +/-1 |
| Boot taper section | 14 | mm | Per drawing |
| Overall connector height | 21 | mm | Per drawing |
| Fiber core diameter d1 | 0.98 | mm | PMMA |
| Fiber cladding diameter d2 | 1.0 | mm | Fluoric resin |
| Fiber sheath diameter D1 | 2.2 | mm | Polyethylene resin |
| Sheathing width W1 | 4.3 | mm | Figure-8 |
Applications
- Industrial control optical links
- Toshiba JIS F07 device ports
- TOSLINK-style duplex POF cables
- Measurement equipment optical links
See our full fiber optic connector range for other connector styles and fiber sizes. Visit the home page or read the FAQ for fiber selection help.
Ordering & Customization
We supply TOCP200 duplex connector kits and pre-assembled TOSLINK-style patch cords. Custom lengths and boot colors are available; send the device model and required length.
FAQ
TOCP200 vs TOCP255 – are they interchangeable? Both are JIS F07 duplex connectors for the same 2.2 mm figure-8 PMMA fiber, but they differ in body dimensions (TOCP200 height 8.2 mm / total 21 mm; TOCP255 height 7 mm / total 20 mm). Mating is generally to the same JIS F07 receptacle, but confirm your port clearance; send us the device model to verify.
Why Choose Us
Dimensions are transcribed directly from the Toshiba TOCP200 drawing. We verify each order against the actual fiber size and port clearance.
For pricing, lead time or custom lengths, contact our sales team.
