Mitsubishi ESKA SH1009-1.25 / SH1016 / SH1032 POF Bundle Cable, 0.265 mm Fibres
Mitsubishi ESKA SH1009-1.25, SH1016 and SH1032 black PE bundle cables of 0.265mm PMMA fibres, 2.2/2.8mm OD, for illumination and sensors.
The Mitsubishi ESKA SH1009-1.25, SH1016 and SH1032 are black PE-jacketed bundle cables made of many 0.265 mm PMMA fibres, used for illumination light guides and optical sensor arrays.
Product Overview
These SH-grade Super Eska bundle cables pack 0.265 mm PMMA fibres into a single black polyethylene jacket. SH1009-1.25 is the slim 1.25 mm OD bundle, SH1016 the 16-fibre 2.2 mm OD version, and SH1032 the 32-fibre 2.8 mm OD version. Bundles are chosen where a single fibre carries too little light or where many sensing points must be fed from one illuminator. They are part of our POF fibre optical cable range.
Key Features
- Multi-fibre PMMA bundles of 0.265 mm fibres in black PE jacket.
- Three jacket sizes: 1.25 mm (SH1009), 2.2 mm (SH1016), 2.8 mm (SH1032).
- Black PE jacket suppresses side glow and protects the fibres.
- Rated -55 to +70 °C per the Mitsubishi catalog, 500 m spool.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|

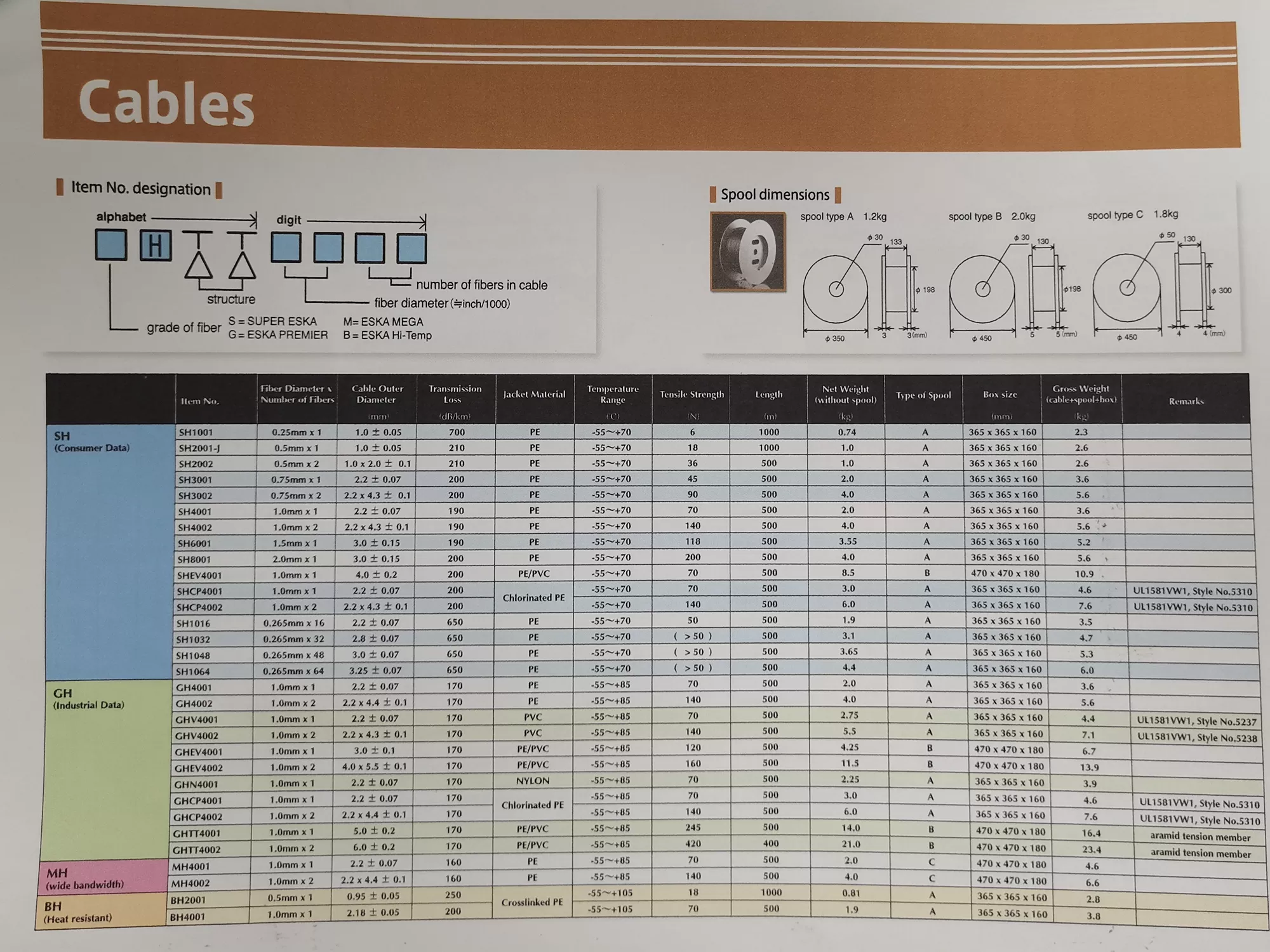

| Fibre grade | Mitsubishi ESKA SH (Super Eska) bundle cable | – | Mitsubishi ESKA Cables catalog |
| Bundle model range | SH1009-1.25 / SH1016 / SH1032 | – | 0.265mm multi-fibre bundle series |
| Individual fibre diameter | 0.265 | mm | Catalog bundle rows |

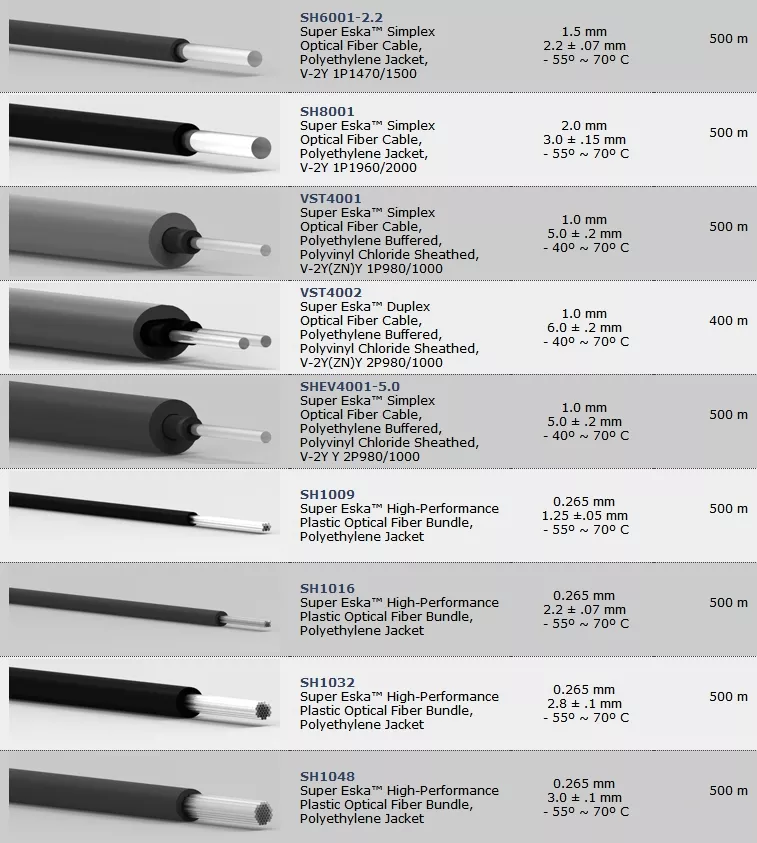

| SH1009 outer cable diameter | 1.25 +/- 0.05 | mm | Hd11f830 lineup sheet |
| SH1016 outer cable diameter | 2.2 +/- 0.07 | mm | Catalog table |
| SH1032 outer cable diameter | 2.8 +/- 1 | mm | Catalog table / lineup sheet |
| Number of fibres SH1016 / SH1032 | 16 / 32 | – | Catalog table |
| Transmission loss | 650 | dB/km | Catalog bundle rows |
| Jacket material | PE (polyethylene), black | – | Catalog table |
| Temperature range | -55 to +70 | deg C | Catalog table |
| Tensile strength SH1016 / SH1032 | 50 / >50 | N | Catalog table |

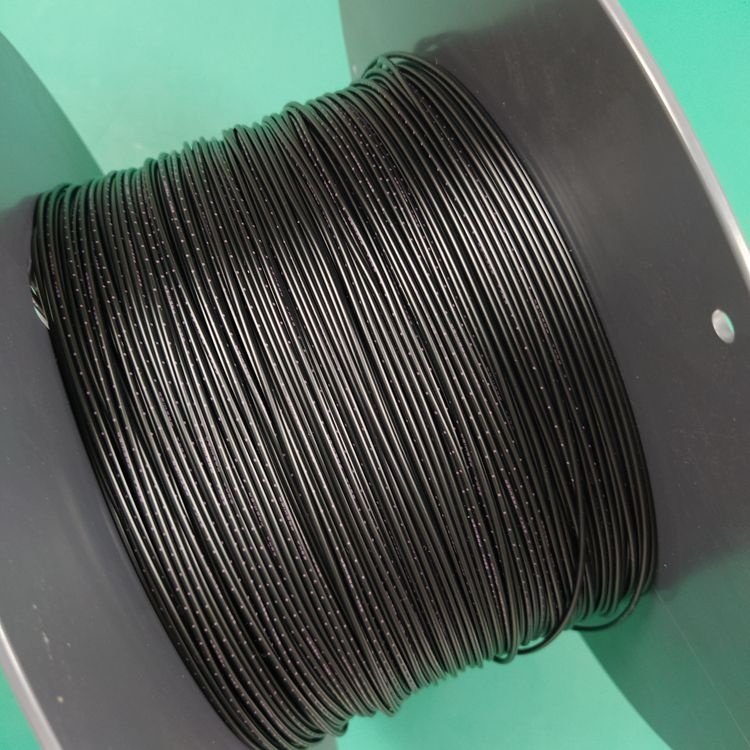

| Length | 500 | m/spool | Catalog table |
| Core material | PMMA | – | Supplier listing; Mitsubishi ESKA |
| Cladding material | Fluorinated polymer | – | Supplier listing |
Applications

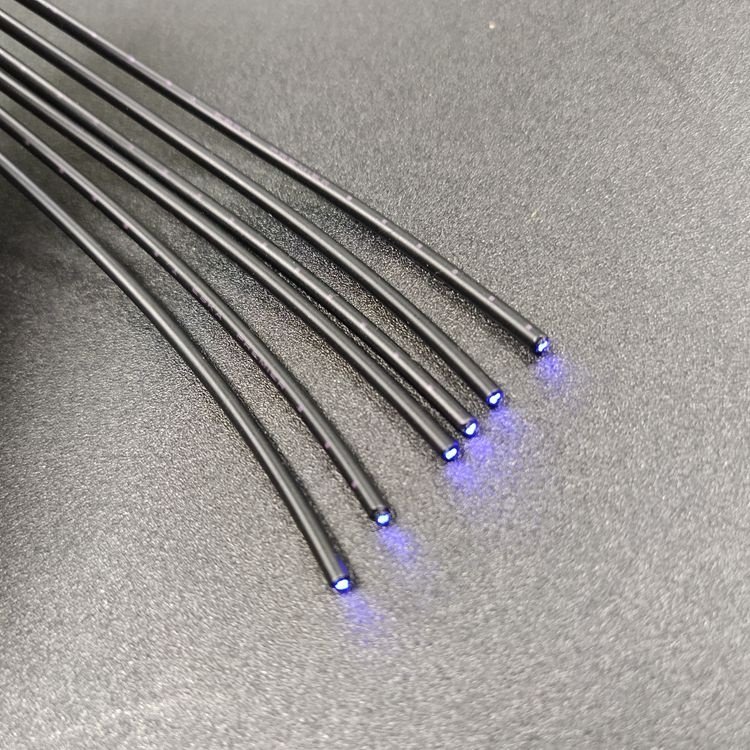

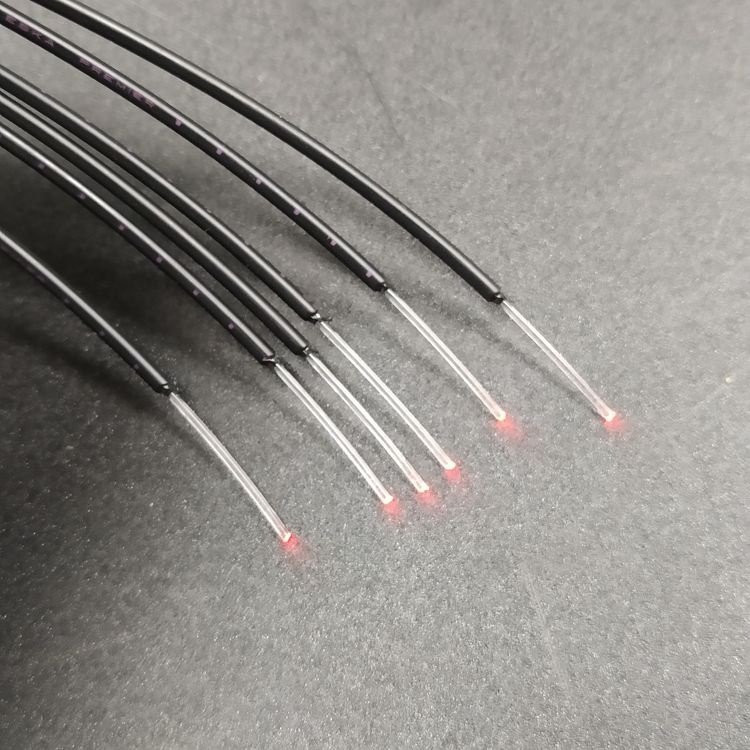

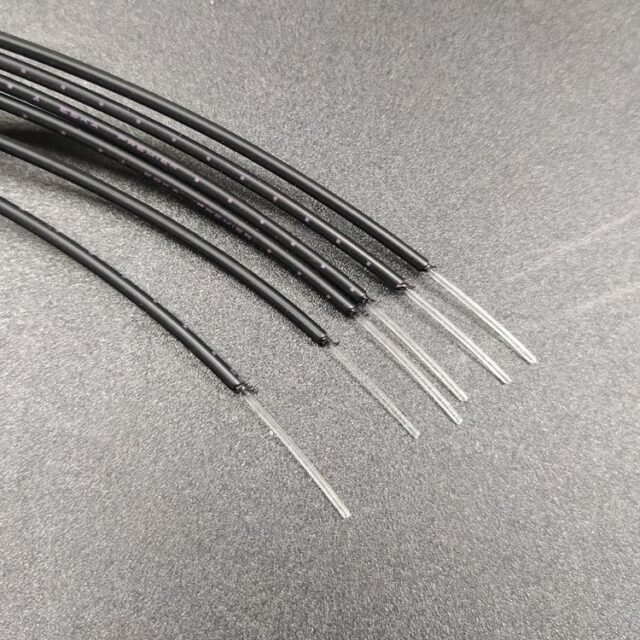

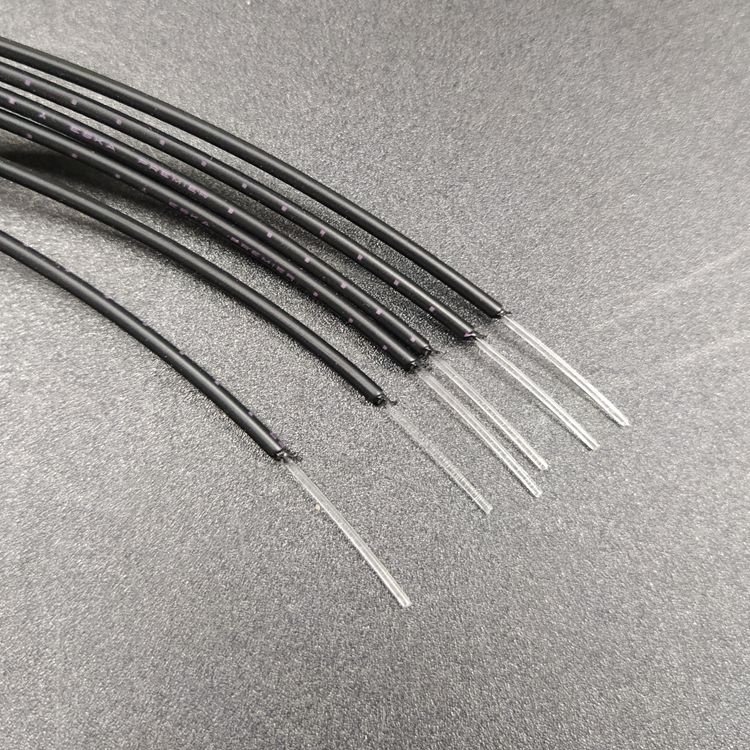

Illumination light guides and end-glow bundles, optical sensor arrays and detection heads, machine vision light guides, and short-range data/sensing links. The stripped clear ends couple to an LED illuminator or photodetector.
Ordering and Customization
Tell us which bundle size (SH1009-1.25, SH1016 or SH1032), required length, and whether you need ends stripped, ferruled or fitted with a specific connector. Request a quote at sales@fevelectronics.com. Background is in the FAQ; browse from the home page.
FAQ
How many fibres are in each bundle?
SH1016 carries 16 fibres and SH1032 carries 32 fibres of 0.265 mm each; SH1009-1.25 is the slim bundle in the same series (exact fibre count not shown on the cropped catalog page).
What are the fibres made of?
PMMA (acrylic) core with a fluorinated polymer cladding, jacketed in black polyethylene — the standard Mitsubishi ESKA SH consumer-data/sensing construction.
Is IP68 or 6000K part of this cable?
No — IP rating and colour temperature are illuminator or enclosure figures, not the fibre bundle’s own ratings.
Why Choose Us
We supply Mitsubishi ESKA SH bundle cables to the jacket size and fibre count actually listed, keep the catalog parameters traceable, and quote the bundle rather than mixing illuminator specs. Start from the POF category or the home page.
