Mitsubishi Super ESKA SH3001/SH4001/SH4001-1.3/SH4002 POF
Mitsubishi Super ESKA SH consumer-data black PE POF: SH3001 0.75/2.2mm, SH4001 1.0/2.2mm, SH4001-1.3 1.0/1.3mm, SH4002 1.0mm duplex, -55 to 70 C.
The Mitsubishi Super ESKA SH family is a step-index PMMA consumer-data POF cable range in black PE jacket, used for short-distance data links, sensors and lighting signal. This listing covers SH3001 (0.75 mm core, 2.2 mm jacket), SH4001 (1.0 mm core, 2.2 mm jacket), SH4001-1.3 (1.0 mm core, slimmer 1.3 mm jacket) and SH4002 (1.0 mm duplex, 2.2 × 4.4 mm jacket). SH is the standard consumer/sensor grade rated to +70 °C; the higher-temperature GH grade covers automotive/industrial needs.
Product Overview

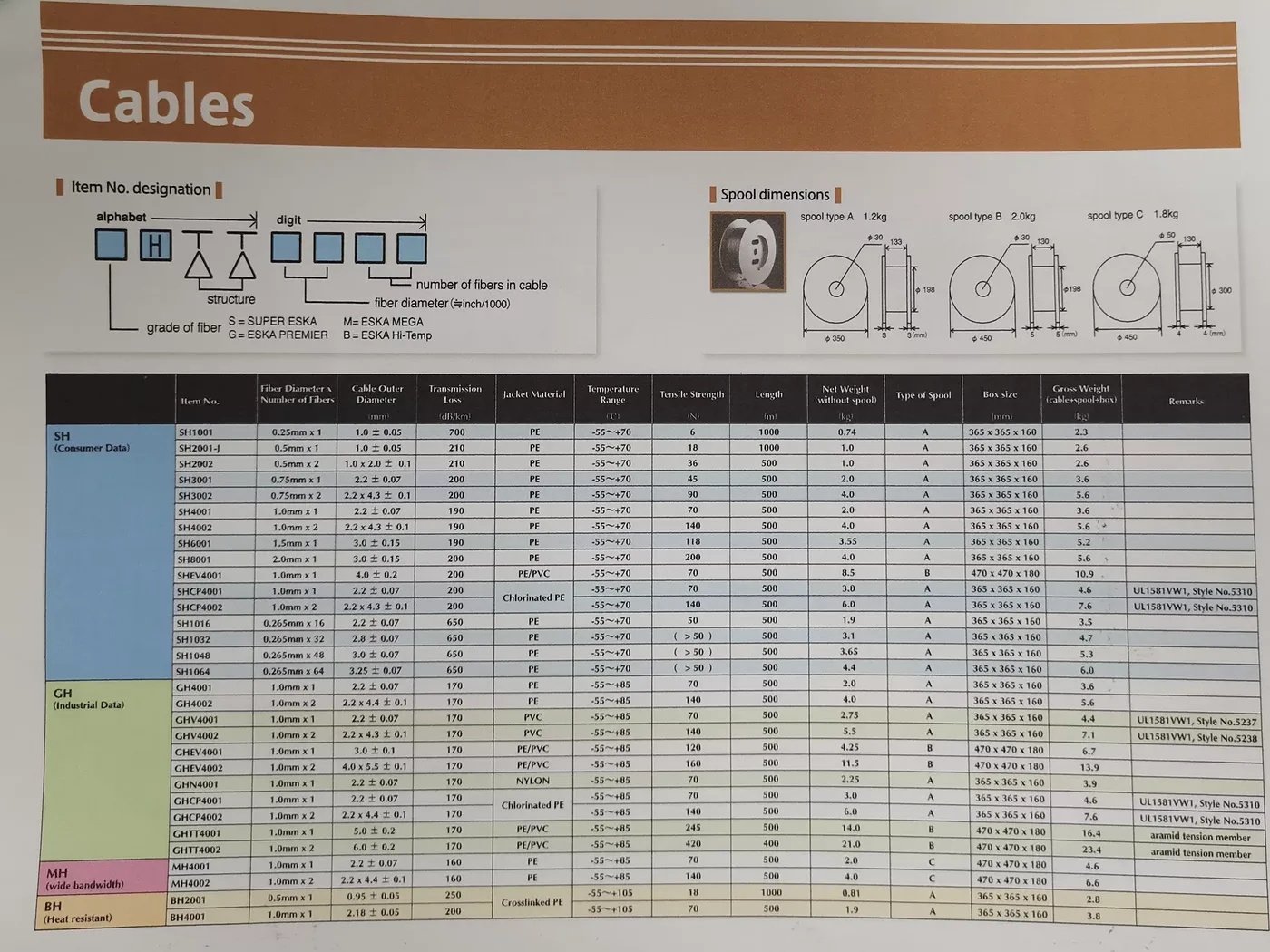

This product is part of our POF fiber optical cable range of step-index PMMA plastic optical fibers and jacketed cables. The values below are taken from the supplier grade table, structure sheet and listing; LED-illuminator parameters (color temperature, input voltage, IP rating) are deliberately excluded because they belong to the light source, not the fiber.
Key Features

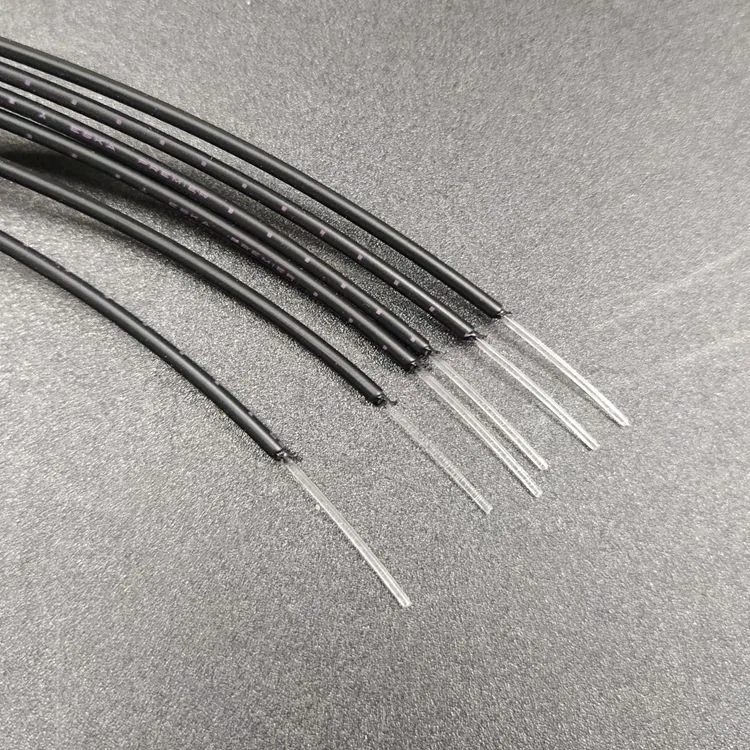

- Super ESKA SH step-index PMMA data POF in black PE jacket.
- Four forms: SH3001, SH4001, SH4001-1.3 simplex and SH4002 duplex.
- –55 ~ +70 °C; 500 m typical reels.
- 1.0 mm core variants match common POF data transceivers.
- Short-distance data, sensor and signal links.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Cable family | Mitsubishi Super ESKA (SH grade) data POF | – | SH cable list; consumer/sensor-data grade. |

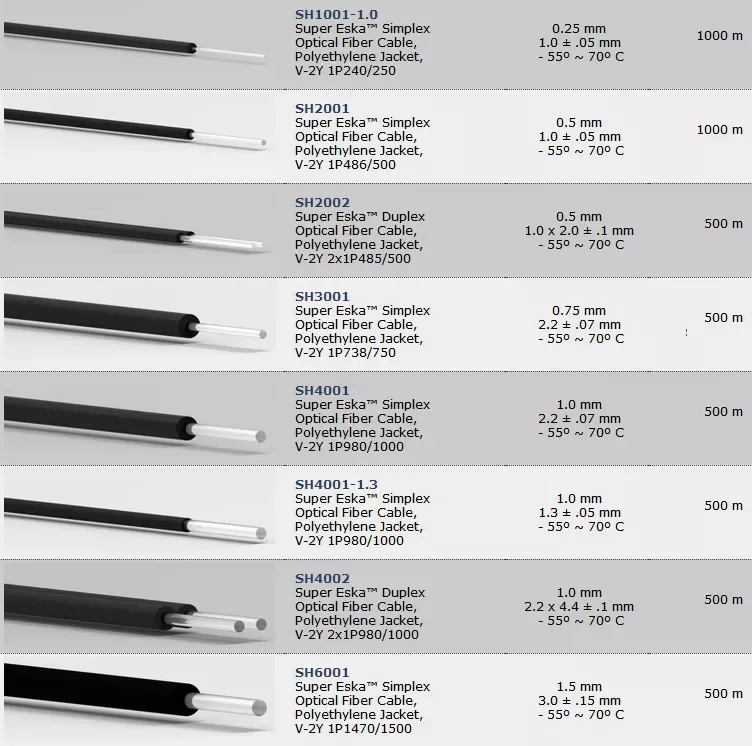

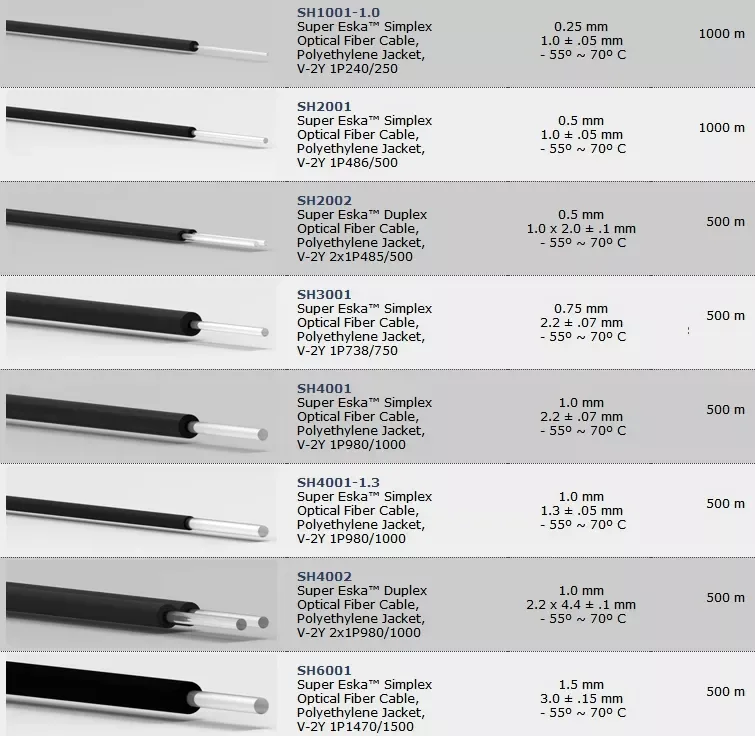

| SH3001 | 0.75 mm fiber, 2.2 +/-0.07 mm PE simplex jacket | – | V-2Y 1P738/750, 500 m, -55~70 C. |
| SH4001 | 1.0 mm fiber, 2.2 +/-0.07 mm PE simplex jacket | – | V-2Y 1P980/1000, 500 m, -55~70 C. |
| SH4001-1.3 | 1.0 mm fiber, 1.3 +/-0.05 mm PE simplex jacket | – | V-2Y 1P980/1000, 500 m, -55~70 C. |
| SH4002 | 1.0 mm fiber, 2.2 x 4.4 +/-1 mm PE duplex jacket | – | V-2Y 2x1P980/1000, 500 m, -55~70 C. |
| Core material | PMMA (polymethyl methacrylate) | – | Mitsubishi ESKA structure. |
| Cladding material | Fluorinated polymer | – | Mitsubishi ESKA structure. |
| Refractive index profile | Step index | – | Mitsubishi ESKA structure. |
| Jacket material | Black polyethylene (PE) | – | SH list. |
| Operating temperature | -55 ~ +70 | C | SH grade. |
| Typical reel length | 500 | m | Per grade on SH list. |
Applications
Consumer-data communication, sensor connections, short-haul POF links, lighting signal runs and industrial monitoring where the +70 °C rating is sufficient. Browse the full POF fiber optical cable category for other diameters and jacket options.
Ordering and Customization
Tell us the exact SH grade, length and any connector. Quote at sales@fevelectronics.com. More answers are on the FAQ page, and you can return to the home page.
FAQ
Which SH grade is the 1.0mm simplex?
SH4001 is the 1.0 mm core / 2.2 mm jacket simplex; SH4001-1.3 is the same 1.0 mm core in a slimmer 1.3 mm jacket.
What is the duplex version?
SH4002 carries two 1.0 mm cores in a 2.2×4.4 mm duplex jacket for bidirectional links.
Is the listing’s ‘NA <=0.2' correct?
No. That field appears to be a listing error; NA for ESKA PMMA POF is about 0.5 and is not repeated here. Confirm the grade on the Mitsubishi list before ordering.
