Mitsubishi ESKA SH1001 (0.25 mm) and SH2001 (0.5 mm) are simplex black PE-jacketed PMMA POF data cables, the standard consumer-grade ESKA links for sensing and short-distance data.
Product Overview
The SH series is Mitsubishi’s standard-level ESKA plastic optical fibre cable. SH1001 carries a 0.25 mm fibre in a 1.0 mm OD black PE jacket, while SH2001 carries a 0.5 mm fibre in the same 1.0 mm OD jacket. Both are step-index PMMA fibres with a fluorinated cladding, supplied on 1000 m spools. They are part of our POF fibre optical cable range.
Key Features
- Two fibre sizes: SH1001 = 0.25 mm, SH2001 = 0.5 mm, both in 1.0 mm OD PE jacket.
- Step-index PMMA core / fluorinated cladding.
- Black PE jacket for indoor routing and protection.

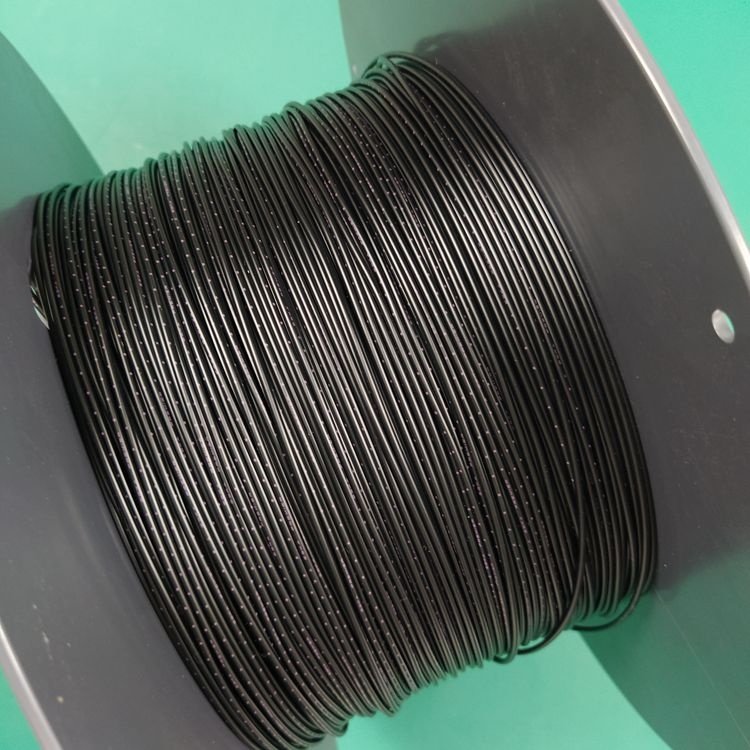

- 1000 m spool, rated -55 to +70 °C.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|

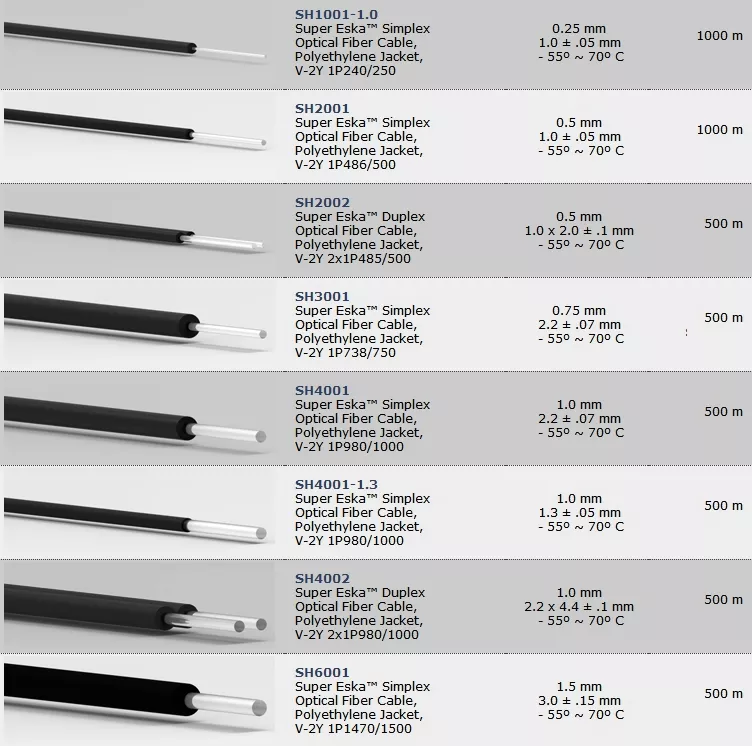

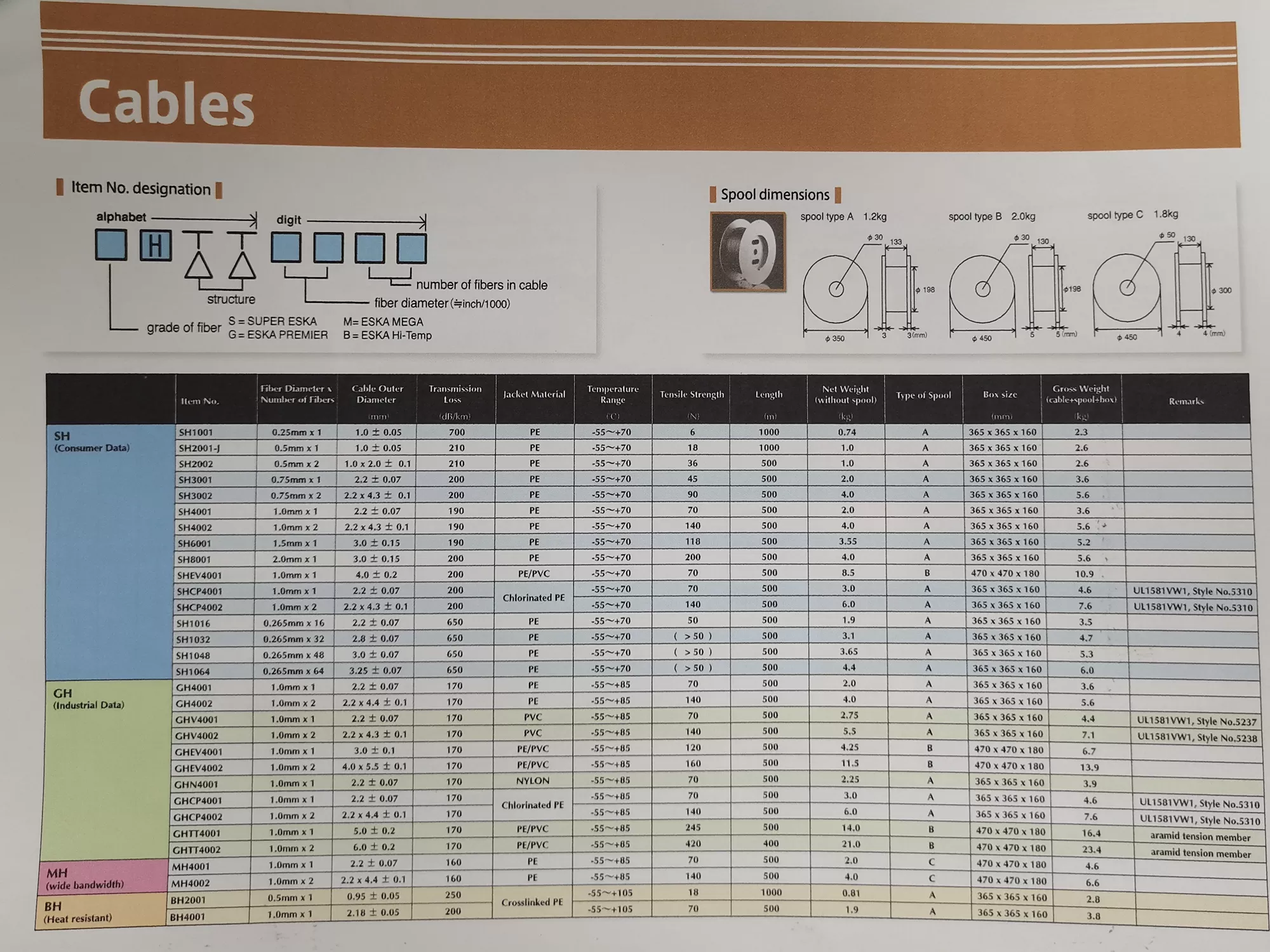

| Fibre grade | Mitsubishi ESKA SH (Super Eska) simplex cable | – | Mitsubishi ESKA Cables catalog |
| Model range | SH1001 / SH2001 (SH2001-1.25 variant) | – | Simplex black PE cable |
| SH1001 fibre diameter | 0.25 | mm | Catalog table |
| SH1001 cable OD | 1.0 +/- 0.05 | mm | Catalog table / lineup |
| SH1001 transmission loss | 700 | dB/km | Catalog table |
| SH2001 fibre diameter | 0.5 | mm | Catalog table |
| SH2001 cable OD | 1.0 +/- 0.05 | mm | Catalog table / lineup |
| SH2001 transmission loss | 210 | dB/km | Catalog table |
| Jacket material | PE (polyethylene), black | – | Catalog table |
| Temperature range | -55 to +70 | deg C | Catalog table |
| Tensile strength SH1001 / SH2001 | 6 / 18 | N | Catalog table |
| Length | 1000 | m/spool | Catalog table |
| Core material | PMMA | – | Mitsubishi ESKA |
| Cladding material | Fluorinated polymer | – | Mitsubishi ESKA |
Applications

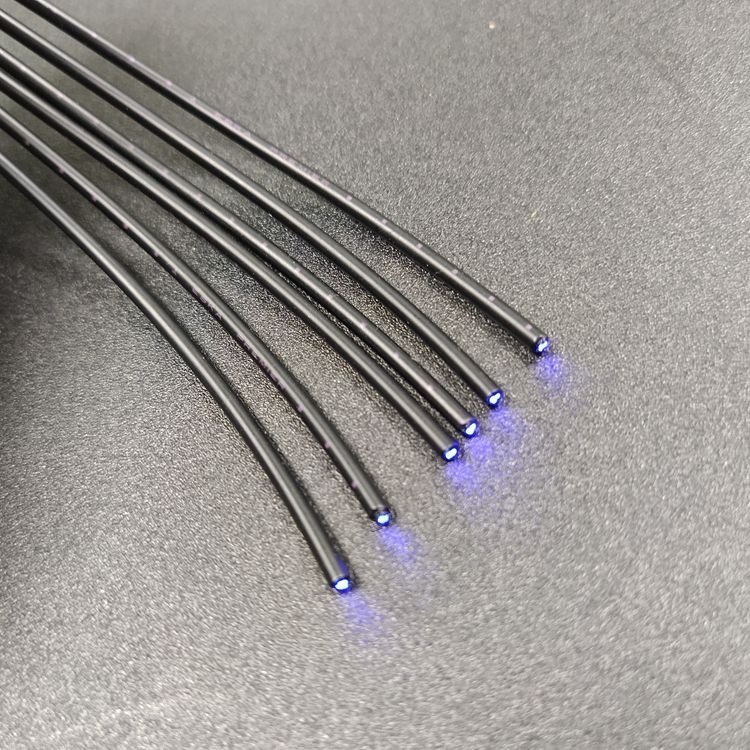

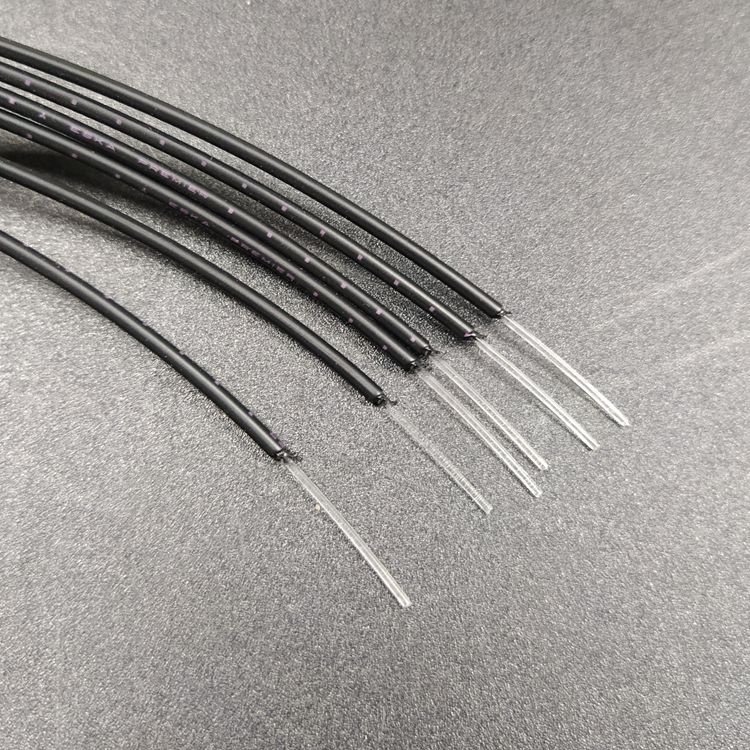

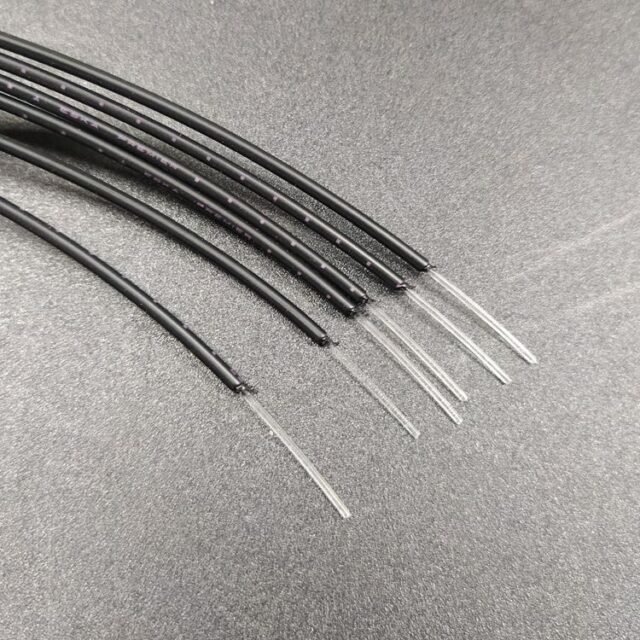

Consumer-electronic links, in-car entertainment and navigation optical links, sensor connections, control wiring and short-distance data transmission where EMI immunity matters. The stripped clear fibre ends terminate to LED/PD transceivers.
Ordering and Customization
Tell us the grade (SH1001 0.25 mm or SH2001 0.5 mm), required length, and any connector termination. Request a quote at sales@fevelectronics.com. More in the FAQ; return to the home page.
FAQ
What is the difference between SH1001 and SH2001?
The fibre core: 0.25 mm (SH1001, higher loss 700 dB/km) versus 0.5 mm (SH2001, lower loss 210 dB/km). Both use the same 1.0 mm OD black PE jacket.
What does SH2001-1.25 mean?
The folder lists an SH2001-1.25 variant; the cropped catalog shows SH2001 at 1.0 mm OD. Confirm the exact jacket/order code against your device before ordering.
Are these H-PCF glass fibres?
No — they are PMMA plastic optical fibre (ESKA SH grade), not silica H-PCF.
Why Choose Us
We supply Mitsubishi ESKA SH simplex cables to the fibre diameter actually listed, keep catalog values traceable, and flag the order-code variants that need confirmation. Start from the POF category or the home page.
