Mitsubishi ESKA Premier GH4001 / GHAN4001 POF Cable (170 dB/km)
Mitsubishi ESKA Premier GH4001 (simplex) and GHAN4001 (duplex) PMMA POF, 1.0mm fiber / 2.2mm OD, 170 dB/km, -55 to +85 C, 500m drums.
The ESKA Premier GH4001 and GHAN4001 (GH4002) are Mitsubishi’s low-attenuation jacketed PMMA POF, rated 170 dB/km with a PE jacket and a −55…+85 °C range. GH4001 is simplex (1.0 mm fiber, 2.2 mm OD); GHAN4001/GH4002 is duplex (2.2×4.4 mm).
Product Overview
The GH grade is Mitsubishi’s Premier-class POF, with lower attenuation (170 dB/km) than the standard BH series, making it the better choice for longer industrial links. The PE jacket covers −55 to +85 °C.

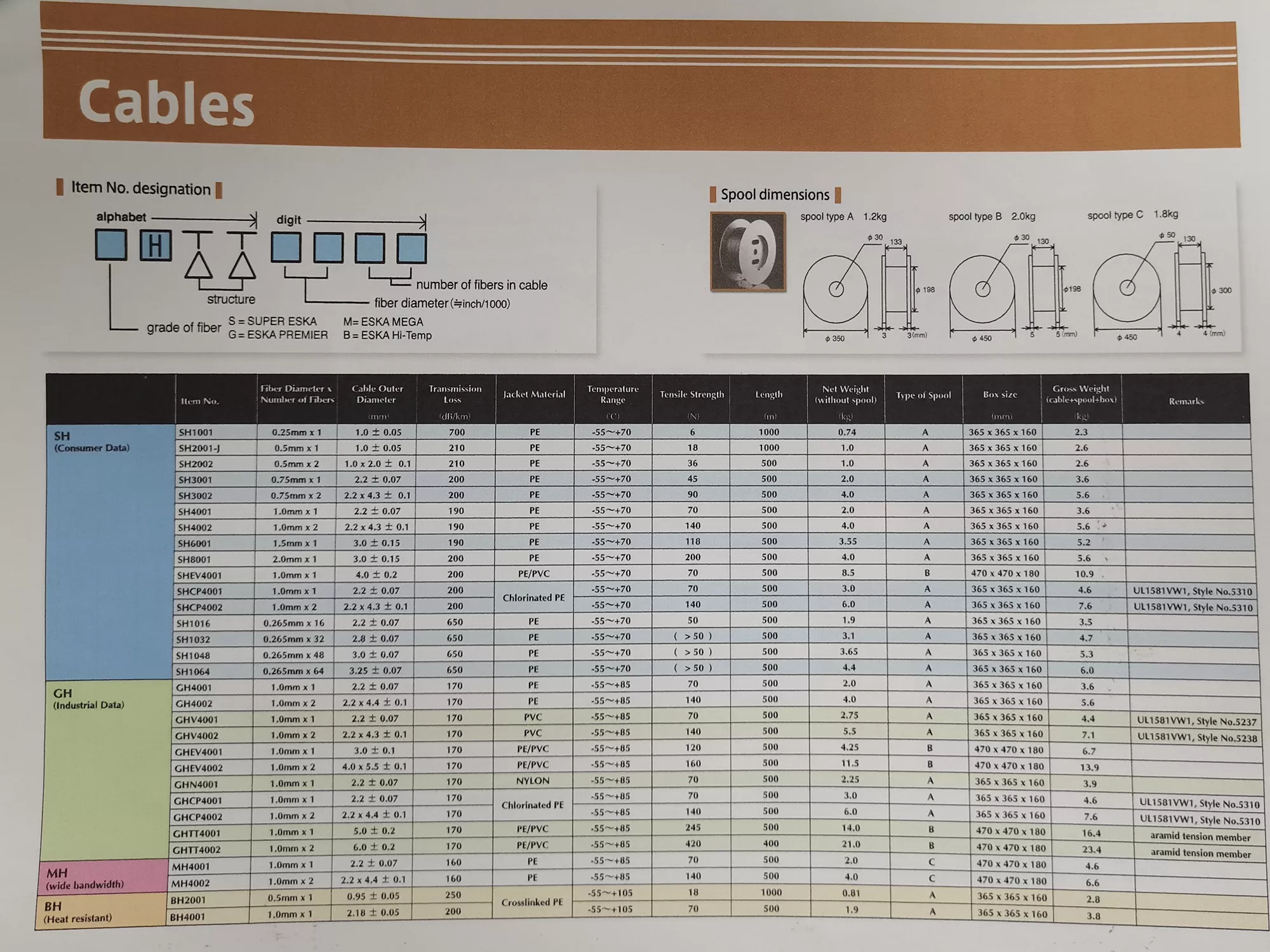

The catalogue lists GH4001 at 70 N tensile and GH4002 (duplex) at 140 N, both on 500 m drums.
Key Features
- Mitsubishi ESKA Premier GH grade, 170 dB/km.
- GH4001 simplex (2.2 mm) / GHAN4001 duplex (2.2×4.4 mm).
- PE jacket, −55 to +85 °C.
- 70 N / 140 N tensile; 500 m drums.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Cable type | Jacketed PMMA POF (Mitsubishi ESKA Premier GH) | – | PE jacket; GH4001 simplex / GHAN4001 duplex. |
| GH4001 fiber / OD | 1.0 / 2.2 | mm | Single 1.0mm fiber, 2.2mm PE jacket. |
| GH4002 / GHAN4001 fiber / OD | 1.0 ×2 / 2.2×4.4 | mm | Two fibers in duplex flat jacket. |
| Core material | PMMA | – | ESKA Premier. |
| Jacket material | PE | – | GH series. |
| Attenuation | 170 | dB/km | Mitsubishi catalogue. |
| Operating temperature | -55 to +85 | °C | GH series. |
| Tensile load | GH4001 70 N / GH4002 140 N | – | Mitsubishi catalogue. |

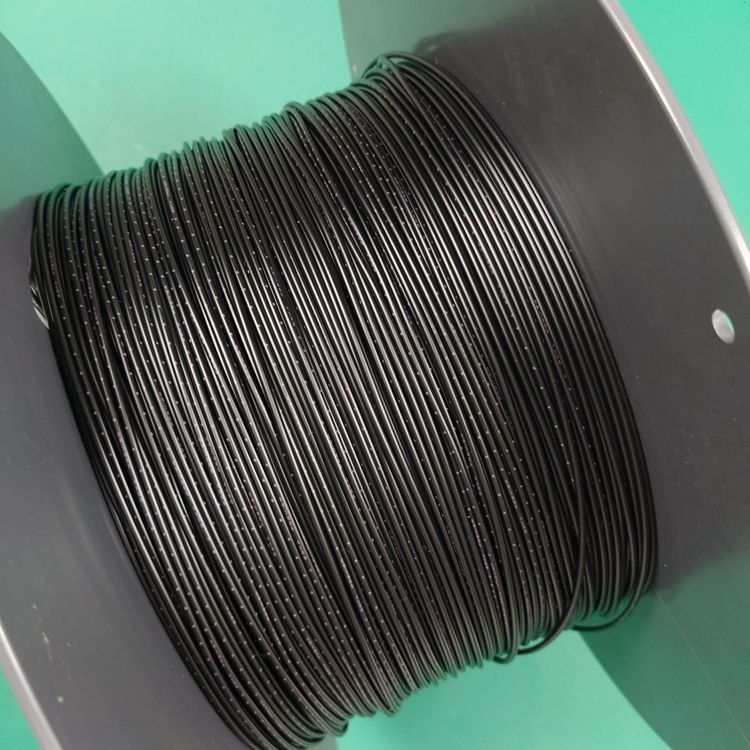

| Length per drum | 500 | m | Mitsubishi catalogue. |
Applications
- Longer industrial POF links.
- Servo, robot and machine-tool data networks.
- Noise-immune control wiring.
- Bidirectional duplex links using GHAN4001.
See our full POF fiber optical cable range for other diameters and jacket options.
Ordering & Customization
We supply GH4001 and GHAN4001 by the 500 m drum, cut and terminated with POF connectors. Contact sales.
FAQ
How does GH compare to BH? GH is Premier grade with lower attenuation (170 dB/km) and a PE jacket rated to +85 C. BH is the heat-resistant grade rated to +105 C with cross-linked PE. Choose GH for longer links, BH for the highest ambient temperatures.
Why Choose Us
TOCP Fibercable supplies Mitsubishi ESKA BH/GH/LH named grades. See the POF cable category, the home page, or the FAQ.
