Mitsubishi ESKA SH1048 SH1064 Bundle POF, 48/64-core 0.265mm

Mitsubishi Super Eska SH1048 (48-core) and SH1064 (64-core) bundle POF, 0.265 mm fiber, PE jacket, 650 dB/km, -55 to 70 C, 500 m, for sensors and data.

Categories: Industrial Fiber Optic Cable, POF Fiber Optical Cable

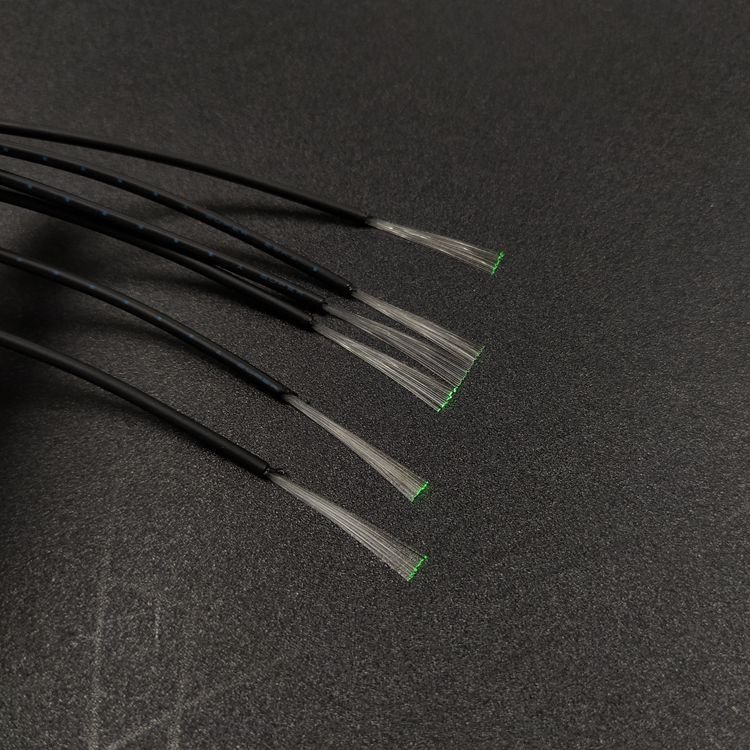

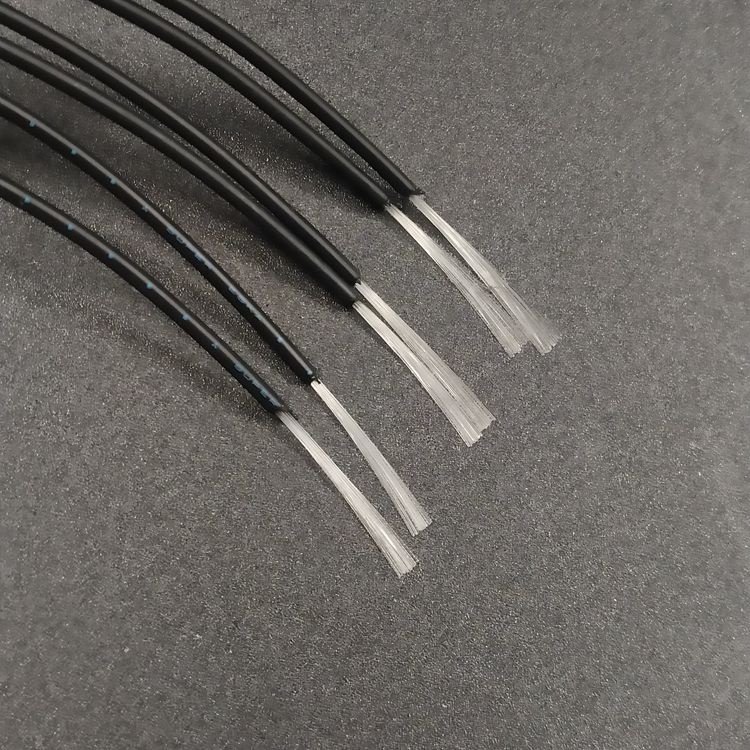

Mitsubishi ESKA SH1048 and SH1064 are multi-fiber bundle plastic optical cables from the Super Ecka consumer-data (SH) grade: SH1048 bundles 48 fibers and SH1064 bundles 64 fibers of 0.265 mm PMMA POF in a polyethylene jacket. They are used where many independent light paths are needed in one cable, such as sensing arrays, illumination bundles and short-distance data harnesses.

Product Overview

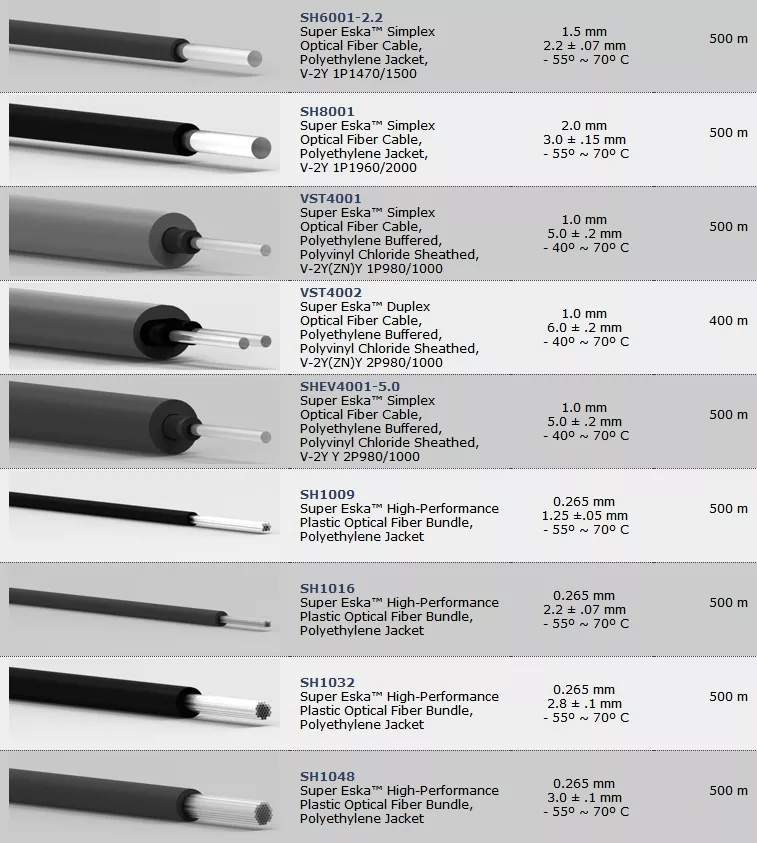

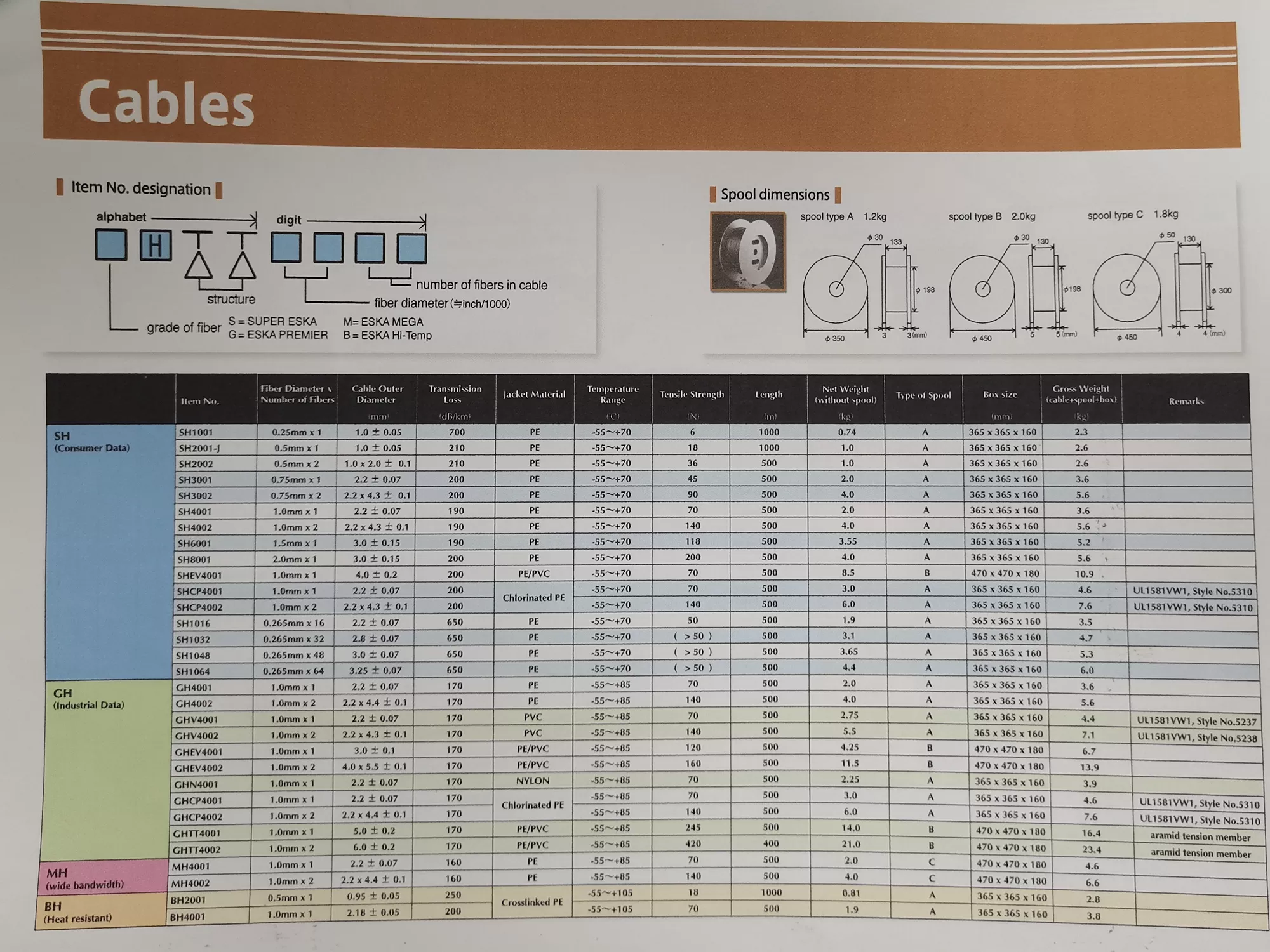

The Mitsubishi Eska part-numbering scheme decodes these cables as a grade letter (S = Super Eska), structure type, fiber diameter and fiber count. SH1048 and SH1064 are the 48-fiber and 64-fiber members of the 0.265 mm bundle family, rated at 650 dB/km transmission loss, -55 to +70 °C and supplied on 500 m spools per the Mitsubishi Eska cable catalog. The core is PMMA with a fluorinated-polymer cladding and a PE outer jacket. See the full range on our POF fiber optical cable category page.

Key Features

Recognized Mitsubishi Super Eska part numbers: SH1048 = 48 fibers, SH1064 = 64 fibers.
Each fiber is 0.265 mm PMMA; bundle OD 3.0 ±0.07 mm (SH1048) and 3.25 ±0.07 mm (SH1064).
PE jacket, transmission loss 650 dB/km, temperature range -55 to +70 °C per the Eska cable catalog.
Supplied on 500 m spools; galvanically isolated and immune to electromagnetic noise.

Specifications

Parameter	SH1048	SH1064	Notes
Item No. (Mitsubishi)	SH1048	SH1064	Super Eska consumer-data (SH) grade bundle
Fiber diameter x number of fibers	0.265 mm x 48	0.265 mm x 64	per Eska cable catalog table
Cable outer diameter	3.0 +/- 0.07	3.25 +/- 0.07	mm, PE jacket
Transmission loss	650	650	dB/km, per Eska catalog table
Jacket material	PE (polyethylene)	PE (polyethylene)	per Eska catalog table
Temperature range	-55 to +70	-55 to +70	°C, SH grade
Tensile strength	>50	>50	N, per catalog table

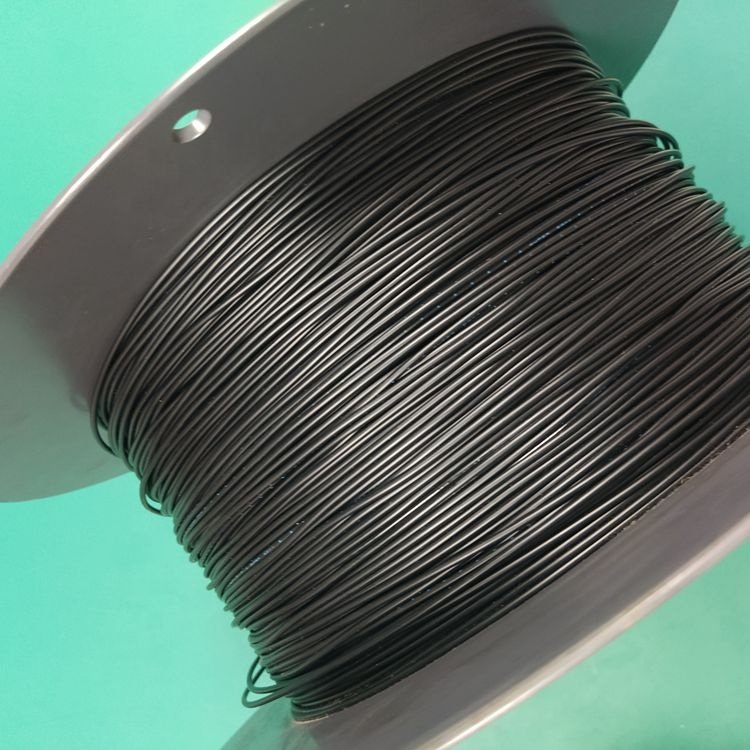

Length per spool	500	500	m, spool type A
Net weight (without spool)	3.65	4.4	kg, per catalog table
Core material	PMMA	PMMA	supplier product description
Cladding material	Fluorinated polymer	Fluorinated polymer	supplier product description

Applications

Sensor and photoelectric sensing arrays needing many parallel light paths in one cable.
Illumination bundles and decorative multi-point light feeds.
Short-distance data communication and industrial-control harnesses where EMI immunity is required.

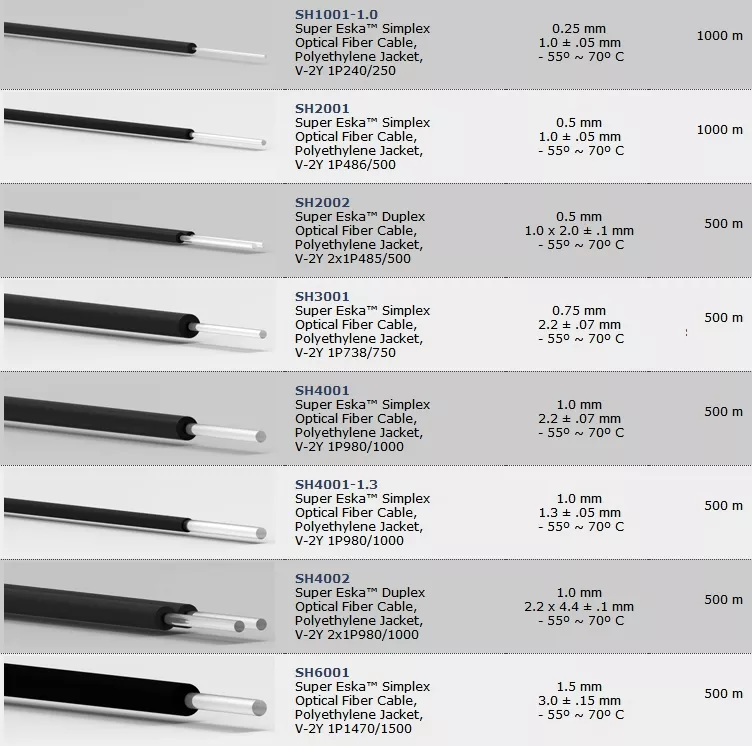

The bundle connects to POF transmitters/receivers or illuminators sized for the 0.265 mm fiber. Browse the rest of the POF cable range for simplex and duplex Ecka options.

Ordering & Customization

Please confirm the grade (SH1048 48-core or SH1064 64-core), required length, and the connector / ferrule interface at each end. We do not list fixed pricing online; contact our sales team for a quote. More answers are on our FAQ for H-PCF and POF fiber assemblies, and you can return to the home page any time.

FAQ

What is the difference between SH1048 and SH1064?

They are the same 0.265 mm Super Eska bundle family in different fiber counts: 48 fibers (SH1048, OD 3.0 mm) and 64 fibers (SH1064, OD 3.25 mm). Both carry 650 dB/km and -55 to +70 °C per the Eska catalog.

Is this a single data channel?

No. It is a bundle of many independent 0.265 mm fibers; each fiber is a separate light path. Terminate and match each fiber to its own emitter/detector.

What about the docx attenuation of 0.2 dB/km?

The supplier docx quick-details list 0.2 dB/km, but the Mitsubishi Eska cable catalog table for these bundle grades lists 650 dB/km; we use the catalog value and flag the discrepancy for verification.
