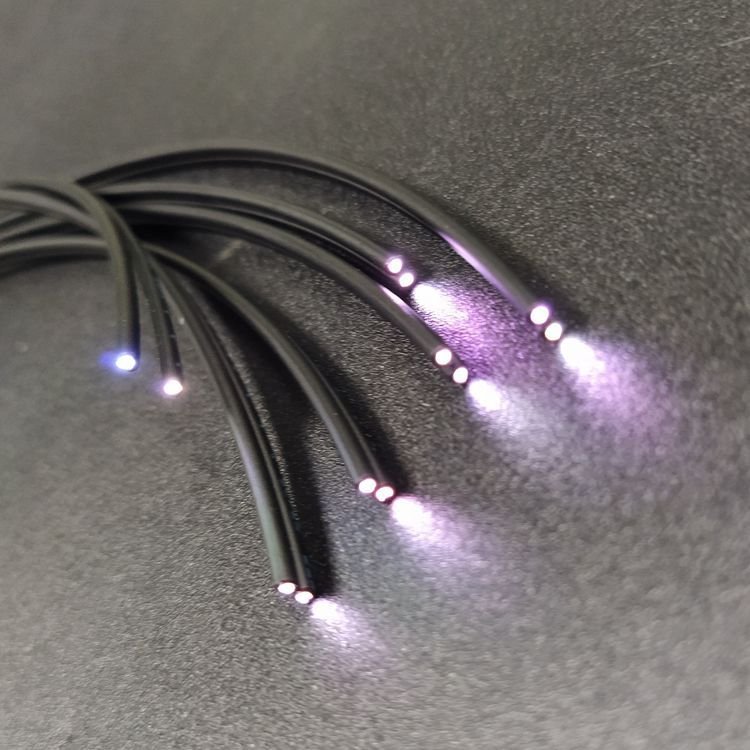

Mitsubishi ESKA SAT2119 SH1004-N SH-Grade Bundle POF
Mitsubishi Eska SH1004-N (order SAT2119) SH-grade bundle POF: four 0.265 mm PMMA fibers, 650 dB/km family loss, -55 to 70 C, PE jacket, for illumination.

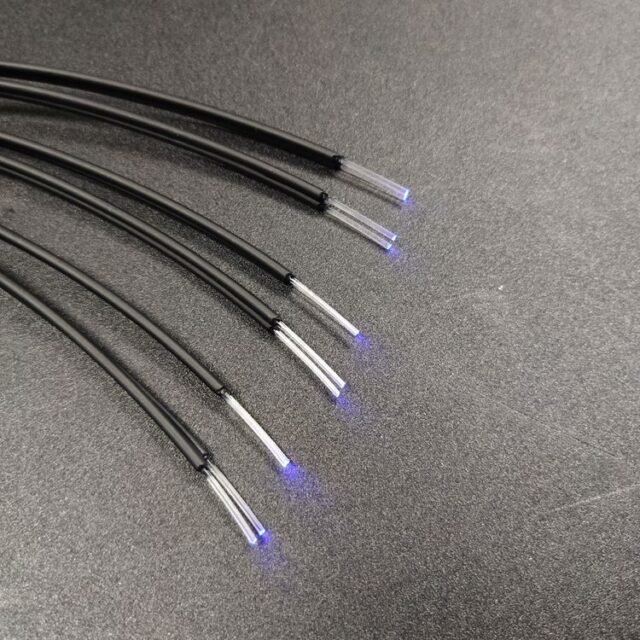

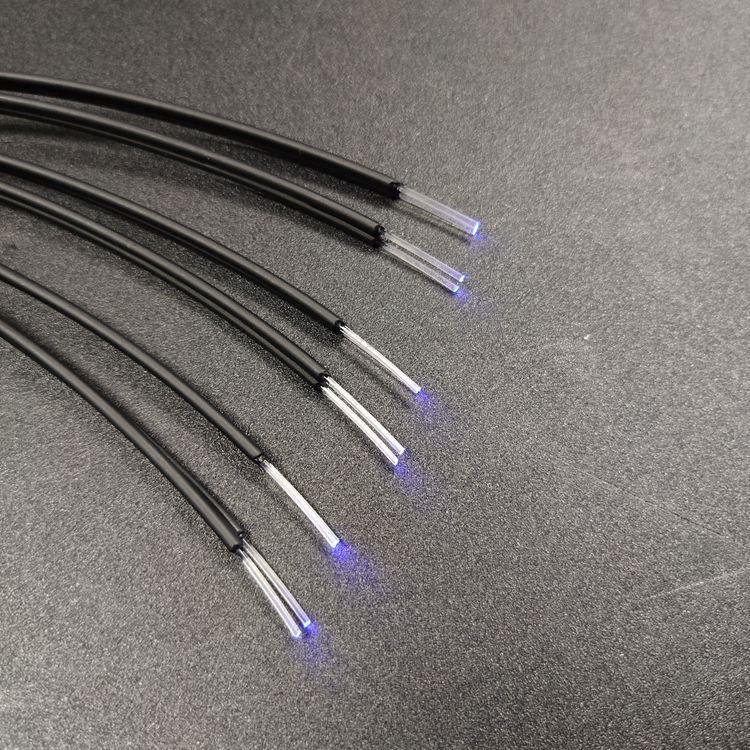

The Mitsubishi ESKA SH1004-N (order code SAT2119) is an SH-grade bundle plastic optical cable made from four 0.265 mm PMMA fibers in a single outer jacket, intended for illumination light guides and sensor wiring rather than high-bandwidth data links.
Product Overview
SH is the consumer/data grade of Mitsubishi Eska POF rated to +70 °C. The 0.265 mm small-core bundle series is designated SH10xx, where the last two digits give the fiber count: SH1016 (16 fibers), SH1032 (32), SH1048 (48) and SH1064 (64) are listed on the Eska cable catalog at 650 dB/km, PE jacket and 500 m spools. SH1004-N is the four-fiber member of that series; the provided catalog page does not print the SH1004 row, so its exact outer diameter and tensile value are flagged for verification. The order code SAT2119 is the supplier purchase code for this bundle. The core is PMMA with a fluorinated-polymer cladding. See the full range on our POF fiber optical cable category page.
Key Features
- Recognized Mitsubishi grade: SH1004-N (four-fiber 0.265 mm bundle); order code SAT2119.
- 0.265 mm PMMA fibers in a PE-jacketed bundle; family transmission loss 650 dB/km.
- Temperature range -55 to +70 °C; supplied on 500 m spools (spool type A for the SH bundle family).
- Suited to illumination light guides and sensor connections where a multi-fiber bundle distributes light.
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Item No. (Mitsubishi) | SH1004-N | – | SH consumer-data grade, 0.265 mm bundle series |
| Order code | SAT2119 | – | supplier purchase code for this bundle |
| Fiber diameter x number of fibers | 0.265 x 4 | mm | per supplier text; SH1004-N = 4-fiber member of SH10xx series |

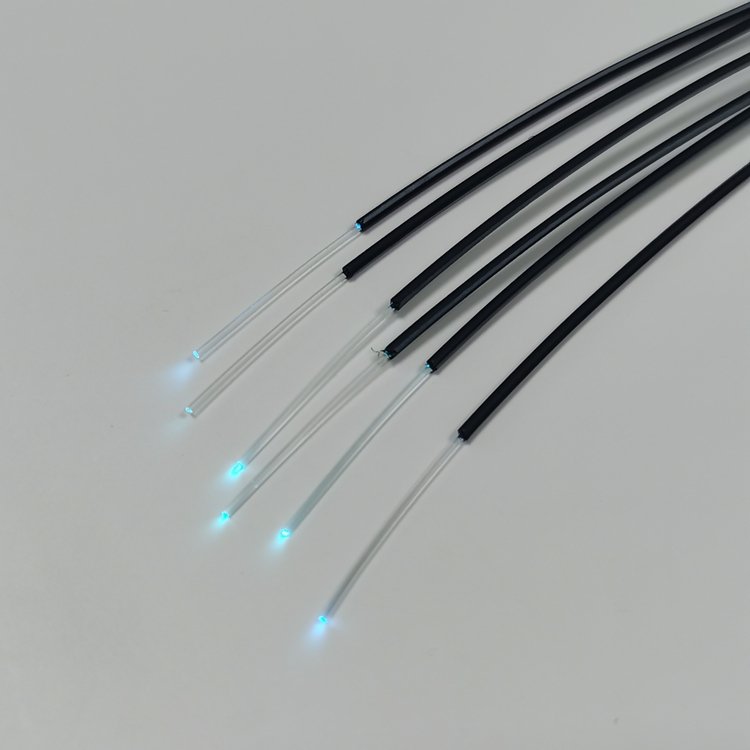

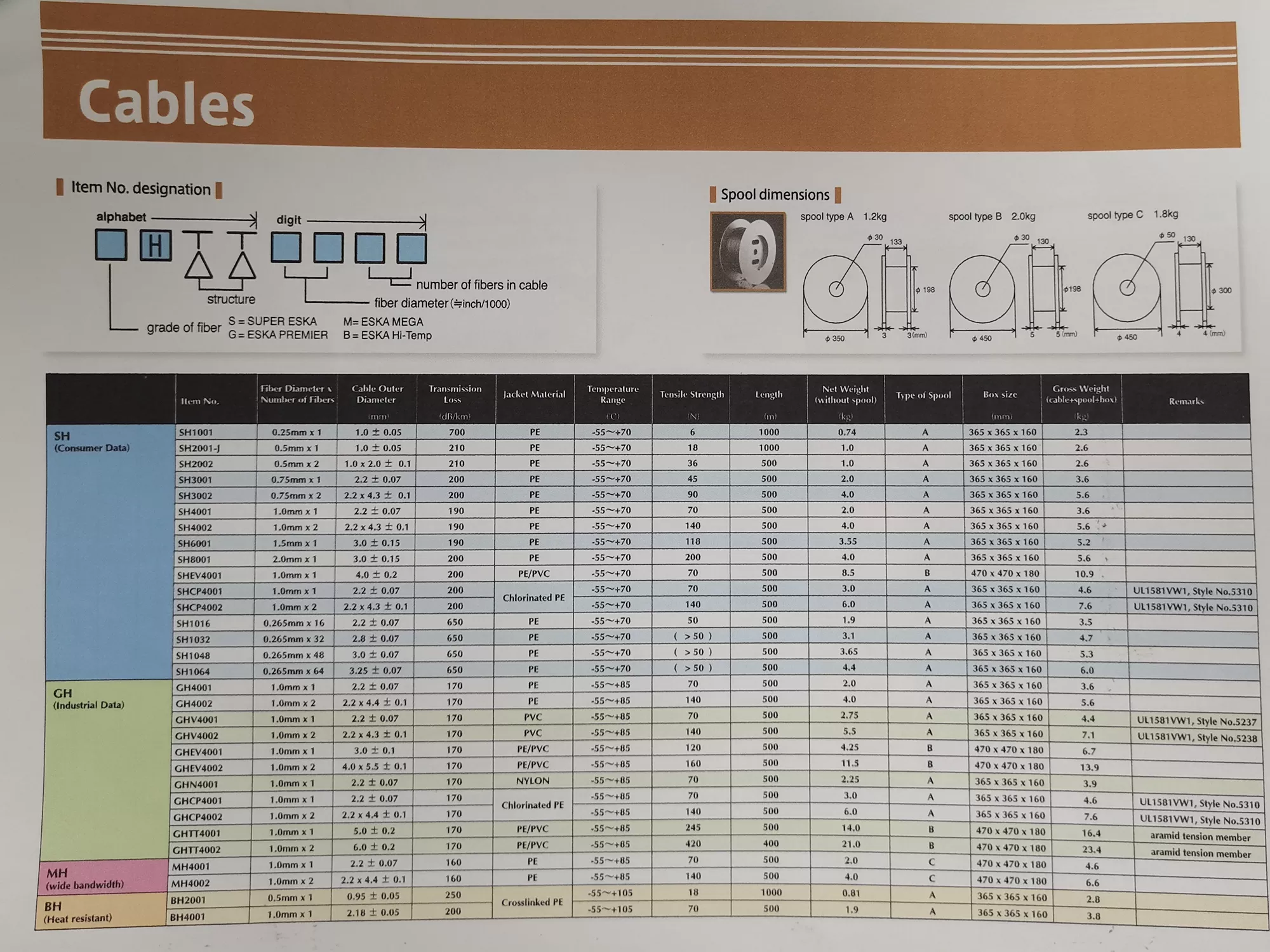

| Cable outer diameter | not on provided catalog page | mm | SH1016/1032/1048/1064 range 2.2 to 3.25 mm; SH1004 value to confirm |
| Transmission loss (family) | 650 | dB/km | per Eska catalog SH10xx bundle rows |
| Jacket material | PE | – | per Eska catalog SH bundle rows |
| Temperature range | -55 to +70 | °C | SH grade |
| Tensile strength | family 50 (SH1016); SH1004 to confirm | N | per Eska catalog SH bundle rows |

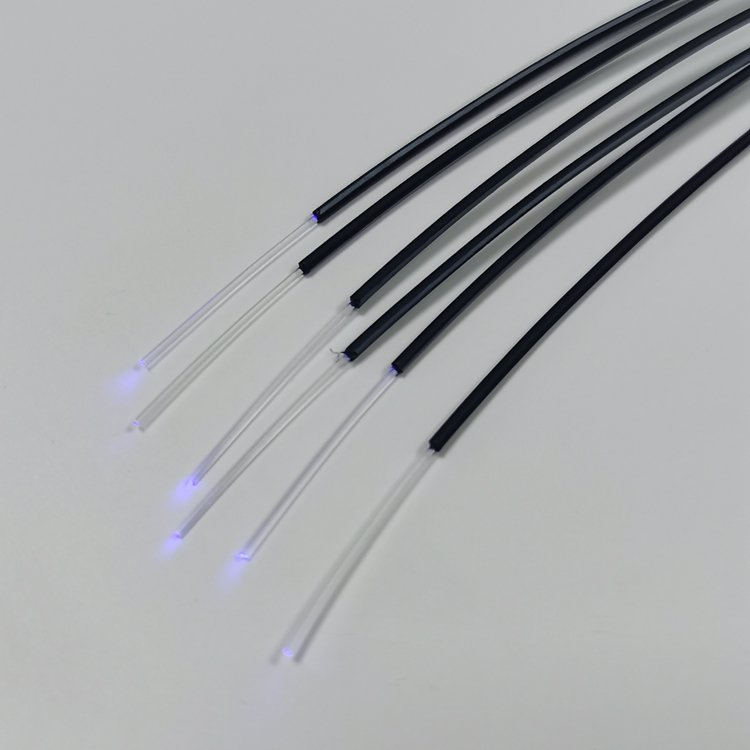

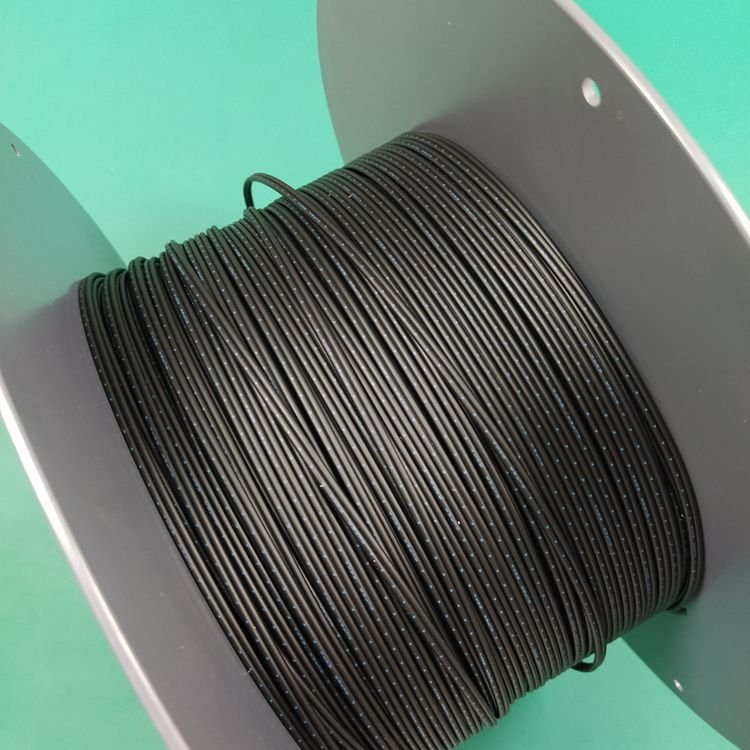

| Length per spool | 500 | m | per Eska catalog, spool type A |
| Core material | PMMA, step index | – | Mitsubishi Eska |
| Cladding material | Fluorinated polymer | – | Mitsubishi Eska |
Applications
- Illumination light guides and decorative lighting distributions.
- Sensor wiring and detection-target signal connections.
- Consumer-data and short-distance signal links where the SH grade is sufficient.
The small 0.265 mm bundle is more about light distribution than high-speed data; for data links see the 1.0 mm SH4001/GH/MH range on our POF cable category page.
Ordering & Customization
Please confirm the SH1004-N four-fiber bundle, required length and termination at each end. We do not list fixed pricing online; contact our sales team for a quote. More answers are on our FAQ for H-PCF and POF fiber assemblies, and you can return to the home page any time.
FAQ
What does SH1004-N mean?
SH is the consumer-data grade; the 10xx group is the 0.265 mm small-core bundle series, and the last two digits give the fiber count. SH1004-N is therefore the four-fiber bundle. SAT2119 is the supplier order code.
Is SH1004 the same as SH1048?
No. SH1004-N has four fibers; SH1048 has 48 fibers at 3.0 mm outer diameter. Both are in the 0.265 mm SH bundle family at 650 dB/km, but the bundle size and OD differ.
Why is the outer diameter not listed?
The provided Eska catalog page lists SH1016 through SH1064 but not the smaller SH1004 row; the exact OD and tensile for SH1004-N are flagged for confirmation against the full Mitsubishi datasheet.
