Mitsubishi ESKA SH6001 SH8001 SH-Grade POF, 1.5/2.0mm

Mitsubishi Eska SH-grade short-distance data POF: SH6001 (1.5 mm) and SH8001 (2.0 mm), 190/200 dB/km, -55 to 70 C, PE jacket, 500 m spools.

Categories: Industrial Fiber Optic Cable, POF Fiber Optical Cable

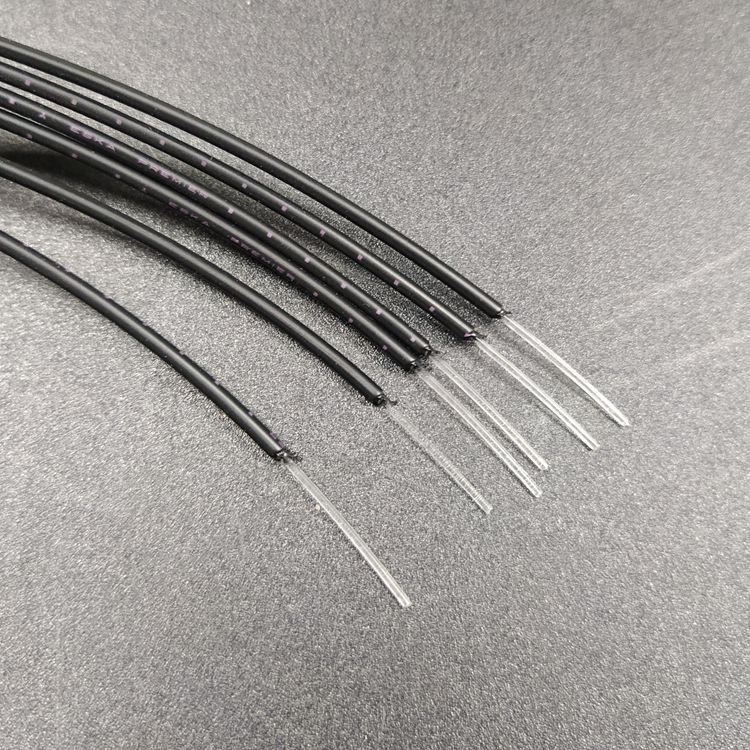

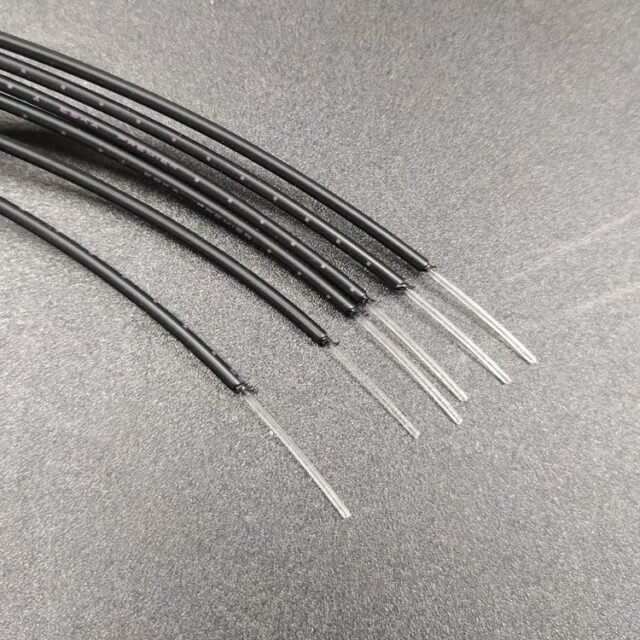

Mitsubishi ESKA SH6001 and SH8001 are SH-grade single-fiber plastic optical cables for short-distance data transfer: SH6001 uses a 1.5 mm PMMA fiber and SH8001 a 2.0 mm fiber, both in a 3.0 mm PE outer jacket.

Product Overview

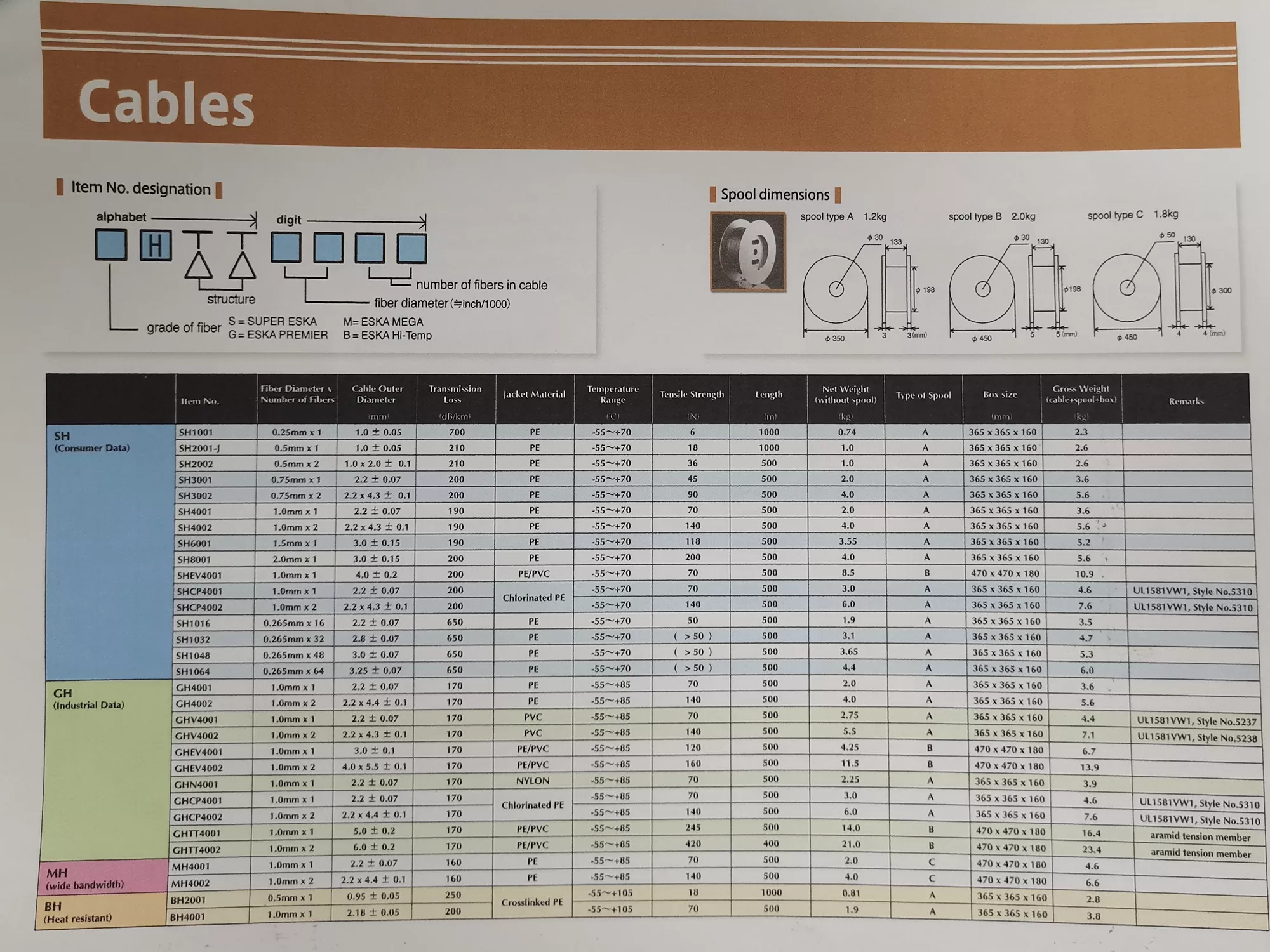

In the Eska cable catalog the SH consumer/data group lists the larger single-core cables: SH6001 (1.5 mm x1, OD 3.0 ±0.15 mm, 190 dB/km) and SH8001 (2.0 mm x1, OD 3.0 ±0.15 mm, 200 dB/km). Both are PE-jacketed, rated -55 to +70 °C, and supplied on 500 m spools (spool type A). The folder also names SH6001-2.2 and SH6002, which are not printed on the provided catalog page and are flagged for verification. The core is step-index PMMA with a fluorinated-polymer cladding. See the full range on our POF fiber optical cable category page.

Key Features

Recognized Mitsubishi part numbers: SH6001 (1.5 mm) and SH8001 (2.0 mm).
1.5 or 2.0 mm PMMA fiber in a 3.0 mm PE jacket; 190 and 200 dB/km respectively.
Temperature range -55 to +70 °C; supplied on 500 m spools.
Built for short-distance data links, sensors and consumer-data applications.

Specifications

Parameter	SH6001	SH8001	Notes
Item No. (Mitsubishi)	SH6001	SH8001	SH consumer/data grade
Fiber diameter x count	1.5 mm x 1	2.0 mm x 1	per Eska catalog
Cable outer diameter	3.0 +/-0.15	3.0 +/-0.15	mm, PE jacket
Transmission loss	190	200	dB/km, per Eska catalog
Jacket material	PE	PE	per Eska catalog
Temperature range	-55 to +70	-55 to +70	°C, SH grade
Tensile strength	118	200	N, per Eska catalog

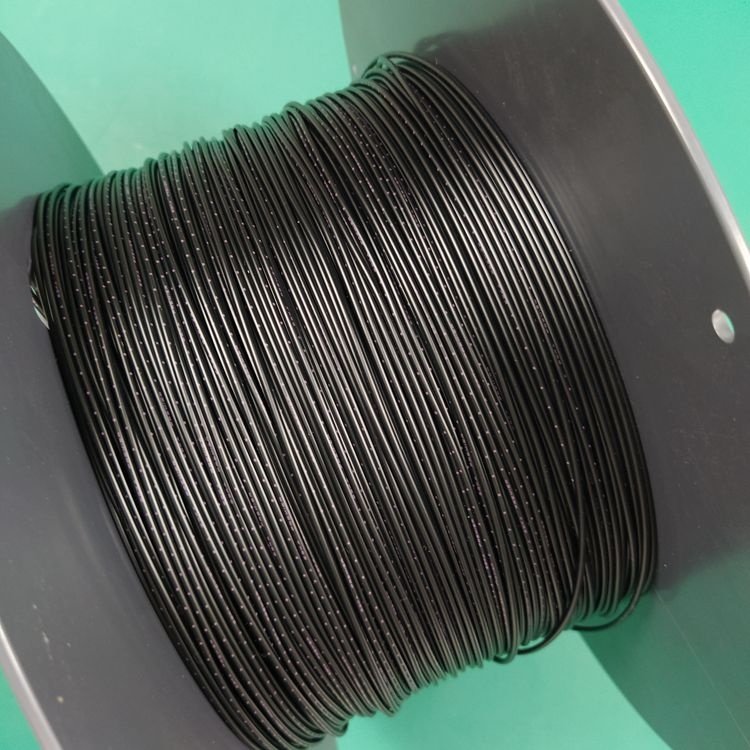

Length per spool	500	500	m, spool type A
Net weight (without spool)	3.55	4.0	kg, per Eska catalog
Core material	PMMA, step index	PMMA, step index	Mitsubishi Eska
Cladding material	Fluorinated polymer	Fluorinated polymer	Mitsubishi Eska

Applications

Short-distance point-to-point data links.
Sensor connections and consumer-data signals.
Industrial control and detection-target signal wiring where the 1.5/2.0 mm fiber gives a robust light guide.

For higher-temperature industrial links see the GH grade, and for high-bandwidth networks see the MH grade, both on our POF cable category page.

Ordering & Customization

Please confirm the exact part number (SH6001 at 1.5 mm or SH8001 at 2.0 mm), required length and termination. We do not list fixed pricing online; contact our sales team for a quote. More answers are on our FAQ for H-PCF and POF fiber assemblies, and you can return to the home page any time.

FAQ

What is the difference between SH6001 and SH8001?

Both are single-fiber SH-grade cables in a 3.0 mm PE jacket; SH6001 uses a 1.5 mm fiber at 190 dB/km and SH8001 uses a 2.0 mm fiber at 200 dB/km with higher tensile strength (200 N vs 118 N).

What are SH6001-2.2 and SH6002?

They are named in the folder but not printed on the provided Eska catalog page; they are flagged for verification against the full Mitsubishi SH datasheet before ordering.

Why does one spool label show GH-4001-P?

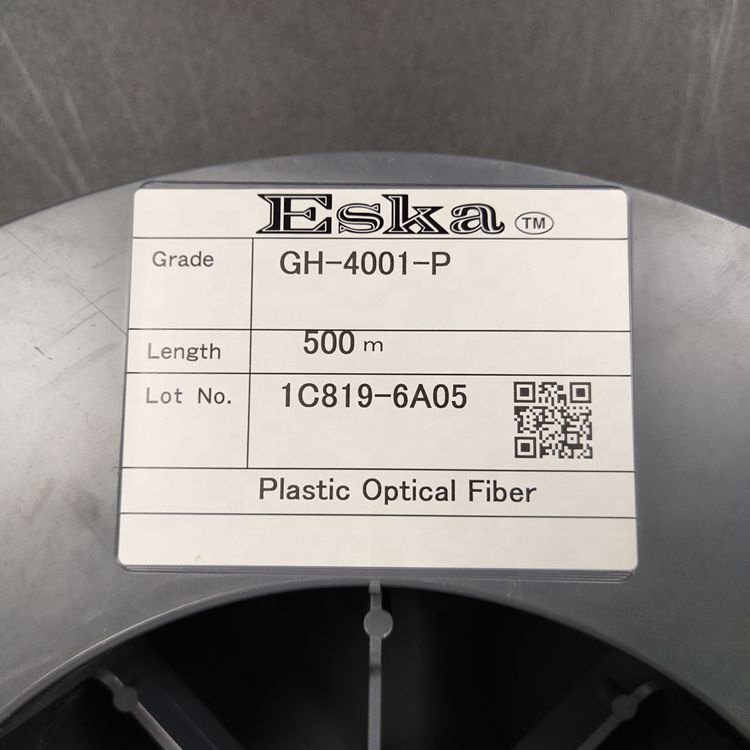

The photographed spool label in this folder reads Eska GH-4001-P (500 m, lot 1C819-6A05). That is a genuine Mitsubishi Eska label but a GH-grade cable; it indicates the folder mixes stock photos. The SH6001/SH8001 figures above come from the Eska catalog table, not that label.

Why Choose Us

We supply Mitsubishi Eska POF by the recognized part number, keep the catalog table traceable, and flag the SH6001-2.2/SH6002 variants and the mixed-spool-label evidence rather than guessing. Start from the home page or the POF category to explore related products.
