Mitsubishi ESKA MHV4002 RHEE4002 PVC Duplex POF, 1.0mm

Mitsubishi Eska MHV4002 duplex wide-bandwidth POF (PVC jacket), 1.0 mm core pair, 160 dB/km, -55 to 85 C, 500 m; RHEE4002-1.5W RH-grade variant for.

Categories: Industrial Fiber Optic Cable, POF Fiber Optical Cable

The Mitsubishi ESKA MHV4002 is the PVC-jacketed duplex version of the wide-bandwidth MH-grade POF cable, carrying two 1.0 mm PMMA fibers for bidirectional network data links. The folder also lists the RHEE4002-1.5W RH-grade variant. Both are part of the Mitsubishi Eska high-bandwidth data-cable family.

Product Overview

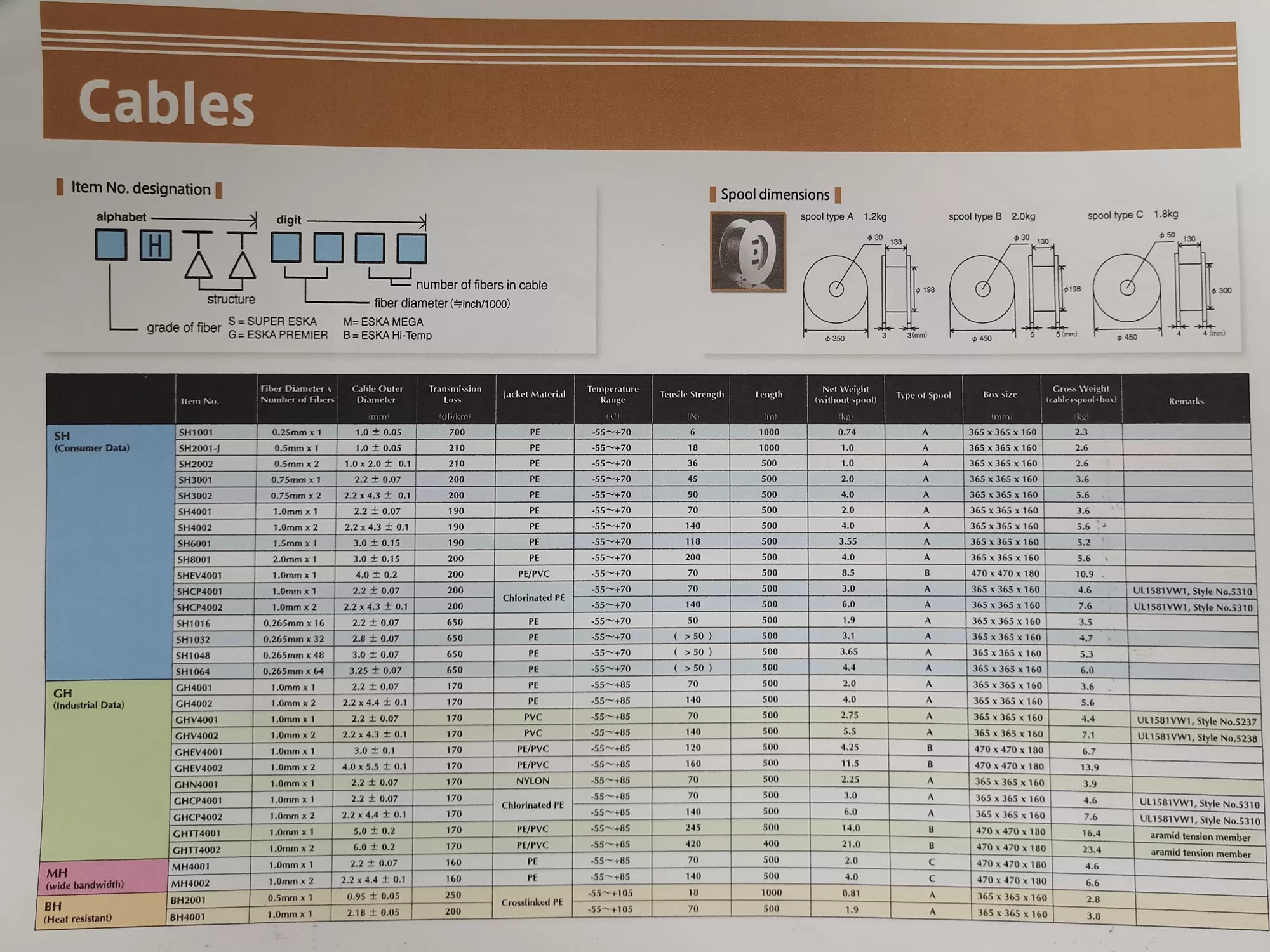

In the Eska part-numbering scheme a trailing V denotes a PVC jacket on the base grade: MHV4002 is the duplex MH4002 with a PVC outer jacket, i.e. two 1.0 mm fibers in a 2.2 x 4.4 mm duplex profile. Per the Eska catalog the MH/ wide-bandwidth family is rated at 160 dB/km and -55 to +85 °C, supplied on 500 m spools. RHEE4002-1.5W is an RH-grade order code; the provided catalog page does not list the RH rows, so those exact parameters are flagged for verification. The core is step-index PMMA with a fluorinated-polymer cladding. See the full range on our POF fiber optical cable category page.

Key Features

Recognized Mitsubishi part numbers: MHV4002 (PVC-jacketed duplex) and RHEE4002-1.5W (RH-grade variant).

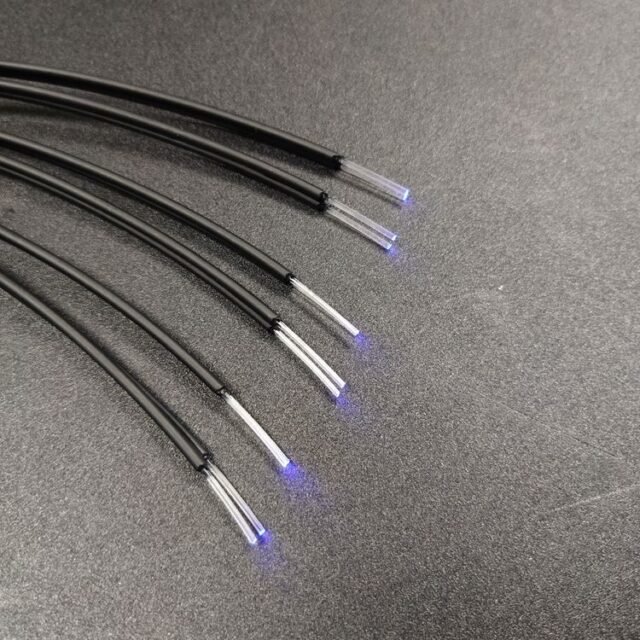

Two 1.0 mm PMMA fibers in a 2.2 x 4.4 mm duplex PVC jacket.
160 dB/km transmission loss and -55 to +85 °C per the Eska MH wide-bandwidth family.

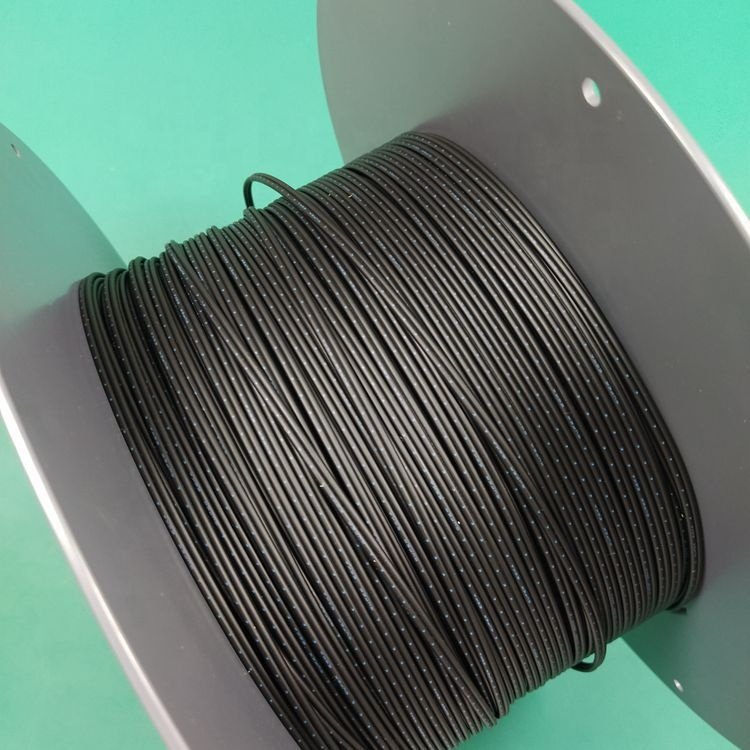

Supplied on 500 m spools; galvanically isolated and noise-immune for network backbones.

Specifications

Parameter	MHV4002	RHEE4002-1.5W	Notes
Item No. (Mitsubishi)	MHV4002	RHEE4002-1.5W	MH wide-bandwidth duplex (PVC); RH-grade variant
Fiber diameter x count	1.0 mm x 2	1.0 mm (per docx)	RHEE row not on provided catalog page; see needs_verification
Cable outer diameter	2.2 x 4.4 +/-0.1	not specified on provided sheet	mm, PVC jacket for MHV4002
Transmission loss	160	family-typical 160	dB/km, MH family; docx quick details say 0.2 dB/km (conflict)
Jacket material	PVC	not specified on provided sheet	V suffix = PVC per Eska naming
Temperature range	-55 to +85	-55 to +85 (family)	°C; docx quick details list -55 to +80 C
Tensile strength	140	not specified on provided sheet	N, duplex MH family
Length per spool	500	500	m, Eska family
Core material	PMMA, step index	PMMA	supplier docx
Cladding material	Fluorinated polymer	Fluorinated polymer	supplier docx

Applications

High-bandwidth duplex network and data links needing separate send/receive fibers.
In-vehicle networks and industrial control-system backbones.
EMI-sensitive plant-floor and substation data links.

Terminate each 1.0 mm fiber with compatible POF connectors per the device interface. Browse the rest of the POF cable range for MH4001 simplex and GH industrial grades.

Ordering & Customization

Please confirm the exact order code (MHV4002 PVC duplex or RHEE4002-1.5W RH variant), required length and connector interface. We do not list fixed pricing online; contact our sales team for a quote. More answers are on our FAQ for H-PCF and POF fiber assemblies, and you can return to the home page any time.

FAQ

What does the V in MHV4002 mean?

Following Eska naming, the V suffix denotes a PVC jacket on the MH4002 duplex base cable. MHV4002 is therefore the PVC-jacketed two-fiber version.

Do you have the RHEE4002-1.5W datasheet values?

The provided Mitsubishi catalog page lists MH/GH/SH rows but not the RH family, so RHEE4002-1.5W exact OD, tensile and loss values are flagged for verification against the official RH datasheet before ordering.

Is IP68 a cable rating?

No. IP68 is an enclosure/connector rating, not a property of the passive POF cable; confirm the fitting rating for the installation.

Why Choose Us

We supply Mitsubishi Eska POF by the recognized part number, keep the catalog table traceable, and flag the RH-grade RHEE4002-1.5W values that are not on the provided sheet rather than guessing. Start from the home page or the POF category to explore related products.
