Toshiba TOCP200 POF Patch Cord for CCTV/Monitor Control
Toshiba TOCP200 duplex POF patch cord for CCTV camera-to-monitor controller links, 1.0mm core, 2.2mm OD, <180 dB/km, 1m standard, customizable 0-100m, EMI.
This Toshiba TOCP200 duplex POF patch cord is used to connect CCTV cameras and monitor controllers, carrying control and video signals over plastic optical fiber in industrial and surveillance systems.
Product Overview

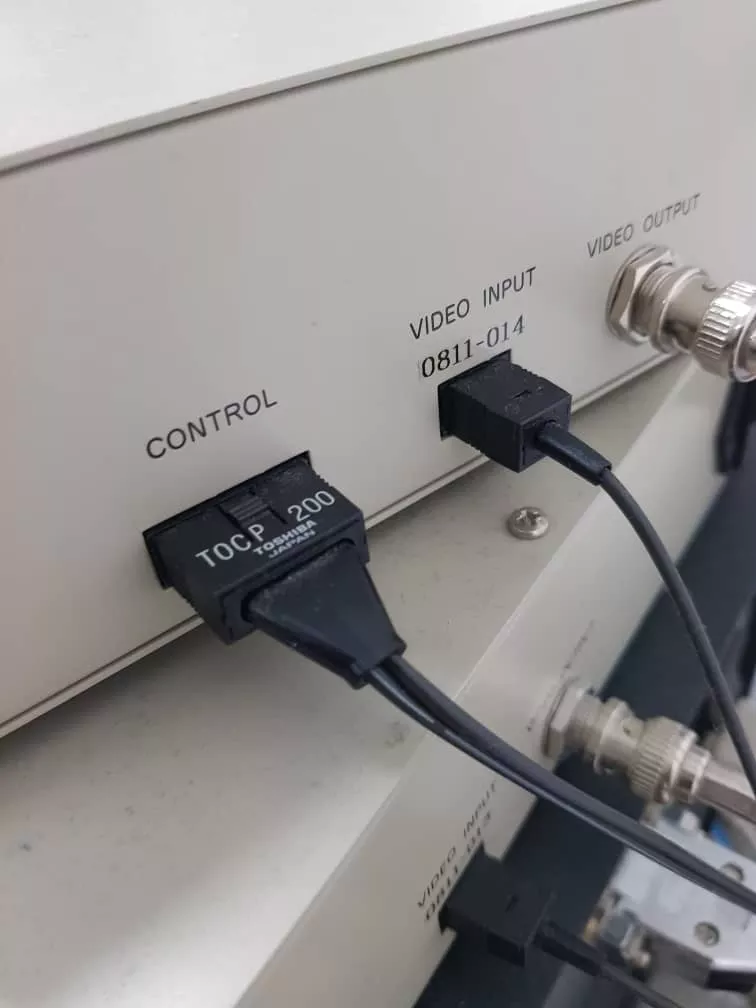

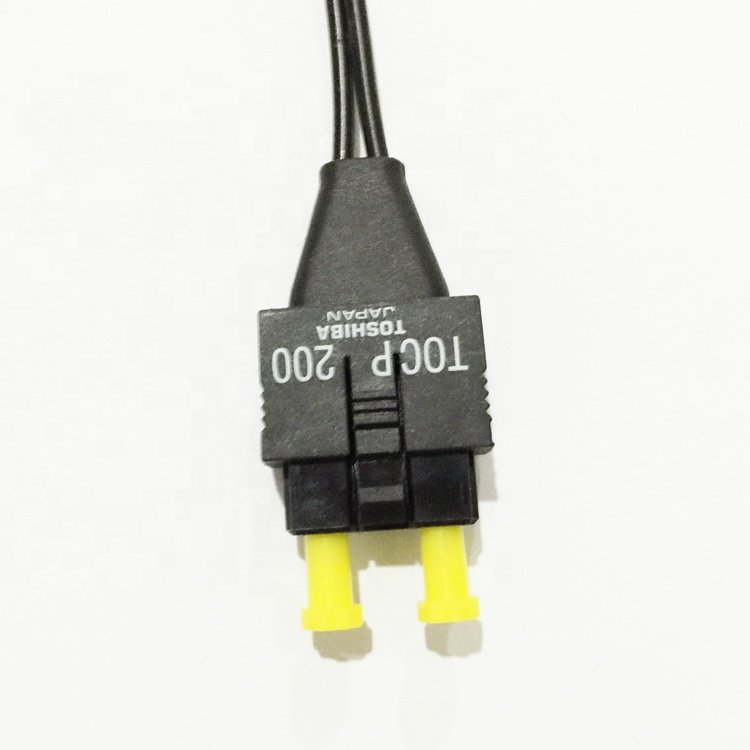

The TOCP200 jumper uses a 1.0 mm POF core inside a 2.2 mm finished cable, with a Toshiba TOCP200 duplex connector (plastic sheath, metal ferrule, yellow ferrules). It is duplex, so it can send and receive at the same time. The product photo shows the connector plugged into a VIDEO INPUT / CONTROL port on a surveillance controller. Standard length is 1 m, with any length from 0 to 100 m customizable. See the full range on our POF fiber optical cable category page.
Key Features
- Genuine Toshiba TOCP200 duplex connector (JIS F07 family).
- 1.0 mm POF core, 2.2 mm finished diameter (optional 2.2-10.0 mm).
- Attenuation <180 dB/km; operating temperature -55 to +85 °C.
- EMI-immune, flexible, anti-vibration and non-conductive; easy to install.
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Connector / model | Toshiba TOCP200 (duplex) | – | JIS F07 family; TOCP100/150/155/201/255 also available |
| Supplier SKU | KINZ-T04 | – | supplier docx |
| Core diameter | 1.0 | mm | domestic or imported Japanese POF |
| Finished diameter | 2.2 (optional 2.2-10.0) | mm | quick details lists 2.2*4.4*6.0 mm |
| Jacket material / color | CPE/PE/PVC, fog black | – | other colors customizable |
| Attenuation | <180 | dB/km | supplier docx |
| Working temperature | -55 to +85 | °C | performance section; description mentions -40 to 70 |
| Standard length | 1 (customizable 0-100) | m | supplier docx |
Applications
- CCTV camera to monitor/controller control and video signal links.
- Industrial control networks using Toshiba TOCP transceivers.
- Surveillance and broadcast racks where EMI immunity and non-conductive cabling are required.
Browse the rest of the POF cable range for other TOCP155/TOCP200/F05/F07 patch cords.
Ordering & Customization
Please confirm TOCP200 (duplex) vs TOCP155 (simplex), required length (1 m standard or 0-100 m custom) and jacket color. We do not list fixed pricing online; contact our sales team for a quote. More answers are on our FAQ for H-PCF and POF fiber assemblies, and you can return to the home page any time.
FAQ
Does this cable carry video directly?
It carries control/data signals between CCTV equipment using TOCP transceivers; the video path itself depends on the camera and controller. The photo shows it plugged into a CONTROL / VIDEO INPUT port.
Is TOCP200 the same as TOCP155?
No. TOCP200 is duplex (send and receive at the same time); TOCP155 is simplex. They are not interchangeable without the matching transceiver.
Why Choose Us
We supply this Toshiba TOCP200 patch cord by its recognized part number, show the real device application (CCTV controller port), and flag the -55/+85 vs -40/+70 temperature conflict. Start from the home page or the POF category to explore related products.
