SSCNET III MR-J3BUS8M/9M/10M Cable, A66L-6001-0026
Replacement SSCNET III servo optical fiber cable for Mitsubishi MR-J3/J4-B drives, MR-J3BUS8M/9M/10M, black 1.0 mm PMMA duplex, F07-AMP, A66L-6001-0026.

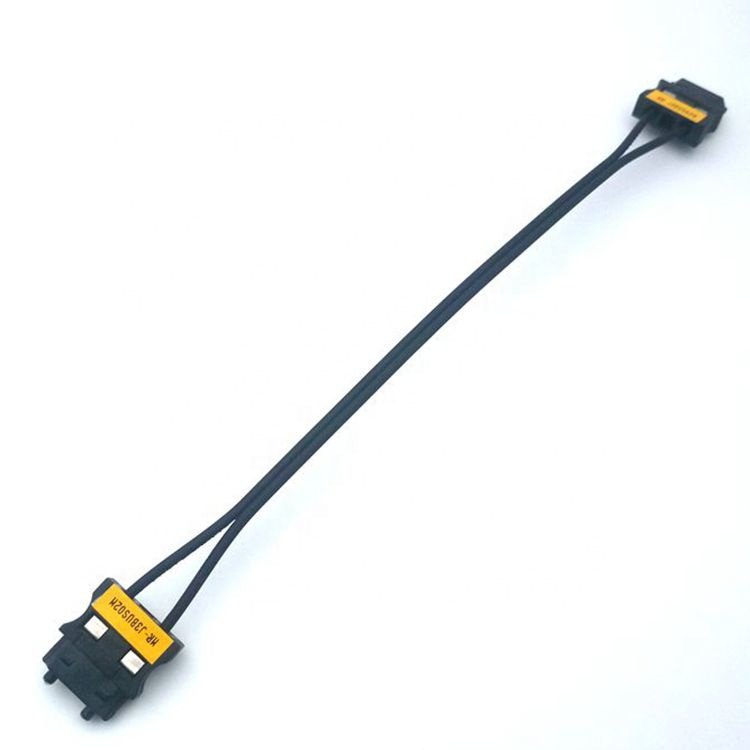

A replacement SSCNET III optical fiber cable for Mitsubishi MR-J3 / MR-J4-B servo amplifiers, built to match MR-J3BUS8M / MR-J3BUS9M / MR-J3BUS10M and the FANUC-style A66L-6001-0026 part.
Overview

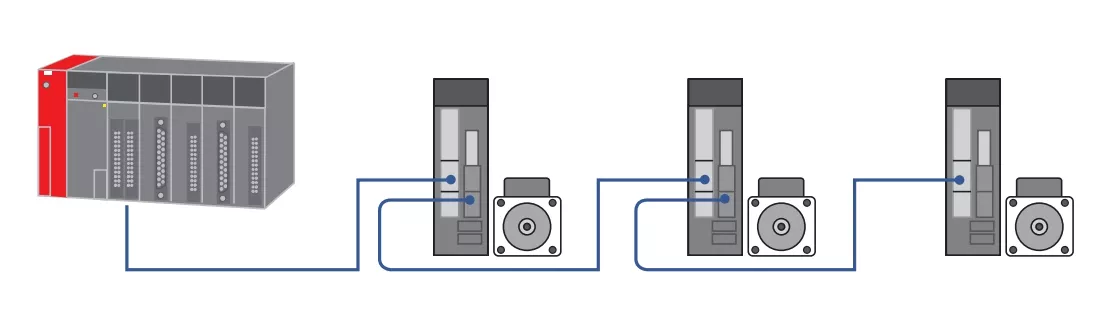

SSCNET III uses 1.0 mm PMMA POF in a black duplex PE jacket to link the Mitsubishi motion controller CN1A/CN1B to the servo amplifier ring. This replacement assembly uses the F07-AMP connector interface and is available in 8 m, 9 m and 10 m lengths (DCV, cut-to-length) with the optional CCV middle black reinforced section.
Features
- SSCNET III servo bus, Mitsubishi MR-J3 / MR-J4-B compatible
- 1.0 mm PMMA core, black 2.2 mm duplex PE jacket

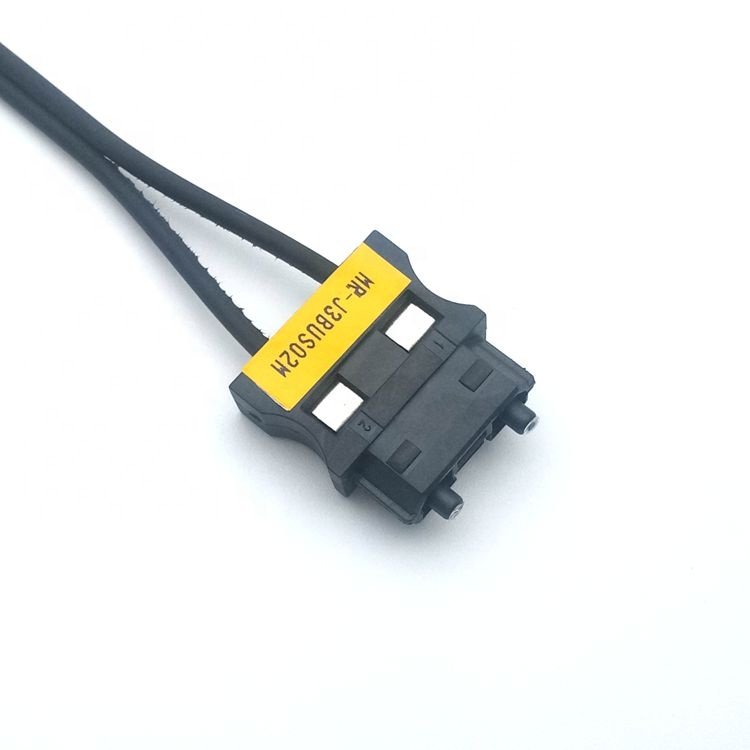

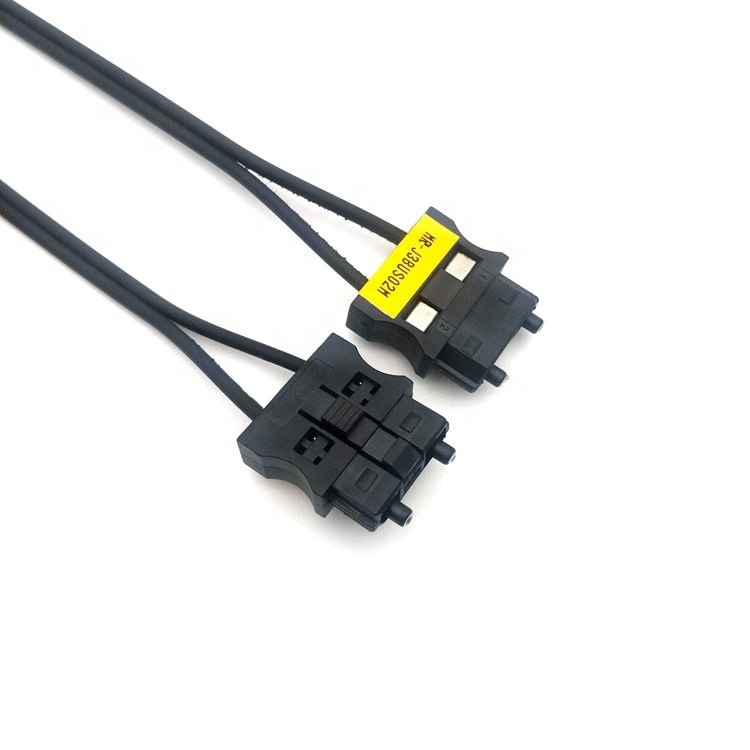

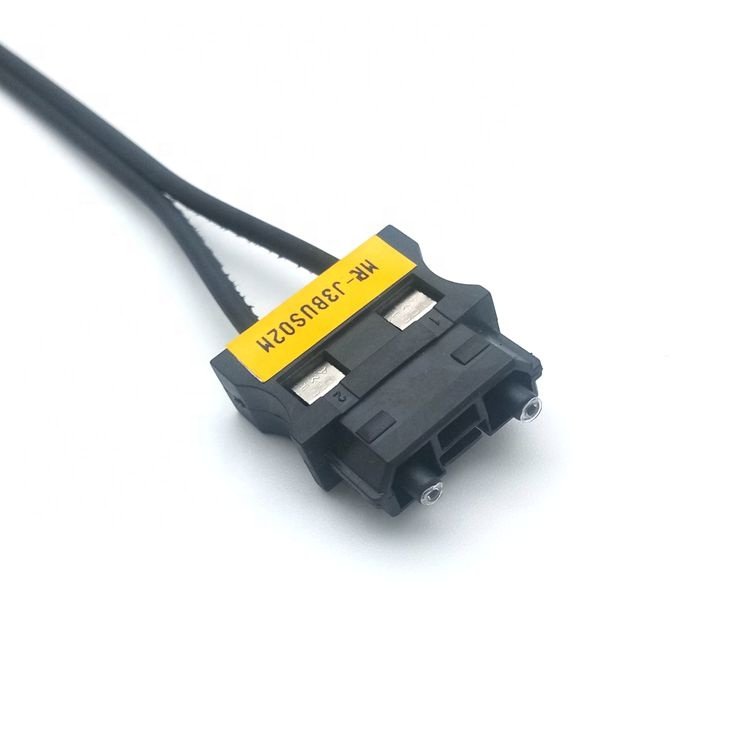

- F07-AMP duplex connector interface
- 8 m / 9 m / 10 m lengths (DCV cut-to-length)
- CCV option adds a middle black reinforced section
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Network | SSCNET III | – | Mitsubishi servo optical bus |
| Fiber core | 1.0 | mm | PMMA plastic optical fiber |

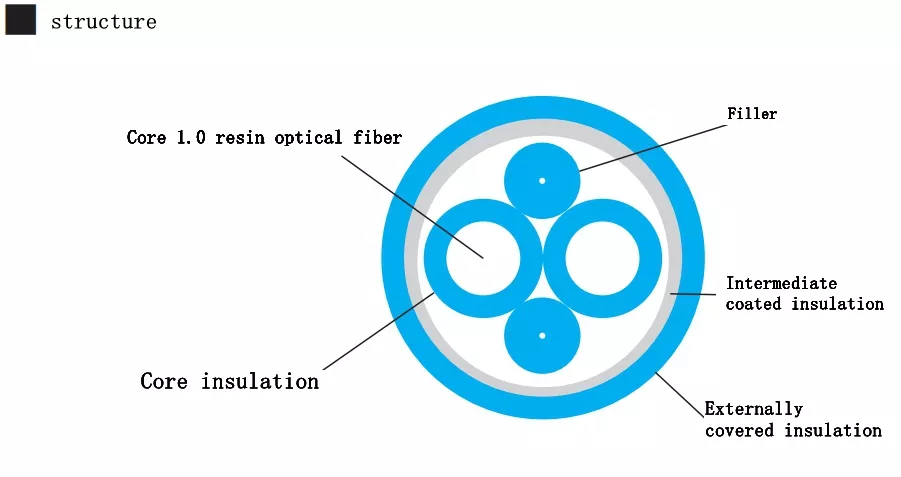

| Jacket | Black PE duplex, 2.2 | mm | Per supplier structure drawing |
| Connector interface | F07-AMP duplex | – | Per supplier document |
| Controller port | CN1A / CN1B | – | Mitsubishi MR-J3-B / J4-B |
| Lengths offered | 8 / 9 / 10 | m | MR-J3BUS8M/9M/10M; DCV custom length |

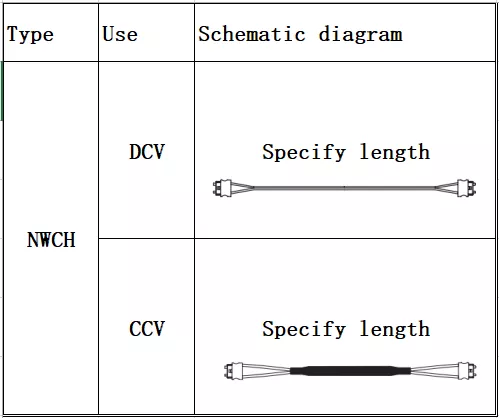

| Reinforcement option | CCV middle black section | – | Per NWCH ordering table |
| Cross reference | A66L-6001-0026 | – | FANUC-style part, per folder |
Applications
Mitsubishi MR-J3 / MR-J4-B servo systems using SSCNET III, CNC machine retrofits and replacement of broken motion-bus fiber cables.
How to Order
Tell us the servo amplifier model (MR-J3-B / MR-J4-B), the required length (8/9/10 m or custom) and whether you need the CCV middle reinforcement. We confirm connector orientation before dispatch.
FAQ
How do I choose the right H-PCF / POF industrial jumper?
Match the connector family on your equipment (JIS F05/F07, Avago Versatile Link, F07-AMP or Toshiba TOCP), the fiber core (200/230 um H-PCF or 1.0 mm PMMA POF) and the required length. Send us the OEM cable part number and we will confirm compatibility.
Are these original OEM or replacement assemblies?
These are replacement industrial fiber assemblies built to match the OEM connector and fiber type shown. Original OEM markings visible on sample connectors are retained for identification; we do not claim OEM manufacturing or authorization.
