ST Connector for 500 um Plastic Optical Fiber
ST-style plastic optical fiber connector for 500 um POF, insertion loss typ <=0.20 dB, return loss >=50 dB, 1000 mating cycles, -20 to +70 C.

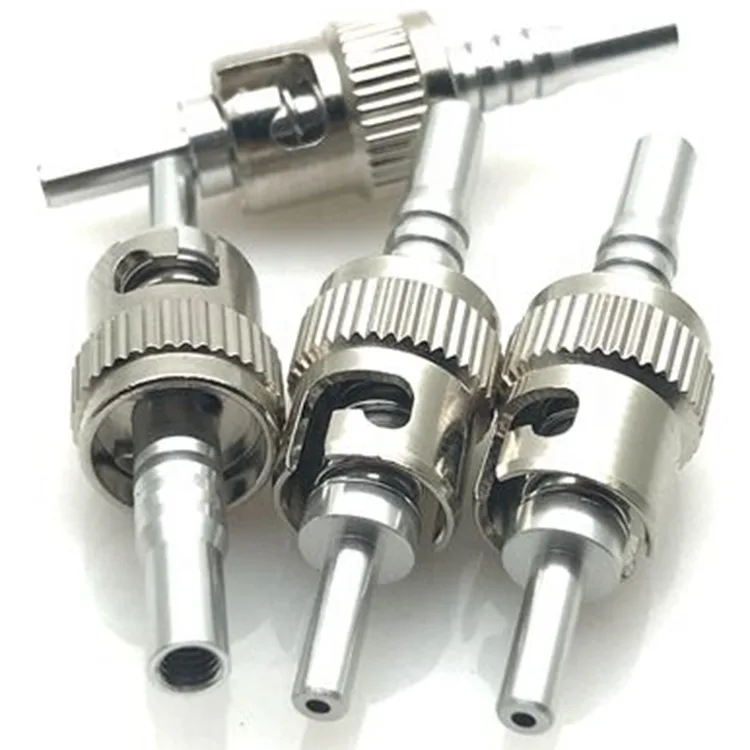

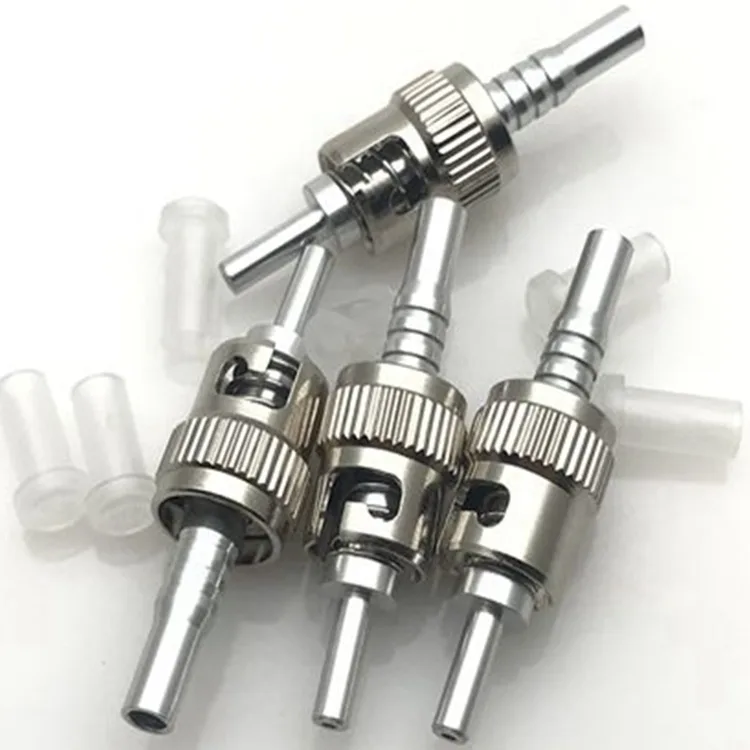

The ST connector for 500 µm plastic optical fiber is a push-and-turn ST-style POF connector with a metal coupling nut, designed to terminate 0.5 mm-core step-index POF in industrial and sensing links. The same connector family is offered for 250, 750, 1000, 1500 and 3000 µm fibers.
Product Overview
This product is part of our fiber optic connector range. Values below are taken from the supplier datasheet and listing; where only supplier quick-details are available, they are flagged as supplier-stated and not independently measured.
Key Features

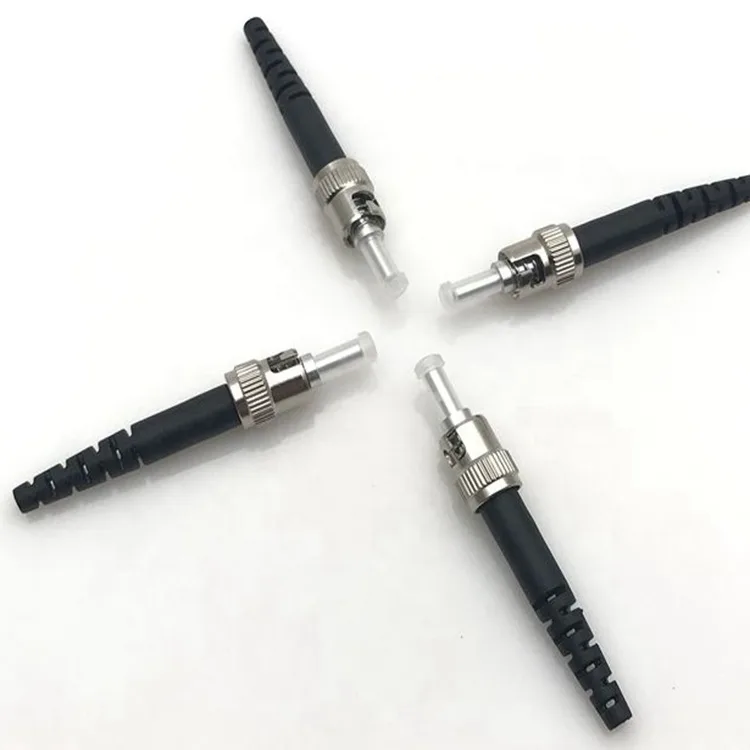

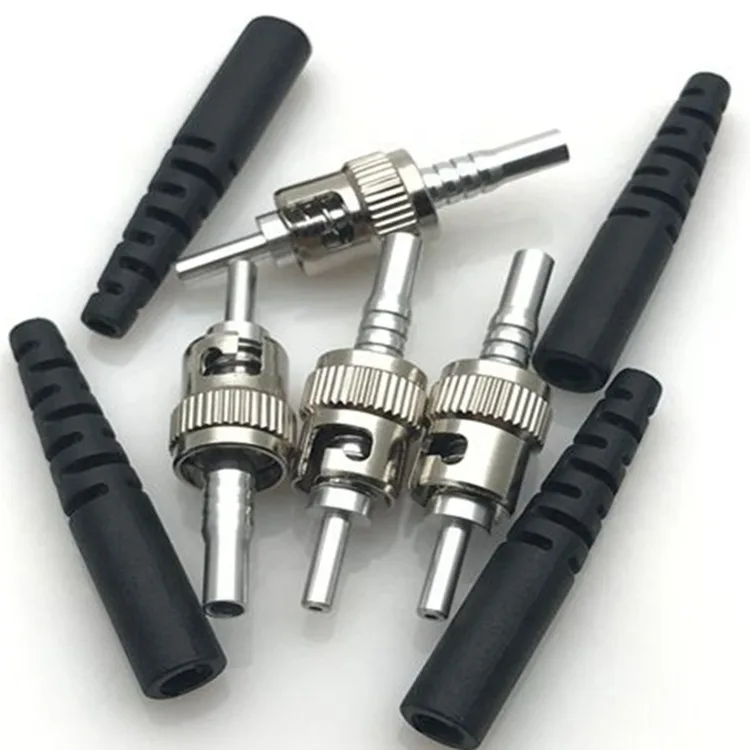

- ST bayonet coupling, metal ferrule/nut, black strain-relief boot.
- Low insertion loss typ ≤0.20 dB, max ≤0.30 dB; return loss ≥50 dB.
- 1000 mating cycles, loss change ≤0.20 dB.
- Available for 0.23/0.25/0.50/0.75/1.0/1.5/2.0/3.0 mm fiber.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Connector type | ST (POF) | – | Push-and-turn bayonet, IEC 61754 / AT&T ST II per listing. |
| Fiber diameter | 0.50 (500) | mm | Listing; family also 0.23-3.0 mm. |
| Insertion loss | typ <=0.20, max <=0.30 | dB | Test wavelength 1310/1550 nm per supplier. |
| Return loss | >= 50 | dB | Supplier listing. |
| Durability | 1000 | insertions | Loss change <=0.20 dB. |
| Operating temperature | -20 to +70 | C | Storage -40 to +85 C. |
| Compliance | IEC 874-10, IEC 61754 | – | Per supplier listing. |
Applications
Industrial machine interlinks, sensor networks, LAN/WAN POF links, active-device and test-equipment fiber connections. Browse the full fiber optic connector range.
Ordering & Customization
Tell us your fiber diameter and whether you need assembled connectors or kits. Request a quote. More answers are on the FAQ page, and you can return to the home page.
FAQ
Does this fit 1.0 mm POF?
The ST family covers 0.23-3.0 mm fibers; specify your exact fiber diameter when ordering so the correct ferrule bore is supplied.
Why Choose Us
We supply ST POF connectors by fiber diameter, with the supplier’s mating and loss figures recorded as typical. See the connector range, FAQ or home page.
