Avago HPCS V-Pin Duplex Patch Cord 200/230 um, BP04703
Avago Versatile Link V-Pin HPCS duplex fiber patch cord, 200/230 um hard-clad silica on orange duplex cable, BP04703, for industrial data links.

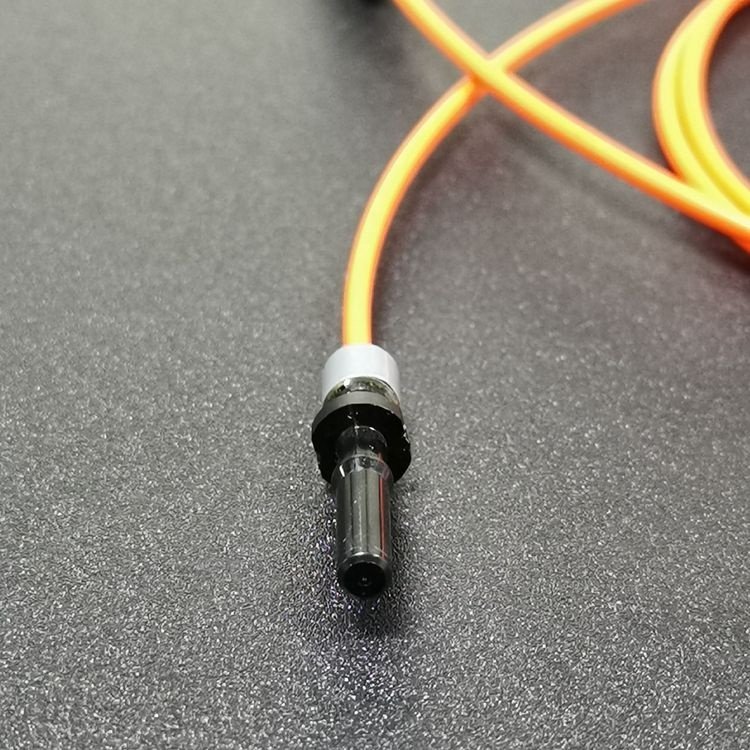

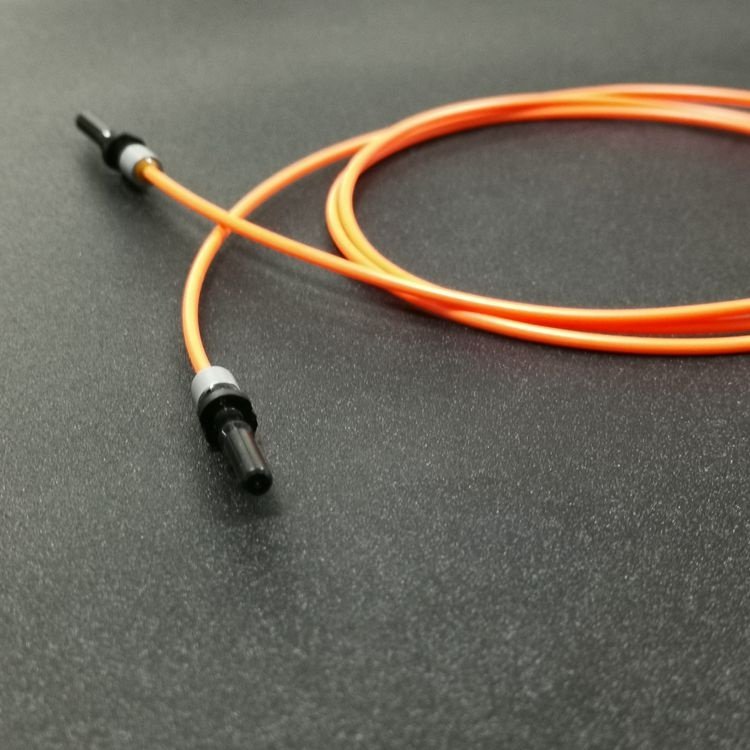

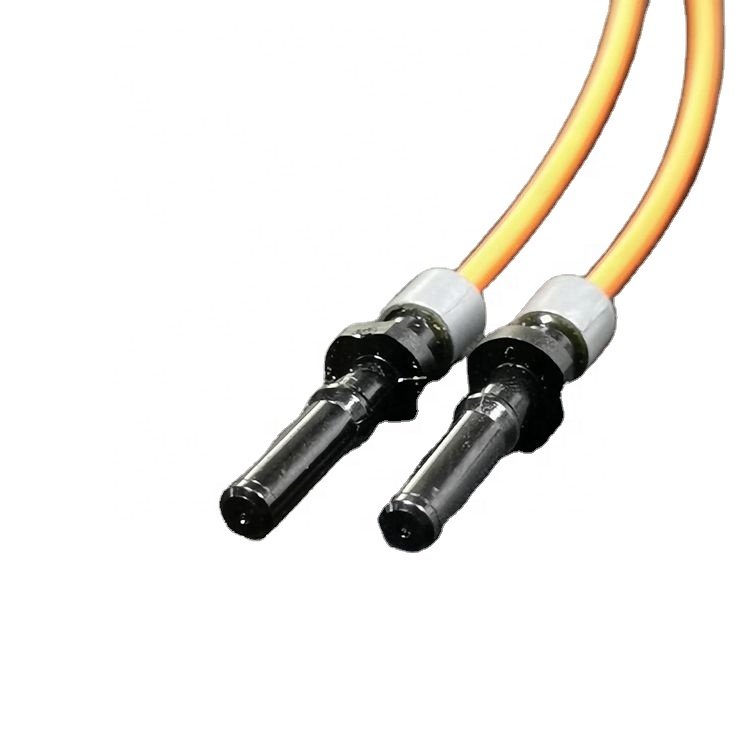

An Avago Versatile Link V-Pin (BP04703) duplex HPCS fiber patch cord with 200/230 um hard-clad silica fiber on an orange duplex cable, used for short industrial data links.
Overview
This assembly uses the Avago / Broadcom Versatile Link V-Pin duplex connector pair on a 200/230 um H-PCF (hard polymer-clad silica) fiber. The orange duplex jacket and V-Pin keying match the Versatile Link transceiver sockets found on many industrial drive and I/O modules.
Features
- Avago Versatile Link V-Pin duplex connector pair
- H-PCF 200/230 um hard-clad silica fiber
- Orange duplex round cable, field-recognizable
- 1 m standard lead, custom lengths available
- Replacement assembly to match BP04703-style V-Pin jumper
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Connector family | Avago Versatile Link V-Pin (duplex) | – | Per folder identity BP04703 |
| Fiber type | H-PCF hard polymer-clad silica | – | Per folder identity |
| Core / cladding | 200 / 230 | um | Per folder identity |
| Cable form | Duplex, orange jacket | – | Visible on product photos |
| Standard length | 1 | m | Supplier quick details; custom lengths on request |
| Operating temperature | -55 to +85 | deg C | Supplier document quick details |
| Supplier reference | KINZ-VX08 | – | Supplier docx model; evidence only, not our MPN |
Applications
Industrial drive and I/O modules that use Avago Versatile Link transceivers, short sensor/control links and replacement of BP04703-style V-Pin jumpers.
How to Order
Send us the transceiver or socket model and required length. We build the V-Pin duplex jumper with the 200/230 um H-PCF fiber and orange duplex jacket shown.
FAQ
How do I choose the right H-PCF / POF industrial jumper?
Match the connector family on your equipment (JIS F05/F07, Avago Versatile Link, F07-AMP or Toshiba TOCP), the fiber core (200/230 um H-PCF or 1.0 mm PMMA POF) and the required length. Send us the OEM cable part number and we will confirm compatibility.
Are these original OEM or replacement assemblies?
These are replacement industrial fiber assemblies built to match the OEM connector and fiber type shown. Original OEM markings visible on sample connectors are retained for identification; we do not claim OEM manufacturing or authorization.
