Mitsubishi MR-J3BUS SSCNET III Servo Fiber Cable 1.5-7m
Mitsubishi MR-J3BUS SSCNET III servo fiber cable in 1.5, 2, 4, 5, 6, 7m lengths: PMMA 1.0mm duplex POF, black PE 2.2mm, F07-AMP connectors.

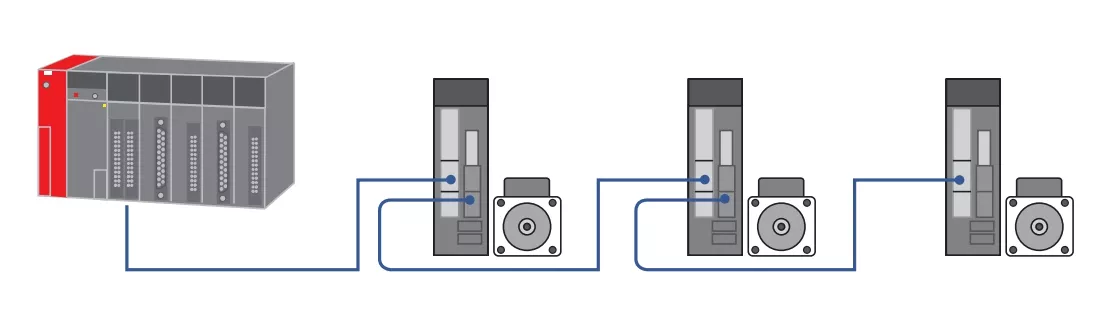

The Mitsubishi MR-J3BUS series SSCNET III servo fiber cables are offered in 1.5, 2, 4, 5, 6 and 7 m lengths, built from 1.0 mm PMMA duplex POF in a black 2.2 mm PE jacket with F07-AMP duplex connectors. They connect servo amplifiers in a CN1A/CN1B ring. Browse the servo fiber range.
Key Features

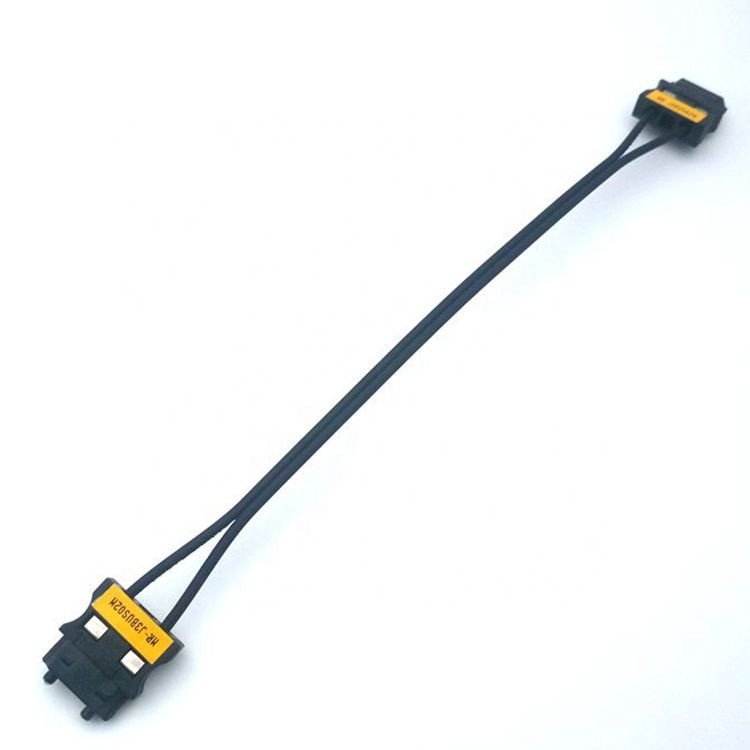

- Lengths 1.5 / 2 / 4 / 5 / 6 / 7 m (MR-J3BUS suffix).

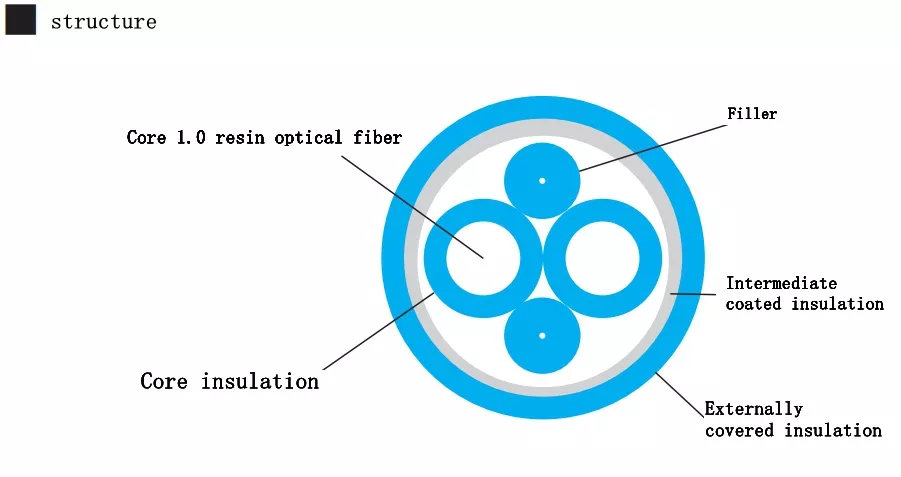

- 1.0 mm PMMA duplex POF, black PE 2.2 mm jacket.

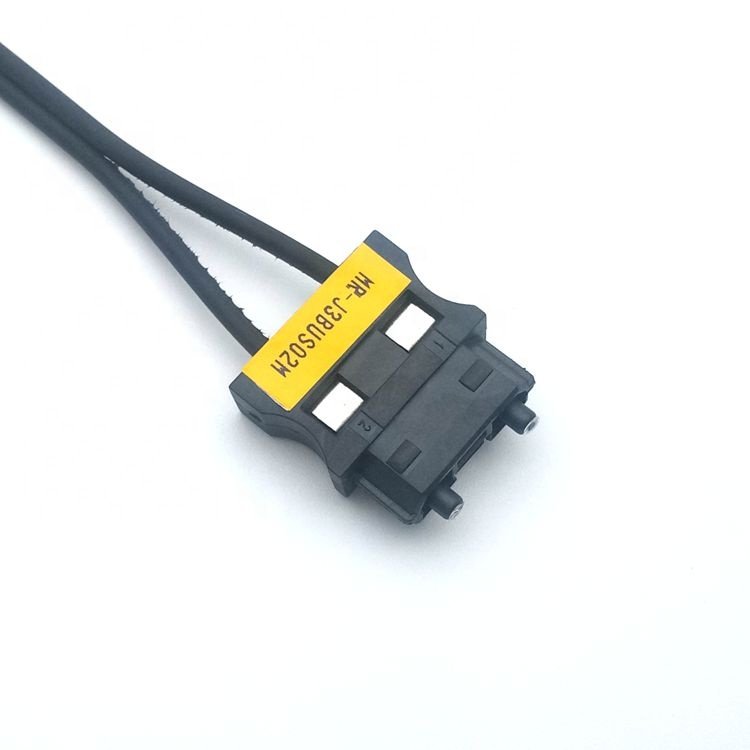

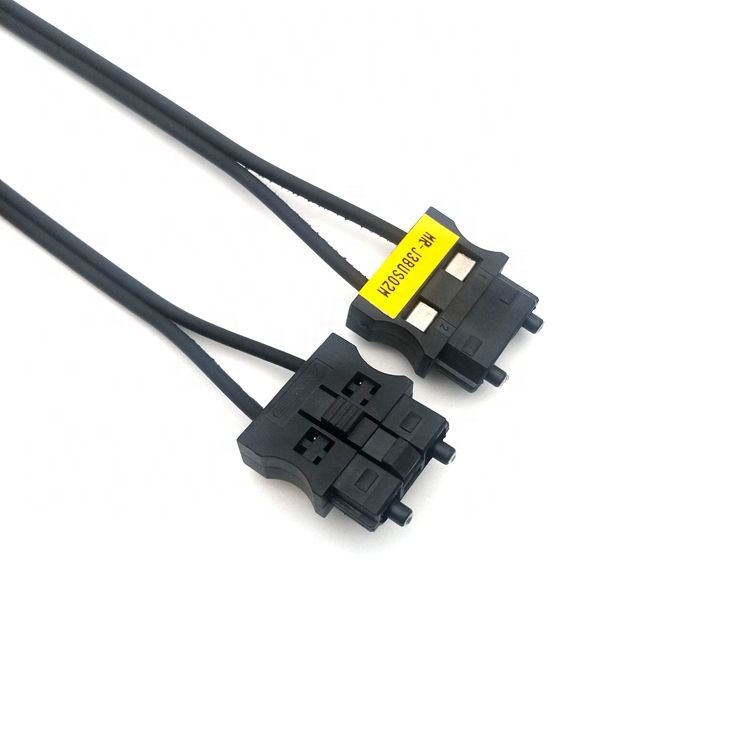

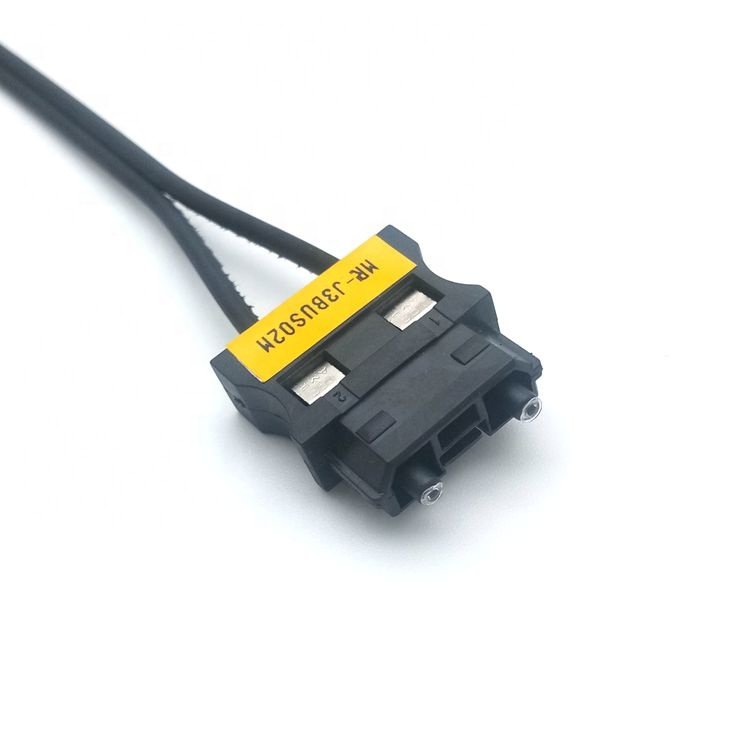

- F07-AMP duplex connectors, yellow length labels.
- For MR-J3/J4-B servo amplifier SSCNET III ring.
- DCV (plain) and CCV (booted) configurations available.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Part number range | MR-J3BUS1.5M / 2M / 4M / 5M / 6M / 7M | – | Folder; order-code length suffixes. |
| Fiber type | PMMA POF duplex, 1.0 mm core | – | Supplier listing: PMMA-1.0mm, 2 fibers. |
| Connector | F07-AMP duplex both ends | – | Black duplex plugs with yellow MR-J3BUS labels. |
| Jacket | PE, 2.2 mm, black | mm | Supplier listing. |
| Use | Mitsubishi MR-J3/J4-B servo SSCNET III ring | – | CN1A / CN1B links. |
| Operating temperature | -55 to +85 | deg C | Supplier listing. |
Applications
- Mitsubishi MR-J3-B / J4-B servo rings.
- CN1A front-axis and CN1B rear-axis links.
- MR-J4W2-B / MR-J4W3-B multi-axis amplifiers.
- SSCNET III motion bus optical cabling.
See our full industrial fiber optic cable and connector category for other connector types and lengths. Visit the home page for the complete product range.
Ordering and Customization
We supply this assembly built to your required length and termination. To prepare a quote, please confirm: the exact model / order code, required length, connector side on both ends, quantity, and the device port you are connecting. Contact our sales team with your drawing or layout.
FAQ
Which length do I need? Pick the MR-J3BUS suffix matching your axis spacing: 1.5M, 2M, 4M, 5M, 6M or 7M. We also build custom lengths on request.
Is this PMMA POF or H-PCF? Supplier listing specifies PMMA 1.0 mm fiber in a 2.2 mm PE jacket; this is the POF SSCNET III cord, not the 6.0 mm round H-PCF variant.

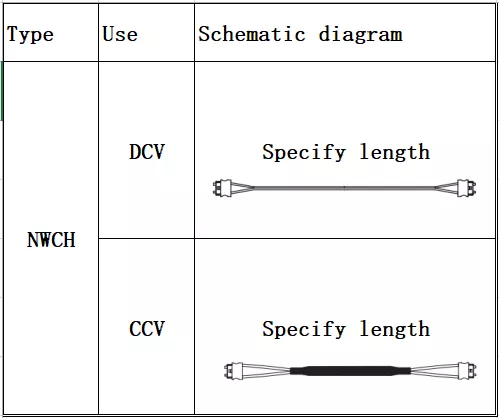

What do DCV and CCV mean? The supplier schematic shows NWCH family: DCV = plain duplex cord, CCV = cord with a black protective boot section. Specify on enquiry.
Why Choose Us
TOCP Fibercable supplies H-PCF and PMMA POF industrial fiber jumpers with supplier parameters checked before quoting, and flags designations that need confirmation rather than overstating compatibility. Read our FAQ for H-PCF and POF fiber assemblies, or return to the home page.
