Mitsubishi MR-J3BUS 3/5/10 m SSCNET III Servo POF Cable
Mitsubishi MR-J3BUS 3m/5m/10m SSCNET III servo POF cable: 1.0mm PMMA duplex, black PE 2.2mm, F07-AMP connectors, for J3/J4 servo amplifiers.

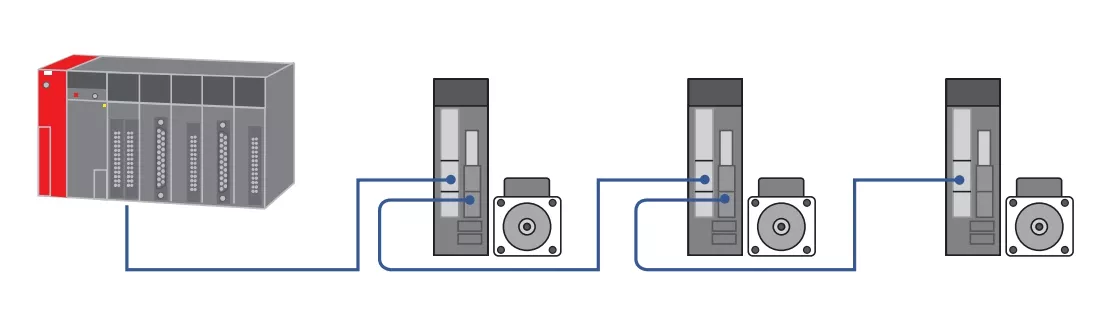

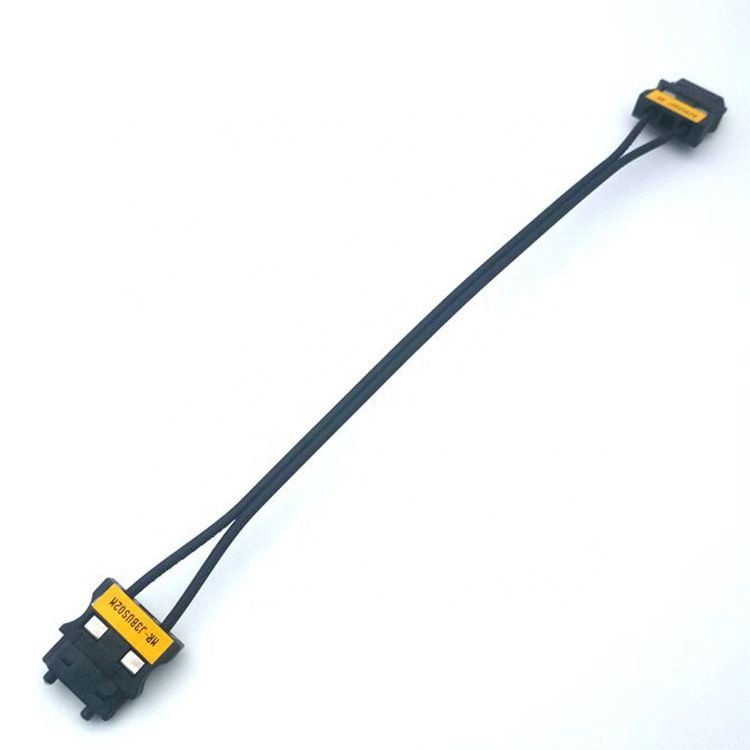

The Mitsubishi MR-J3BUS 3M / 5M / 10M are longer-span SSCNET III servo POF cables using 1.0 mm PMMA duplex fiber in a black 2.2 mm PE jacket with F07-AMP duplex connectors. They extend the servo amplifier ring across a larger machine. See the servo fiber range.
Key Features
- Lengths 3 / 5 / 10 m for wider machine spans.

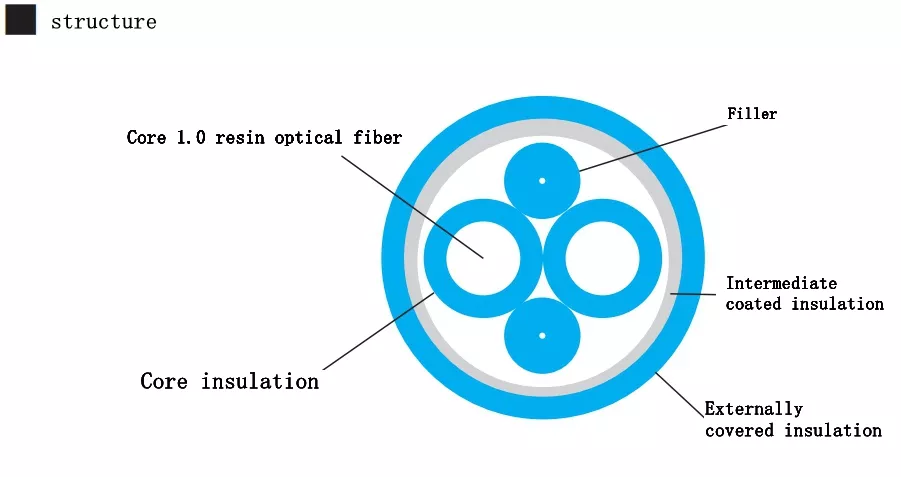

- 1.0 mm PMMA duplex POF, black PE 2.2 mm.

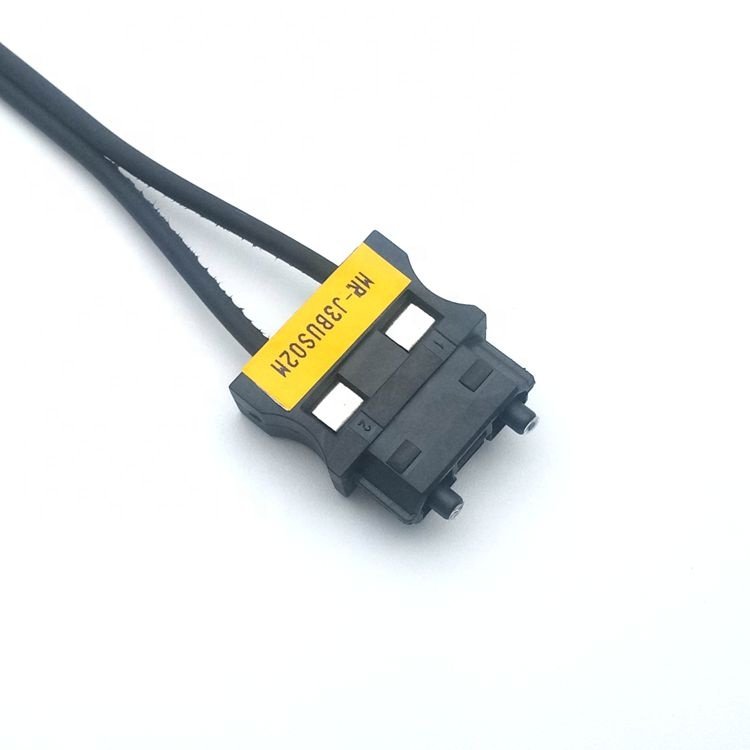

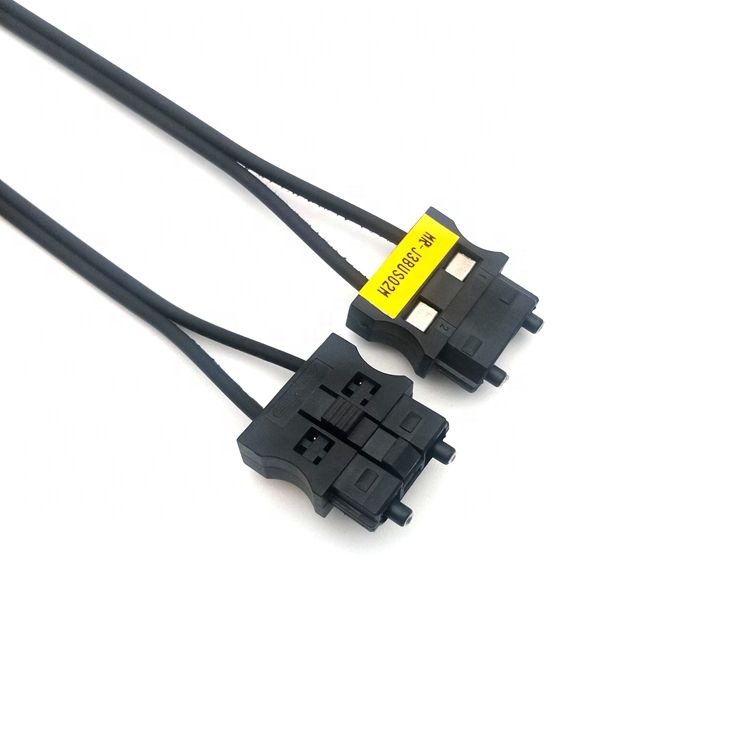

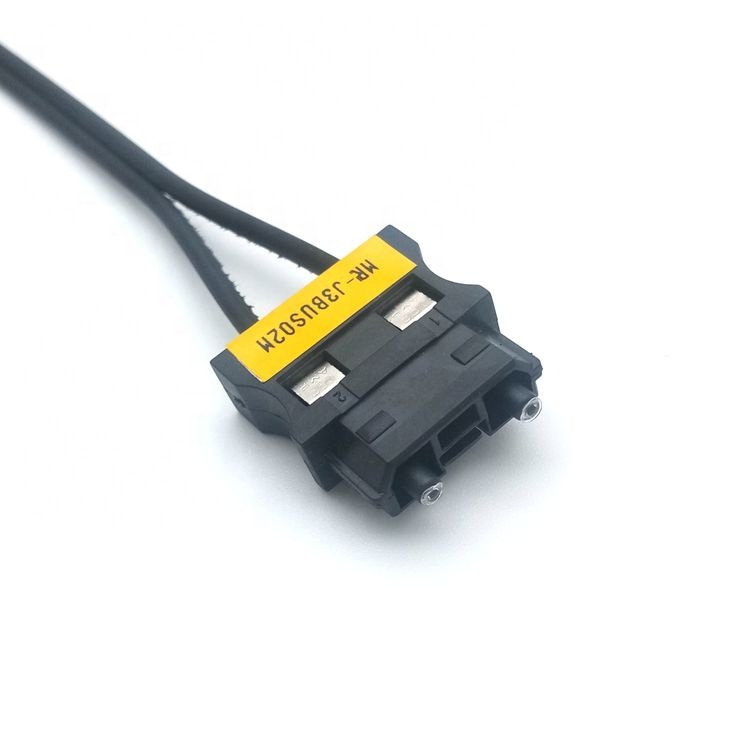

- F07-AMP duplex connectors with yellow labels.
- Mitsubishi J3/J4 series SSCNET III ring.
- Custom lengths available on request.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Part number range | MR-J3BUS3M / 5M / 10M | – | Folder; length suffixes. |
| Fiber type | PMMA POF duplex, 1.0 mm core | – | Supplier listing. |
| Connector | F07-AMP duplex both ends | – | Black duplex plugs with yellow MR-J3BUS labels. |
| Jacket | PE, 2.2 mm, black | mm | Supplier listing. |
| Use | Mitsubishi J3/J4 series SSCNET III | – | Servo amplifier ring. |
| Operating temperature | -55 to +85 | deg C | Supplier listing. |
Applications
- Wider-span servo amplifier rings.
- Large machine tool gantry servo buses.
- CNC and robot cell SSCNET III links.
- Replacement of over-length or damaged cords.
See our full industrial fiber optic cable and connector category for other connector types and lengths. Visit the home page for the complete product range.
Ordering and Customization
We supply this assembly built to your required length and termination. To prepare a quote, please confirm: the exact model / order code, required length, connector side on both ends, quantity, and the device port you are connecting. Contact our sales team with your drawing or layout.
FAQ
How is this different from the 1.5-7 m range? It covers the longer 3 / 5 / 10 m spans with the same PMMA 1.0 mm F07-AMP construction; choose the suffix matching your axis spacing.
Can I get other lengths? Yes – supplier builds custom lengths; tell us the required end-to-end span and connector side.
What fiber material? 1.0 mm PMMA plastic optical fiber in a 2.2 mm PE jacket per the supplier listing.
