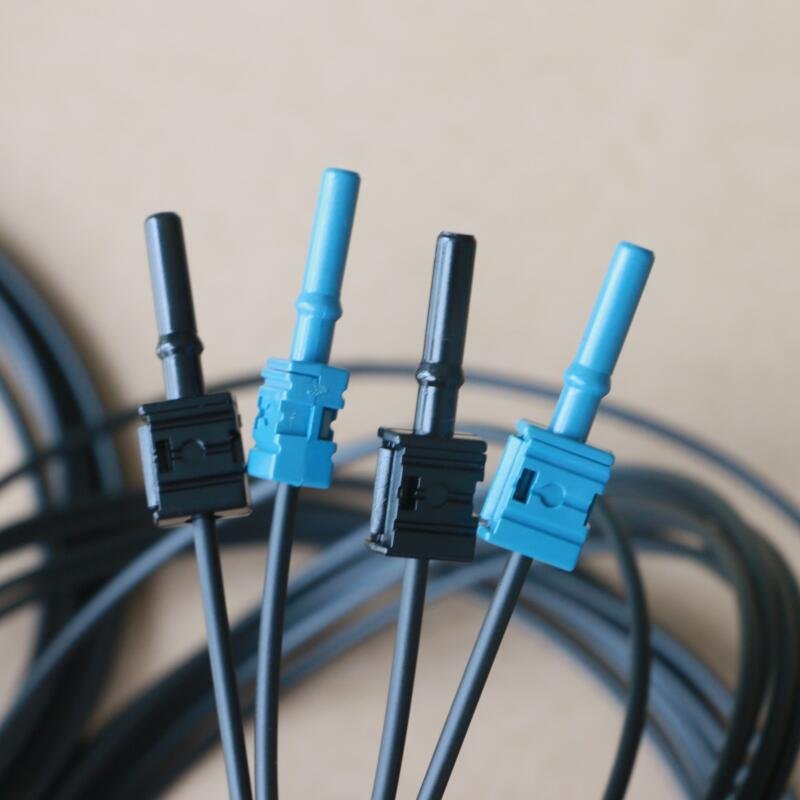

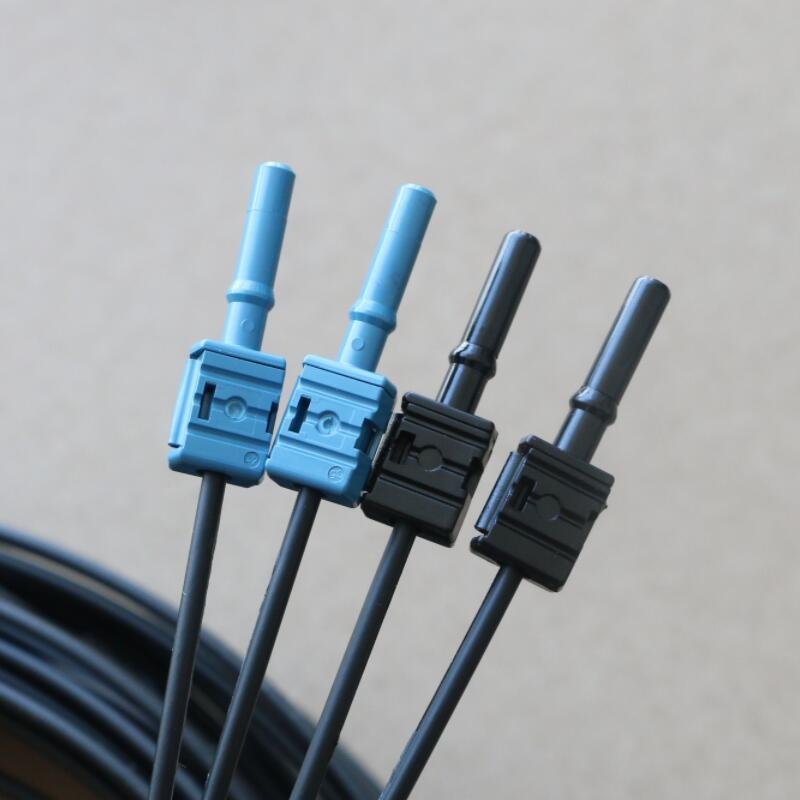

HFBR-4531/4533 Versatile Link POF Cable Assembly
HFBR-4531Z/4533Z compatible POF fiber jumper, for Avago Versatile Link transceivers, solar power inverter communication, up to 50m. OEM/ODM from Changzhou Jinshang.
The HFBR-4531/4533 is a Versatile Link latching POF jumper with HFBR-4531Z and HFBR-4533Z connectors on 1.0 mm core plastic optical fiber, built for quick industrial and commercial networking installations using Avago VersaLink transmitters and receivers.
Product Overview
Compatible with the Avago universal (Versatile Link) connector family, this simplex/duplex POF assembly uses 1.0 mm fiber in two grades: low-cost standard POF at about 0.22 dB/m typical attenuation, or high-performance ultra-low-loss POF at about 0.19 dB/m. It offers crimped and epoxied terminations for maximum retention strength and 1 µm polish terminations for high optical coupling efficiency, with assembly processes exceeding Avago recommended procedures.
Key Features
- HFBR-4531Z / HFBR-4533Z latching Versatile Link connectors
- 1.0 mm core POF, 0.22 or 0.19 dB/m grades
- Simplex, duplex, latching and non-latching options
- Crimped and epoxied terminations for retention strength
- 1 µm polish for high optical coupling efficiency
- Heavy-duty or UL-rated cable, various standard lengths
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Connectors | HFBR-4531Z / HFBR-4533Z | Latching Versatile Link |
| Fiber core | 1.0 mm POF | PMMA |
| Attenuation grades | 0.22 / 0.19 dB/m typical | Standard / ultra-low |
| Termination | Crimped + epoxied | High retention |
| End finish | 1 µm polish | High coupling efficiency |
| Config | Simplex / duplex, latching / non-latching | Per order |
Applications
- Commercial and industrial networking / communications
- Factory automation and plant control links
- Board-to-board and rack-to-rack intra-system links
- Quick-install VersaLink transmitter/receiver connections
Performance & Reliability
Crimped and epoxied terminations maximize retention strength, and the 1 µm polish ensures high optical coupling efficiency, with assembly processes exceeding Avago recommended procedures. Choosing the 0.19 dB/m ultra-low-loss grade extends reach in longer runs. Simplex/duplex and latching/non-latching options let the cord match the exact VersaLink port.
Customization & Ordering
We stock multiple POF brands (Mitsubishi ESKA core, Deufo, Avago HFBR-RU/EU/PU series) and build simplex/duplex latching or non-latching cords. Compare with the HFBR 4503/4513 cord and HFBR-4532Z. Quote: sales@fevelectronics.com.
FAQ
Q: Crimped or epoxied – which is used here?
A: Both: crimped and epoxied terminations are combined for maximum retention strength, with 1 µm polished ends.
Q: Which POF grade should I choose?
A: Standard 0.22 dB/m for cost-sensitive short links; 0.19 dB/m ultra-low-loss for longer or loss-sensitive runs.
Q: Are simplex and duplex both available?
A: Yes, simplex or duplex, with latching or non-latching connectors, in various standard lengths.
Why Choose Us
We are a fiber optic cable manufacturer supplying enhanced Versatile Link POF jumpers. See the Avago optical fiber cable range and FAQs, or email sales@fevelectronics.com.

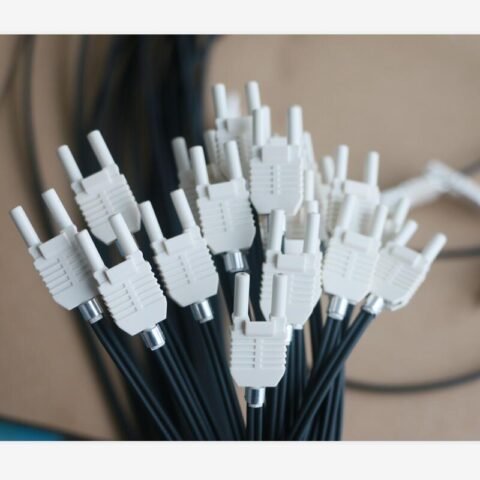

HFBR-4506/4516 Industrial Control POF Patch Cord
HFBR-4506Z/4516Z compatible fiber patch cord, for Avago Versatile Link transceivers, power system grid communication substation, up to 50m. OEM/ODM from Changzhou Jinshang.

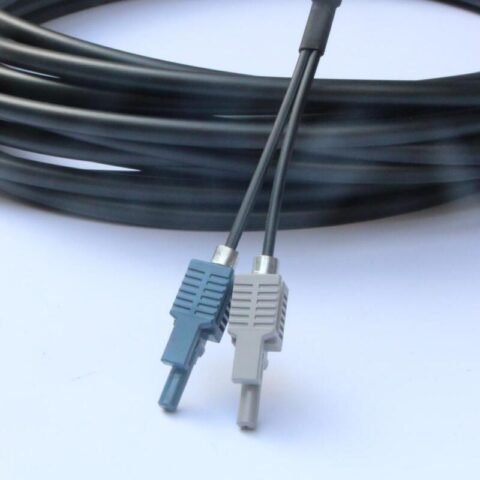

Avago HFBR-4513/4503 Plastic Optical Fiber Cable Assembly
HFBR-4503Z/4513Z compatible fiber patch cord pigtail, for Avago Versatile Link transceivers, industrial automation power systems, up to 50m. OEM/ODM from Changzhou Jinshang.

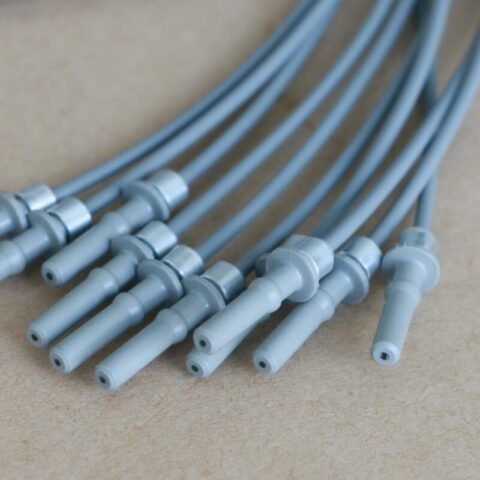

Avago POF Cable Assembly HFBR 4501-4511
