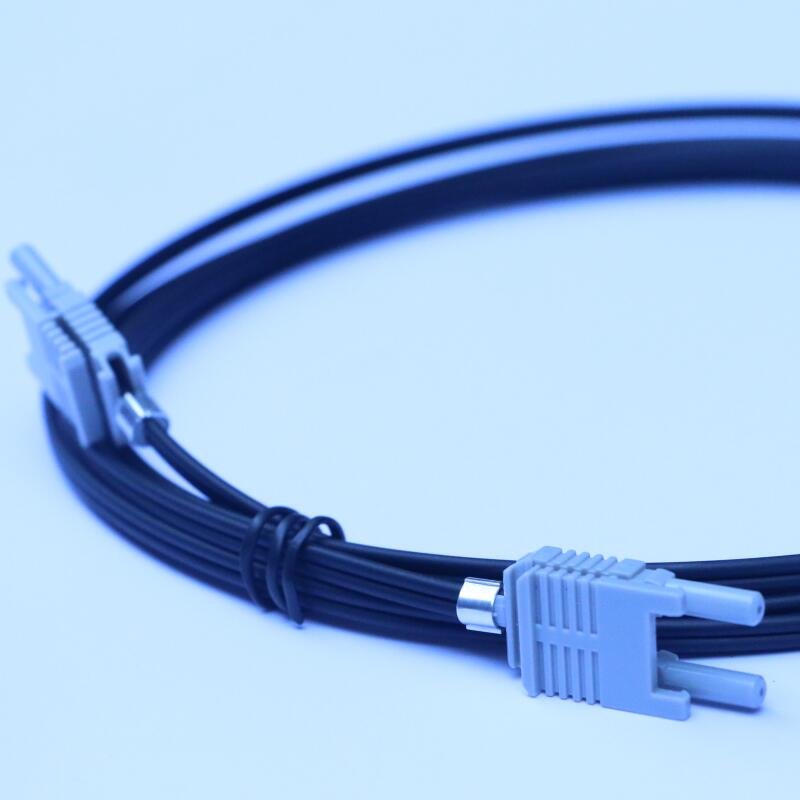

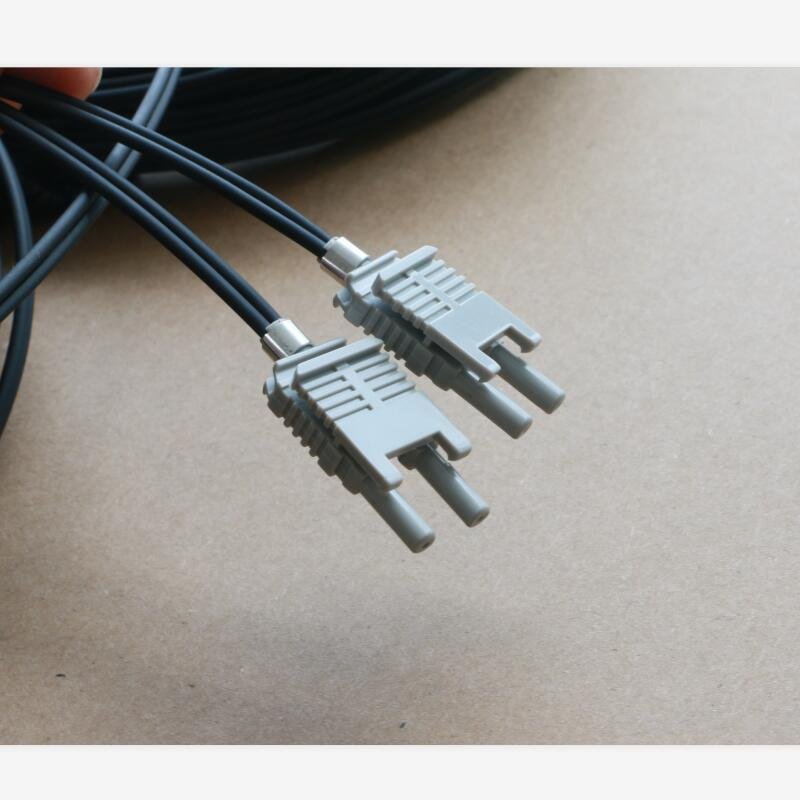

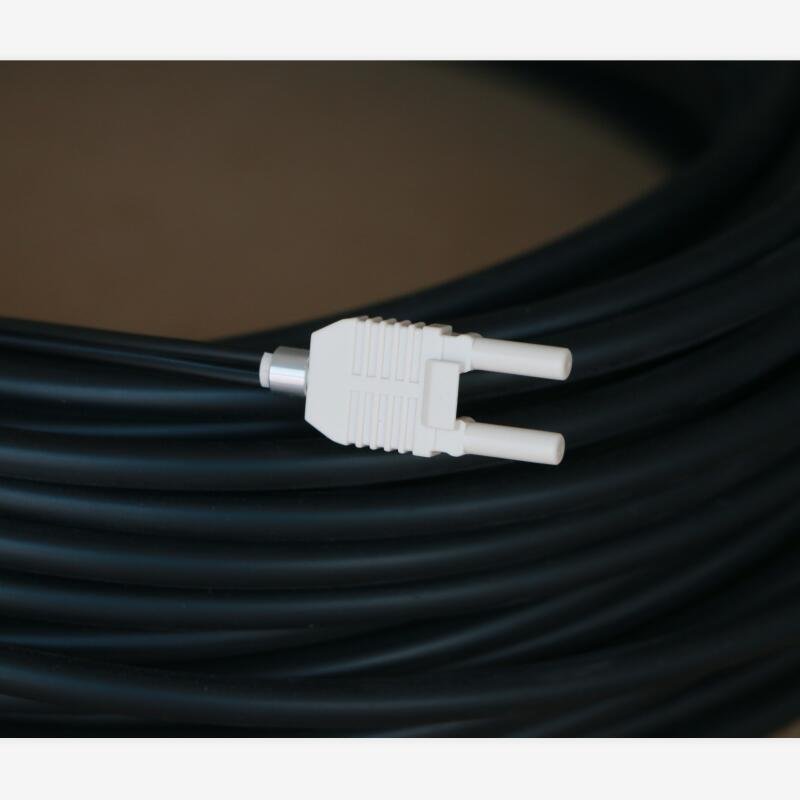

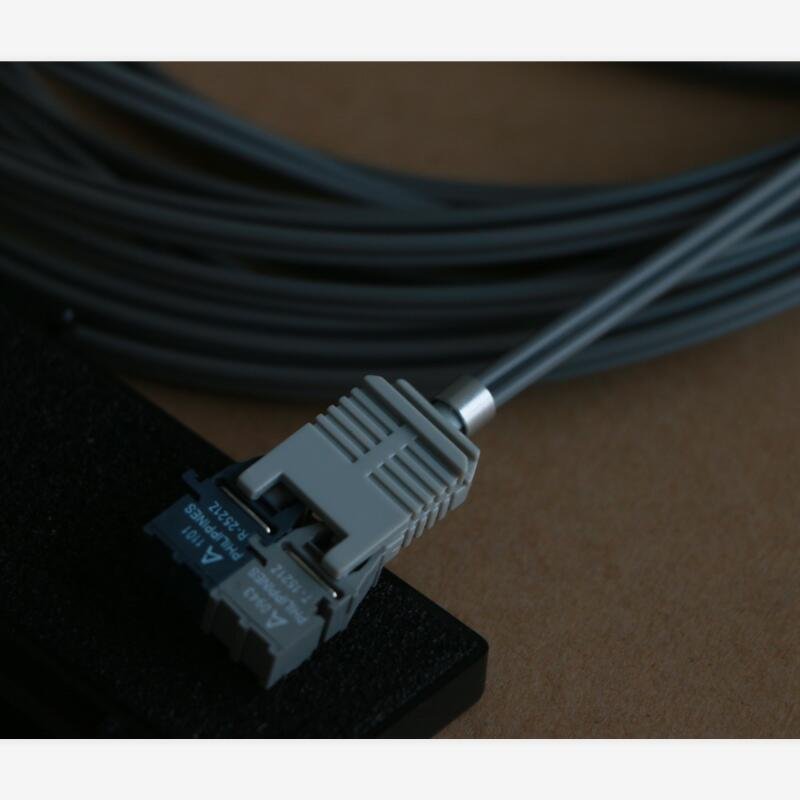

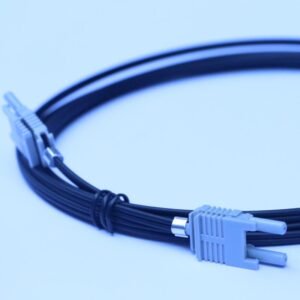

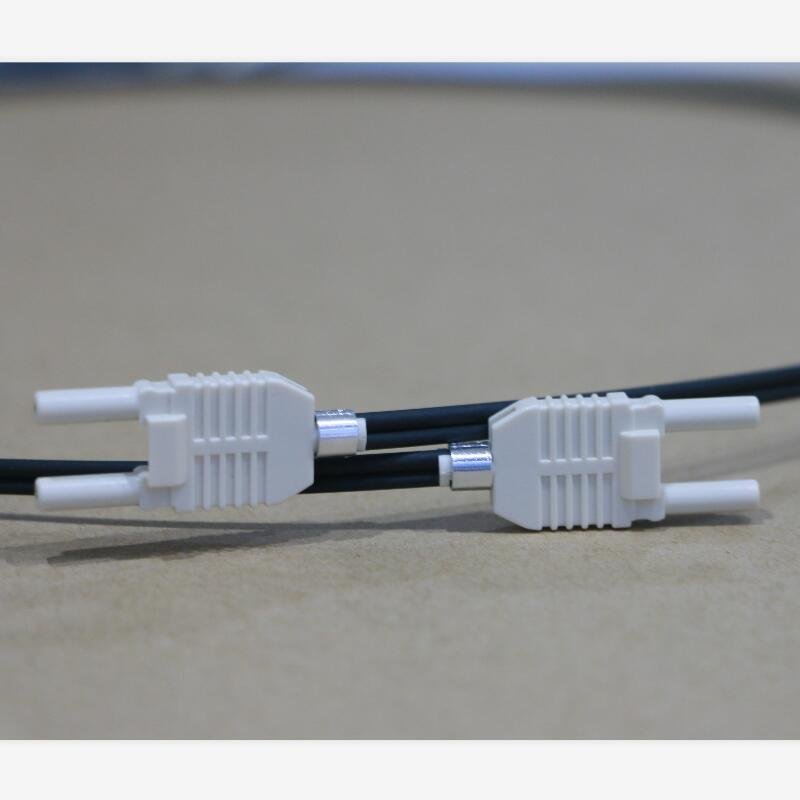

HFBR-4506/4516 Industrial Control POF Patch Cord
HFBR-4506Z/4516Z compatible fiber patch cord, for Avago Versatile Link transceivers, power system grid communication substation, up to 50m. OEM/ODM from Changzhou Jinshang.
The HFBR-4506/4516 is an industrial control POF patch cord built on PMMA plastic optical fiber with HFBR-series connectors, used for fiber modules, industrial automation, servo/robot systems, and power-system optical links where EMI immunity and easy installation matter.
Product Overview
This patch cord uses PMMA POF as the data transmission medium with Agilent/Avago HFBR-series industrial control connectors. Length and connectors can be customized. It is a light, energy-safe, high-bandwidth link with excellent flexibility and vibration resistance, compliant with Chinese communications industry standards YD/T 1447-2006 and YD/T 1258.6-2006.
Key Features
- PMMA POF with HFBR-4506/4516 industrial control connectors
- High bandwidth, excellent flexibility and vibration resistance
- Anti-EMI stable signal transmission; lightweight and safe
- Easy to install and maintain; no field tooling stress
- Operating/storage temperature -20 to 70 °C
- Length 1-100 m to order; custom connector combinations
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Fiber diameter | 0.75 / 1.0 / 1.5 mm | Select grade |
| Cable diameter | 2.2±0.1 mm / 1.0±0.05 mm | PE jacket |
| Fiber / jacket material | PMMA / PE | Step index |
| Attenuation | ≤ 0.2 dB/m | Insertion loss < 0.5 dB |
| Wavelength / NA | 650 nm / 0.5 | Incident angle ≤ 60° |
| Bandwidth / bend radius | ≥ 10 MHz@100 m / ≥ 10x fiber dia | Temp -20 to 70 °C |
Applications
- Industrial automation control systems
- Industrial robot and servo systems
- Communication and digital multimedia systems
- Medical sensor and power systems
Performance & Reliability
With attenuation ≤ 0.2 dB/m, insertion loss under 0.5 dB, and a 650 nm LED wavelength, the cord delivers stable, EMI-immune data across 1-100 m. The step-index PMMA fiber and PE jacket tolerate -20 to 70 °C and a bend radius of at least ten times the fiber diameter, suiting it to repeated industrial routing.
Customization & Ordering
We supply this crimpless HFBR cord in 1-100 m with chosen fiber grade and connector mix. Compare with the HFBR 4501/4511 cord and the HFBR-4532Z latching assembly. Quote: sales@fevelectronics.com.
FAQ
Q: What fiber core sizes are offered?
A: 0.75, 1.0, or 1.5 mm PMMA POF, with a 2.2 mm (or 1.0 mm) PE jacket.
Q: How long can the cable be?
A: Standard 1-100 m to order, with custom lengths and connector configurations on request.
Q: Does it resist electromagnetic interference?
A: Yes, the all-dielectric POF path is immune to EMI and gives stable signal in industrial and power environments.
