Avago HFBR-4513/4503 Plastic Optical Fiber Cable Assembly
HFBR-4503Z/4513Z compatible fiber patch cord pigtail, for Avago Versatile Link transceivers, industrial automation power systems, up to 50m. OEM/ODM from Changzhou Jinshang.

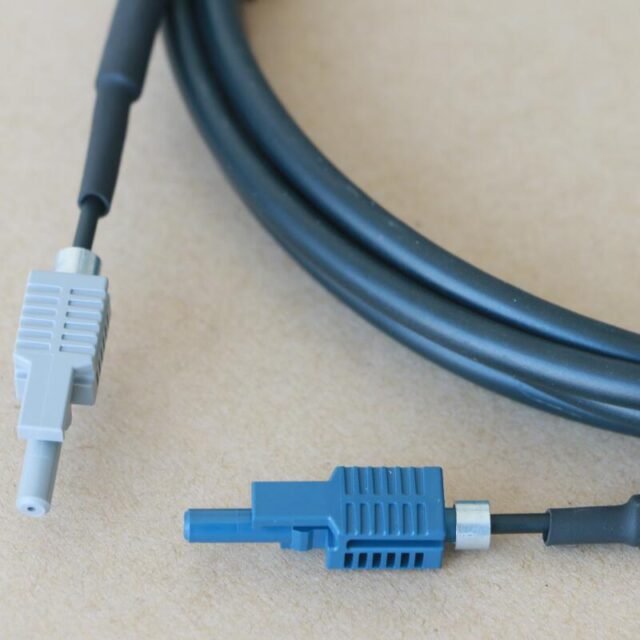

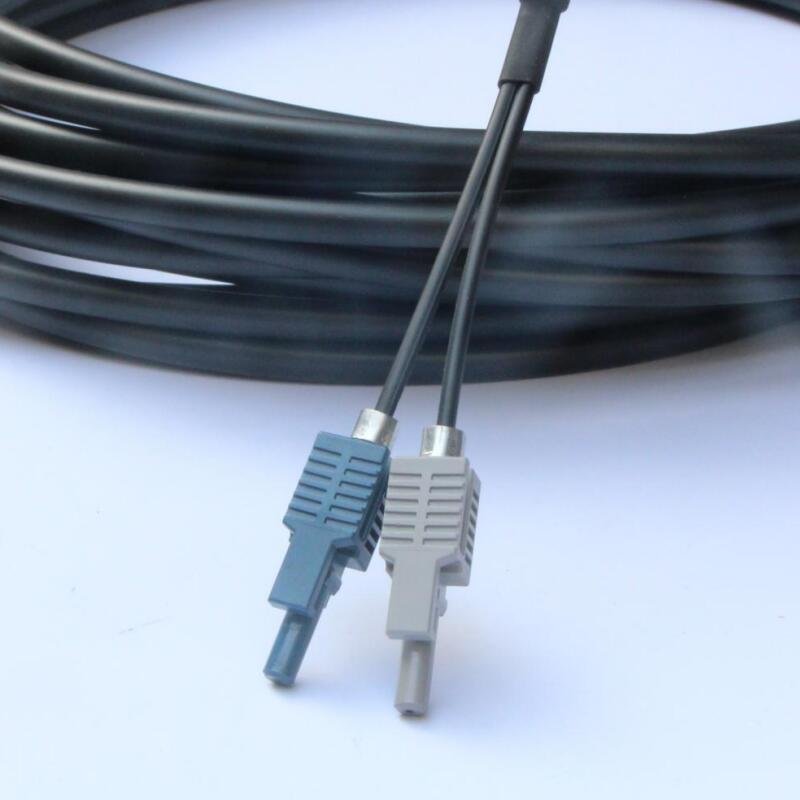

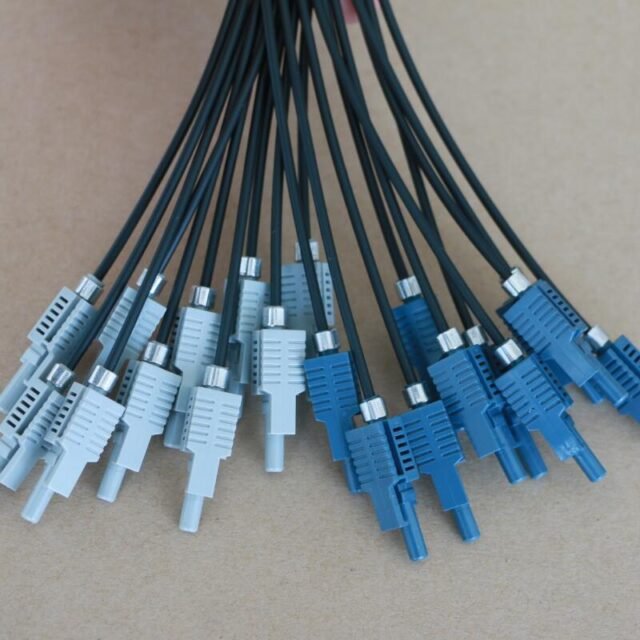

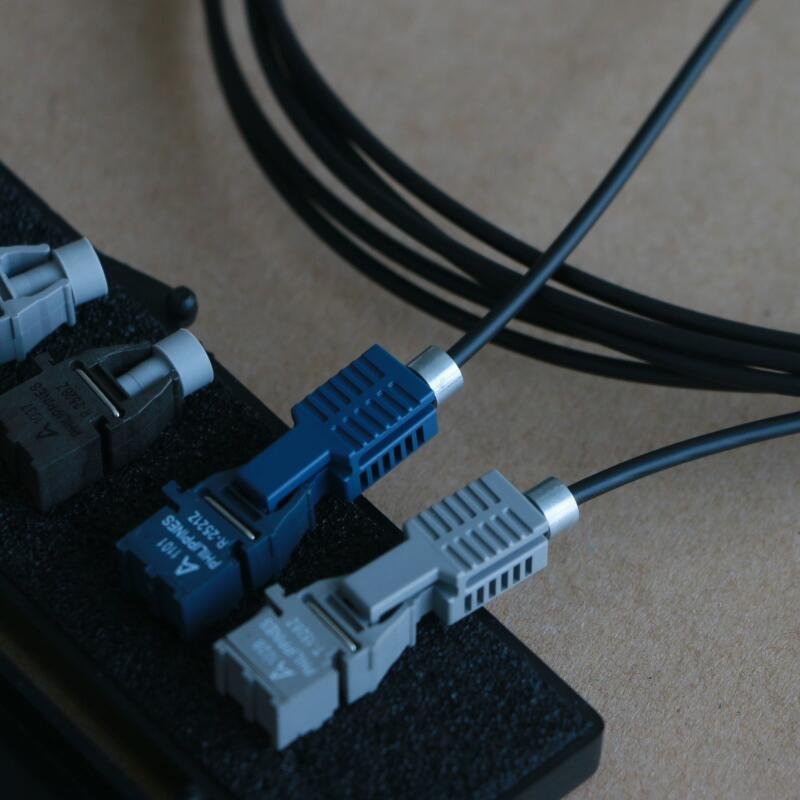

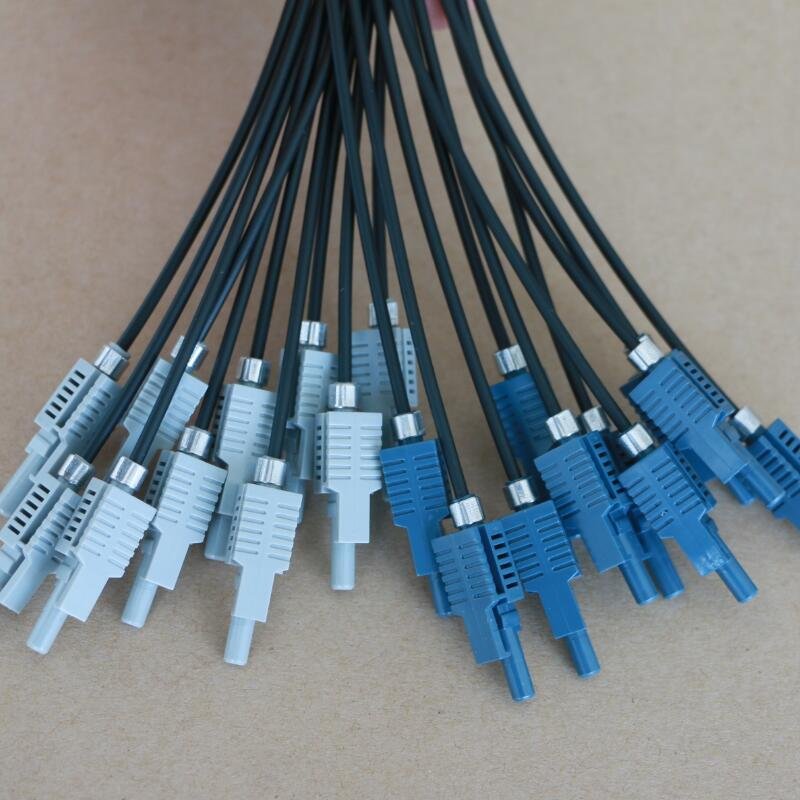

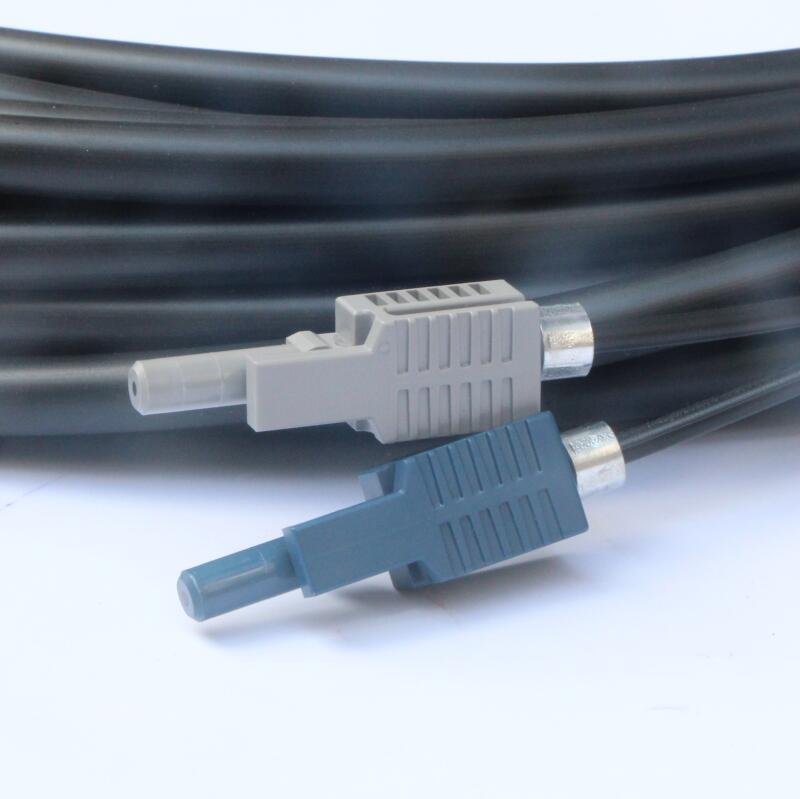

The Avago HFBR 4503/4513 is a simplex latching plastic optical fiber cable assembly on 1.0 mm PMMA POF with a 2.2 mm PE jacket, using gray HFBR-4503 to blue HFBR-4513 latching connectors for industrial automation, medical, and automotive networks.
Product Overview
This low-attenuation PMMA signal communication cable uses 1.0 mm step-index POF with a 2.2 mm cable diameter and PE jacket, terminated with latching HFBR-4503 (gray) and HFBR-4513 (blue) connectors. The snap-together, latching design needs no crimping, gives high retention force, and is compatible with the Agilent/Avago Versatile Link family. It is supplied in lengths from 0.3 to 50 m, with custom configurations on request.
Key Features
- HFBR-4503 (gray) to HFBR-4513 (blue) latching connectors
- 1.0 mm PMMA step-index POF, 2.2 mm PE jacket
- Typical optical loss under 0.2 dB; lengths 0.3-50 m
- No-crimp snap-together latching with high retention force
- Standard 0.22 dB/m or high-performance 0.19 dB/m POF grades
- RoHS / CE quality standard; black or white cable option
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Connectors | HFBR-4503 gray / HFBR-4513 blue | Latching Versatile Link |
| Fiber core | 1.0 mm PMMA POF | Step index |
| Cable diameter | 2.2 mm | PE jacket |
| Attenuation grades | 0.22 / 0.19 dB/m typical | Standard / ultra-low |
| Loss per assembly | < 0.2 dB | Typical |
| Length range | 0.3 to 50 m | Custom on request |
Applications
- Industrial automation control and servo/robot systems
- Medical sensor and instrumentation systems
- Automotive networks and digitized multimedia
- Communication and power-system links
Performance & Reliability
The large plastic fiber core delivers high bandwidth and a tight bend radius versus glass, while the latching connector ensures lock-down mating retention. The easy snap-in pluggable design eliminates crimping, saving labor and tool cost and reducing yield loss from installation error. Choose the 0.19 dB/m grade for longer or higher-loss-sensitive runs.
Customization & Ordering
We supply this latching cord in standard or extra-low-loss POF, with custom lengths, black/white jacket, and labeling. Compare with the HFBR 4501/4511 cord and the HFBR 4531/4533 epoxied assembly. Quote: sales@fevelectronics.com.
FAQ
Q: Do I need a crimping tool for HFBR 4503/4513?
A: No. The latching, snap-together concept removes the need for crimping, reducing installation error and tool cost.
Q: What lengths are available?
A: Standard lengths run 0.3 to 50 m (0.5/1/2/3/4/5/10/15/25/50 m), with custom lengths on request.
Q: Are the connectors color-coded?
A: Yes: HFBR-4503 is gray and HFBR-4513 is blue, making Tx/Rx identification straightforward.
