Mitsubishi CA9003 JIS F07 H-PCF Duplex Cable, SSCNET III

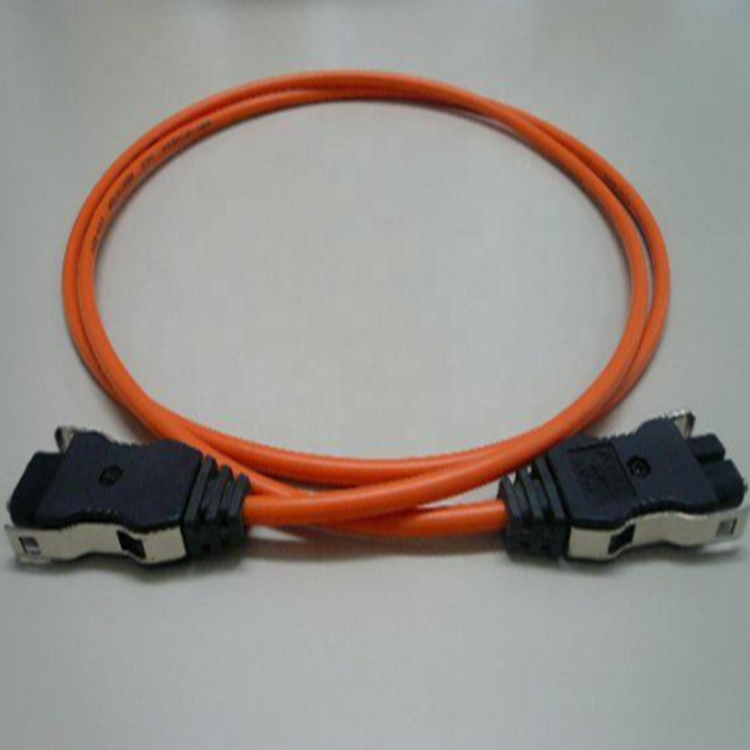

Mitsubishi/Hitachi CA9003 JIS F07 H-PCF duplex optical cable, orange cord with black DL-72 style plugs, for MR-J3-B servo SSCNET III and Melsec PLC loops.
The CA9003 is a JIS F07 H-PCF duplex optical cable with orange cord and black duplex connectors, used in Mitsubishi Electric MR-J3-B servo SSCNET III and Melsec PLC optical ring networks. It pairs with CA7003-style ports. See the industrial H-PCF cable range.
Key Features
- CA9003 JIS F07 H-PCF duplex cord.
- Orange jacket with black duplex (DL-72 style) connectors.
- For MR-J3-B servo SSCNET III and Melsec PLC loops.
- Built to specified length.
- Ring-network duplex send/receive pair.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Part number | CA9003 (JIS F07 H-PCF duplex connector/cable) | – | Folder + docx; Hitachi CA9003 family. |
| Fiber type | HCS / PCF duplex | – | Melsec PLC / SSCNET III optical loop. |
| Jacket color | Orange | – | Per photo. |
| Connector | JIS F07 duplex (DL-72 style, both ends) | – | Black duplex plugs per photo. |
| Cord length | Specify length | – | Built to order. |
| Operating temperature | -40 to +75 | deg C | Supplier listing. |
Applications
- Mitsubishi MR-J3-B servo SSCNET III ring.
- Mitsubishi Melsec PLC optical communication.
- Hitachi CNC and control-system optical links.
- OKUMA / Mitsubishi CNC fiber replacement.
See our full industrial fiber optic cable and connector category for other connector types and lengths. Visit the home page for the complete product range.
Ordering and Customization
We supply this assembly built to your required length and termination. To prepare a quote, please confirm: the exact model / order code, required length, connector side on both ends, quantity, and the device port you are connecting. Contact our sales team with your drawing or layout.
FAQ
How is CA9003 different from CA7003? Both are JIS F07 H-PCF duplex cords; CA9003 is used on the Melsec PLC / SSCNET side while CA7003 is the paired transceiver-side cord. Confirm the exact port on your device.
What length do you supply? Built to order – tell us the loop span between your controller and amplifiers.
Is this H-PCF? Yes, HCS/PCF silica-core polymer-clad duplex fiber in an orange jacket, not PMMA POF.
