Mitsubishi CA7003 JIS F07 H-PCF Duplex Patch Cord, Orange
Mitsubishi CA7003 JIS F07 H-PCF duplex patch cord, orange jacket, marked MITSUBISHI CA7003, for Mitsubishi PLC and servo PCF transceiver links.
The Mitsubishi CA7003 is a JIS F07 H-PCF duplex patch cord with orange jacket, terminated by a black duplex plug marked “MITSUBISHI CA7003”. It is used to connect PCF optical transceivers in Mitsubishi PLC and servo systems. Browse the industrial H-PCF range.
Key Features
- MITSUBISHI CA7003 JIS F07 duplex connector.

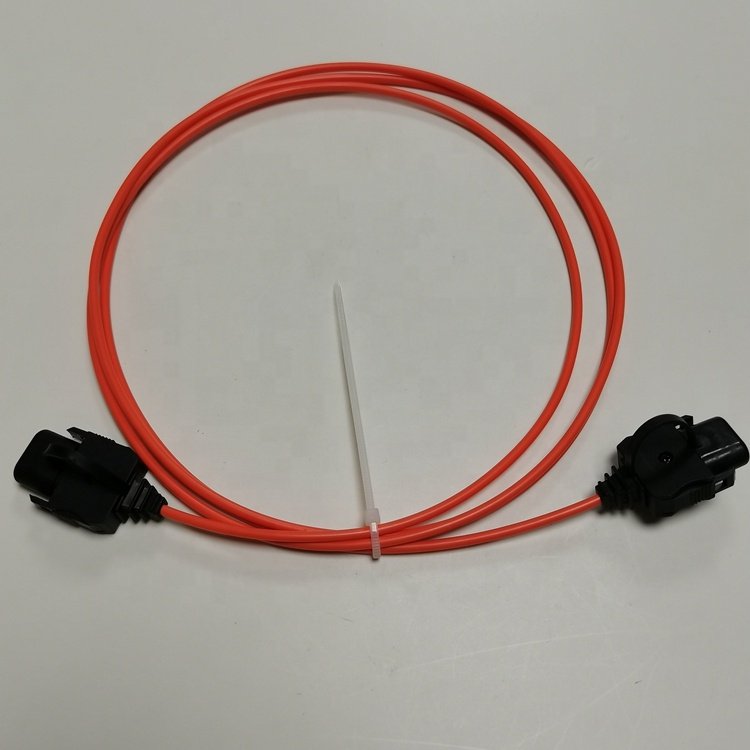

- Orange H-PCF duplex cord.

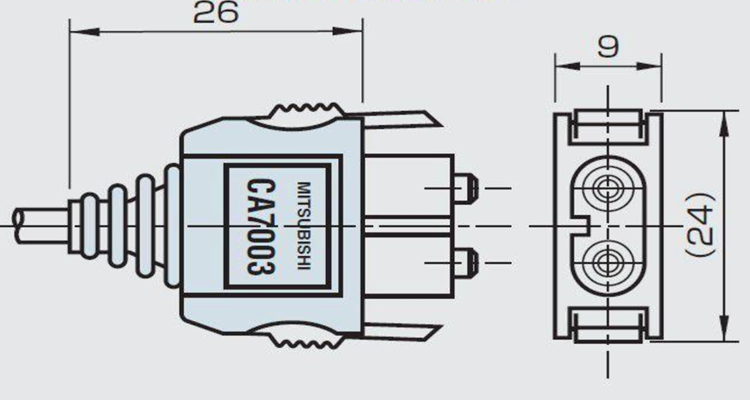

- Connector envelope about 26 x 9 x 24 mm per drawing.
- Built to specified length for DCV (duplex) runs.
- Pairs with CA9003-style ports in Mitsubishi/Hitachi/OKUMA systems.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Part number | CA7003 (Mitsubishi JIS F07 H-PCF patch cord) | – | Connector marked MITSUBISHI CA7003 on dimension drawing. |
| Fiber type | HCS / PCF duplex | – | Matched to Toshiba / Sumitomo PCF transceivers. |
| Jacket color | Orange | – | Per photos. |
| Connector | JIS F07 duplex | – | MITSUBISHI CA7003 marked plug; drawing L=26, W=9, H=(24) mm. |
| Cord length | Specify length | – | Built to order; DCV/CCV schematic. |
| Operating temperature | -40 to +75 | deg C | Supplier listing. |
| Ingress rating | IP68 | – | Supplier listing; no test report on file. |
Applications
- Mitsubishi Melsec PLC optical links.
- Mitsubishi MR-J3-B servo SSCNET III loops.
- Hitachi drilling machine optical links.
- Omron SYSMAC and elevator control fiber.
See our full industrial fiber optic cable and connector category for other connector types and lengths. Visit the home page for the complete product range.
Ordering and Customization
We supply this assembly built to your required length and termination. To prepare a quote, please confirm: the exact model / order code, required length, connector side on both ends, quantity, and the device port you are connecting. Contact our sales team with your drawing or layout.
FAQ
What is the CA7003 used for? It is a JIS F07 H-PCF duplex patch cord that mates Mitsubishi / Toshiba / Sumitomo PCF transceivers in PLC and servo optical loops.
How long is it? The catalog builds to order; tell us the required span between your transceivers. The connector drawing gives the plug envelope (about 26 x 9 x 24 mm).
Is it H-PCF or POF? It is HCS/PCF (silica-core polymer-clad) JIS F0F, not PMMA POF. Match the fiber grade to your transceiver.
