Dual-Core 1.0mm PMMA POF Cable, 4.4×2.2mm PE Figure-8
Dual-core step-index PMMA POF: 1.0mm core, 4.4x2.2mm black PE figure-8 jacket, 2 fibers, <=0.20 dB/km family-typical, for sensing and control links.

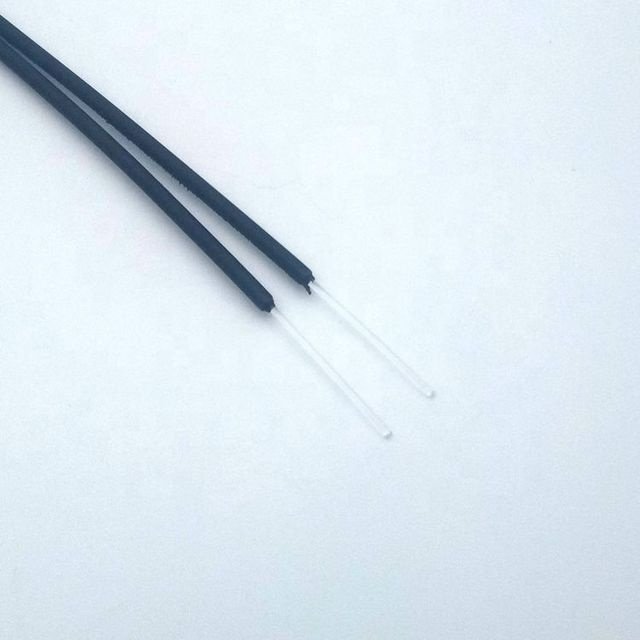

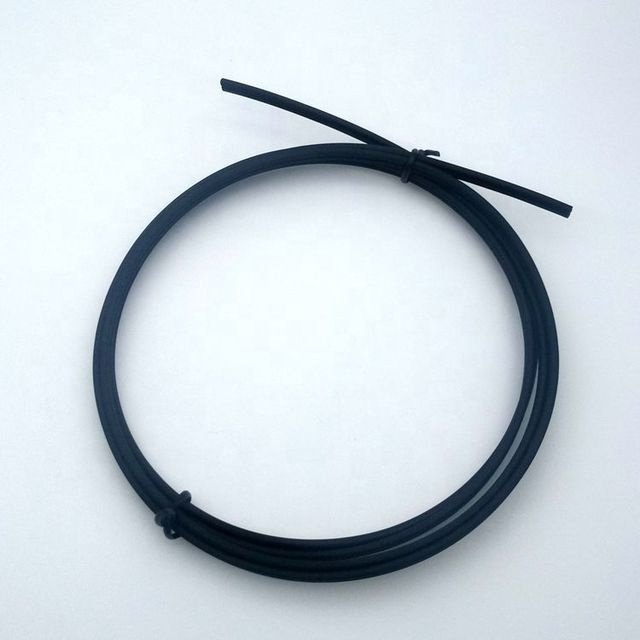

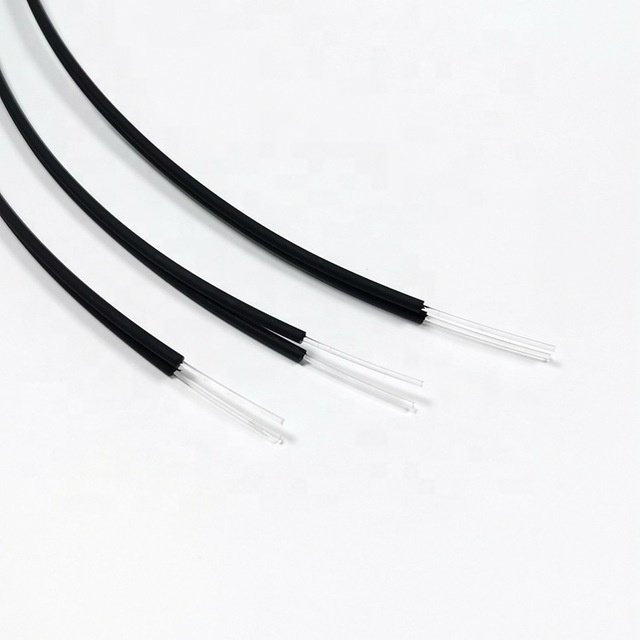

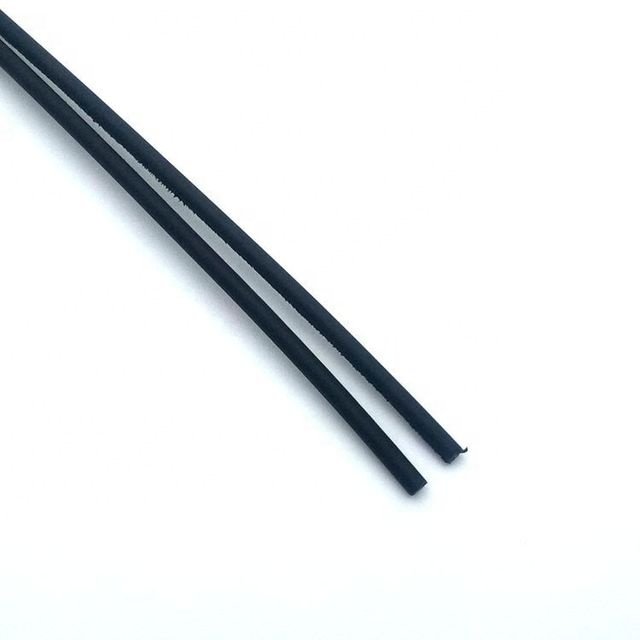

This is a dual-core figure-8 PMMA plastic optical fiber cable with a 1.0 mm PMMA core inside a black polyethylene sheathing, measuring 4.4 mm x 2.2 mm overall. It corresponds to supplier family row H17 (dual-core, 2 fibers, PE jacket) and is used for short-range sensing, control and signal links. See the full POF and H-PCF cable range.
Key Features
- Dual-core figure-8 PMMA POF, 1.0 mm core.
- Black PE jacket, 4.4 mm x 2.2 mm overall.
- Two fibers in one jacket for send/receive pairs.
- Cut to length; can be terminated with common POF connectors.
- Lightweight, immune to electromagnetic interference.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|

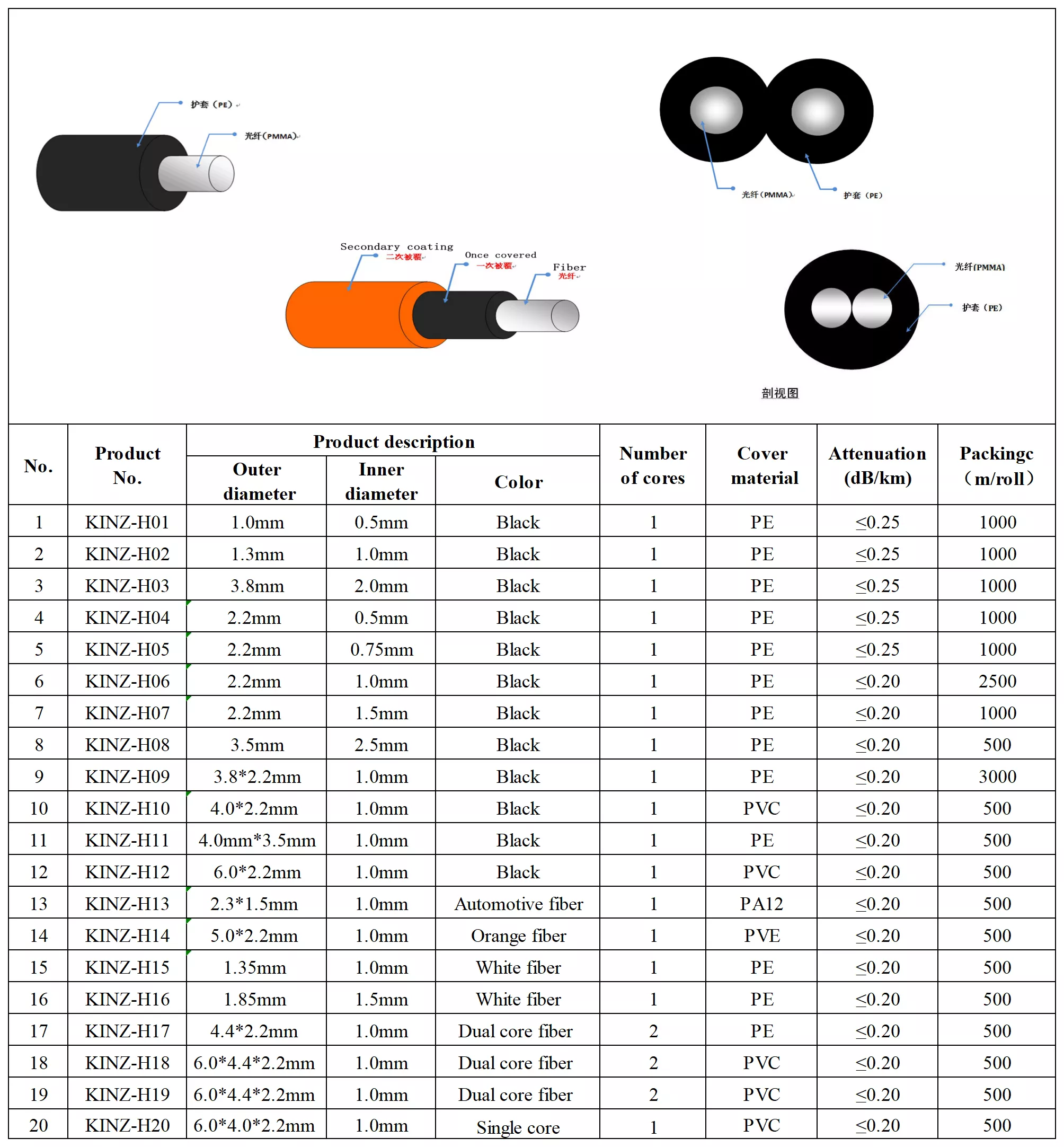

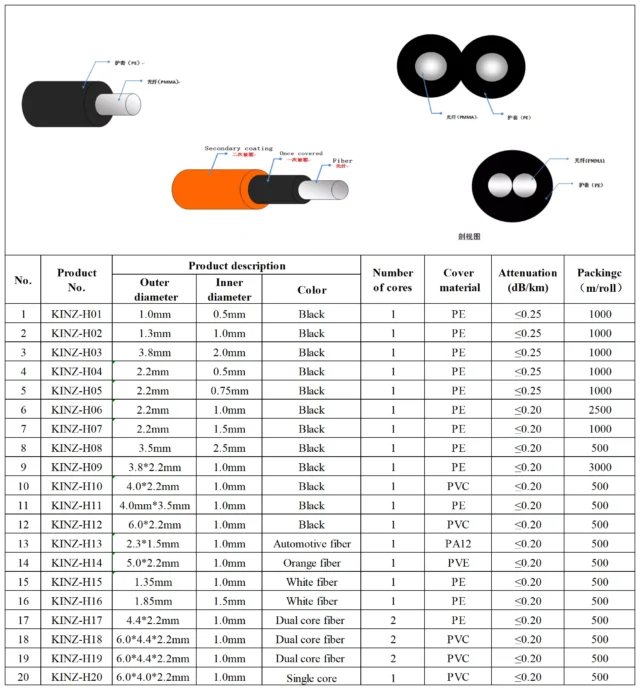

| Fiber type | Dual-core step-index PMMA POF (figure-8) | – | Family table row H17. |
| Core material | PMMA (polymethyl methacrylate) | – | Family/structure sheet. |
| Core diameter | 1.0 | mm | Folder + docx + family H17. |
| Sheathing (jacket) material | PE (polyethylene), black | – | Family table H17; structure drawing. |
| Outer (figure-8) diameter | 4.4 x 2.2 | mm | Family H17: 4.4*2.2mm; matches folder ‘Outer 4.4mm’. |
| Number of cores | 2 | – | Family H17 dual core; docx Number of Conductors=2. |
| Attenuation | <= 0.20 (supplier family table) | dB/km | Family table H17; treat as supplier-typical. |
| Packing | 500 | m/roll | Family table H17. |
| Operating temperature | -55 to +80 | deg C | Supplier quick-details. |
Applications
- Industrial sensing and control signal links.
- Noise-immune cabinet-to-cabinet POF runs.
- Sensing and detection loops in strong EMI areas.
- Custom POF jumper assemblies with connector termination.
See our full industrial fiber optic cable and connector category for other connector types and lengths. Visit the home page for the complete product range.
Ordering and Customization
We supply this assembly built to your required length and termination. To prepare a quote, please confirm: the exact model / order code, required length, connector side on both ends, quantity, and the device port you are connecting. Contact our sales team with your drawing or layout.
FAQ
Is this one fiber or two? It is a figure-8 dual-core cable: two 1.0 mm PMMA fibers in a 4.4 x 2.2 mm PE jacket (family row H17).
What does <=0.20 dB/km mean here? That is the supplier family-table value; note PMMA POF attenuation is wavelength-dependent and we recommend designing to your transceiver optical budget. Confirm the figure against your application.

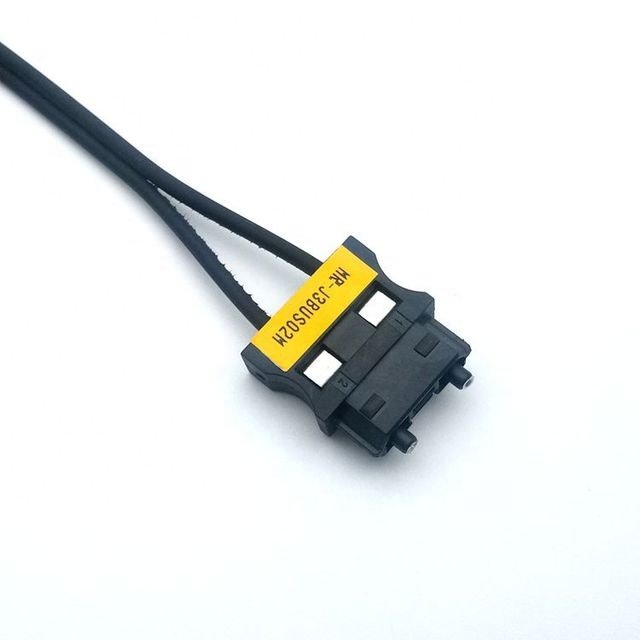

Can the ends be terminated? Yes – cut lengths can be fitted with common POF connectors on request; specify the connector type and length on enquiry.
