Bosch LBB4416 Install Network POF Cable, 2 Fiber + 2 Copper
Bosch LBB4416/xx install network cable with 2 plastic optical fibers for data/audio and 2 copper cores for power, black, 1 m, for CCU to audio expander.

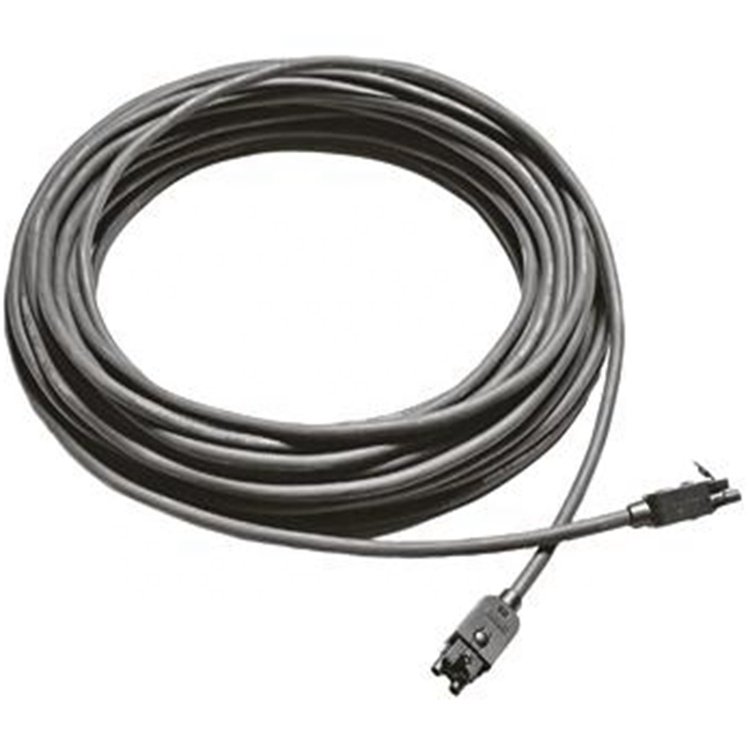

The Bosch LBB4416/xx install network cable is a hybrid black cable containing two plastic optical fibers for data and audio plus two copper cores for power, used to connect a control unit (CCU) to an audio expander. The length code in the part number (/01 to /50) sets the cable length.
Product Overview
This product is part of our POF fiber optical cable range. Values below are taken from the supplier datasheet and listing; where only supplier quick-details are available, they are flagged as supplier-stated and not independently measured.
Key Features
- Hybrid: 2 POF for data/audio + 2 copper for power.
- Black jacket, 1 m standard; lengths by /xx code.

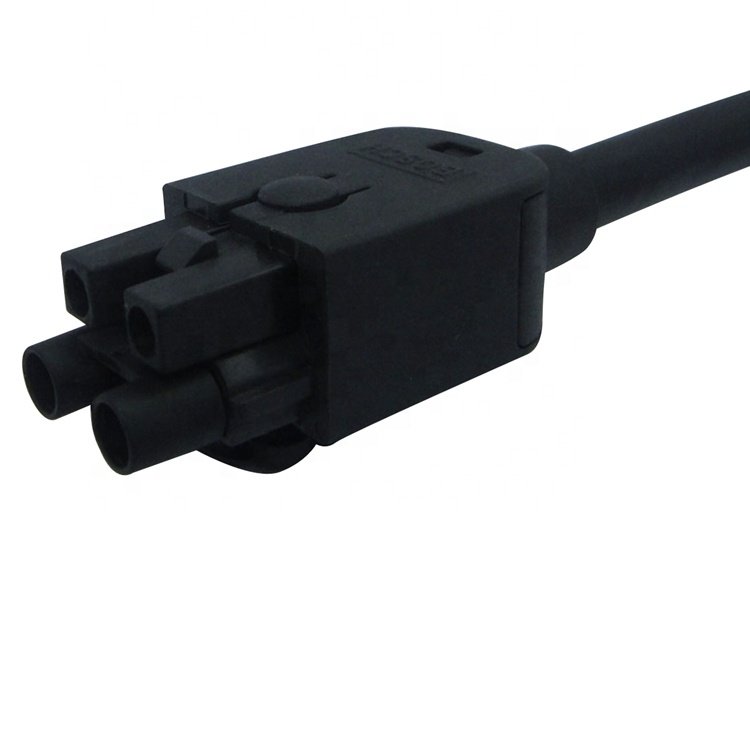

- Uses LBB4416/00 end connectors (LBB4417/00 connector pack sold separately).
- PMMA POF elements, −20° to +70°C.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Cable type | Install network hybrid cable (2 POF + 2 copper) | – | Connects CCU to audio expander. |
| Optical elements | 2 x PMMA POF | – | Data and audio. |
| Copper elements | 2 cores | – | Power supply. |
| Standard length | 1 (codes /01-/50) | m | /00 no connector, /01 0.5m … /50 50m. |

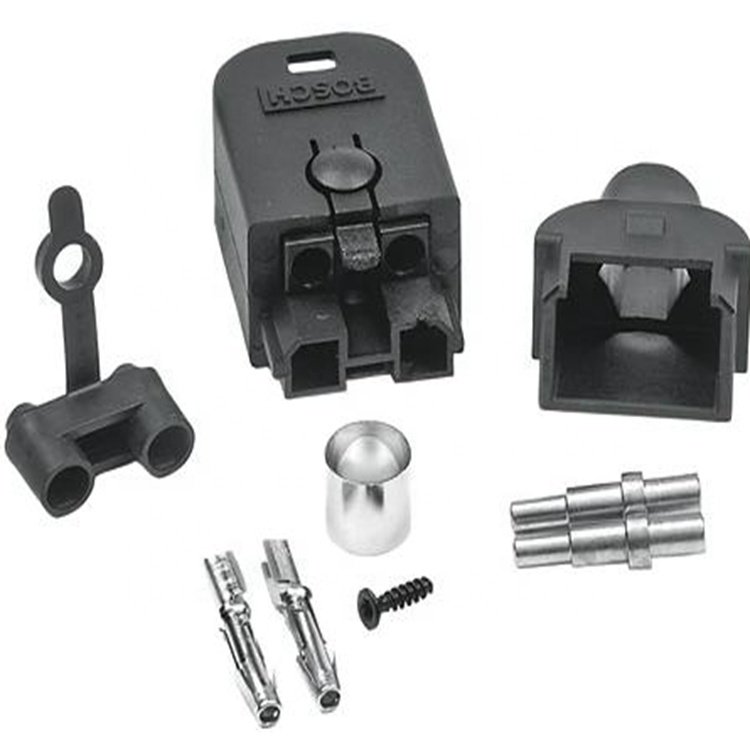

| Connector | LBB4416/00 end connector | – | LBB4417/00 connector pack sold separately. |
| Operating temperature | -20 to +70 | C | Supplier listing. |
Applications
Bosch public-address and conference network installation, CCU-to-audio-expander links, installed sound-system cabling. Browse the full POF fiber optical cable range.
Ordering & Customization
Specify the length code (LBB4416/00, /01, /02, /05, /10, /20 or /50) and whether you need the LBB4417/00 connector pack. Contact us. More answers are on the FAQ page, and you can return to the home page.
FAQ
What does the /xx code mean?
It sets the cable length: /01=0.5 m, /02=2 m, /05=5 m, /10=10 m, /20=20 m, /50=50 m; /00 is the unconnectorized bulk cable.
Why Choose Us
We supply hybrid install-network POF cabling by length code, with the ordering guide reproduced for clarity. See the POF range, FAQ or home page.
