Asahi Kasei TB-1000 1.0 mm PMMA Bare End-Glow POF
Asahi Kasei TB-1000 1.0mm step-index PMMA bare end-glow POF, NA 0.5, 0.16 dB/m, 20mm min bend, 1500/5250m roll, for decoration lighting.

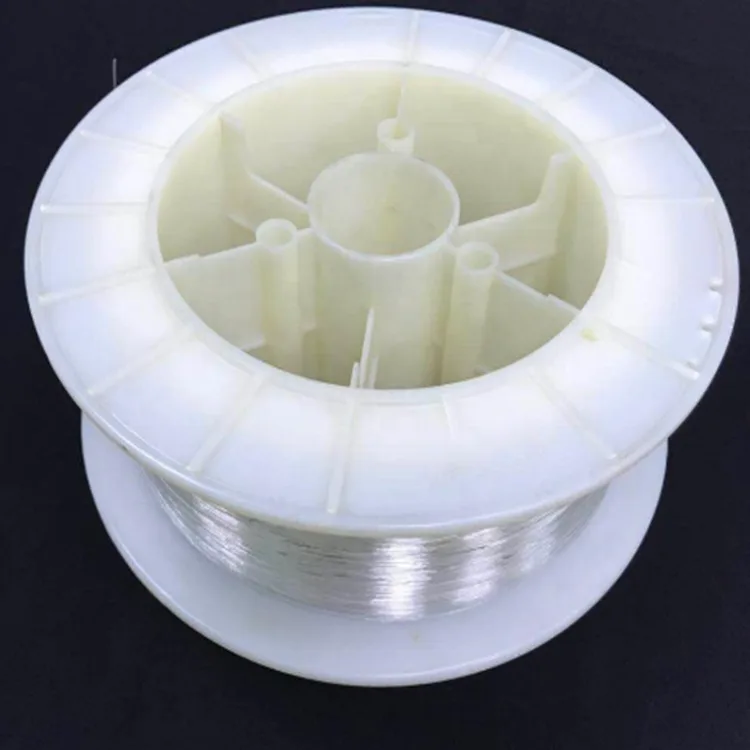

Asahi Kasei TB-1000 is a 1.0 mm step-index PMMA bare end-glow fiber from the Asahi Kasei bare-fiber range, available in 1,500 m and 5,250 m winding options. The 1.0 mm grade is a popular all-round decorative POF — bright enough for feature points yet flexible enough for curtains and star ceilings.
Product Overview
This product is part of our POF fiber optical cable range of step-index PMMA plastic optical fibers and jacketed cables. The values below are taken from the supplier grade table, structure sheet and listing; LED-illuminator parameters (color temperature, input voltage, IP rating) are deliberately excluded because they belong to the light source, not the fiber.
Key Features
- 1.0 mm PMMA bare end-glow fiber, TB-1000 grade.
- NA 0.5, 0.16 dB/m typical attenuation.
- 20 mm minimum bend radius.
- 1,500 m or 5,250 m winding options.
- PMMA core / fluorinated cladding, step-index.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|

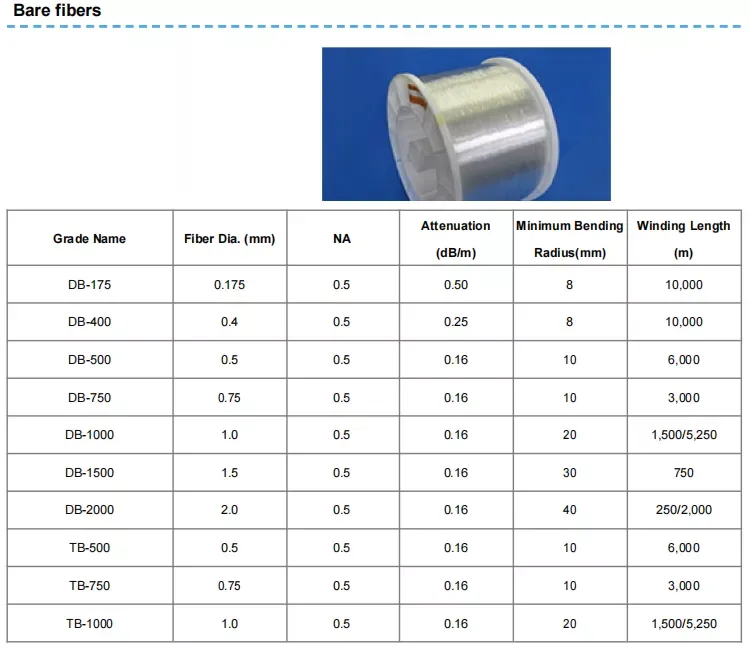

| Fiber grade | TB-1000 (TB01000) | – | Asahi Kasei bare-fiber grade table. |
| Fiber diameter | 1.0 | mm | Grade table. |
| Numerical aperture (NA) | 0.5 | – | Grade table. |
| Attenuation | 0.16 | dB/m | Typical, visible wavelength, grade table. |
| Minimum bend radius | 20 | mm | Grade table. |
| Winding length | 1,500 / 5,250 | m | Two winding options per grade table. |

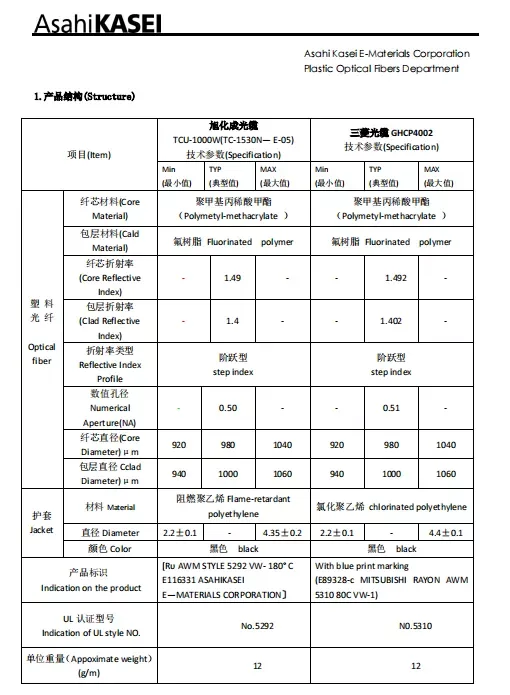

| Core material | PMMA (polymethyl methacrylate) | – | Asahi structure sheet. |
| Cladding material | Fluorinated polymer | – | Asahi structure sheet. |
| Index profile | Step index | – | Asahi structure sheet. |
| Core refractive index (typ.) | 1.49 | – | TCU-1000W reference grade. |
| Clad refractive index (typ.) | 1.40 | – | TCU-1000W reference grade. |
Applications

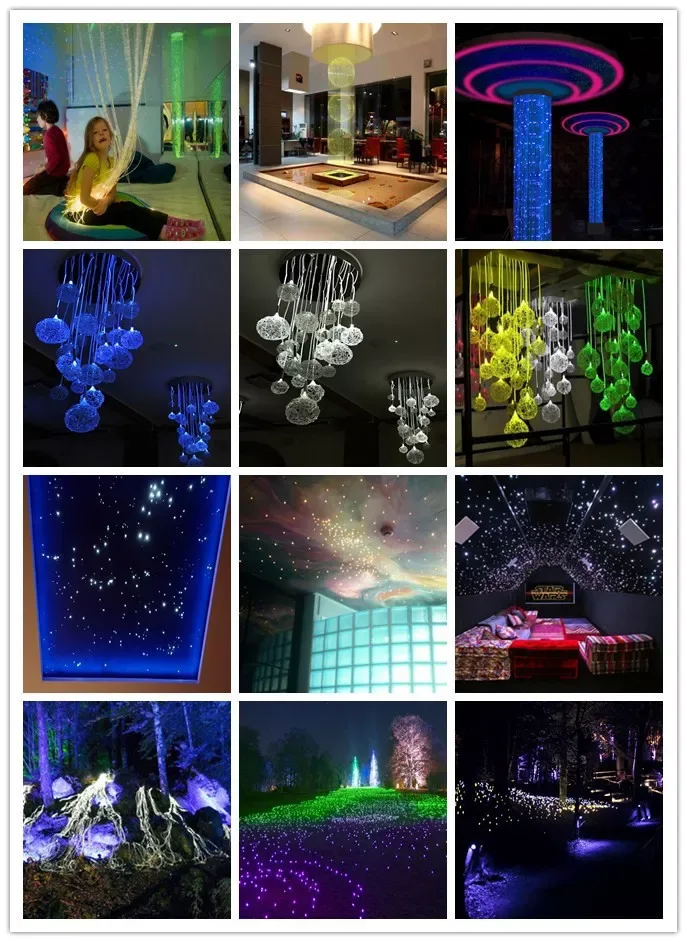

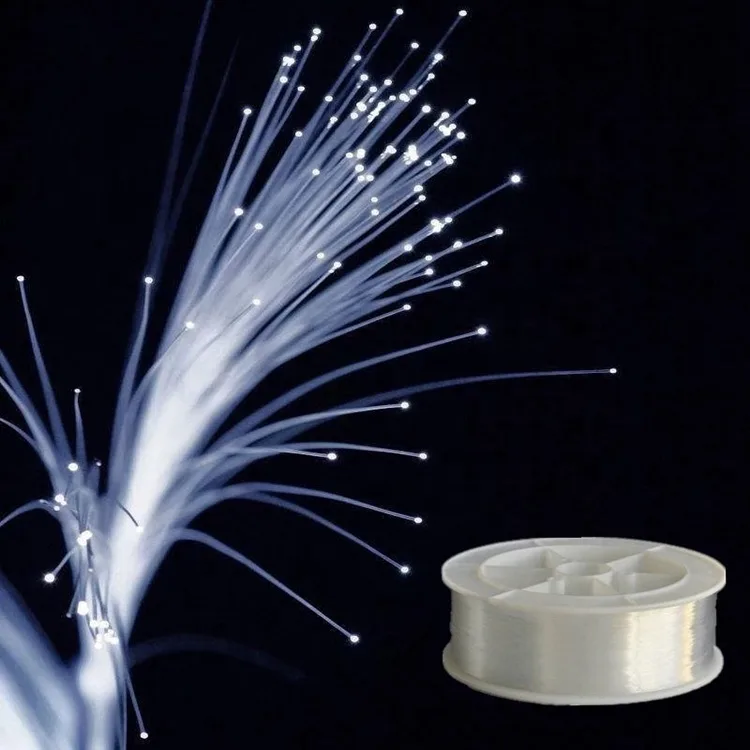

End-glow decoration, star ceilings, fiber curtains, falling-water effects and short visible-light links. Browse the full POF fiber optical cable category for other diameters and jacket options.
Ordering and Customization
Tell us the winding option and cut length. Quote at sales@fevelectronics.com. More answers are on the FAQ page, and you can return to the home page.
FAQ
Which winding length do I choose?
The grade table lists 1,500 m and 5,250 m reels; choose by your project size and handling.
How does 1.0mm compare with 0.75mm?
1.0 mm passes more light but needs a larger 20 mm bend radius (vs 10 mm for 0.75 mm).
Is the 10mm bend radius from the listing correct?
No. The Asahi grade table lists 20 mm for TB-1000; we use the table value.
Why Choose Us
We use the Asahi grade table (20 mm bend, 1,500/5,250 m) rather than the listing’s misquoted 10 mm/3,000 m. See the POF category, the FAQ page or the home page.
