Asahi Kasei DB-1000 / TB-1000 1.0 mm PMMA POF for Signal
Asahi Kasei DB-1000/TB-1000 1.0mm step-index PMMA bare POF, NA 0.5, 0.16 dB/m, 20mm bend, 1500/5250m roll, for signal transmission and lighting.
The Asahi Kasei DB-1000 / TB-1000 is a 1.0 mm step-index PMMA bare POF used both for end-glow decoration and for short visible-light signal transmission. The 1.0 mm grade is widely adopted for signal and sensor links thanks to its 0.16 dB/m typical loss and robust handling on the reel.
Product Overview
This product is part of our POF fiber optical cable range of step-index PMMA plastic optical fibers and jacketed cables. The values below are taken from the supplier grade table, structure sheet and listing; LED-illuminator parameters (color temperature, input voltage, IP rating) are deliberately excluded because they belong to the light source, not the fiber.
Key Features
- 1.0 mm PMMA bare POF for signal and lighting.
- NA 0.5, 0.16 dB/m typical attenuation.
- 20 mm minimum bend radius, 1,500/5,250 m reels.
- PMMA core / fluorinated cladding, step-index.
- Galvanically isolated, EMI-immune light link.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|

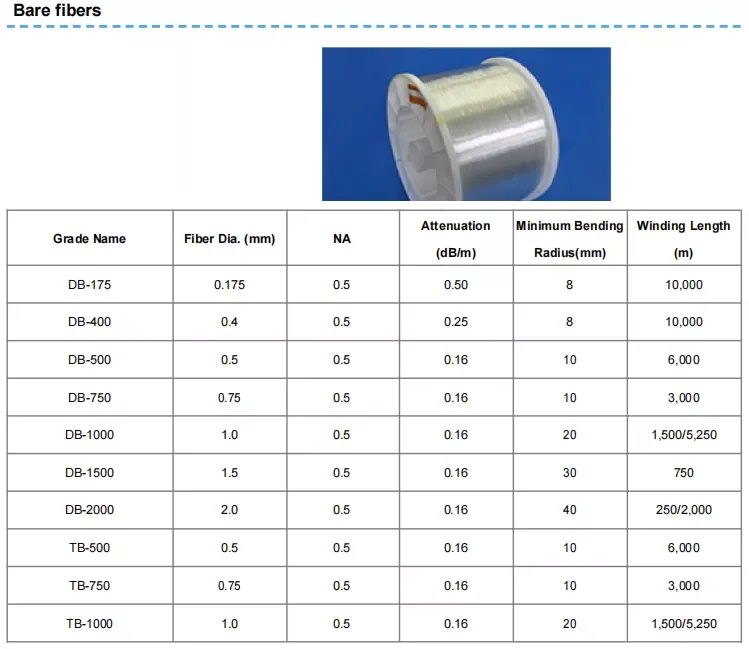

| Fiber grade | DB-1000 / TB-1000 | – | Asahi Kasei bare-fiber grade table. |
| Fiber diameter | 1.0 | mm | Grade table. |
| Numerical aperture (NA) | 0.5 | – | Grade table. |
| Attenuation | 0.16 | dB/m | Typical, visible wavelength, grade table. |
| Minimum bend radius | 20 | mm | Grade table. |
| Winding length | 1,500 / 5,250 | m | Two winding options per grade table. |

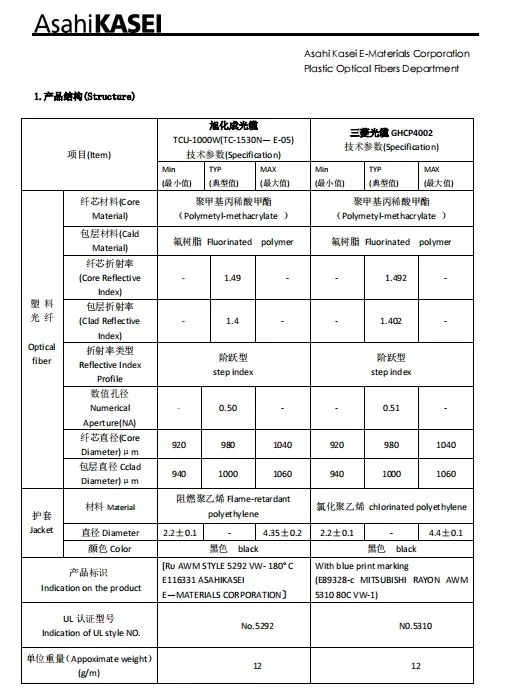

| Core material | PMMA (polymethyl methacrylate) | – | Asahi structure sheet. |
| Cladding material | Fluorinated polymer | – | Asahi structure sheet. |
| Index profile | Step index | – | Asahi structure sheet. |
| Core refractive index (typ.) | 1.49 | – | TCU-1000W reference grade. |
| Clad refractive index (typ.) | 1.40 | – | TCU-1000W reference grade. |
Applications

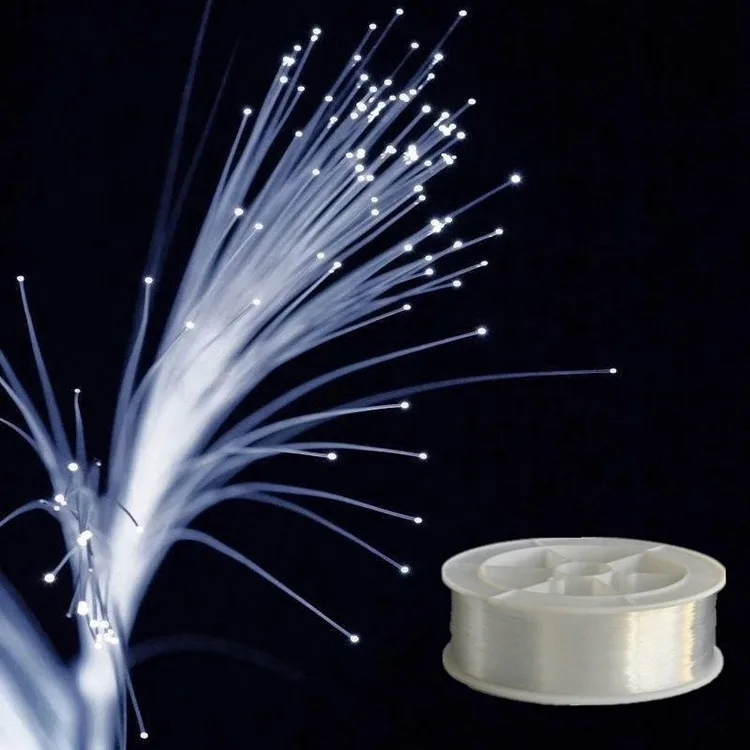

Short-distance signal and sensor transmission, end-glow decorative lighting, star ceilings and visible-light data links. Browse the full POF fiber optical cable category for other diameters and jacket options.

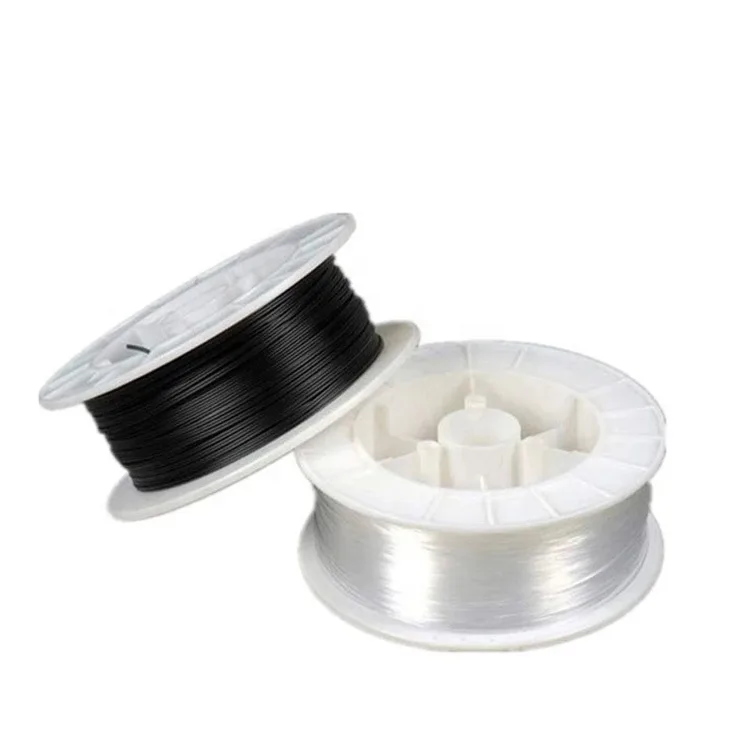

Ordering and Customization
Confirm whether you need bare or jacketed fiber and any termination. Quote at sales@fevelectronics.com. More answers are on the FAQ page, and you can return to the home page.
FAQ
Can this fiber carry data signals?
It is a passive step-index PMMA POF used for short visible-light signal/sensor links; actual link distance depends on your transmitter and detector optical budget.
DB-1000 or TB-1000?
The grade table lists both at 1.0 mm with identical values (0.16 dB/m, 20 mm bend, 1,500/5,250 m); they are product-line variants.
Is this the same as the lighting TB-1000?
Yes, it is the same 1.0 mm Asahi grade; this folder emphasizes signal-transmission use.
Why Choose Us
We present the 1.0 mm Asahi grade with its real grade-table values and its signal-and-lighting dual use, without promising a specific data rate. Start from the POF category, the FAQ page or the home page.
