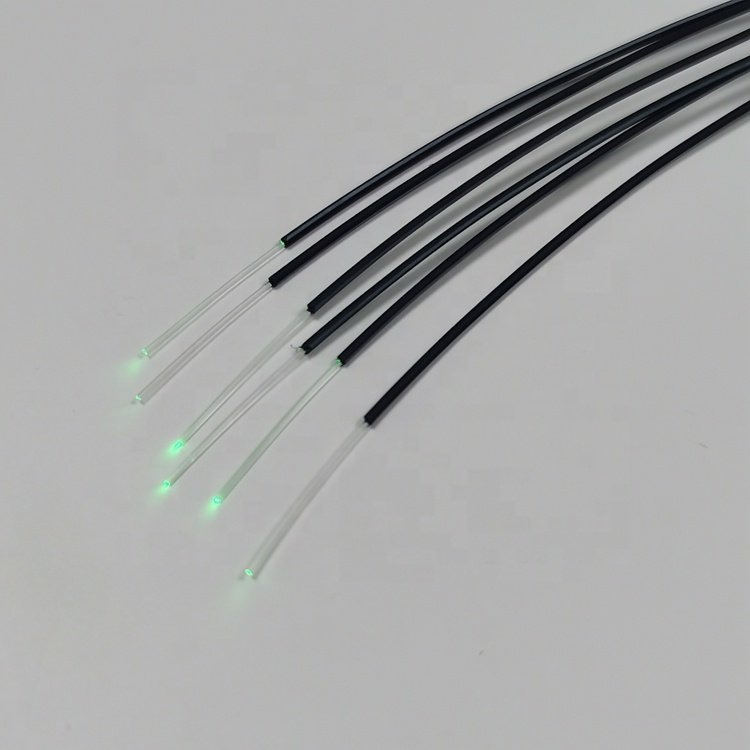

Toray PGU-CD / PGS-CD 1001-22-E PE-Jacketed POF Cable, 1.0 mm Core / 2.2 mm OD
Toray PGU-CD and PGS-CD 1001-22-E black PE jacketed PMMA POF cables, 1.0mm core / 2.2mm OD, <=0.15/0.18 dB/m, for sensors.

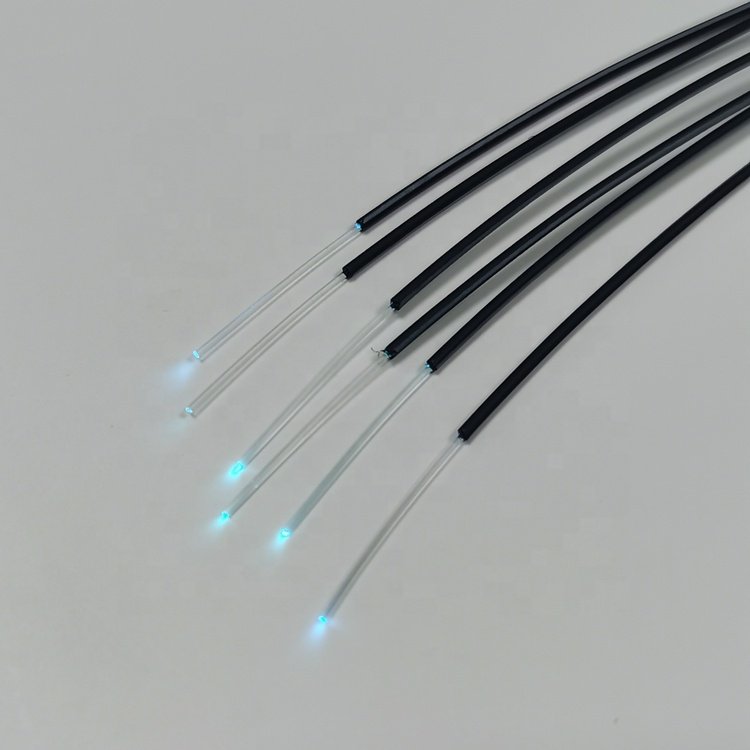

The Toray PGU-CD1001-22-E and PGS-CD1001-22-E are black PE-jacketed PMMA POF cables with a 1.0 mm fibre in a 2.2 mm OD jacket, in U-grade and S-grade versions.
Product Overview

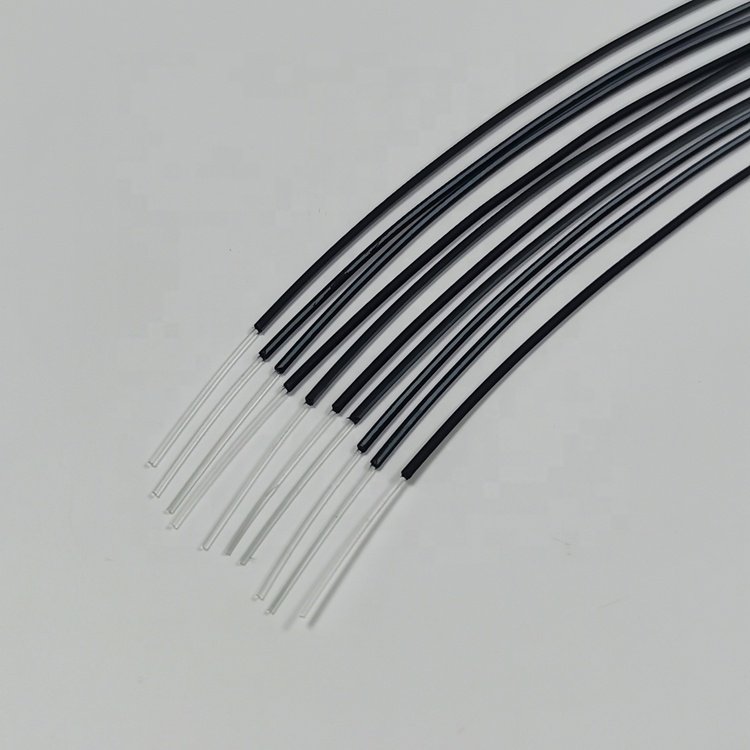

These PG-series cables jacket a single 1.0 mm PMMA step-index fibre in black polyethylene. The U-grade PGU-CD1001-22-E has <=0.15 dB/m attenuation (500 m spool) and the S-grade PGS-CD1001-22-E <=0.18 dB/m (1000 m spool), with a 9 mm allowable bend radius. They are part of our POF fibre optical cable range.
Key Features
- 1.0 mm fibre in a 2.2 mm black PE jacket.
- U-grade (<=0.15 dB/m) and S-grade (<=0.18 dB/m) options.
- 9 mm bend radius for tight routing.
- 500 m (U) / 1000 m (S) spools.
Specifications

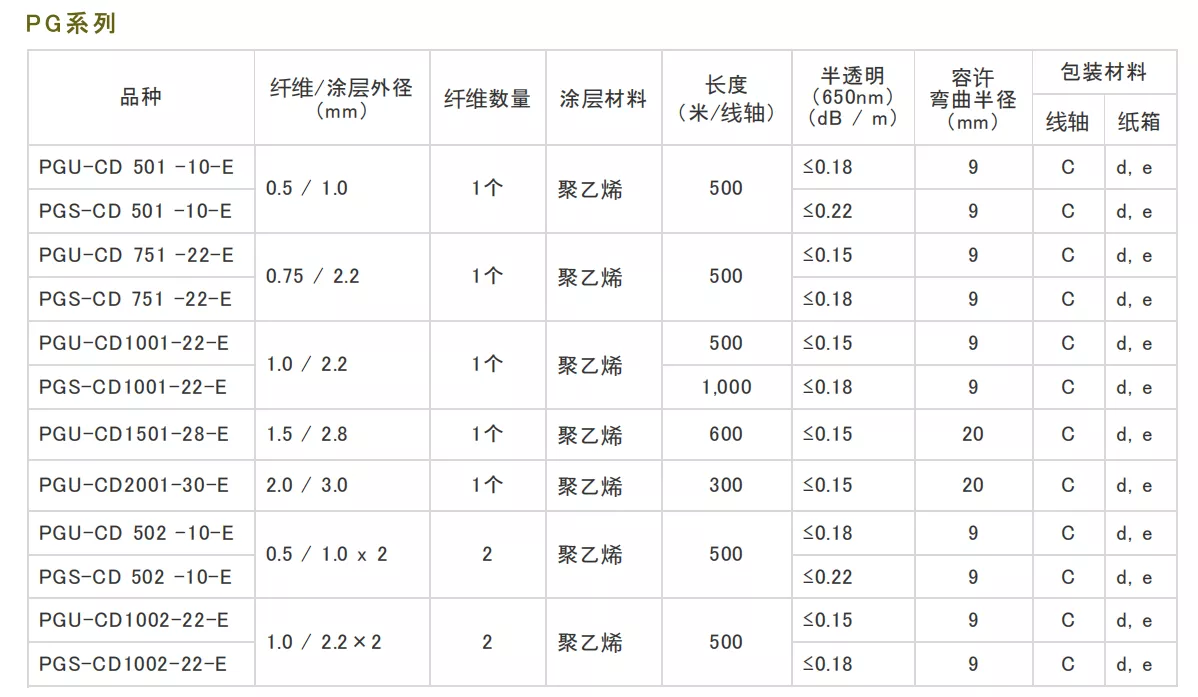

| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|

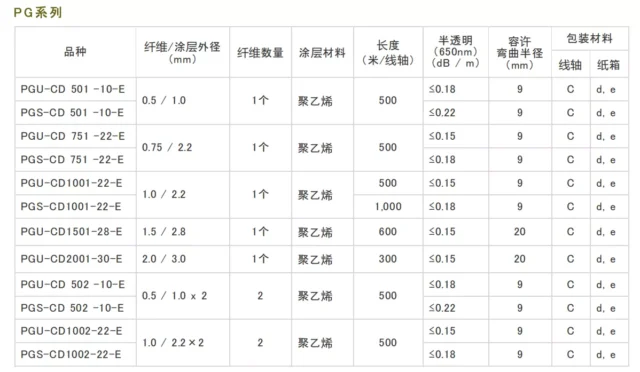

| Cable family | Toray PG-series PE-jacketed POF cable | – | Toray PG-series specification table |
| Models | PGU-CD1001-22-E / PGS-CD1001-22-E | – | U and S grade, black PE |
| Fibre / outer diameter | 1.0 / 2.2 | mm | One fibre |
| Attenuation PGU-CD1001-22-E (650 nm) | <= 0.15 | dB/m | PG table |
| Attenuation PGS-CD1001-22-E (650 nm) | <= 0.18 | dB/m | PG table |
| Allowable bend radius | 9 | mm | PG table |
| Length PGU / PGS | 500 / 1000 | m/spool | PG table |
| Jacket material | PE (polyethylene), black | – | PG table |
| Spool type | C | – | PG table |
| Core material | PMMA | – | Toray |
| Cladding material | Fluorinated polymer | – | Toray |
Applications
Sensor and lighting links, industrial control signal transmission, short communication links and equipment-to-device optical connections where a PE-jacketed POF cable is required.
Ordering and Customization
Tell us the exact model (U or S grade, black PE jacket), required length and any termination. Request a quote at sales@fevelectronics.com. More in the FAQ; return to the home page.
FAQ
What is the difference between U and S grade?
U grade (PGU-CD) has lower attenuation than S grade (PGS-CD) for the same fibre diameter; S grade is a lower-cost variant with higher loss. Match the grade to your optical budget.
What is the jacket made of?
Black polyethylene (PE), per the Toray PG-series cable specification table.
What is the minimum bend radius?
9 mm for the small/slim cables, 20 mm for the larger 1.5/2.0 mm core cables, per the Toray table.
Why Choose Us
We supply Toray PG-series jacketed POF cables to the exact U/S grade and diameter listed in the Toray specification table. Start from the POF category or the home page.
