Toray PGU-CD 1501-28-E / 2001-30-E POF Cable, 1.5 & 2.0 mm Core / 2.8-3.0 mm OD
Toray PGU-CD1501-28-E (1.5mm/2.8mm) and PGU-CD2001-30-E (2.0mm/3.0mm) black PE jacketed PMMA POF cables, <=0.15 dB/m, bend 20mm.

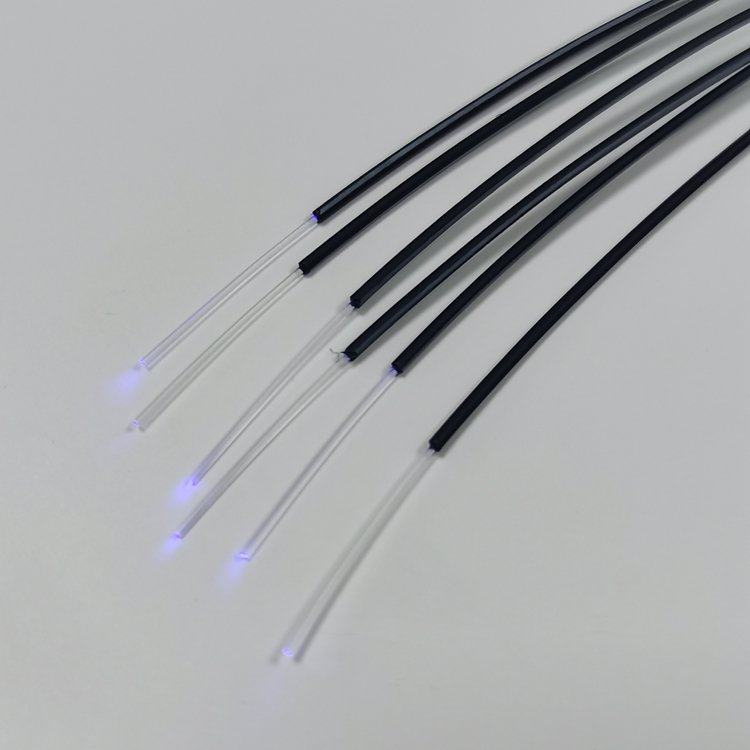

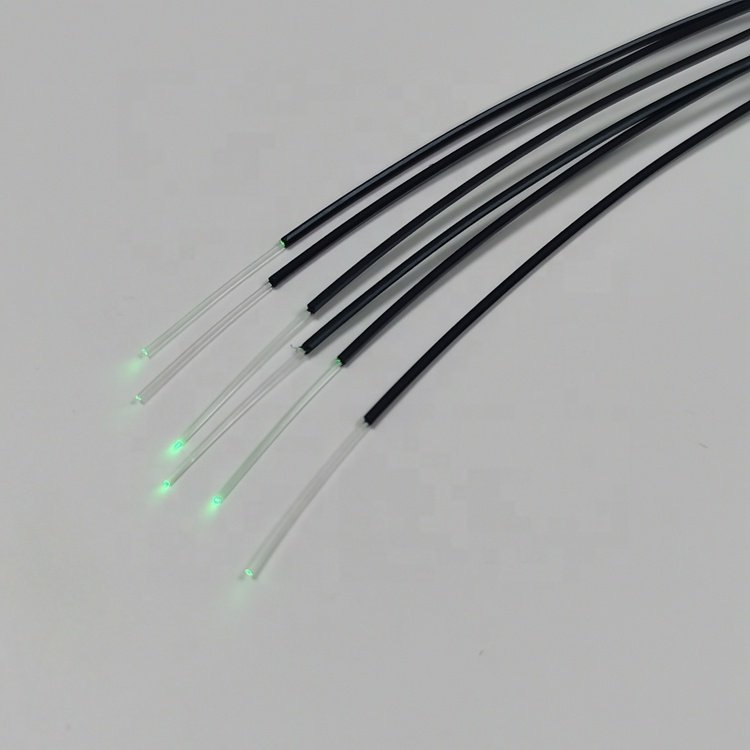

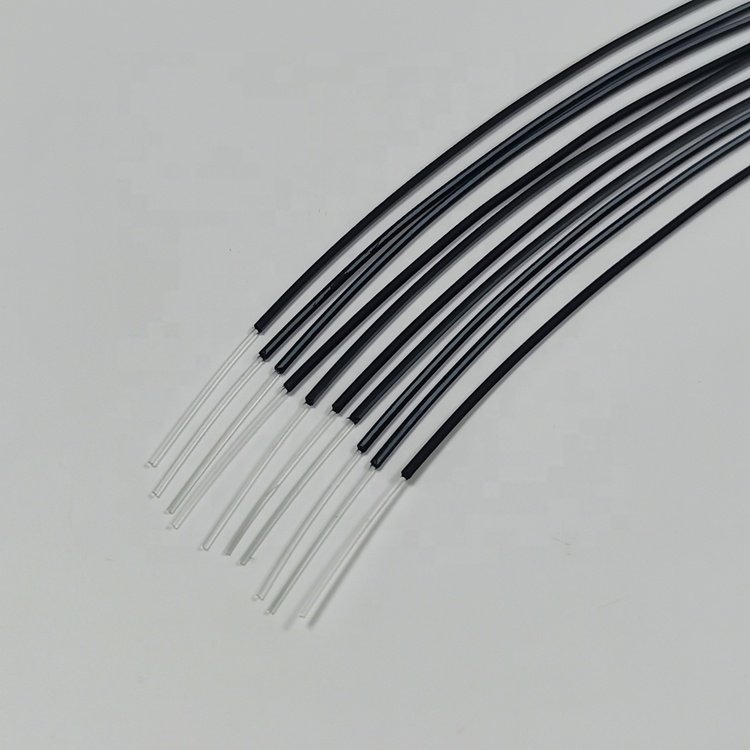

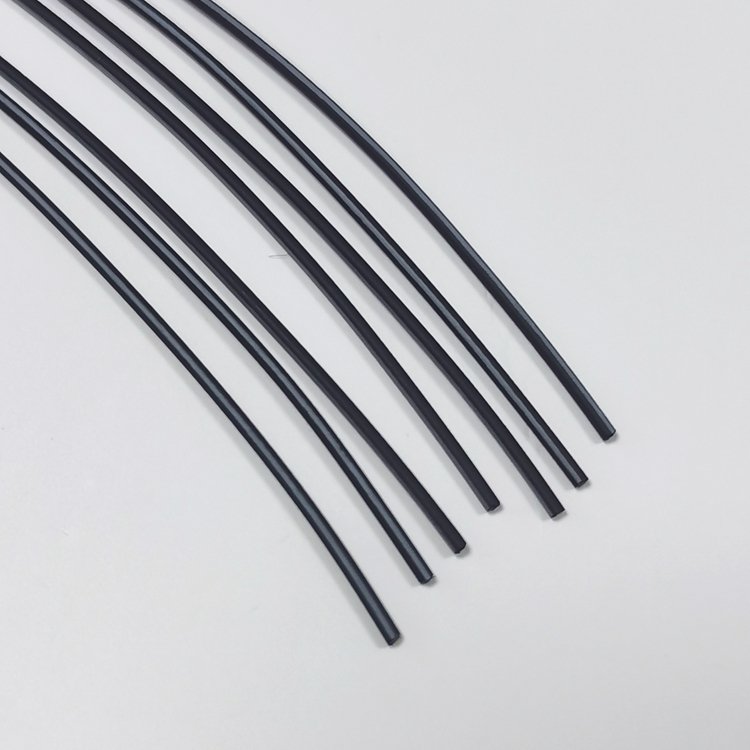

The Toray PGU-CD1501-28-E and PGU-CD2001-30-E are larger U-grade PE-jacketed POF cables, carrying 1.5 mm and 2.0 mm fibres in 2.8 mm and 3.0 mm outer jackets.
Product Overview
These are the larger-core PG-series cables for higher light throughput. The 1.5 mm fibre uses a 2.8 mm OD jacket (600 m spool) and the 2.0 mm fibre a 3.0 mm OD jacket (300 m spool); both are rated <=0.15 dB/m with a 20 mm bend radius. They are in our POF fibre optical cable range.
Key Features
- 1.5 mm / 2.0 mm large cores in 2.8 / 3.0 mm PE jackets.
- <=0.15 dB/m attenuation (650 nm).
- 20 mm bend radius for the larger diameters.
- 600 m / 300 m spools.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|

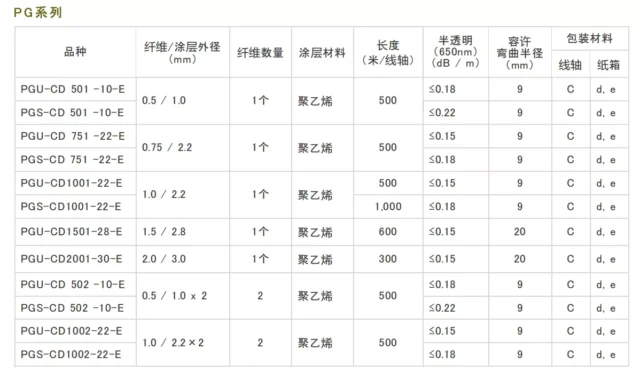

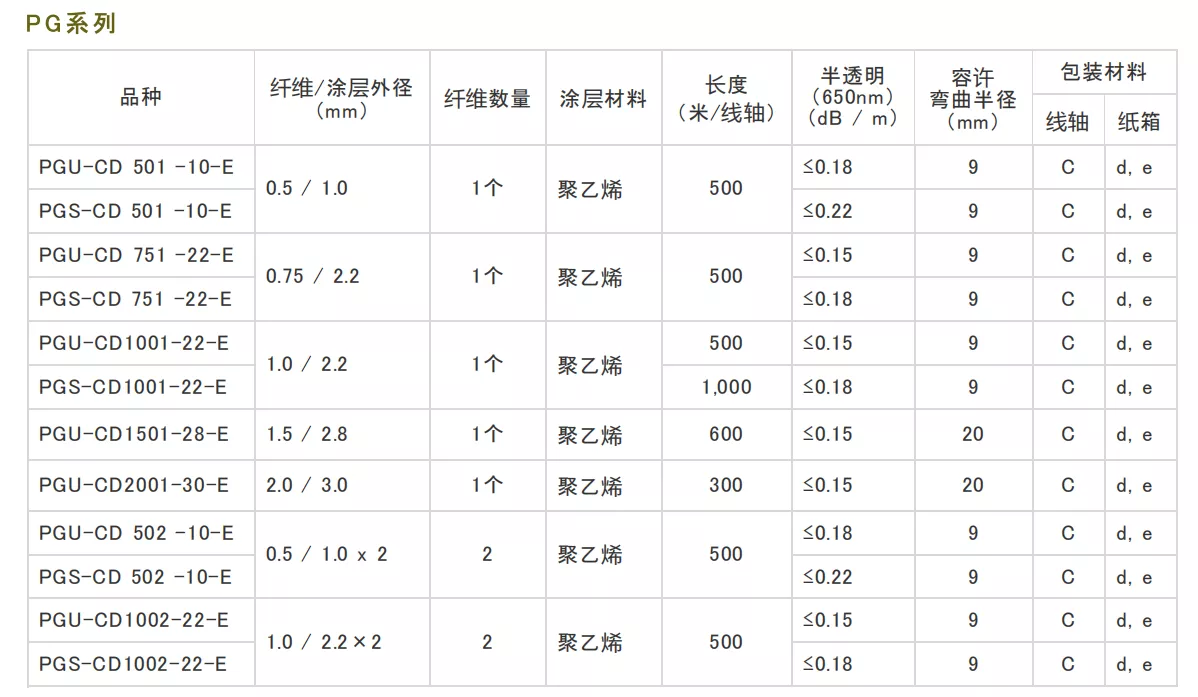

| Cable family | Toray PG-series PE-jacketed POF cable | – | Toray PG-series specification table |
| Models | PGU-CD1501-28-E / PGU-CD2001-30-E | – | U grade, black PE |
| Fibre / OD PGU-CD1501-28-E | 1.5 / 2.8 | mm | One fibre |
| Fibre / OD PGU-CD2001-30-E | 2.0 / 3.0 | mm | One fibre |
| Attenuation (650 nm) | <= 0.15 | dB/m | PG table, both models |
| Allowable bend radius | 20 | mm | PG table |
| Length 1501 / 2001 | 600 / 300 | m/spool | PG table |
| Jacket material | PE, black | – | PG table |
| Core / cladding | PMMA / fluorinated polymer | – | Toray |
Applications
Sensor and lighting links, industrial control signal transmission, short communication links and equipment-to-device optical connections where a PE-jacketed POF cable is required.
Ordering and Customization
Tell us the exact model (U or S grade, black PE jacket), required length and any termination. Request a quote at sales@fevelectronics.com. More in the FAQ; return to the home page.
FAQ
What is the difference between U and S grade?
U grade (PGU-CD) has lower attenuation than S grade (PGS-CD) for the same fibre diameter; S grade is a lower-cost variant with higher loss. Match the grade to your optical budget.
What is the jacket made of?
Black polyethylene (PE), per the Toray PG-series cable specification table.
What is the minimum bend radius?
9 mm for the small/slim cables, 20 mm for the larger 1.5/2.0 mm core cables, per the Toray table.
Why Choose Us
We supply Toray PG-series jacketed POF cables to the exact U/S grade and diameter listed in the Toray specification table. Start from the POF category or the home page.
