Toray PFU-FB 500 / 750 / 1000 PMMA POF, 0.50-1.0 mm for Industrial Data Communication
Toray U-Grade PFU-FB 500/750/1000 step-index PMMA plastic optical fibre, 0.50-1.0mm, 0.15-0.18 dB/m @650nm, for industrial data links.
Toray PFU-FB 500 / 750 / 1000 are U-Grade step-index PMMA plastic optical fibres for industrial data communication, available in 0.50, 0.75 and 1.0 mm diameters.
Product Overview

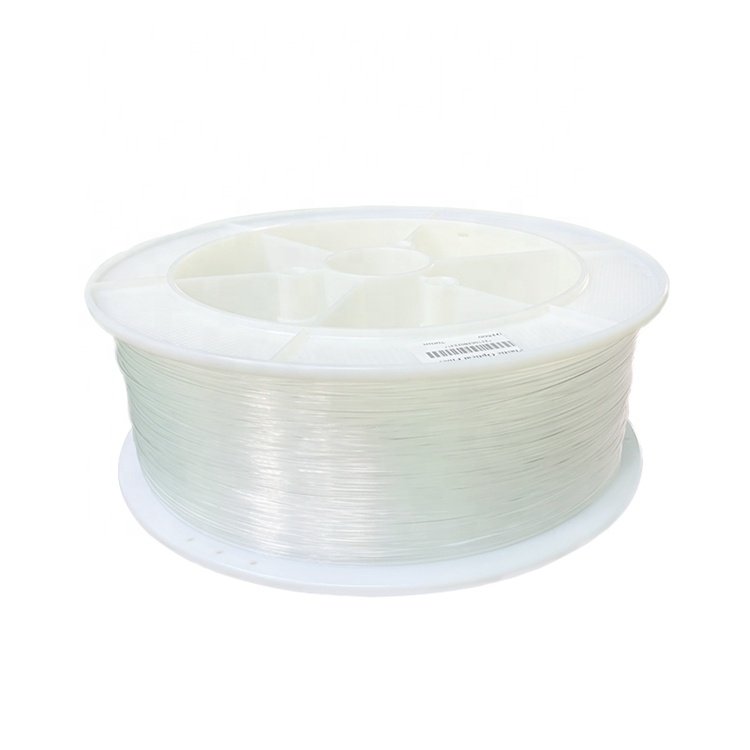

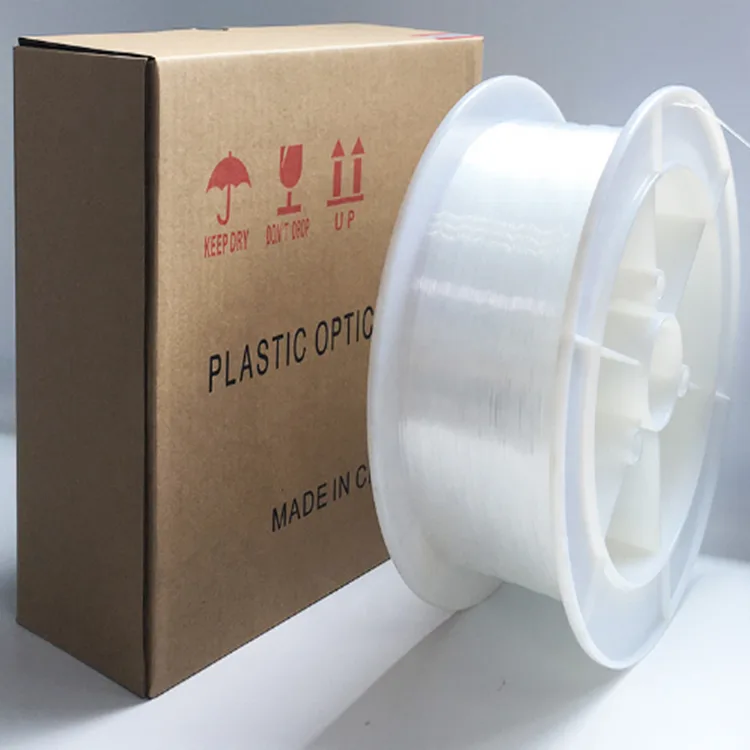

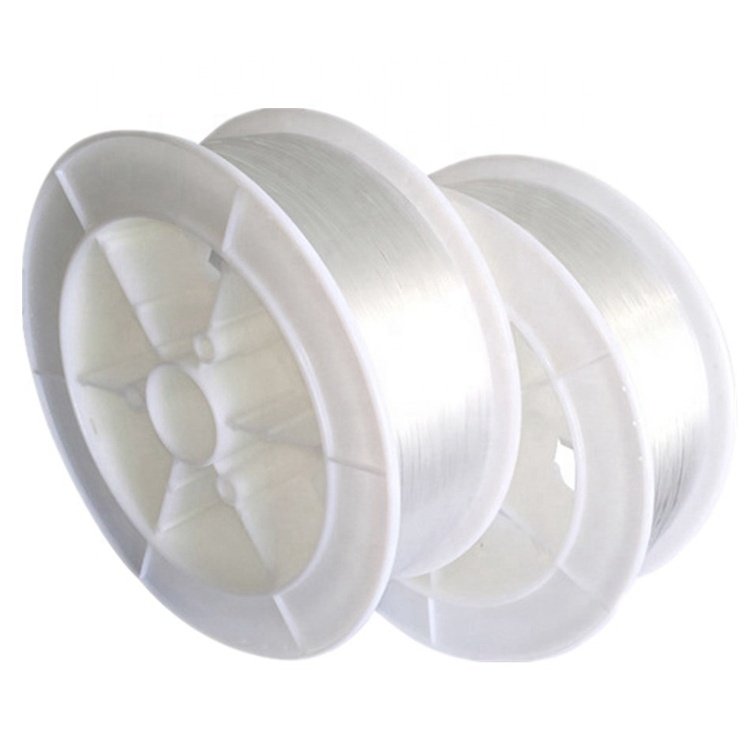

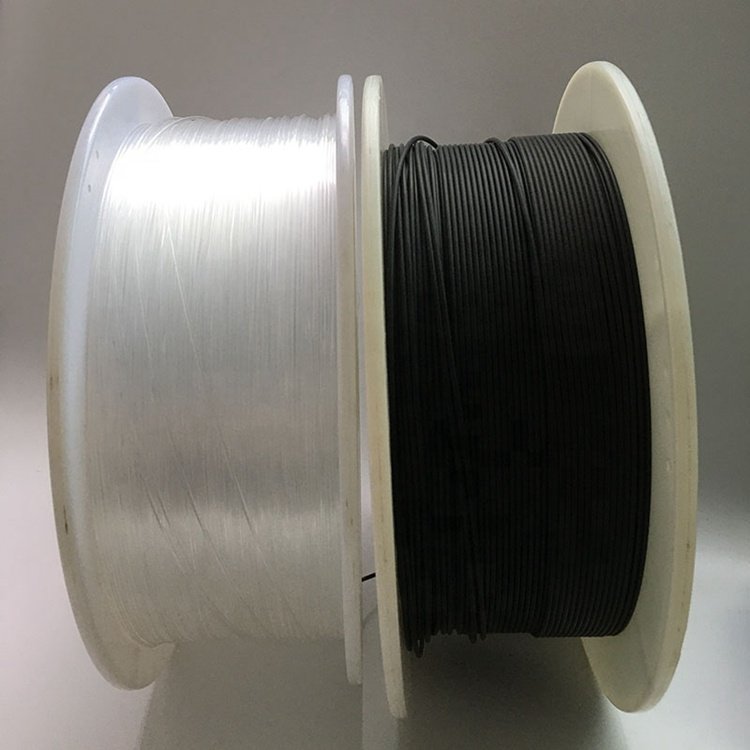

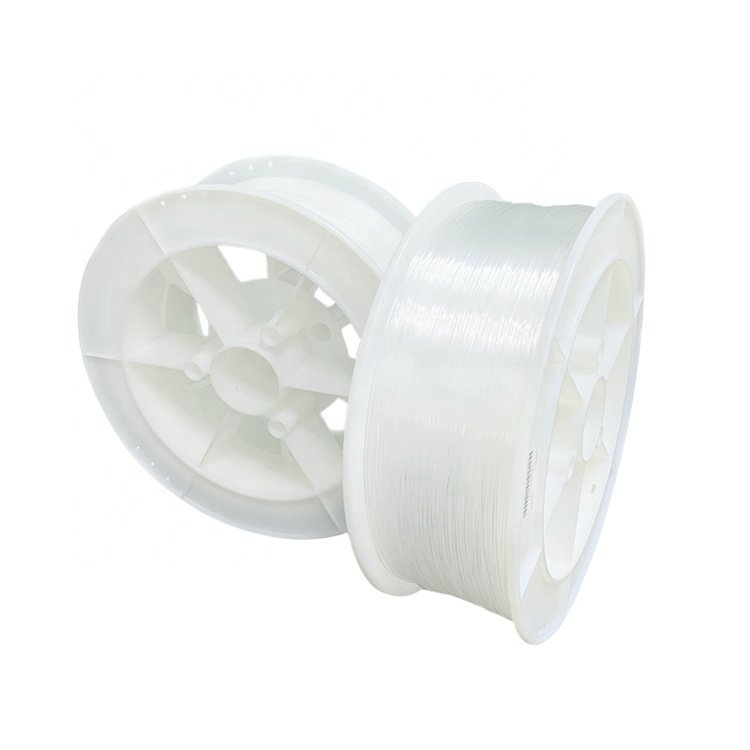

The Toray PF series is the company’s industrial data-communication POF family. These bare PMMA fibres use a fluorinated-polymer cladding and step-index profile, optimized for LED/PD short-distance links. The three diameters in this group — 0.50, 0.75 and 1.0 mm — let you trade core size against loss and bend behaviour. They are supplied on spools (6000 m for the 0.50 mm grade, down to 1500/5250 m for the 1.0 mm grade). See the full POF fibre optical cable range.
Key Features
- Toray U-Grade PF series for industrial data communication.
- Three diameters: 0.50 / 0.75 / 1.0 mm.
- Step-index PMMA core / fluorinated cladding.
- Attenuation 0.15–0.18 dB/m at 650 nm per the Toray grade table.
Specifications

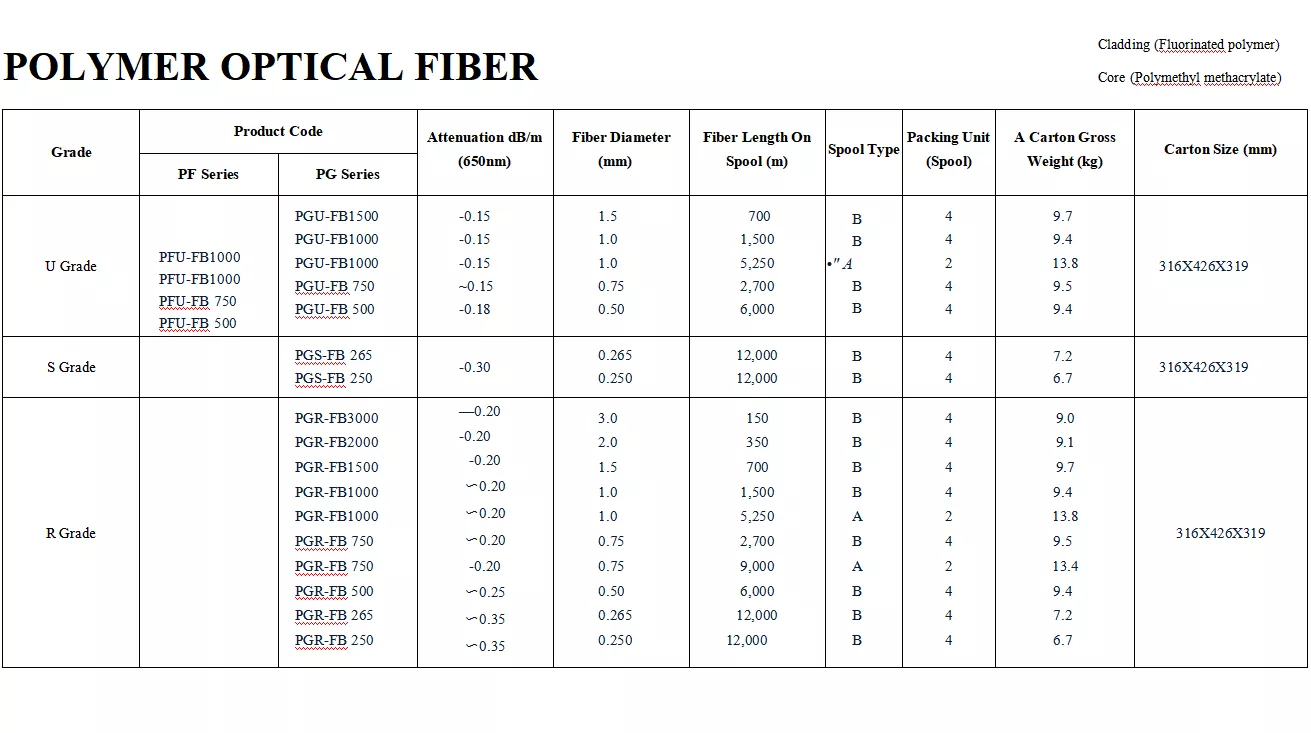

| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Fibre family | Toray PF series (industrial data communication) | – | Toray Polymer Optical Fibre grade table |
| Grades | PFU-FB 500 / 750 / 1000 | – | U Grade PF series |
| Fibre diameter PFU-FB500 | 0.50 | mm | Grade table |
| Fibre diameter PFU-FB750 | 0.75 | mm | Grade table |
| Fibre diameter PFU-FB1000 | 1.0 | mm | Grade table |
| Attenuation (650 nm) PFU-FB500 | <= 0.18 | dB/m | Grade table U Grade |
| Attenuation (650 nm) PFU-FB750 | ~ 0.15 | dB/m | Grade table |
| Attenuation (650 nm) PFU-FB1000 | <= 0.15 | dB/m | Grade table |
| Spool length PFU-FB500 / 750 / 1000 | 6000 / 2700 / 1500 (5250 on spool A) | m | Grade table |
| Core material | PMMA (polymethyl methacrylate) | – | Toray structure sheet |
| Cladding material | Fluorinated polymer | – | Toray structure sheet |
| Refractive index profile | Step index | – | Toray structure sheet |
| Carton size | 316 x 426 x 319 | mm | Grade table |
Applications
Industrial control signal transmission, sensor links, audio/SPDIF-style short links, dedicated local-area and access networks, and equipment-to-device optical communication where EMI immunity is required. Pair with a matching LED transmitter and photodiode receiver.
Ordering and Customization
Tell us the grade (PFU-FB 500/750/1000), required length, and connector/termination. Request a quote at sales@fevelectronics.com. More in the FAQ; return to the home page.
FAQ
What is the difference between PF and PG Toray series?
PF series is aimed at industrial data communication/transmission; PG series is aimed at lighting and sensing. Both are step-index PMMA POF from Toray.
What wavelength is the attenuation rated at?
The Toray grade table lists attenuation at 650 nm, the visible red wavelength typical of POF LED links.
Is the 6000K / AC165-265V part of this fibre?
No — those describe the LED illuminator and were excluded from the fibre specs.
